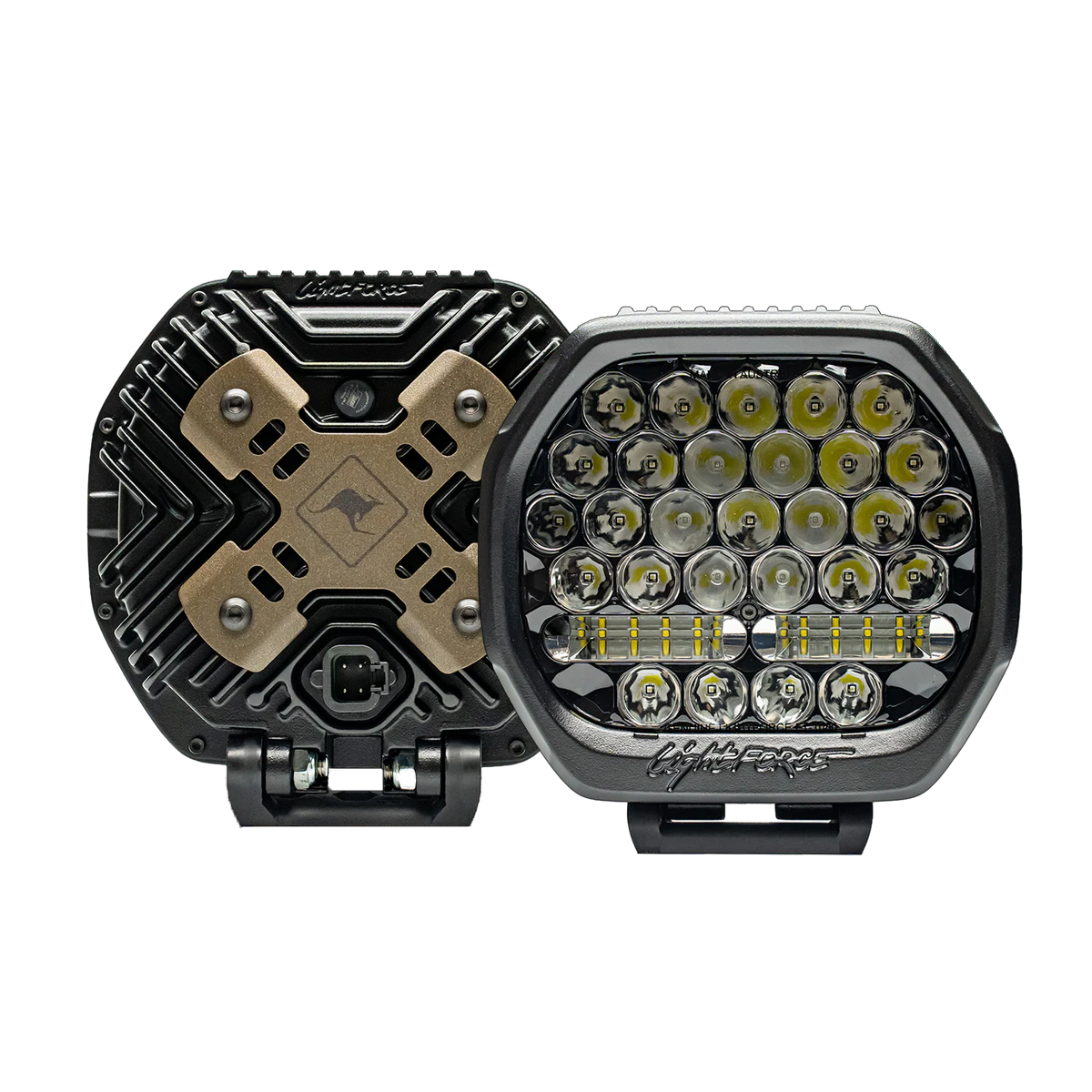

Lightforce BEAST 230mm LED Driving Light Pack - PAIR

SKU: BEAST230PK
$1,099.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Compatible with all 12V and 24V systems
Suitable for most 4WDs, utes, SUVs, and off-road vehicles
Requires the Lightforce BEAST Wiring Harness (sold separately) to enable full 3-mode operation

2 x BEAST 230mm LED Driving Lights

2 x Lightforce Clear Filters

2 x Lightforce Black Covers

2 x Reversible Mounting Brackets

2 x 4-Pin Waterproof Adapters

User Instructions

Diameter: 230mm

Weight: 2.2kg (each)

Mount: Reversible universal brackets

Connector: 4-pin waterproof

The BEAST230PK LED driving lights are proudly designed, engineered, and manufactured in Australia to meet the highest standards of durability and performance. Built for serious off-roaders and touring enthusiasts, these lights feature military-inspired styling, a hard-coated lens, and a unique 3-mode beam function. BEAST ensures full control of your driving environment with the push of a button.

 [{"variant_id":"50229348663569" , "metafield_value":""}]

Lightforce BEAST 230mm LED Driving Light Pack - PAIR

$1,099.00
Description

The Australian-made Lightforce BEAST LED Driving Lights are built tough for the harshest conditions. Designed, engineered, and tested in Australia, BEAST lights fuse military-grade durability with bold, modern styling. Their unique 3-mode function lets you switch between Spot, Flood, and BEAST mode with the push of a button—giving you full control from the driver’s seat.

Perfect for off-roaders, tourers, and adventurers, BEAST lights are lightweight yet powerful, delivering long-range performance, wide beam coverage, and proven resilience far beyond industry standards.

Note: The BEAST Universal Wiring Harness is required for installation and 3-mode operation.

FEATURES

Unique 3-mode beam function: Spot / Flood / Beast

IP69K waterproof and dustproof

Survives freezing, high heat, impacts, and salt spray

UV and chemical-resistant housing

Gore® membrane and military-style bash plate

Lightweight, slimline design

Australian made and tested to extreme standards

Over 10,000 hours continuous runtime durability

FAQ's

Q: What makes the BEAST different from other LED lights?
The BEAST offers 3 selectable beam modes (Spot, Flood, Beast) from a single light, controlled from your dashboard.

Q: Can I install it on a 24V system?
Yes, the BEAST supports 11V–32V systems.

Q: Is the harness required?
Yes, the dedicated BEAST Wiring Harness is required for full 3-mode operation.

Specifications

Voltage Range: 11V – 32V

Wattage: 172W

Current Draw: 11.2 / 6.5 / 13 Amps @ 13.2V

LEDs: 36

Effective Lumens: 10,275 / 7,826 / 13,269 lm

Raw Lumens: 16,496 / 11,025 / 19,965 lm

Colour Temp: 5700K

CRI: 70

Ingress Rating: IP69K

Beam Type: 3 Mode (Spot, Flood, Beast)

Candela: 1,105,100 / 302,740 / 945,300 cd

Weight: 2.2kg per light

Compliance: RCM, CE, FCC, RoHS, CISPR25, UN ECE R10 & R149

Durability: IK16 impact rated, salt/UV/chemical resistant, MIL-STD-810H vibration tested

Installation Information

Installation is plug-and-play when used with the BEAST Wiring Harness

Includes waterproof 4-pin connectors and reversible mounting brackets

Compact 8mm connector allows easy pass-through into the vehicle cabin

Wiring harness includes a 3-mode switch that mounts in the dash or fits Toyota TY2 switch panels

BEAST by Lightforce LED Driving Lights User Instructions

Warranty Information


5-Year Manufacturer Warranty from Lightforce

Covers defects in materials and workmanship under normal use

Proof of purchase required for warranty claims
