Home / Lighting / Driving & light bars

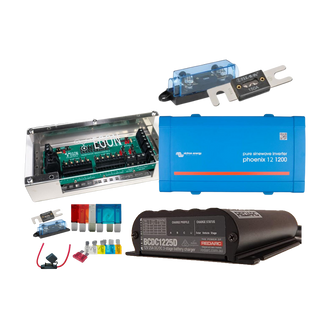

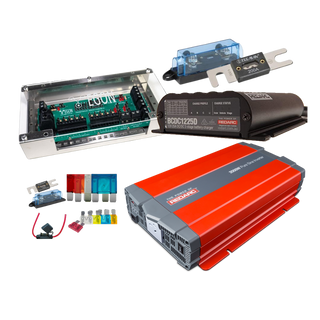

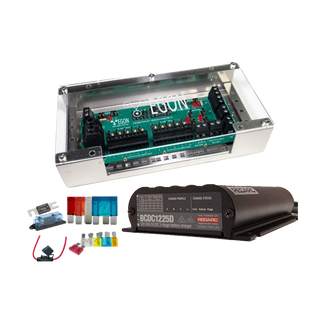

BCDC1225D kit shown without an inverter: the EGON DC Hub in its clear-lidded case above a Redarc BCDC1225D charger, an ANL fuse and holder, and a set of blade and mega fusesBCDC1225D kit with the EGON DC Hub, a Victron Phoenix 12 1200 pure sinewave inverter, a Redarc BCDC1225D charger, a 150A ANL fuse and holder, and a set of blade and mega fusesBCDC1225D kit with the EGON DC Hub in its clear-lidded case, a Redarc BCDC1225D 12V 25A DC to DC three stage charger, a Redarc 2000W pure sine inverter, a 200A ANL fuse and holder, and a set of blade and mega fuses

Elevate Automotive

BCDC1225D Kit with EGON DC Hub & Optional Inverters

KIT-EGONBCDC1225D

This EGON & REDARC Kit is a complete 12V electrical solution ideal for dual battery setups in 4WDs, caravans, and off-grid vehicles. Featuring the REDARC BCDC1225D 25A DC-DC charger, EGON DC Hub Kit, and EGON’s custom Fuse Kit, this system…

$1,466.00

4 interest-free payments of $366.50 with
or pay over time with
Important note

Developed in collaboration between REDARC and EGON to simplify 12V installations with robust, Australian-designed components. Built for harsh conditions.

Option
We accept
Universal fit. Compatible with most 12V and dual battery vehicle setups including 4WDs, utes, vans, caravans, and camper trailers.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

This EGON & REDARC Kit is a complete 12V electrical solution ideal for dual battery setups in 4WDs, caravans, and off-grid vehicles.

Featuring the REDARC BCDC1225D 25A DC-DC charger, EGON DC Hub Kit, and EGON’s custom Fuse Kit, this system is designed for fast, clean, and reliable DIY installation.

Add your choice of 1200W Victron or 2000W REDARC inverter for 240V power anywhere you go.

  • Full 12V electrical system
  • MPPT solar input
  • Green Power Priority
  • Pre-wired hub for reduced install time
  • Multiple output ports for accessories
  • Compact and rugged design

Input Voltage12V nominal (compatible with 12V systems)

Output Current25A continuous

Charging SourcesSimultaneous charging from alternator and solar (MPPT solar regulator included)

Solar Input Voltage Range8V to 40V

Dimensions (LxWxH)Approx. 182mm x 92mm x 65mm

WeightApprox. 1.5kg

EGON DC Hub KitCentral DC input/output fuse box for streamlined wiring Includes fuse holders and fuses for battery inputs and accessory outputs Simplifies and reduces installation time

DimensionsCompact design suited for vehicle mounting

Victron Phoenix 12/1200 Inverter(Optional)

Output Power1200VA continuous

Output WaveformPure sine wave

Input Voltage12V DC nominal

CommunicationVE.Direct port for monitoring and control

Dimensions280mm x 155mm x 125mm (approx.)

Warranty: 2 years

Redarc 2000W Pure Sine Wave Inverter(Optional)

Output Power2000W continuous

Output WaveformPure sine wave

Input Voltage12V DC nominal

Operating Temperature RangeDesigned for harsh Australian conditions

DimensionsSlim and lightweight design

Warranty2 years

EGON DC Hub: 225mm x 135mm x 60mm

BCDC1225D: 150mm x 120mm x 37mm

Victron Inverter: 295mm x 180mm x 105mm

REDARC 2000W Inverter: 420mm x 255mm x 83mm

Everything this install needs

0 of 0 in the box


DIY-friendly with all major wiring routes pre-managed via the EGON DC Hub. No specialised tools or crimping required. Optional inverters may require minor mounting adjustments.

Universal fit. Compatible with most 12V and dual battery vehicle setups including 4WDs, utes, vans, caravans, and camper trailers.

Q: Is this kit compatible with lithium batteries?
A: Yes, the BCDC1225D supports lithium, AGM, GEL, standard lead-acid, and calcium batteries.

Q: Can I install this without an auto electrician?
A: Yes, this kit is designed for easy DIY installation using the pre-wired EGON DC Hub.

Q: What inverter should I choose?
A: Choose Victron 1200W for lighter use (e.g., laptops, lights), or REDARC 2000W for high-draw appliances (e.g., kettles, microwaves).
