Elevate Automotive
Isuzu D-MAX RC 4JJ1 Upgraded Alternator Kit (BKS-240DMAX)
KIT-DMAX-RG-4JJ1-BKS240DMAX
Upgrade your Isuzu D-MAX RC 4JJ1 with a high-output 240A alternator kit designed for dual batteries, winches, fridges and touring setups. Featuring a direct-fit alternator, upgraded charging cable and a 250A fused harness, it delivers the charging capacity your factory system can't. Backed by a 2-year / 25,000km warranty.
$1,089.00$1,210.00 Save $121
Designed for customers requiring increased charging capacity for modern 4WD accessories and auxiliary battery systems. Professional installation is recommended to ensure correct operation and charging performance.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
Isuzu D-MAX RC 4JJ1 Upgraded Alternator Kit (BKS-240DMAX)
Elevate Automotive
BOLTS INTO THE FACTORY LOCATION
161mm mount spacing, 55mm leg ID and a 17mm shaft, all matching the original, so no brackets or spacers
217A HOT, NOT JUST COLD
The honest working figure at 13.5V once up to temperature, rather than the cold bench rating alone
240A REPLACES 130A
Close to double the factory output, so a loaded touring system is no longer sitting at capacity.
250A FUSED HARNESS INCLUDED
Cable sized to carry the full output, so it reaches the battery instead of heating up undersized factory wire
TALKS TO THE ECU
Internal LIN regulator communicates exactly as the factory alternator does, with no ECU changes or resistor tricks
Upgrade your Isuzu D-MAX RC 4JJ1 charging system with the BKS-240DMAX Upgraded Alternator Kit, built to deliver far more charging capacity for vehicles running demanding electrical accessories. Whether you are powering a dual battery setup, off-road lighting, a winch, an air compressor, a fridge or touring equipment, this high-output kit provides the headroom the factory alternator does not have.

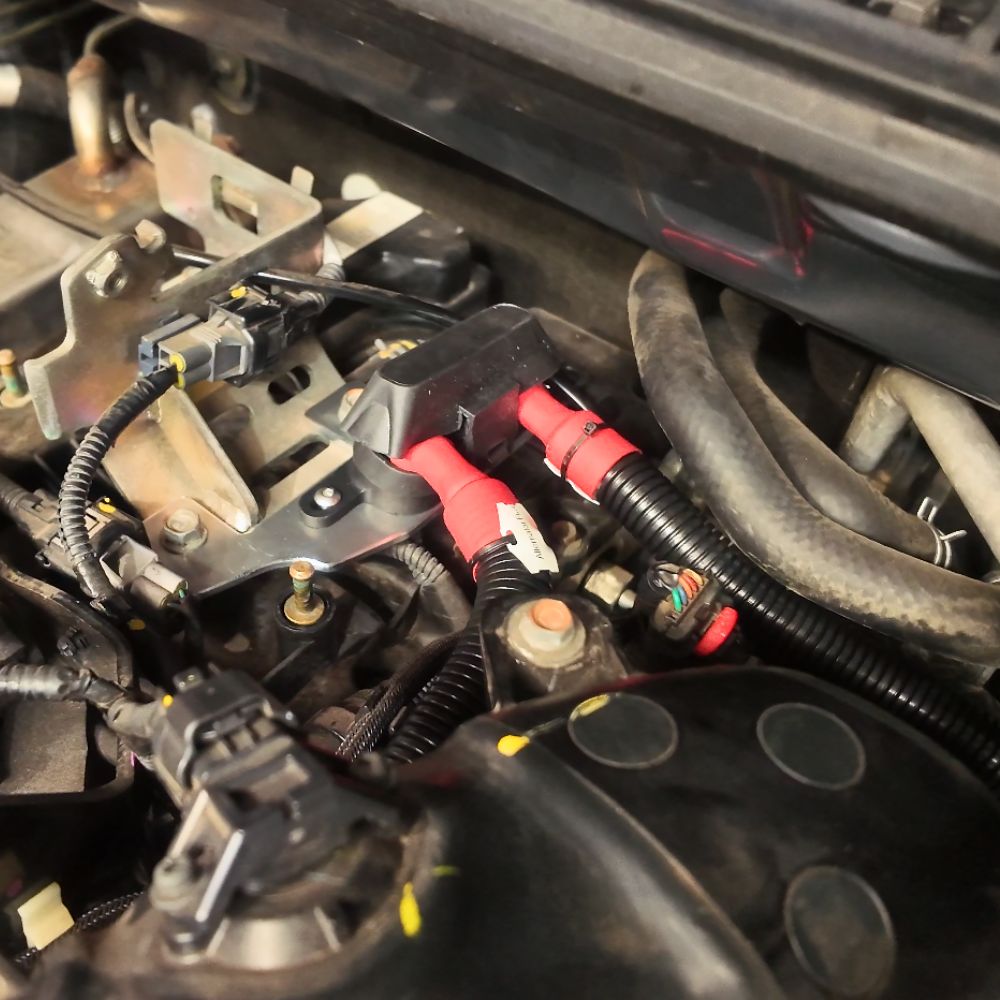

The alternator puts out 240A cold and around 217A hot, through a 7PV fixed pulley on a 17mm shaft, with an internal LIN regulator so it talks to the vehicle the way the factory unit does. It is a direct replacement in the original mounting location.

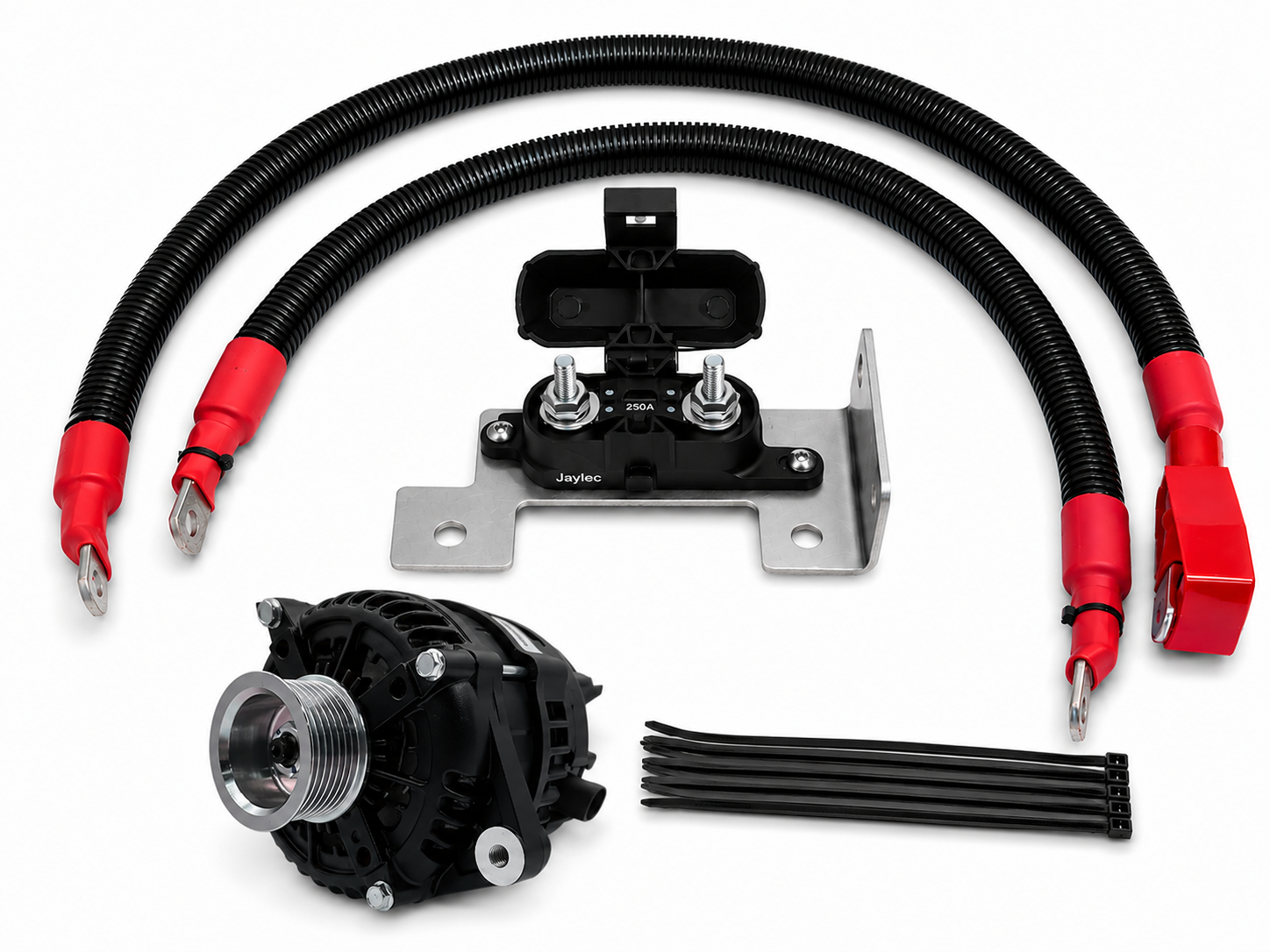

The harness matters as much as the alternator. Factory cabling was never sized to carry 240A, and reusing it is the most common reason an upgraded alternator does not deliver what it is rated for. The kit includes upgraded cable with the lugs already labelled, plus a 250A mega fuse and holder on a bracket, so the extra output actually reaches the battery instead of being lost as heat in undersized wire.
Check your engine before ordering. This kit is for the 4JJ1. If you have the later RG D-MAX with the 4JJ3-TCX engine, we build the same kit for it:
Isuzu D-MAX RG 4JJ3 240A Upgraded Alternator Kit →
Identical kit and the same alternator. Only the fuse bracket and the cable lengths differ to suit the 4JJ3 engine bay.
Backed by a 2 year or 25,000km manufacturer warranty.
- High-output 240A charging capacity
- Direct-fit upgrade for the Isuzu D-MAX RC with the 4JJ1 engine
- Supports dual battery systems
- Faster auxiliary battery charging
- Improved voltage stability under load
- Suited to touring, towing, trade and off-road vehicles
- Handles increased accessory demands
- Heavy duty construction for long-term reliability
