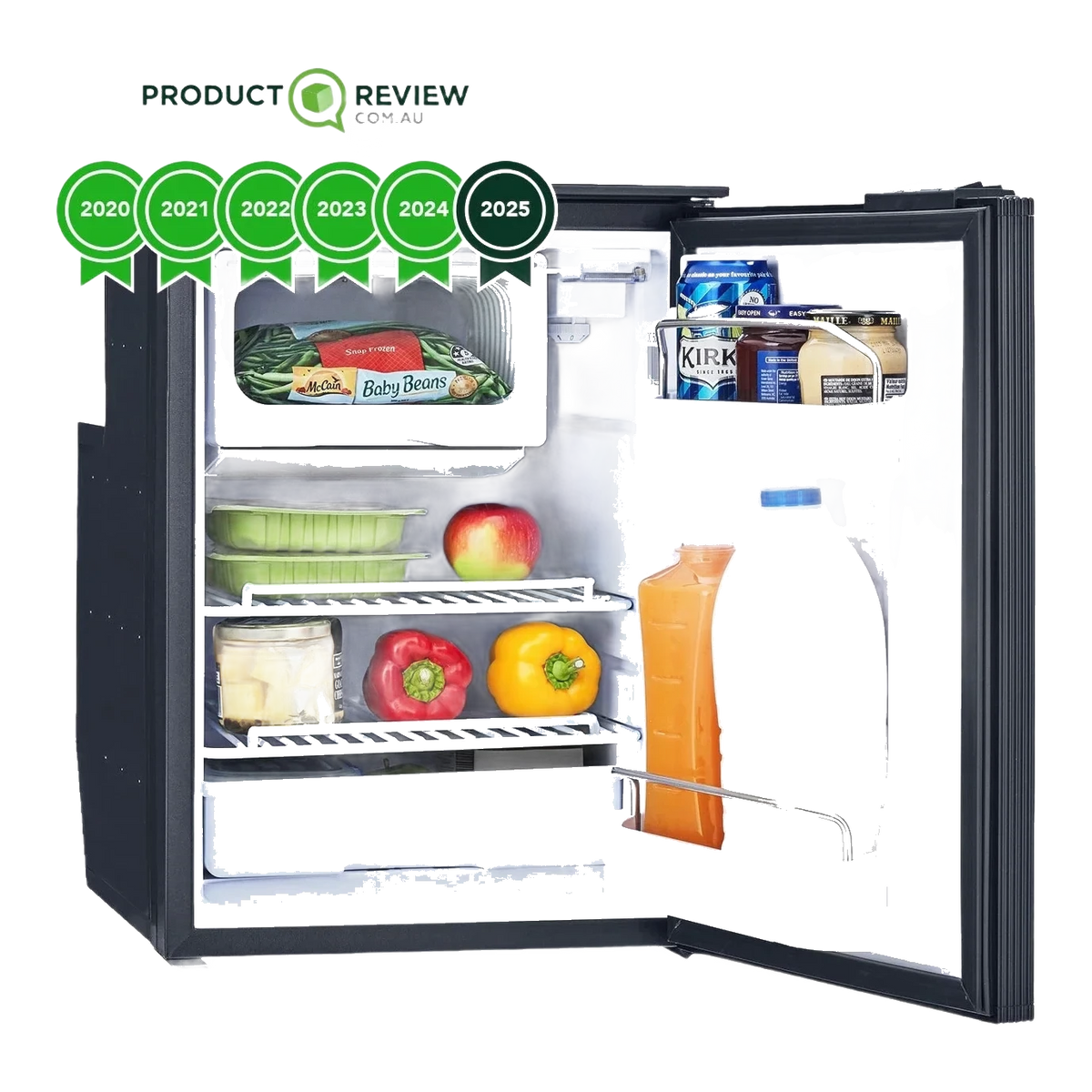

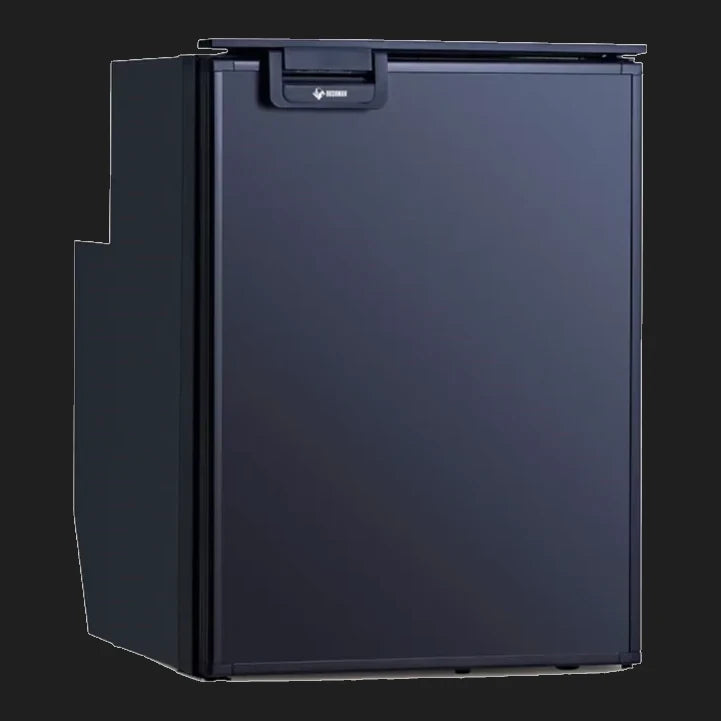

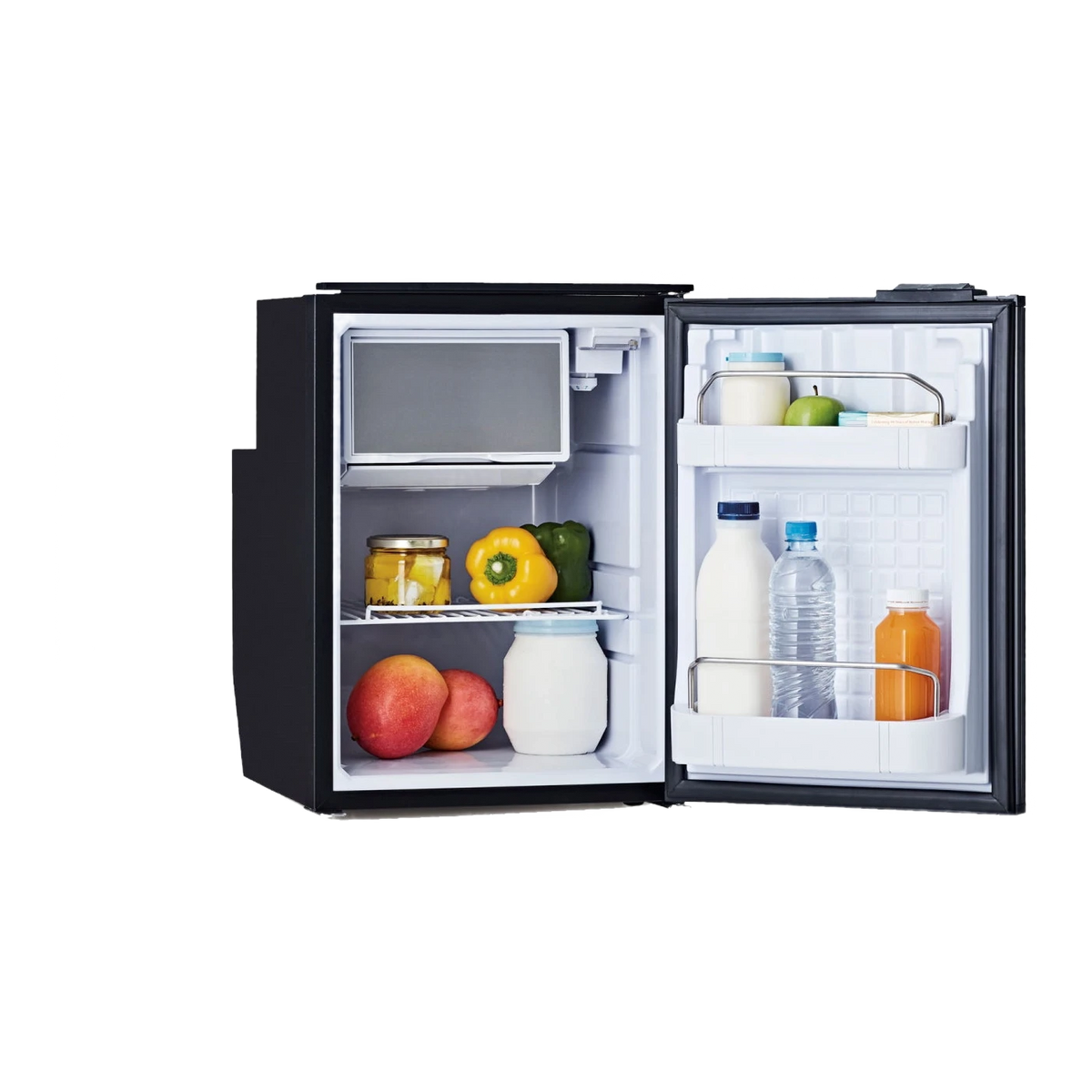

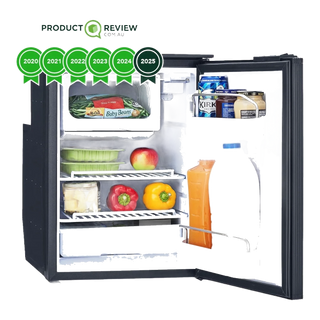

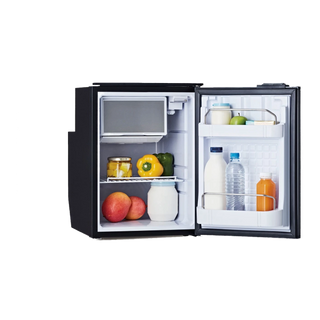

50L Caravan Fridge Heavy Duty Upright Fridge Series - 12V / 24V
DC50-X
50L upright 12V/24V DC fridge freezer with Nidec Danfoss BD35HD variable-speed compressor. Tropical rated to 43°C, ~1.0 Ah/hr average draw. Sized for vans, canopies, tiny houses and small boats where a full-size fridge won't fit.
$1,265.00
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
TROPICAL RATED TO 43°C
Holds temperature in ambients up to 43°C, so it keeps working through an Australian summer.
~4L INTERNAL FREEZER
Deep and narrow by design, so the freezer takes as little as possible from your fridge space.
1.0 AH PER HOUR
Secop Danfoss BD35HD variable speed compressor keeps the average draw low enough for a modest battery bank.
7 YEAR COMPRESSOR WARRANTY
Backed by 7 years on the compressor and 3 years on the fridge, direct from Bushman.
REVERSIBLE DOOR, MOUNT KIT SUPPLIED
Hinge the door left or right to suit your layout. Full mounting kit and 1.2m Anderson lead included.
The Bushman DC50-X is the smallest upright in Bushman's Heavy Duty DC-X range. At 50 litres, it is the fridge for van fit-outs, tiny houses, small powerboats and canopies where a bigger unit will not fit. It draws around 1.0 amp hour per hour at 25°C ambient, averaged across a full day.
It runs a genuine Secop Danfoss BD35HD compressor, a 60W unit on a variable speed drive that modulates its output to suit the load rather than simply cycling hard on and off. That is what keeps the average current draw low across 24 hours. It carries a Tropical 'T' rating and is rated to hold temperature in ambients up to 43°C.

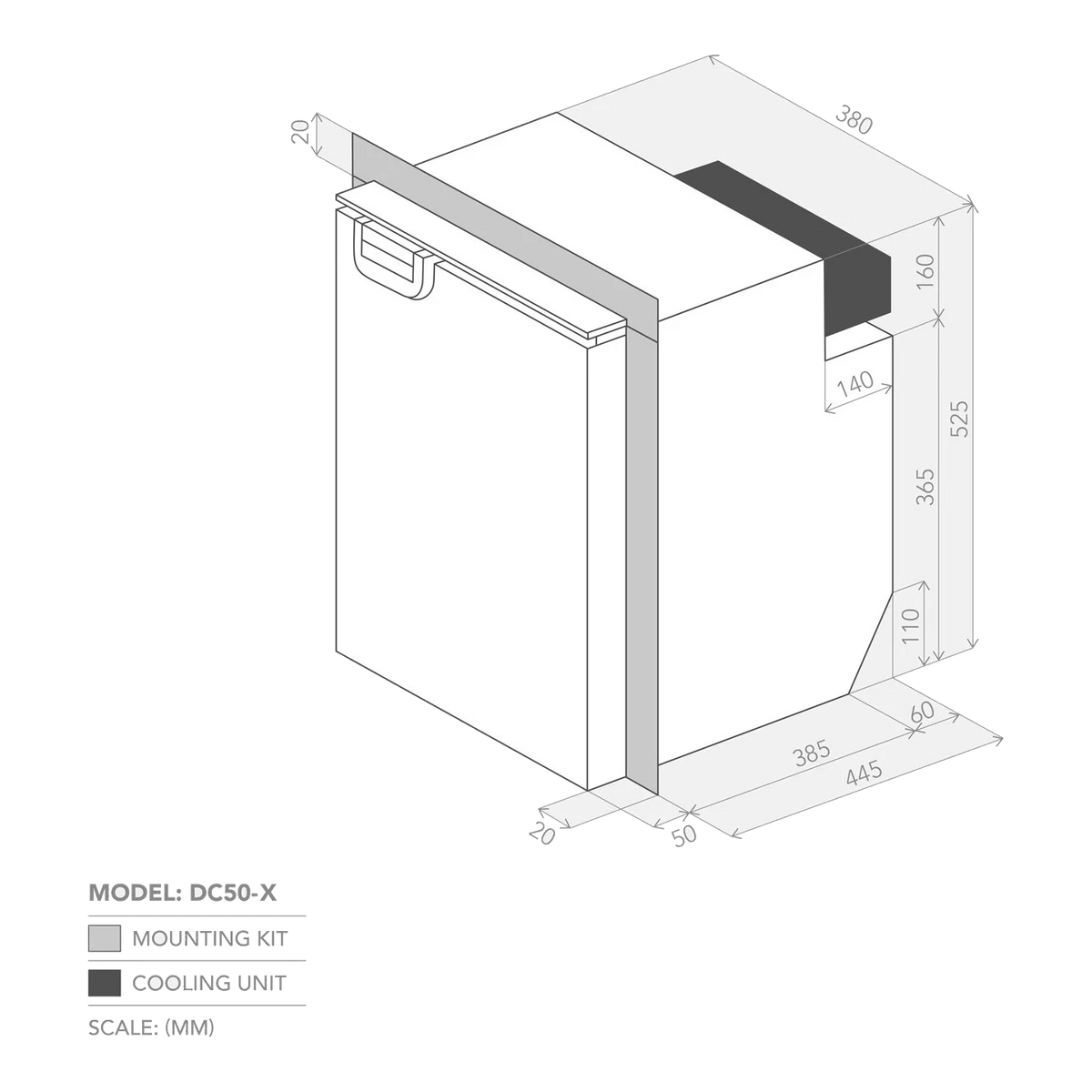

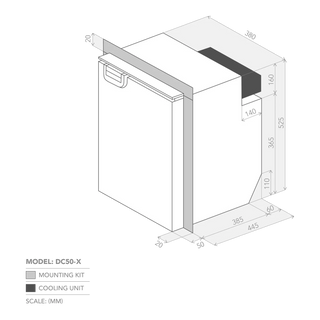

Made for built-in installations. Flush mount into cabinetry using the supplied mounting kit, or fasten through the internal M5 sleeves, or use the M5 threaded inserts around the cabinet for custom brackets. The compressor cavity needs 2 rear vents of 400cm² free area each. Wire it on its own dedicated circuit straight back to your battery bank.
The DC50-X sits under the DC65-X in the DC-X range. Both are 495mm and 515mm deep respectively, so if the opening you have is closer to 520mm deep step up to the DC65-X for the extra 15 litres. If you are working with even less space, the DC50-X at 380mm wide and 525mm high is Bushman's smallest upright.
- Genuine Secop Danfoss BD35HD compressor, 60W, variable speed drive for low average current draw. German designed, Japanese owned
- Tropical T-Class rating, holds temperature in ambients up to 43 degrees C
- Heavy duty wire shelves for off-road use

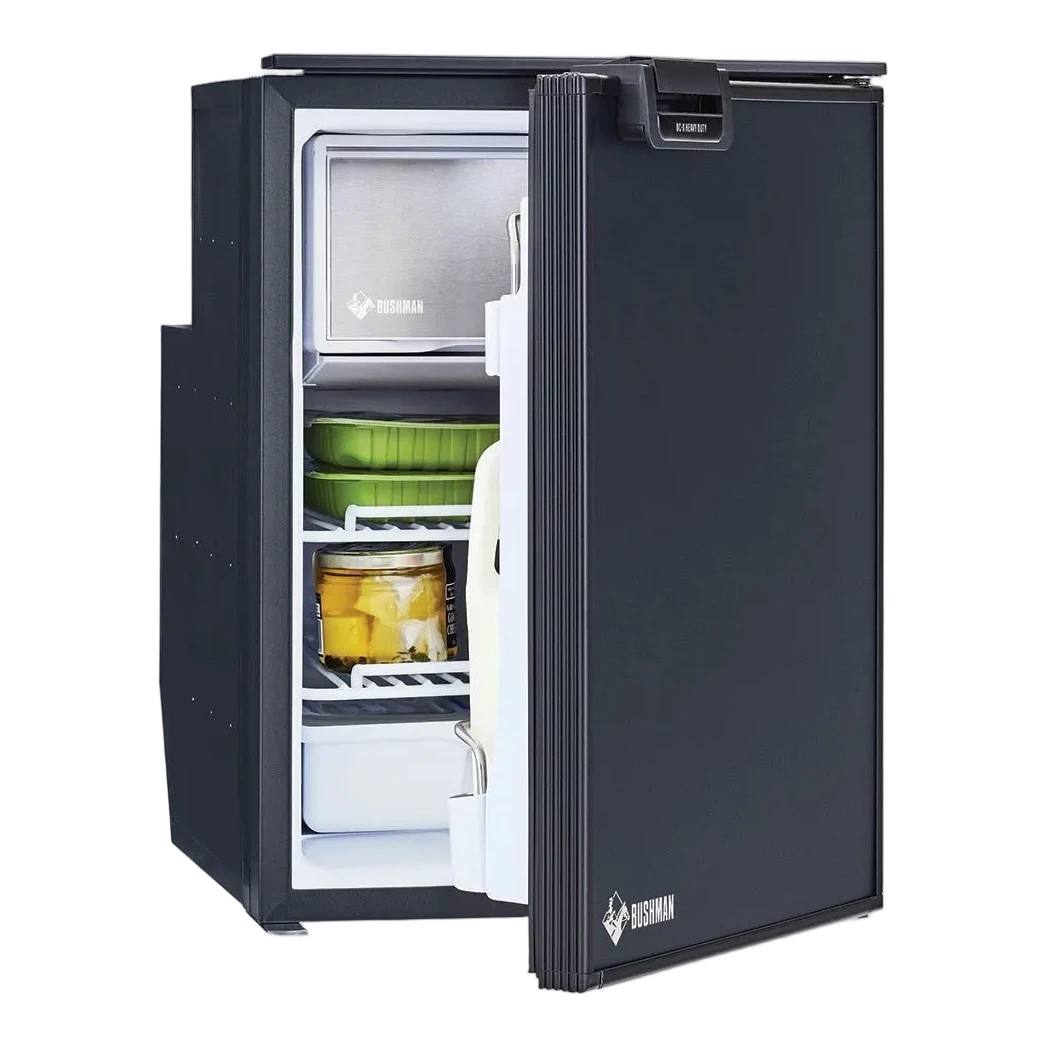

- Reversible door with interchangeable front panel
- Soft custom rubber feet to smooth out corrugations
- Three mounting options: internal M5 sleeves, the supplied mounting kit fascia, or M5 custom brackets
- Supplied with a full mounting kit and a 1.2m Anderson plug lead
Capacity and temperature
Total Capacity: 50L
Fridge Temperature: 4°C ±2°C
Freezer Temperature: -12°C ±2°C
Tropical Rating: Class T, rated to 43°C ambient
Electrical
Voltage: 12V or 24V DC, auto sensing
Power Consumption: ~1.0 Ah/hr at 25°C ambient on 12V, averaged over 24 hours
Start Surge: Up to 10A for 0.5s at compressor start
Low Voltage Cut-In: 10.9V on 12V, 22.7V on 24V
Low Voltage Cut-Out: 9.6V on 12V, 21.3V on 24V
Compressor and cooling
Compressor: Nidec Danfoss BD35HD, 60W variable-speed drive, 2A to 4.5A operating range
Condenser fan: Fitted as standard
Connection and finish
Connection: 1.2m Anderson plug lead, fitted

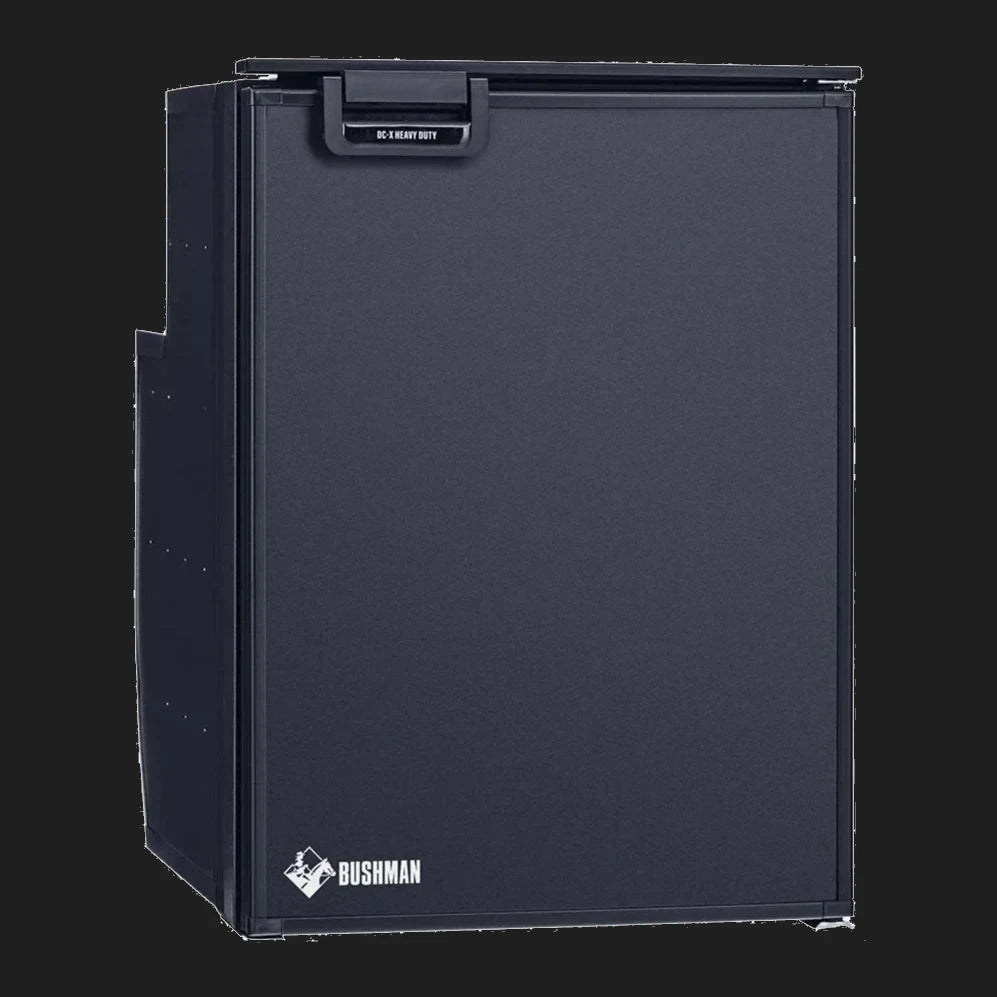

Finish: Matte black with interchangeable front panel
Product Code: DC50-X
