65L Caravan Fridge Heavy Duty Upright Fridge Series - 12V / 24V
DC65-X
65L upright 12V/24V DC fridge freezer with Nidec Danfoss BD35HD variable-speed compressor. Tropical rated to 43°C, ~1.0 Ah/hr average draw. Sized for camper trailers, canopies, 4WD canopies, boats and smaller caravans.
$1,379.00
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
TROPICAL RATED TO 43°C
Holds temperature in ambients up to 43°C, so it keeps working through an Australian summer.
~4L INTERNAL FREEZER
Deep and narrow by design, so the freezer takes as little as possible from your fridge space.
1.0 AH PER HOUR
Secop Danfoss BD35HD variable speed compressor keeps the average draw low enough for a modest battery bank.
7 YEAR COMPRESSOR WARRANTY
Backed by 7 years on the compressor and 3 years on the fridge, direct from Bushman.
REVERSIBLE DOOR, MOUNT KIT SUPPLIED
Hinge the door left or right to suit your layout. Full mounting kit and 1.2m Anderson lead included.

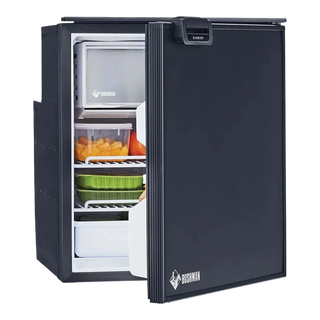

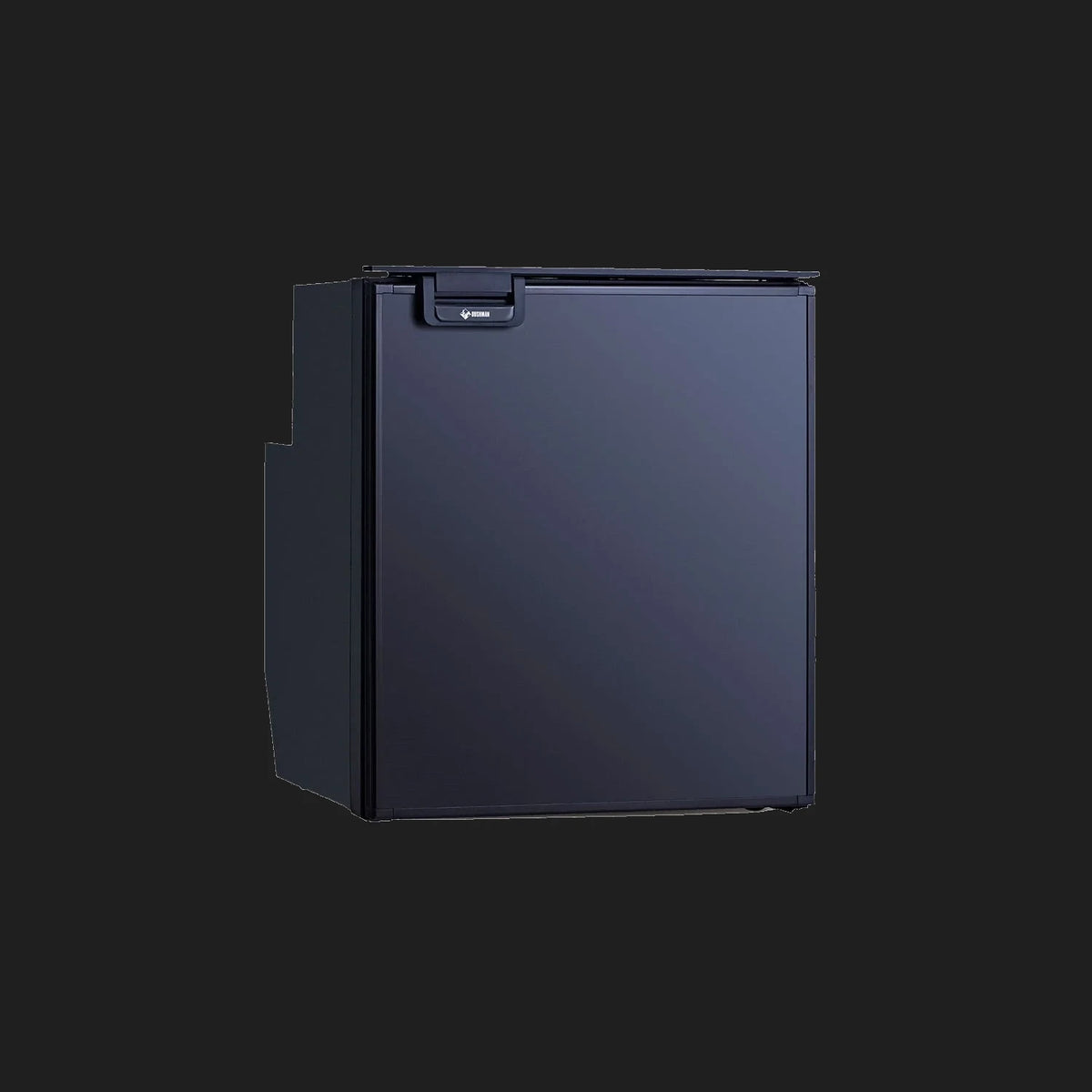

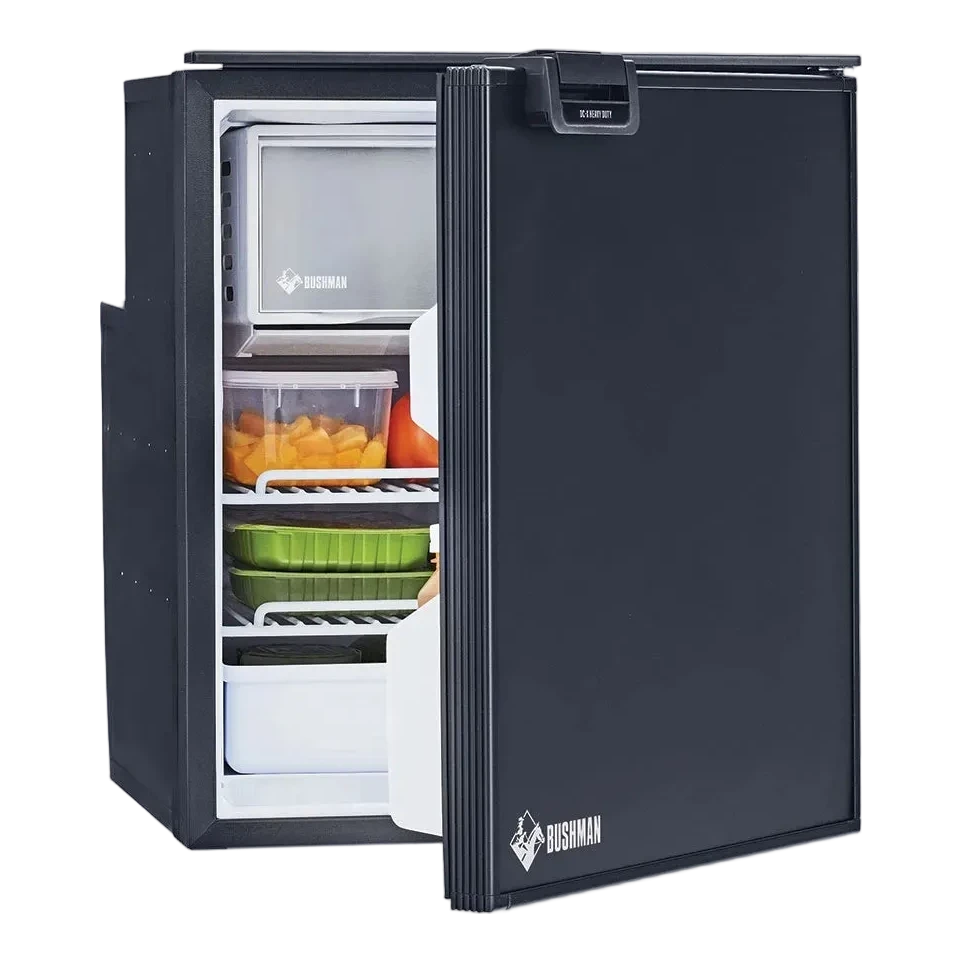

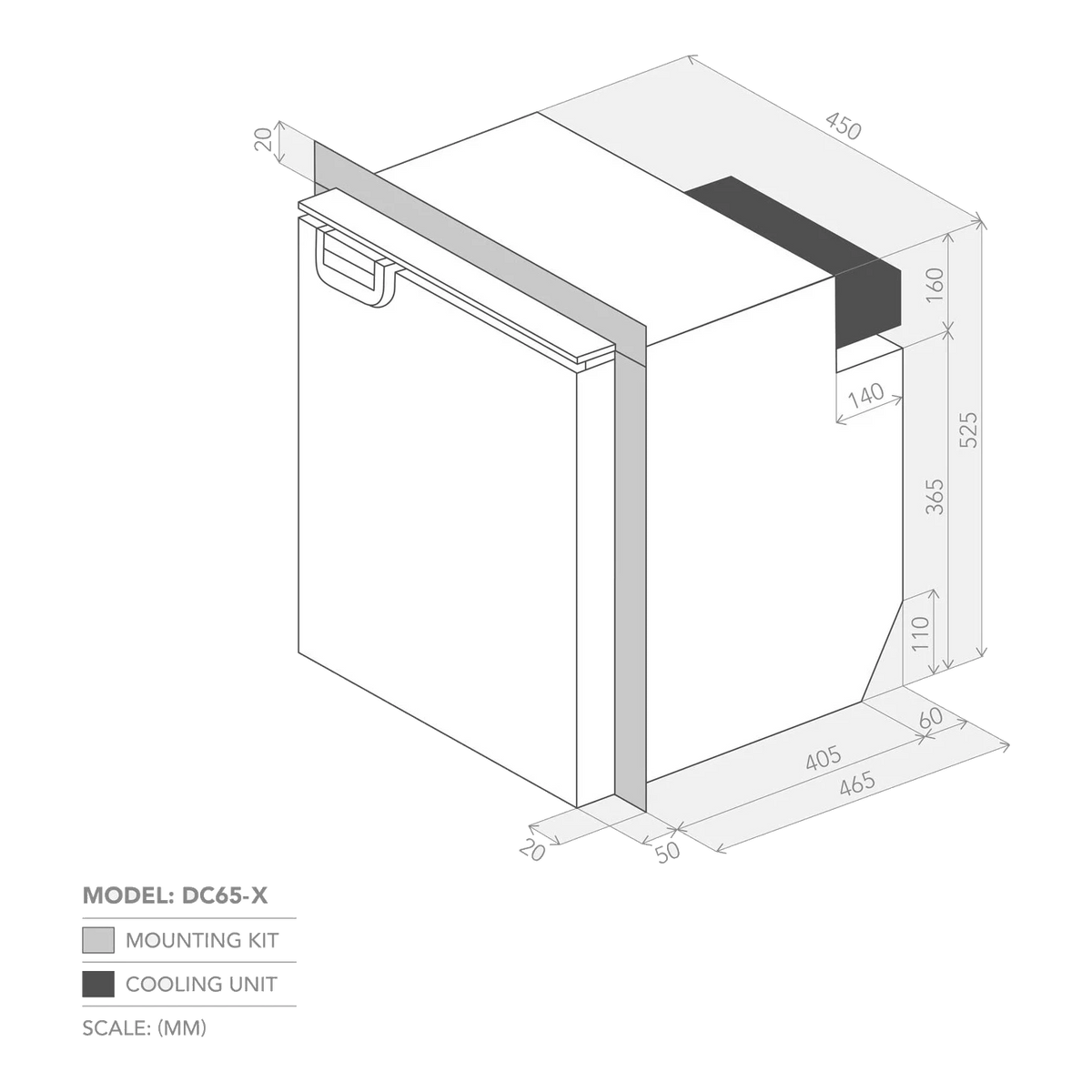

The Bushman DC65-X is the compact upright in Bushman's Heavy Duty DC-X range. 65 litres, in a cabinet 450mm wide by 525mm high, sized to fit into vans, camper trailers, canopies, boats and smaller caravans where a full-size fridge is too big. It draws around 1.0 amp hour per hour at 25°C ambient, averaged across a full day.
It runs a genuine Secop Danfoss BD35HD compressor, a 60W unit on a variable speed drive that ramps between roughly 2A and 4.5A depending on what the fridge actually needs rather than slamming on and off at full noise. It carries a Tropical 'T' rating and is rated to hold temperature in ambients up to 43°C.

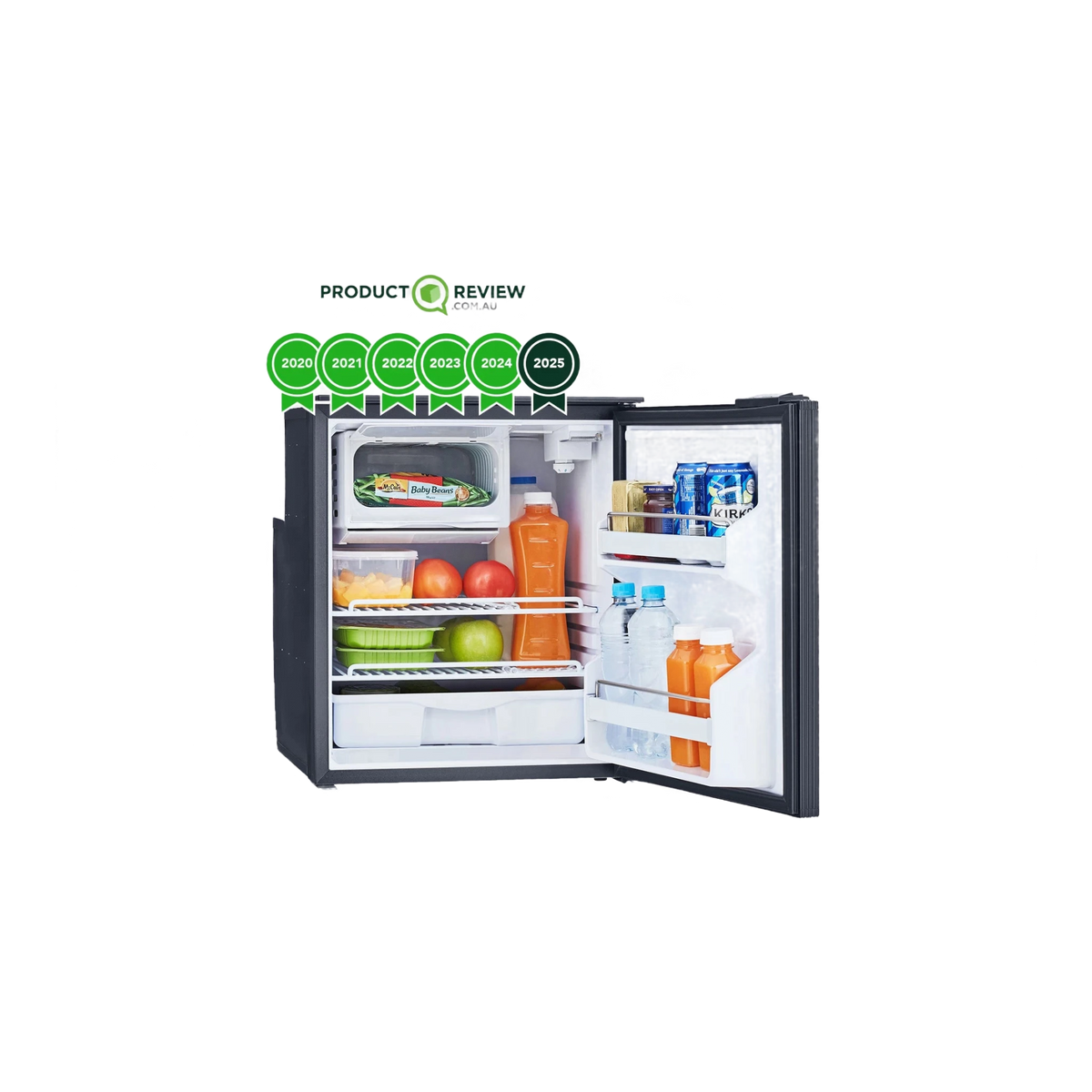

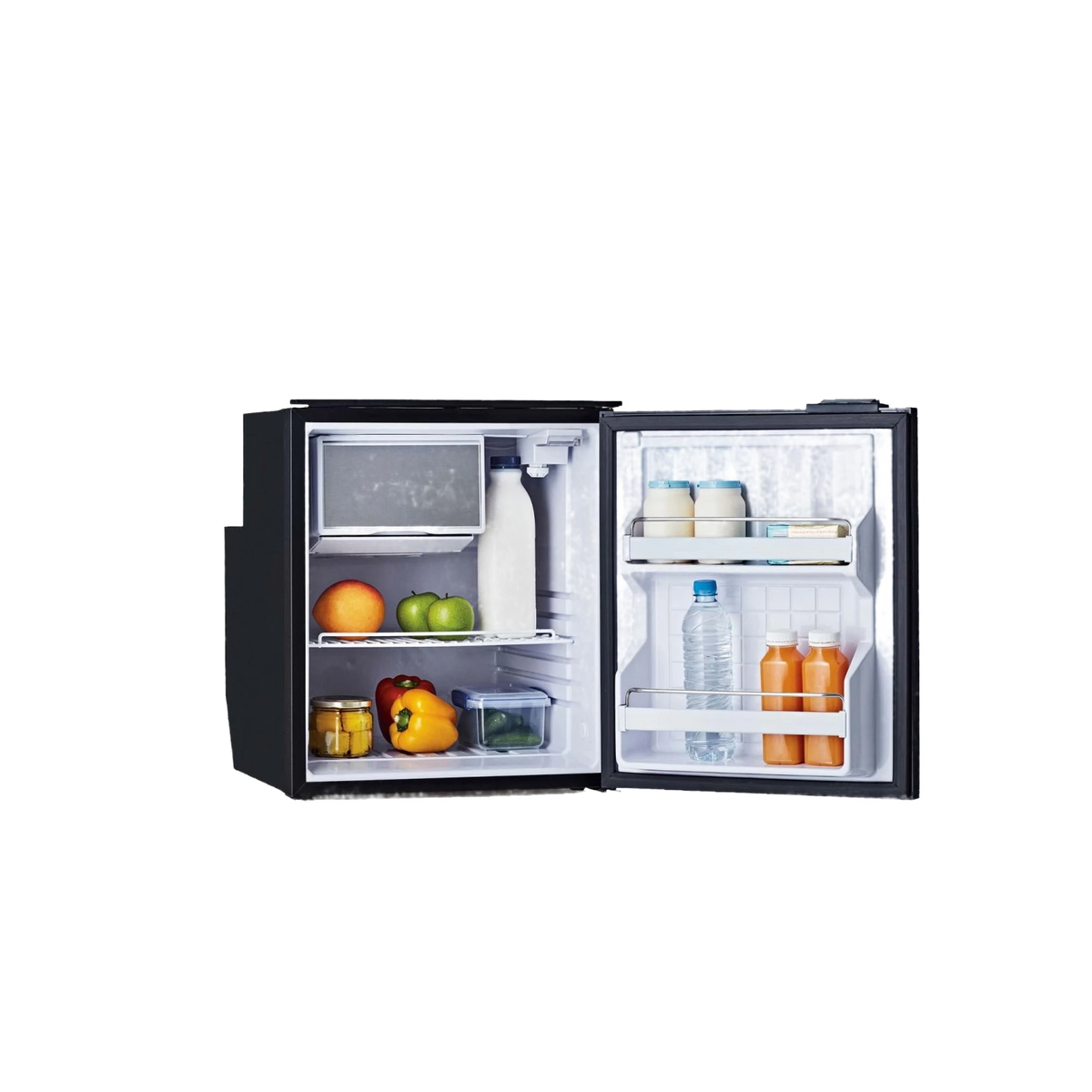

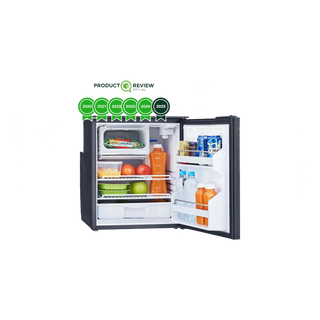

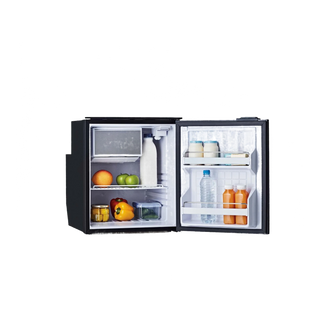

Inside you get height-adjustable shelves, a crisper tub, and door balconies with rails to keep everything in place while you are moving. The door is reversible so you can hinge it to suit your layout.
A full mounting kit is supplied and the fridge comes with a 1.2 metre Anderson plug lead already fitted. It can be flush mounted into cabinetry or fitted with the door proud, and Bushman support four separate mounting methods: internal sleeves, the supplied mounting kit fascia, custom brackets on the M5 threaded inserts, or a Bushman DC65-X aluminium fridge box. Ventilation matters: 2 rear vents of 400cm² free area each. Wire it on its own dedicated circuit straight back to your battery bank.
- Genuine Secop Danfoss BD35HD compressor, 60W, variable speed drive drawing 2A to 4.5A. German designed, Japanese owned
- Tropical T-Class rating, holds temperature in ambients up to 43 degrees C
- Height adjustable heavy duty wire shelves and a plastic crisper tub
- Large door balconies with stainless steel guard rails to hold items in place on corrugations
- Reversible door with interchangeable front panel
- Soft custom rubber feet for vibration dampening
- Four mounting options supported by Bushman: internal M5 sleeves, the supplied mounting kit fascia, M5 custom brackets, or the DC65-X aluminium fridge box (sold separately)
- Supplied with a full mounting kit and a 1.2m Anderson plug lead
Capacity and temperature
Total Capacity: 65L
Fridge Temperature: 4°C ±2°C
Freezer Temperature: -12°C ±2°C
Tropical Rating: Class T, rated to 43°C ambient
Electrical
Voltage: 12V or 24V DC, auto sensing
Power Consumption: ~1.0 Ah/hr at 25°C ambient on 12V, averaged over 24 hours
Start Surge: Up to 10A for 0.5s at compressor start
Low Voltage Cut-In: 10.9V on 12V, 22.7V on 24V
Low Voltage Cut-Out: 9.6V on 12V, 21.3V on 24V
Compressor and cooling
Compressor: Nidec Danfoss BD35HD, 60W variable-speed drive, 2A to 4.5A operating range
Condenser fan: Fitted as standard
Connection and finish
Connection: 1.2m Anderson plug lead, fitted

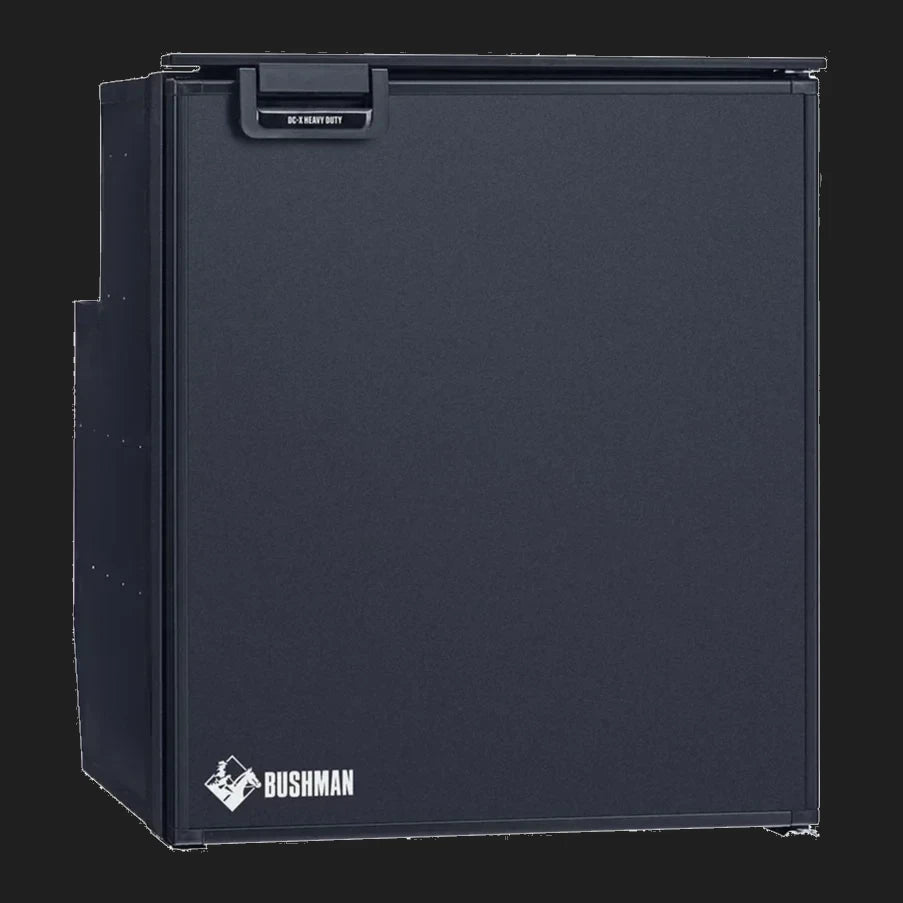

Finish: Matte black with interchangeable front panel
Product Code: DC65-X
