Hella Black Magic Cube LED Kits 12/24V 3.2"

HELLA Black Magic Cubes received the highest dust and water proof rating in the industry. They come in kits of 2 lights including a wiring harness with DT connector, switch, connector and relays making them easy to install. The 3.2 is available in Flood or Spot light versions and can be mounted either upright or pendant or integrated into the body work or bumper. HELLA‘s Black Magic Cubes are ready to brighten up your next off-road adventure. Ideal for Off-road driving.

Features

• LED high-beam cubes
• Full blackout appearance including black brackets
• Sleek design eliminates dust and dirt from being lodged in edges
• Each kit includes the wiring harness with DT connector, switch, connector and relays (easy to install)
• Compact design for universal installation



Specifications

• 4 High intensity LEDs
• Light function: Flood
• Die-cast aluminum housing
• Aluminum, black stainless steel mounting bracket
• Measured lumen: 3000 lm
• Multivolt 10-30V DC
• Current consumption: 3.4 A (12V) / 1.6 A (24 V)
• Connection: 1.64 ft (500 mm) cable with DT connector + short adapter harness
• 40 W
• Protection class: IP 68, IP 69K
• EMC protection: ECE-R10
• Color temperature: 5700 Kelvin
• Weight: 358 g
• Sold as kit

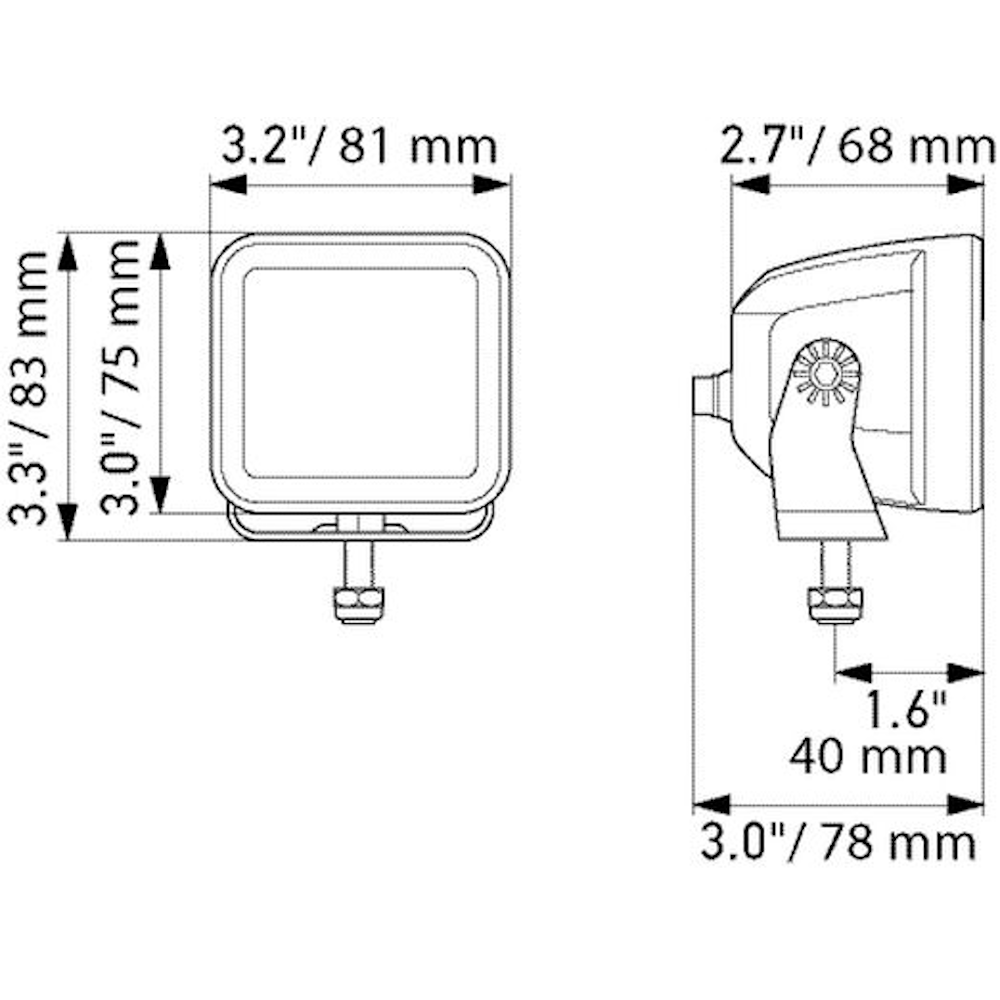

Dimensions

• 3.2" W x 3.3" H x 2.7" D / 81 x 83 x 68 mm

Technology:

• LED

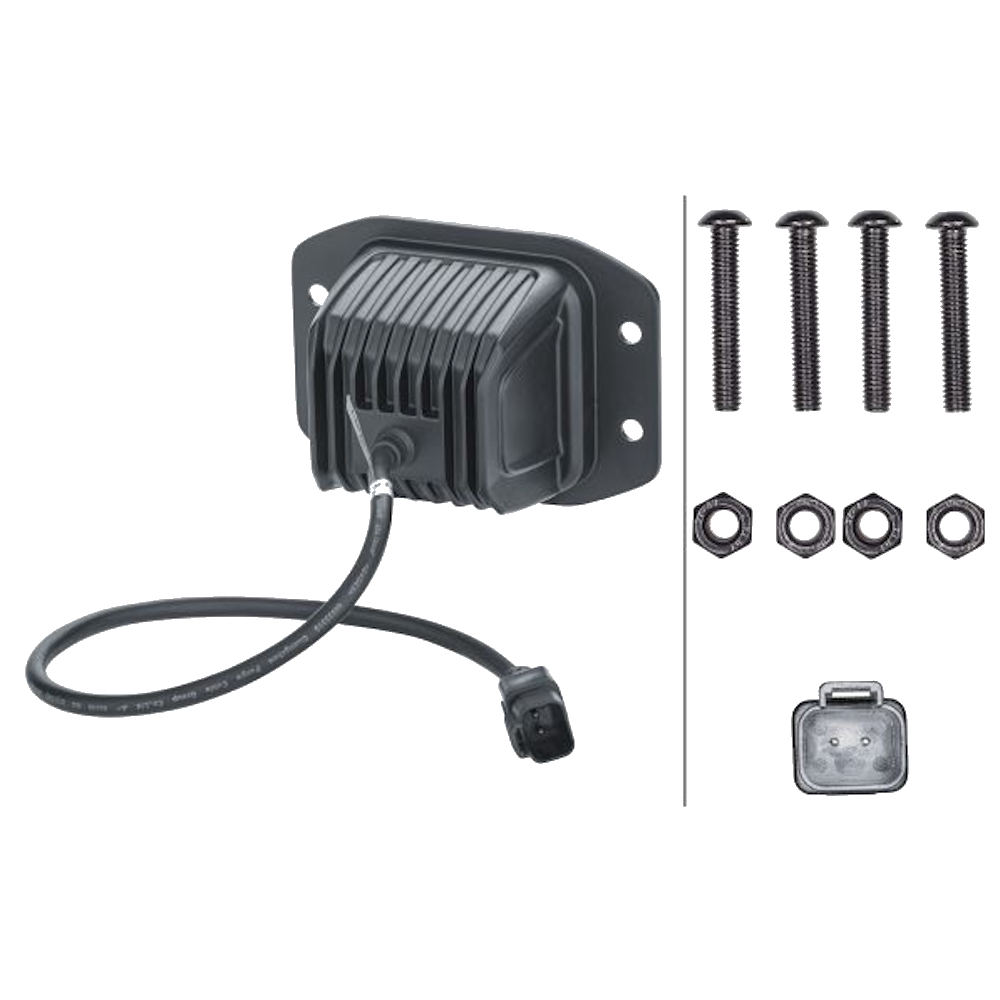

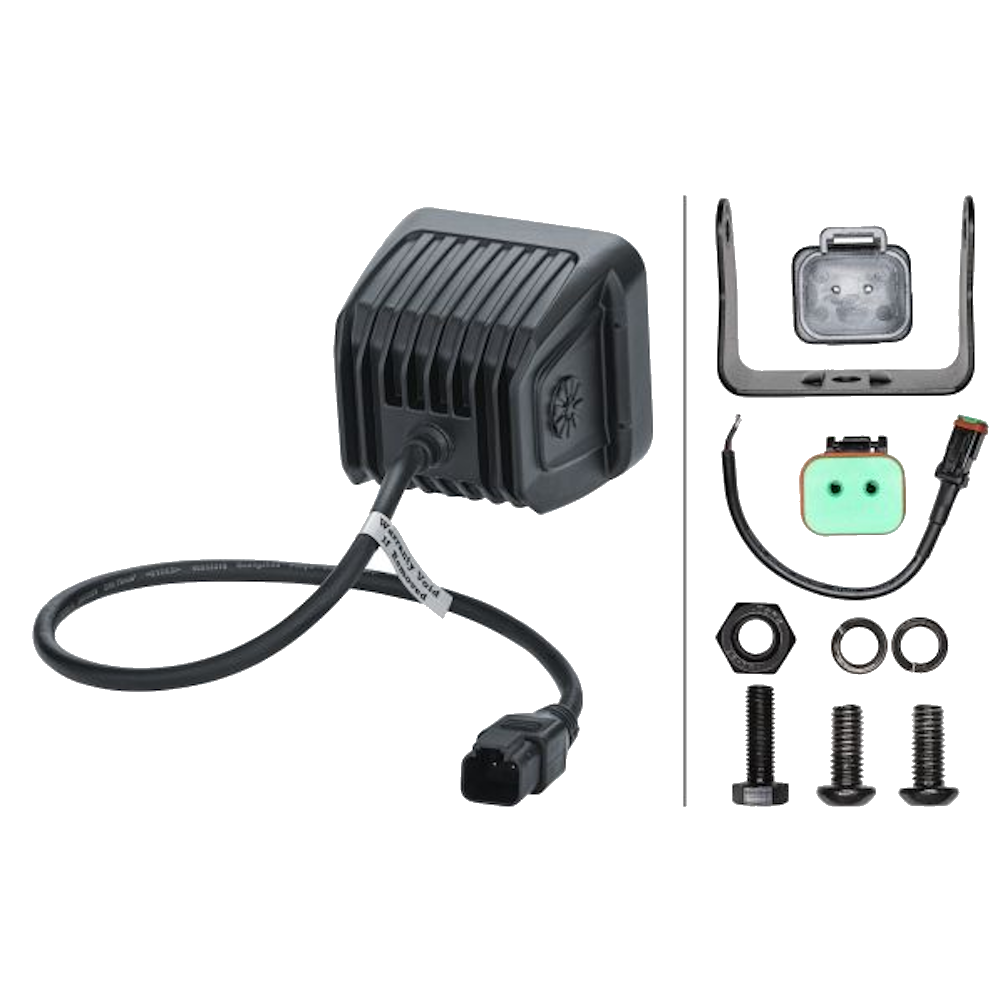

Kit Lamp Includes

• (2) LED spotlights
• (1) relay
• (1) switch
• mounting instructions
• (1) wiring harness with DT connector

PRODUCT MANUAL
