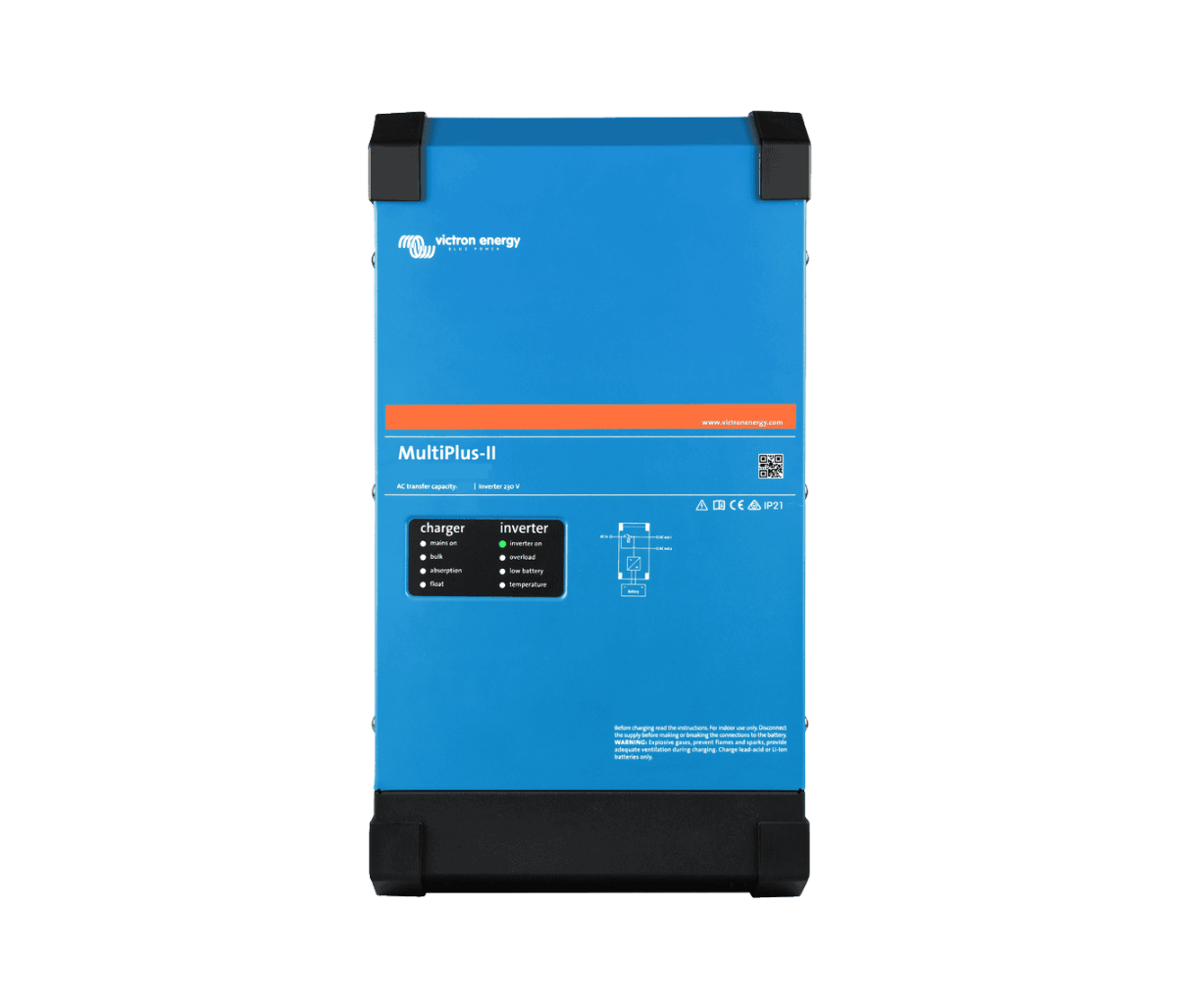

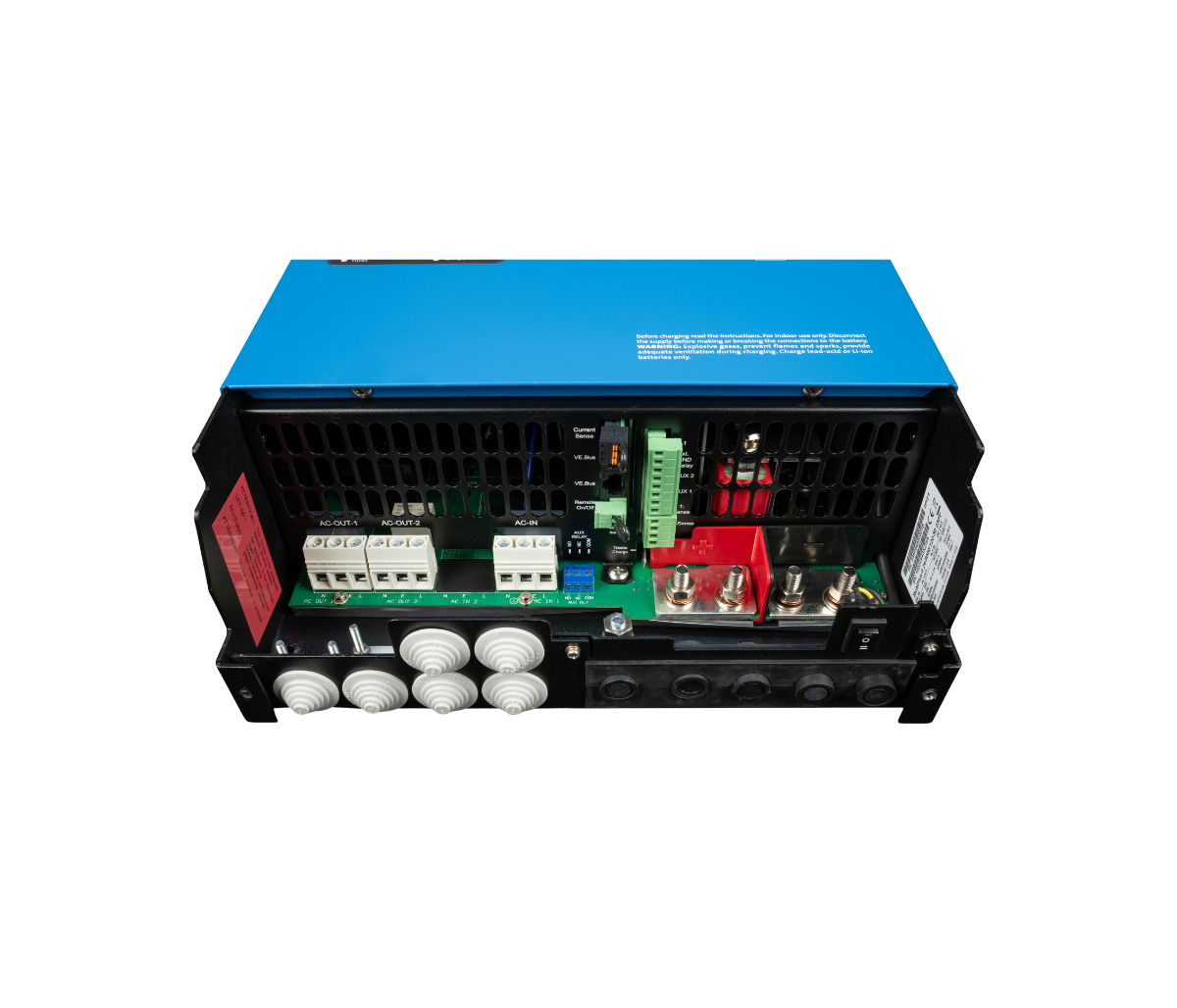

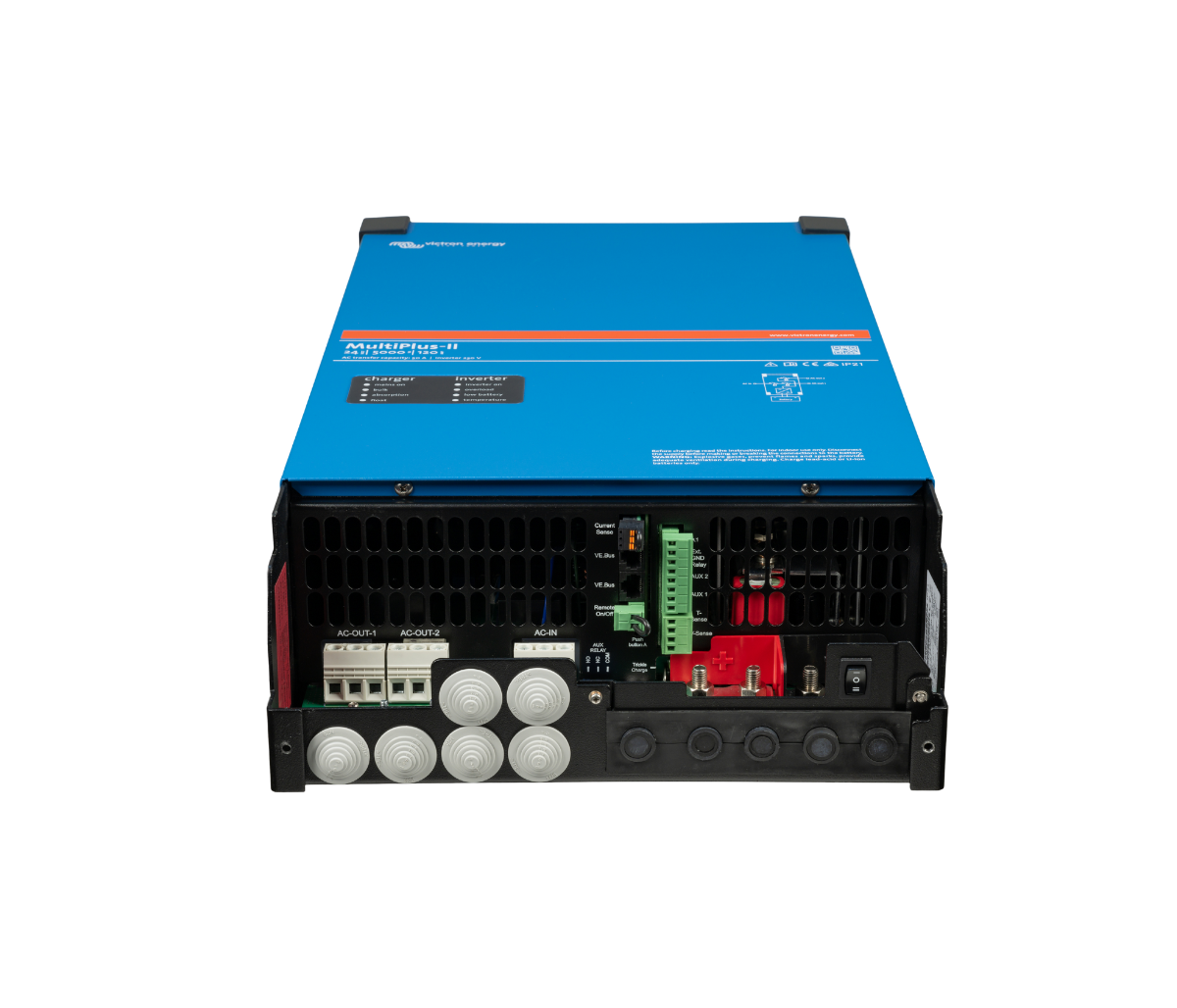

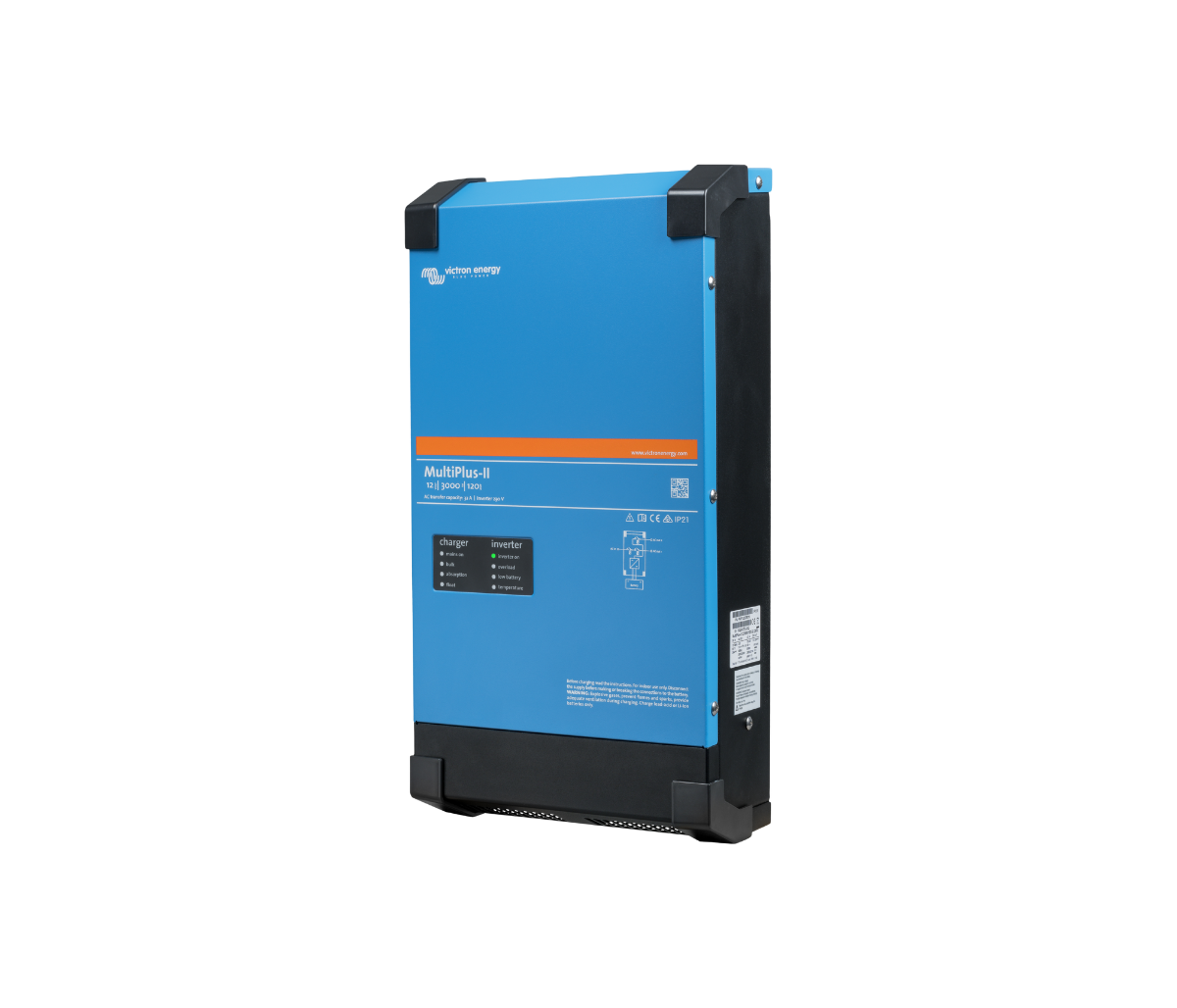

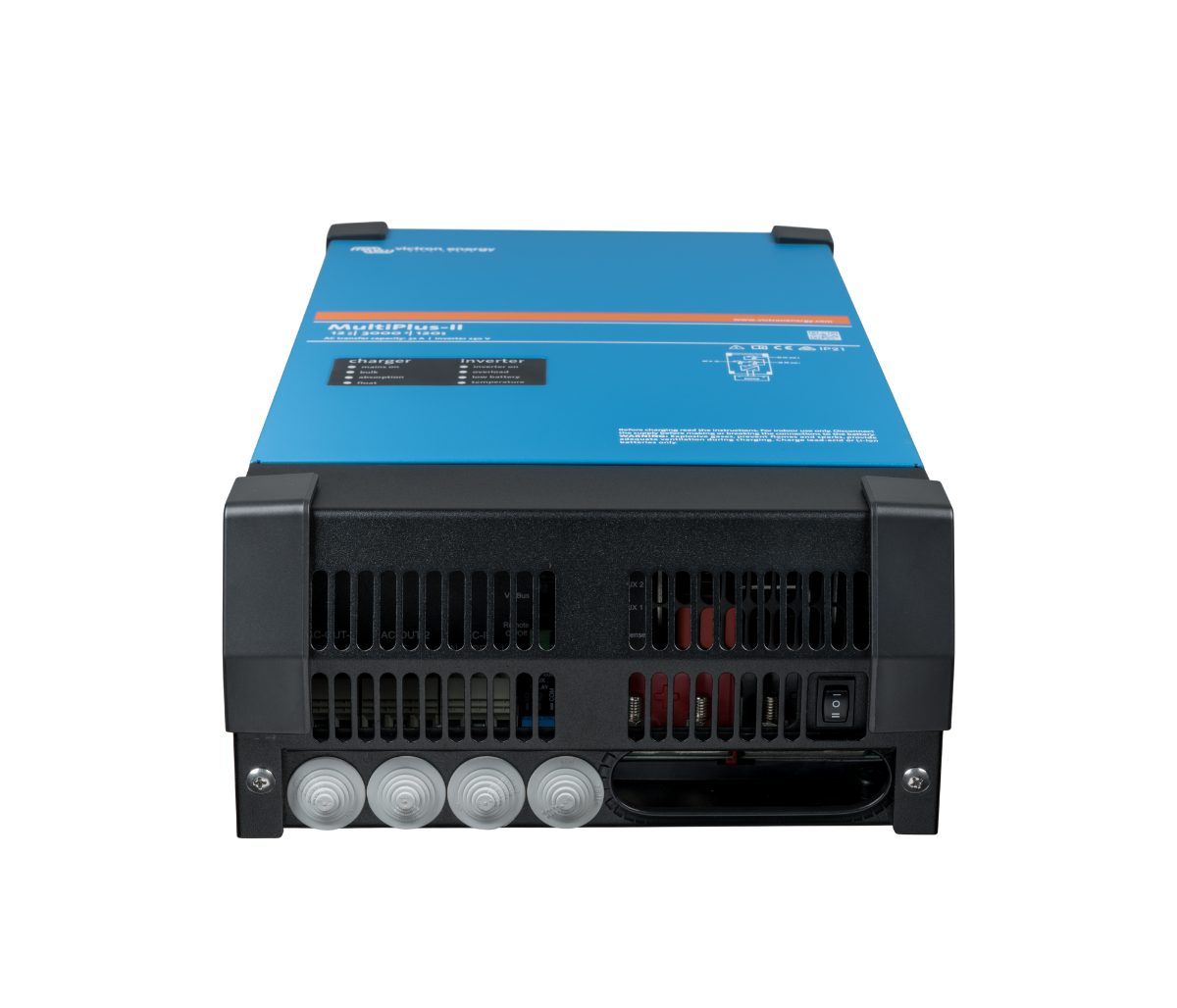

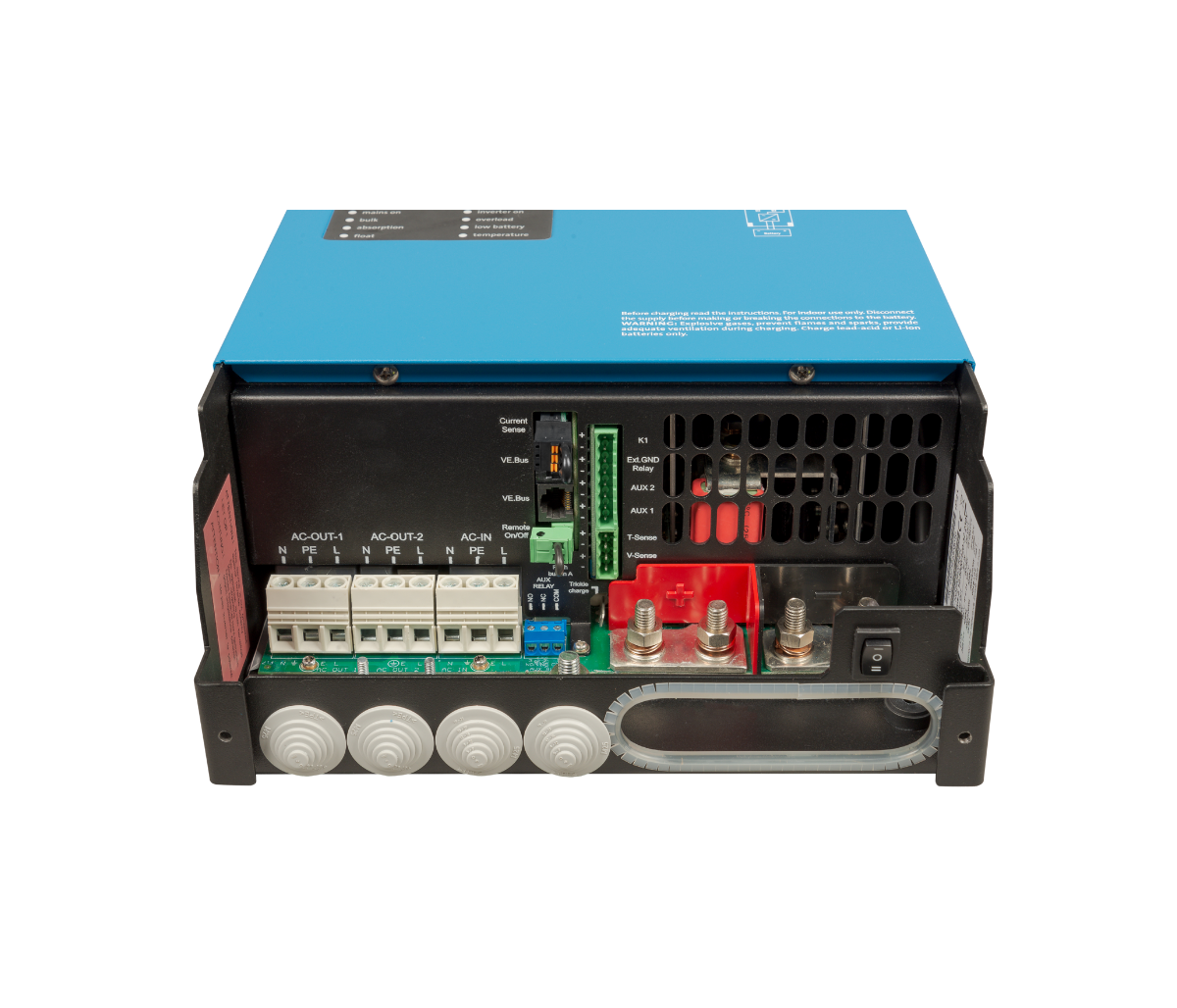

Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA
Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA
Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA
Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA
Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA
Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA

Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA

SKU: PMP122305010
$1,899.00
Voltage12V
Size3000Va

12v 3kVa: Weight 19kg, H546 x W275 x D147 mm

12v 5kVa: Weight 33kg, H702 x W345 x D152 mm

24v 3kVa: Weight 19kg, H499 x W268 x D141 mm

24v 5kVa: Weight 30kg, H607 x W330 x D149 mm

48v 3kVa: Weight 19kg, H499 x W268 x D141 mm

48v 5kVa: Weight 30kg, H565 x W320 x D149 mm

[{"variant_id":"52784038805777" , "metafield_value":""},{"variant_id":"52784038838545" , "metafield_value":""},{"variant_id":"52784038871313" , "metafield_value":""},{"variant_id":"52784038904081" , "metafield_value":""},{"variant_id":"52784038936849" , "metafield_value":""},{"variant_id":"52784038969617" , "metafield_value":""}]

Victron MultiPlus-II 12V, 24V & 48V Inverter Charger 3 & 5kVA

$1,899.00
Description

The MultiPlus-II is a multifunctional inverter/charger with two AC outputs. Suitable for professional marine, yachting, vehicle, and land-based off-grid systems, it also provides the isolation and redundancy required for ESS setups. Power Control allows the MultiPlus-II to prevent grid or generator overload, while Power Assist boosts AC power during peak demand. In the event of an outage, the inverter switches over in milliseconds, keeping computers and sensitive electronics running without interruption. The battery charger combines speed with efficiency through a smart adaptive algorithm that extends battery life. Ready for expansion, the MultiPlus-II supports parallel and three-phase configurations when a system needs to scale.

The Victron MultiPlus-II 12V–48V is a versatile, high-performance inverter/charger designed for off-grid systems, energy storage setups, and backup power applications. Combining a pure-sine inverter with an adaptive charger, it provides reliable UPS functionality, supports PowerAssist for weak grids or limited generators, and ensures continuous power delivery for sensitive electronics.

FEATURES
  • True sine wave inverter
  • Adaptive 4-stage charger Power Assist technology
  • High-speed AC transfer switch
  • Parallel and three-phase operation capability
  • Remote monitoring and control via VRM
Specifications

Victron MultiPlus 12v, 24v & 48v 3-15kVa Data sheet

12v 3kVa: 12/3000/120-32
12v 5kVa: 12/5000/220-50

24v 3kVa: 24/3000/70-32
24v 5kVa: 24/5000/120-50

48v 3kVa: 48/3000/35-32
48v 5kVa: 48/5000/70-50

Installation Information
Warranty Information

Victron Energy products are backed by a 5-year limited warranty,
covering manufacturing defects and faults under normal use.

PICKUP OR SHIPPING

Pickup: Available from Elevate Automotive (WA)

Delivery: Worldwide

Please note, we can only deliver to business addresses or
local depots. For residential delivery, please contact us.

FAQ's

Q: Can the MultiPlus-II feed energy back into the
grid?

A: Yes, when configured appropriately, it can feed energy back into the
grid as part of an Energy Storage System (ESS).

Q: Is it compatible with lithium batteries?

A: Yes, it supports various battery chemistries, including lithium.

Q: Does it have remote monitoring capabilities?

A: Yes, when connected to a GX device and the internet, it can be
monitored and configured remotely via the Victron Remote Management portal.
