Redarc Smart Start SBI Lithium Load Disconnect Isolator12V 100ARedarc Smart Start SBI Lithium Load Disconnect Isolator12V 100ARedarc Smart Start SBI Lithium Load Disconnect Isolator12V 100ARedarc Smart Start SBI Lithium Load Disconnect Isolator12V 100A

Redarc

Smart Start SBI Lithium Load Disconnect Isolator12V 100A

SBI12-LLD

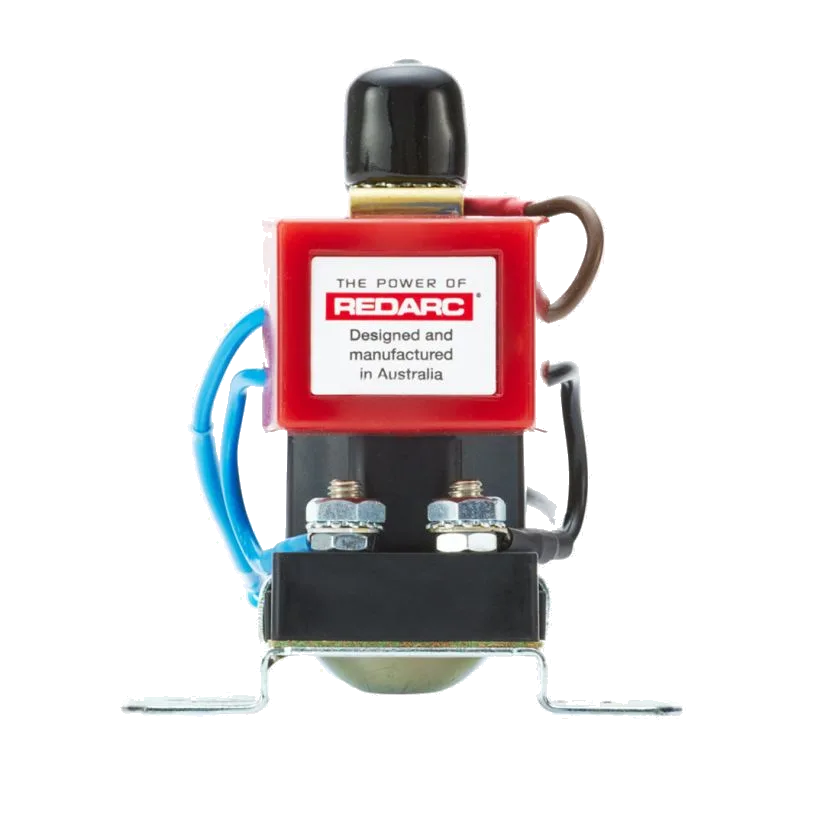

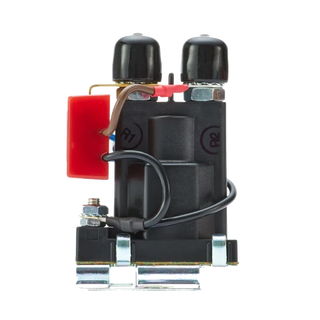

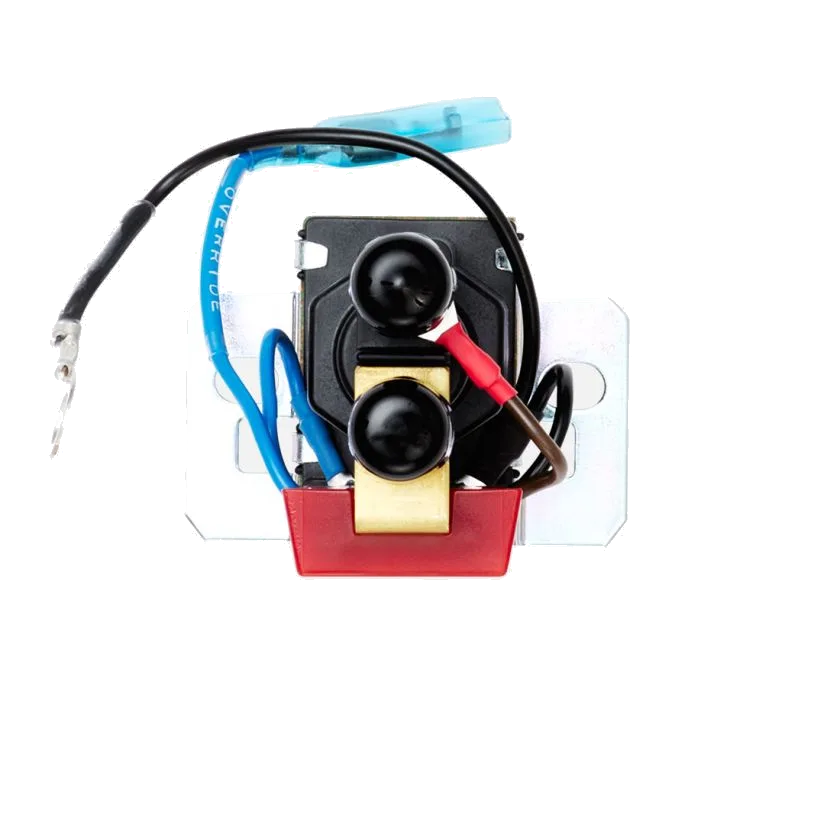

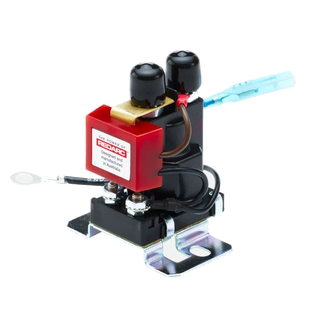

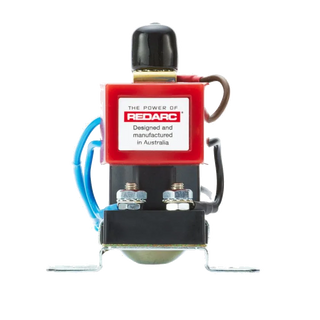

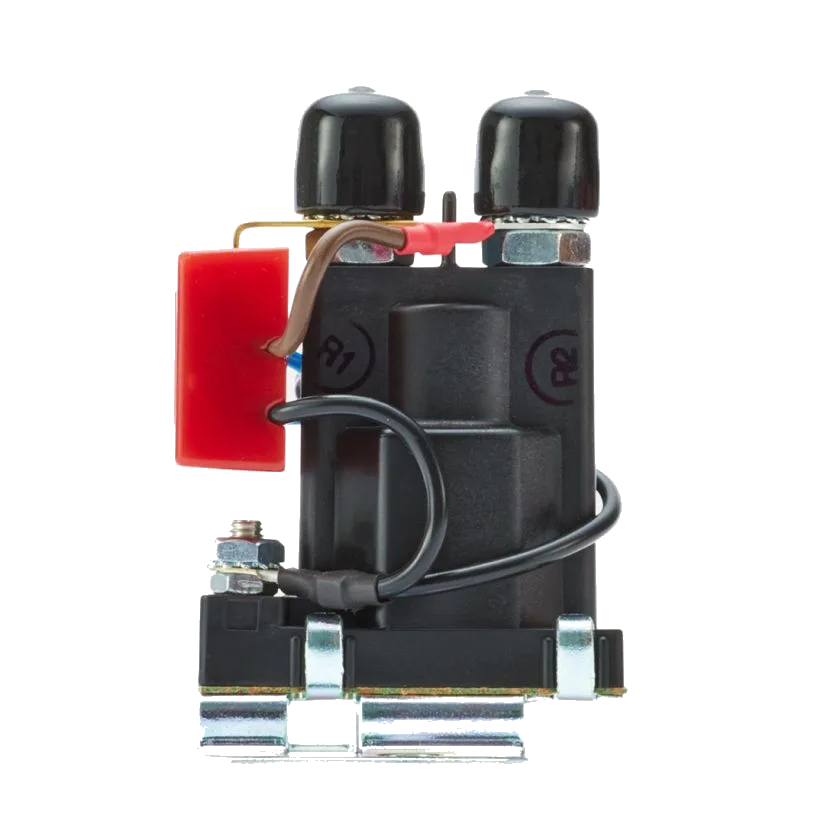

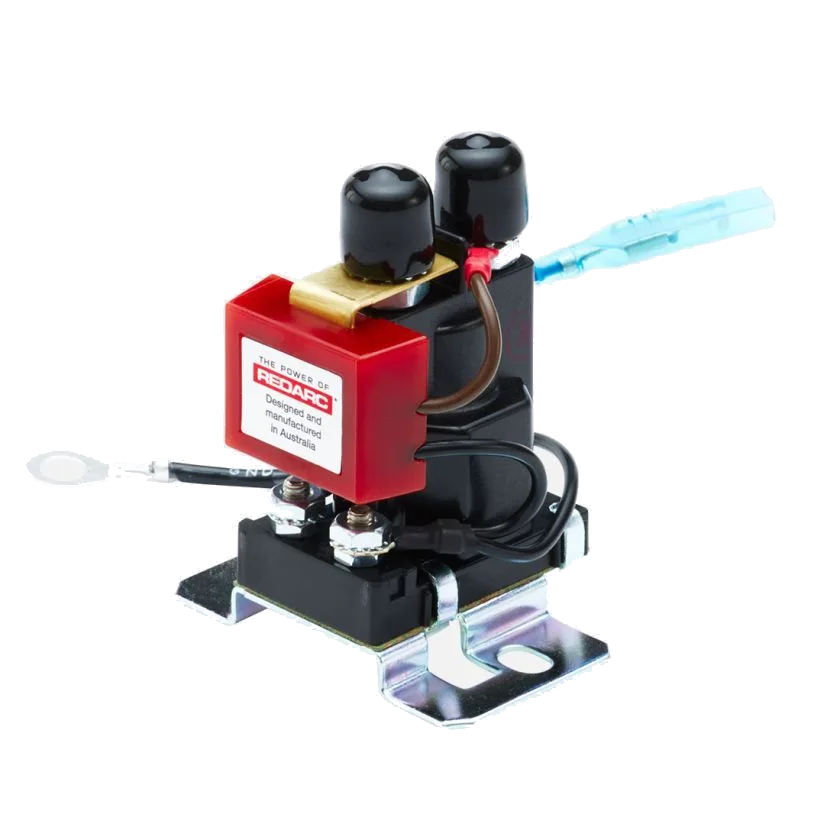

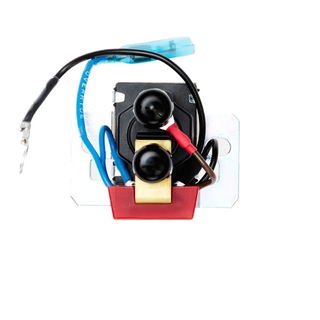

The REDARC Smart Start SBI12-LLD Load Disconnect Isolator is a microprocessor-controlled device designed to protect lithium (LiFePO₄) auxiliary batteries from excessive discharge. It automatically disconnects non-essential loads when the battery voltage drops below a safe threshold, ensuring the battery remains…

$199.50$210.00 Save $10.50

4 interest-free payments of $49.88 with
or pay over time with
Important note

Specifically engineered for 12V lithium battery applications, the SBI12-LLD safeguards your auxiliary battery by preventing deep discharge due to auxiliary loads. Its microprocessor control ensures precise operation, and built-in spike protection components minimize the risk of damage from voltage transients.

We accept
Suitable for use in 12V lithium (LiFePO4) battery systems across most 4WDs, caravans, camper trailers, and RVs. Ideal for dual battery setups or where lithium protection is essential.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The REDARC Smart Start SBI12-LLD Load Disconnect Isolator is a microprocessor-controlled device designed to protect lithium (LiFePO₄) auxiliary batteries from excessive discharge. It automatically disconnects non-essential loads when the battery voltage drops below a safe threshold, ensuring the battery remains above the level at which internal protection circuitry would activate. Once the battery voltage recovers, the isolator reconnects the loads, maintaining optimal battery health.

  • Designed for 12V lithium (LiFePO4) batteries
  • Automatic load disconnect to prevent over-discharge
  • Manual override option
  • Compact and durable construction
  • Easy installation
  • LED status indicator
  • Suitable for high-current loads

Nominal Voltage: 12V DC

Continuous Current Rating: 100A

Surge Current Rating: 400A

Cut-Out Voltage: 11.5V

Cut-In Voltage: 12.5V

Operating Temperature: –20°C to +85°C

Warranty: 2 Years

Part Number: SBI12-LLD






Length: 80mm

Width: 75mm

Height: 70mm

Weight: 0.2kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box


Compact and easy to install. Mounts near the auxiliary battery or load circuit. Requires correct fuse sizing and connection to load and battery terminals. Includes installation guide.

SBI12-LLD Instruction Manual EN

SBI12-LLD Install Guide EN DE ES FR IT PL AR

Suitable for use in 12V lithium (LiFePO4) battery systems across most 4WDs, caravans, camper trailers, and RVs. Ideal for dual battery setups or where lithium protection is essential.

Q: Will this work with AGM or lead-acid batteries?
A: No, it is specifically designed for lithium (LiFePO4) batteries.

Q: Can I install this myself?
A: Yes, if you're familiar with auto electrical systems. Otherwise, we recommend professional installation.

Q: What does "load disconnect" mean?
A: It disconnects loads like fridges or lights when voltage drops below a safe threshold, protecting your lithium battery.
