Home / Lighting / Driving & light bars

KT Solar 120W Monocrystalline Flat Roof Solar Panel (945x670x35)KT70728 KT Solar 120W Monocrystalline Flat Roof Solar Panel (945x670x35) | Solar | Perth Pro Auto electric parts

KT Solar

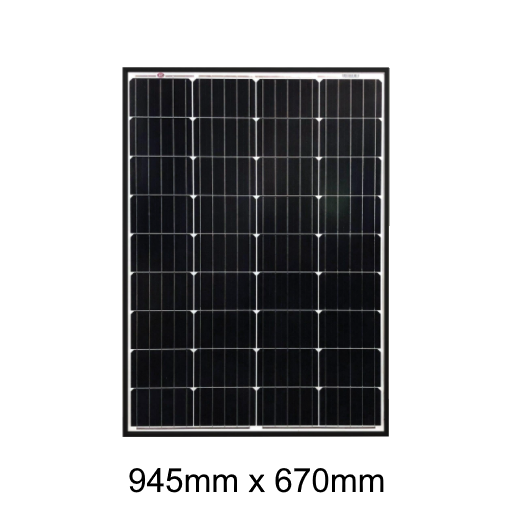

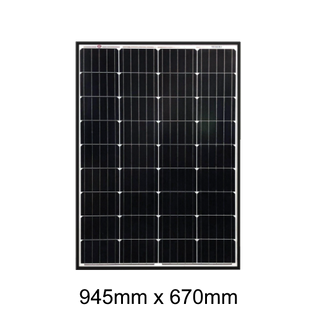

120W Monocrystalline Flat Roof Solar Panel (945x670x35)

KT70728

The KT 120 Watt, 12V Single Cell Mono-crystalline Solar Panel is ideal for a variety of home, automotive, 4WD, caravan, RV and marine applications where required to trickle charge small batteries that may power camping fridges and other camping loads,…

$165.00

4 interest-free payments of $41.25 with
or pay over time with
Important note

KT Solar’s 120W Monocrystalline panel offers efficient, reliable solar charging for a variety of applications including 4WD, caravans, marine, and home use. Built for durability with a sealed junction box and high-quality construction.

We accept
Suitable for 4WDs, caravans, boats, RVs, and other off-grid solar needs.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The KT 120 Watt, 12V Single Cell Mono-crystalline Solar Panel is ideal for a variety of home, automotive, 4WD, caravan, RV and marine applications where required to trickle charge small batteries that may power camping fridges and other camping loads, around home applications including home irrigation systems and garden lighting and mounting to jetty’s to trickle charge boat and jet-ski batteries. This panel offers a 10 year warranty and 25 year efficiency guarantee. Key Features: - 900mm Positive/Negative PV cables terminated to MC4 connectors - Mono-crystalline construction - Fully sealed junction box on back of panel - High quality construction - 5 Accreditation Certificates - Class A Technical Specifications; - Maximum Power (Pmax): 120Wp - Power Tolerance: +3% - Maximum Power Voltage (Vmp): 19.0V - Maximum Power Current (Imp): 6.32A - Rated Voltage: 12V - Open Circuit Voltage (Voc): 22.5V - Short Circuit Current (Isc): 6.97A - Operating Temperature: -40 °C to +85 ° C - Product Application: Class A - Maximum System Voltage: 1000V DC - Product Weight: 6.90Kg - Dimensions (mm): 945(L) x 670(W) x 35(D)
  • Monocrystalline solar cells
  • 900mm MC4 terminated cables
  • Fully sealed junction box
  • Class A rating
  • High durability and performance

ModelKT70718 (replacement)

Power120 Wp

Voltage (Vmp)19.0 V

Current (Imp)6.32 A

Open Circuit Voltage (Voc)22.5 V

Short Circuit Current (Isc)6.97 A

Operating Temp-40°C to +85°C

Weight6.90 kg

Dimensions945 x 670 x 35 mm

Length: 945mm

Width: 670mm

Height: 35mm

Weight: 6.9kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Mount on a flat, sun-exposed surface using appropriate mounts

Connect using MC4 connectors attached to 900mm PV cables

Use a compatible solar charge controller

Avoid shading and optimize panel angle for best sun exposure

Suitable for 4WDs, caravans, boats, RVs, and other off-grid solar needs.

Q: Is this solar panel suitable for camping and caravans?
A: Yes, it’s designed for outdoor use, including camping, caravanning, marine, and off-grid applications.

Q: What type of solar charge controller should I use?
A: A 20A PWM or MPPT charge controller is recommended for optimal charging performance.

Q: Are the cables included with the panel?
A: Yes, the panel comes with 900mm positive and negative cables terminated with MC4 connectors.

Q: Is the panel weatherproof?
A: Yes, it features a fully sealed junction box and durable construction suitable for outdoor conditions.

Q: What warranty does this panel have?
A: It comes with a 12-month manufacture/build warranty, a 10-year product warranty, and a 25-year efficiency guarantee.

Q: What are the dimensions and weight of the panel?
A: The panel measures 945mm (L) x 670mm (W) x 35mm (D) and weighs 6.9 kg.

Q: Can this panel operate in extreme temperatures?
A: Yes, it is rated to operate between -40°C and +85°C.
