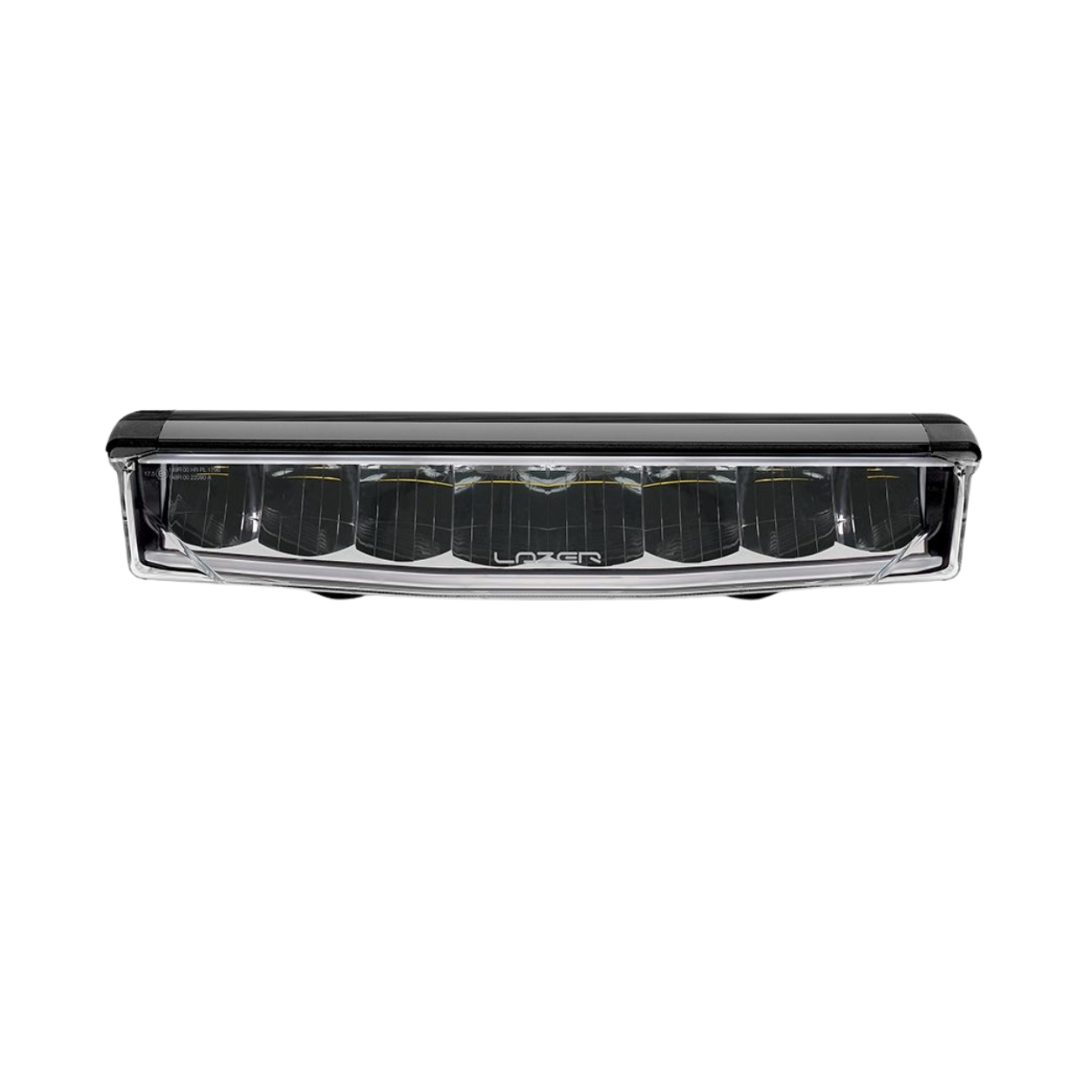

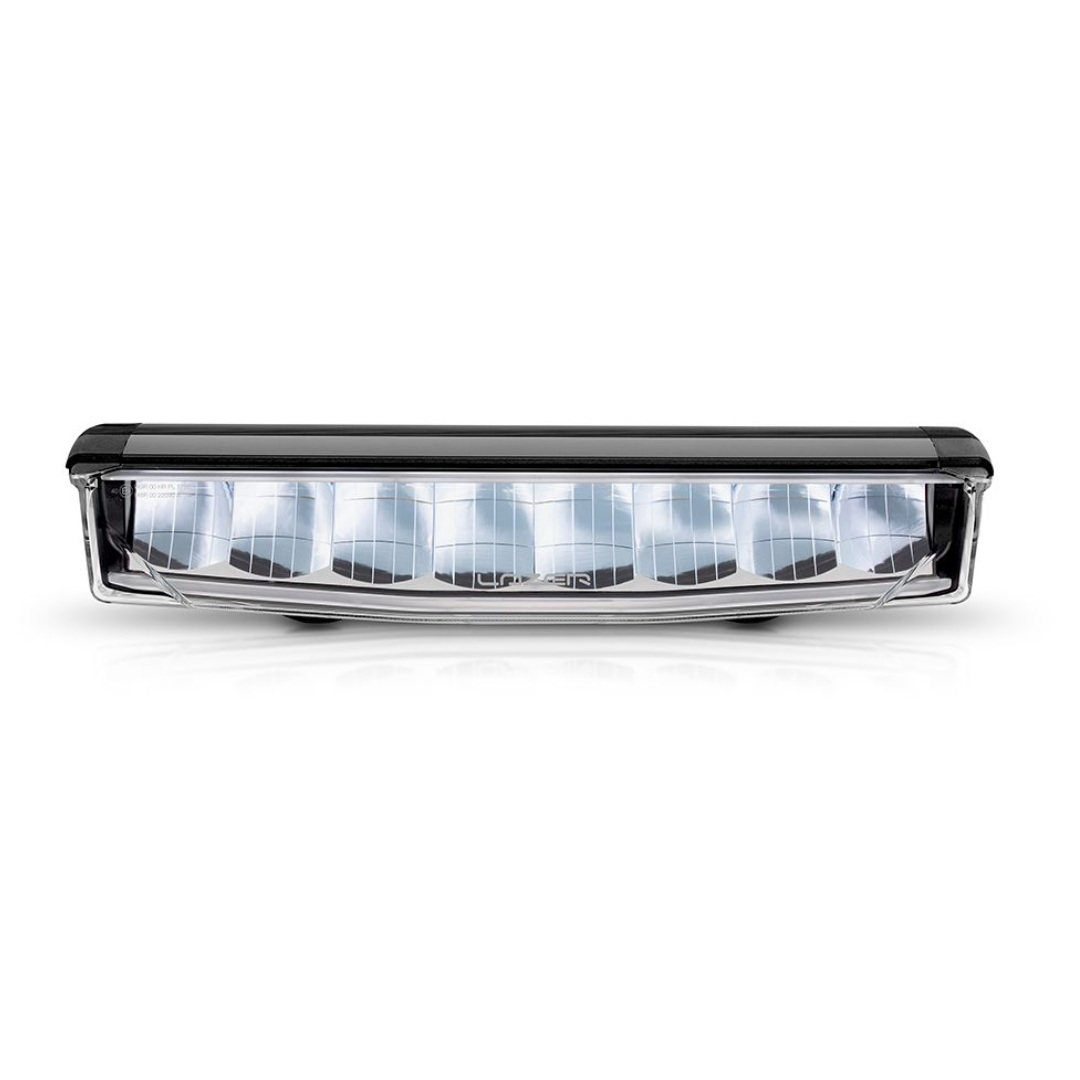

Lazerlamps Air

Ultra-slim curved design for modern aesthetics

Premium-bin LEDs with vacuum-metallised optics

Dual output with E-Boost™ for full-power and road-legal modes

Integrated white position light guides

Amber beacon on select models (UNECE R65 compliant)

Flexible mounting options: side mount or centre mount (Elite)

Q: What vehicles are the AIR Series light bars suitable for?
A: They are ideal for smaller vehicles, 4x4s, vans, commercial utility vehicles, and trailers needing high-performance lighting or beacon signals.

Q: What voltage do these lights operate on?
A: The AIR Series operates on 12 to 24 volts, making them compatible with most vehicle electrical systems.

Q: Are these light bars waterproof?
A: Yes, all models are rated IP67/IP69K, meaning they are fully sealed against dust and can withstand high-pressure water jets.

Q: What is the difference between the AIR-55 and AIR-90 models?
A: The AIR-55 is a compact light bar suitable for discreet installs with a beam distance of 524m, while the AIR-90 is larger with more output and a wider beam of 574m.

Q: Which models come with an amber beacon?
A: The AIR-55 with Beacon and AIR-90 with Beacon models include integrated amber beacon lights compliant with UNECE R65 standards.

Q: How do I switch between full-power and road-legal modes?
A: Use the removable E-Boost™ cap to toggle between full-power output and the ECE-compliant mode for legal road use.

Q: What mounting options are available?
A: AIR-55 and AIR-90 models use adjustable side mounts, while the AIR-130 Elite features a Centre Mount system for a low-profile fit.

Q: Do the light bars come with wiring kits?
A: Wiring kits are sold separately and are specific to each model. Kits include single or two-lamp options with 3-pin or 6-pin Superseal connectors.

Q: What warranty is provided?
A: A 5-year warranty covers defects in materials and workmanship for all AIR Series models.

AIR-55

Raw Lumens: 6,800 lm
1 Lux Distance: 524 m
Horizontal Beam: ~28°
Position/Beacon Light: Position Light
Beacon Function: No
Connector Type: 2-pin
Length: 370 mm
Mounting Style: Side
Current Draw @14.4V: 2.2 A

AIR-55 with Beacon

Raw Lumens: 6,800 lm
1 Lux Distance: 524 m
Horizontal Beam: ~28°
Position/Beacon Light: Beacon + Position
Beacon Function: Yes
Connector Type: 4-pin
Length: 370 mm
Mounting Style: Side
Current Draw @14.4V: 2.2 A

AIR-90

Raw Lumens: 9,160 lm
1 Lux Distance: 574 m
Horizontal Beam: ~30°
Position/Beacon Light: Position Light
Beacon Function: No
Connector Type: 2-pin
Length: 500 mm
Mounting Style: Side
Current Draw @14.4V: 2.7 A

AIR-90 with Beacon

Raw Lumens: 9,160 lm
1 Lux Distance: 574 m
Horizontal Beam: ~30°
Position/Beacon Light: Beacon + Position
Beacon Function: Yes
Connector Type: 4-pin
Length: 500 mm
Mounting Style: Side
Current Draw @14.4V: 2.7 A

AIR-130 Elite

Raw Lumens: 12,500 lm
1 Lux Distance: 592 m
Horizontal Beam: ~32°
Position/Beacon Light: Position Light
Beacon Function: No
Connector Type: 2-pin
Length: 630 mm
Mounting Style: Centre Mount
Current Draw @14.4V: 3.5 A

Mounting brackets and wiring kits are included or available separately.

Installation is straightforward—refer to included instructions or contact support for assistance.

air_-_lamp_instructions

air-90_beacon_-_product_information_card

All AIR Series models include a 5-year warranty covering defects in materials and workmanship.
