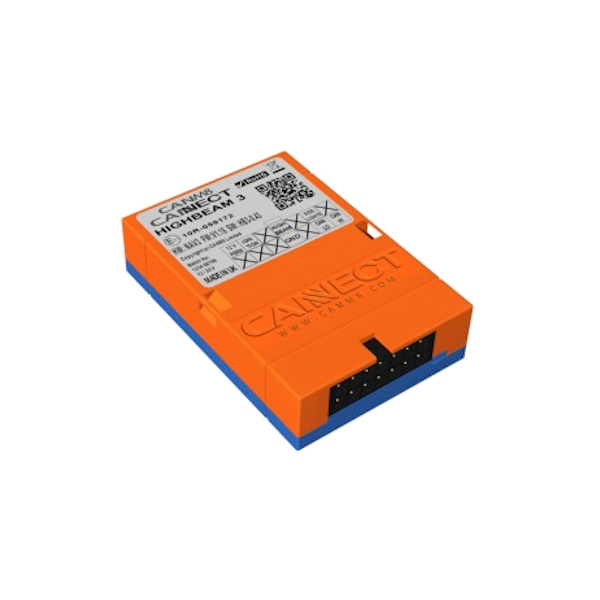

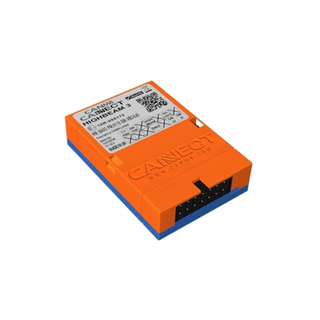

Canm8 Cannect Highbeam - 4 CAN Bus Module (Multi Output Interface)

Lazerlamps

Canm8 Cannect Highbeam - 4 CAN Bus Module (Multi Output Interface)

CAN-LZR

The CANM8 CANNECT HIGHBEAM-4 is a 4-output CAN Bus interface designed to detect high beam activation and provide clean 12v outputs for driving light integration. Ideal for vehicles with CAN wiring, it simplifies the installation of auxiliary driving lights and…

$228.60$254.00 Save $25.40

4 interest-free payments of $57.15 with
or pay over time with
Important note

The CANM8 CANNECT HIGHBEAM-4 simplifies the integration of auxiliary lighting systems with modern vehicles using CAN Bus wiring. Designed for reliability and fast installation, it ensures seamless operation of high beam-triggered accessories without interfering with vehicle electronics.

We accept
Ford: Ranger (PX1–PX3), Everest

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The CANM8 CANNECT HIGHBEAM-4 is a 4-output CAN Bus interface designed to detect high beam activation and provide clean 12v outputs for driving light integration. Ideal for vehicles with CAN wiring, it simplifies the installation of auxiliary driving lights and includes additional outputs for ignition-on and side light signals.

This interface also supports Key-In detection, allowing the ignition-on output to stay live when the ignition is off but the key remains inserted (vehicle dependent).

  • CAN Bus detection of high beam, ignition, and side lights
  • 3 independent 12v outputs (1A max each)
  • Supports Key-In functionality (vehicle dependent)
  • Plug-in connector for clean installation
  • LED diagnostics for setup confirmation
  • No need to splice factory headlight wiring

Power Input12v via 5A fused permanent supply

CAN Connection2-wire (CAN HI / CAN LO)

ConnectorMini plug-in with labeled leads

Status LEDMulti-color, real-time diagnostics

Key-In DetectionSupported on compatible vehicles

Warranty12 months

Compact module with integrated mini wiring connector

Small footprint suitable for under-dash or engine bay mounting

Dimensions: Approx. 50 x 40 x 20 mm (excluding wiring)

Everything this install needs

0 of 0 in the box

Connect to CAN HI and CAN LO wires on the vehicle.

Power via fused permanent 12v supply.
Ground to vehicle chassis.

Outputs:

Brown: High Beam 12v (1A max)
Purple: Ignition On 12v (1A max)
Green: Side Lights 12v (1A max)

Plug-in connector for easy setup.
LED status indicator confirms CAN communication and vehicle recognition.

LED Indicators:

Flashing Red: Searching for CAN.
Solid Red: CAN received, vehicle not identified.
Solid Green: CAN received, vehicle recognised.
Flashing Green: Vehicle speed detected.

Ford: Ranger (PX1–PX3), Everest
Volkswagen: Amarok (2H, 2nd Gen)
Toyota: LandCruiser 200/300 Series, Prado 150
Isuzu: D-MAX (RG), MU-X (RJ20)
Mitsubishi: Triton, Pajero, Pajero Sport
Nissan: Navara (D23), Patrol Y62
RAM: 1500, 2500
Jeep: Wrangler (JK, JL), Grand Cherokee
Land Rover: Defender (2020+), Discovery, Range Rover
Suzuki: Jimny, Vitara
Mazda: BT-50
Holden: Colorado (RG)
LDV: T60
Great Wall: Cannon (GWM Ute)

Q: Can I use this with LED or HID driving lights?
A: Yes, when connected via a relay—this module supplies a 12v trigger signal.

Q: Will this drain my battery?
A: No, the unit draws minimal power and only activates when CAN signals are present.

Q: Is professional installation required?
A: Not required, but recommended if you're not familiar with vehicle CAN wiring.
