Lazerlamps

Wiring Kits

1L-LP-300

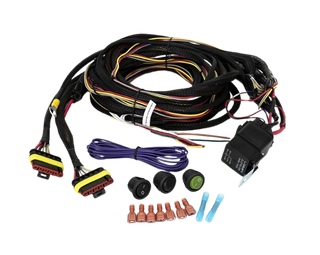

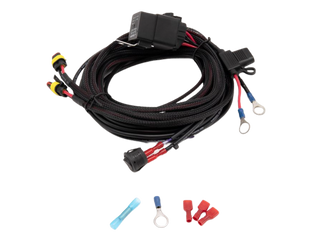

Designed for seamless integration with Lazer LED lighting systems, these wiring kits offer reliable, weatherproof connections for single or dual-lamp setups. Available with Superseal or Deutsch DT connectors, and options for integrated position lights or beacon functionality. Each kit includes…

$70.30$74.00 Save $3.70

4 interest-free payments of $17.58 with Afterpay

or pay over time with Zip

Important note

All wiring kits are engineered for plug-and-play compatibility with Lazer Lamps. Built with automotive-grade components for performance and durability in all conditions.

Type

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Suitable for 12V vehicles including 4x4s, utility vehicles, commercial vans, and off-road applications.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

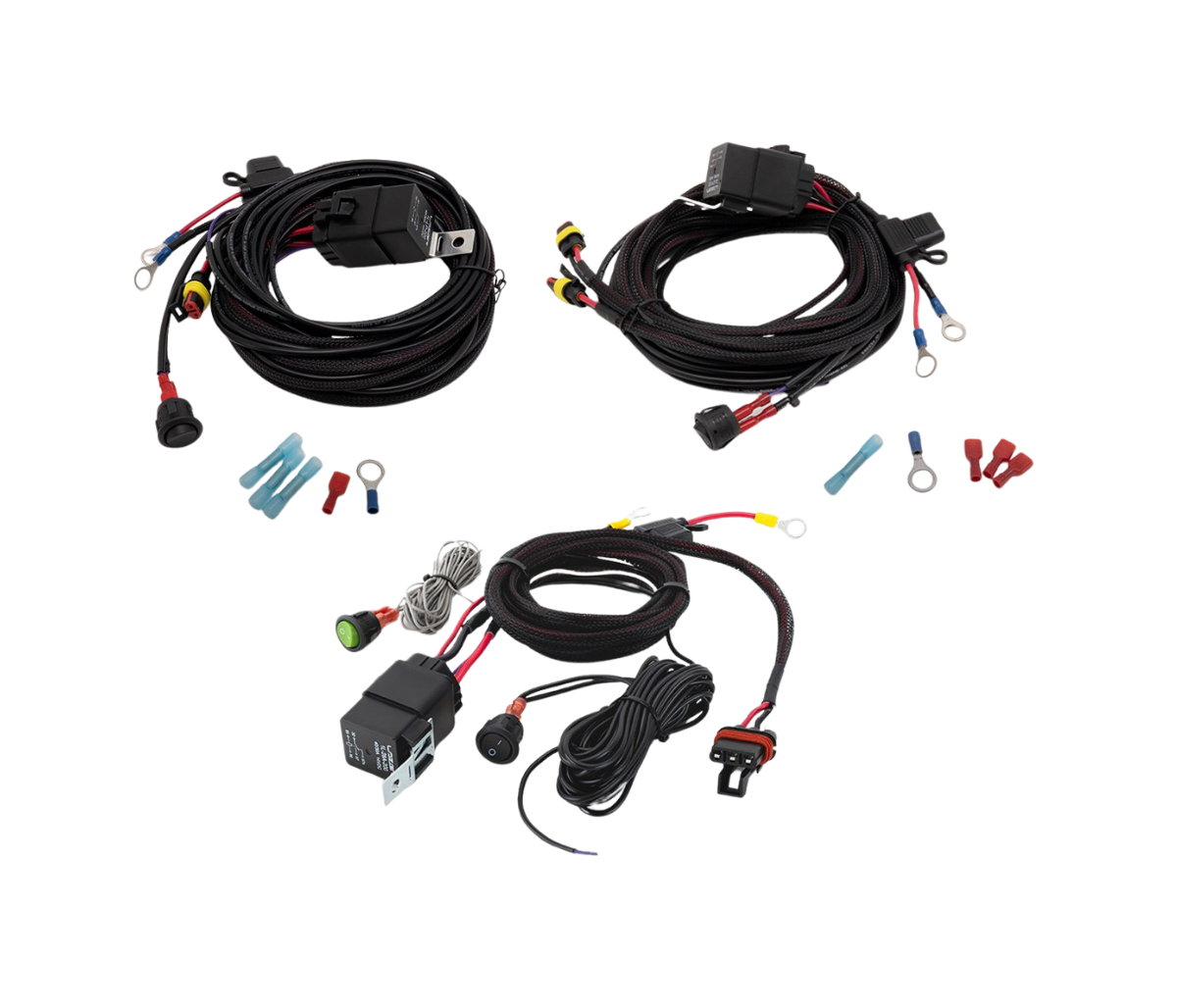

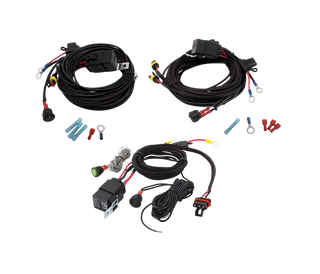

Designed for seamless integration with Lazer LED lighting systems, these wiring kits offer reliable, weatherproof connections for single or dual-lamp setups.

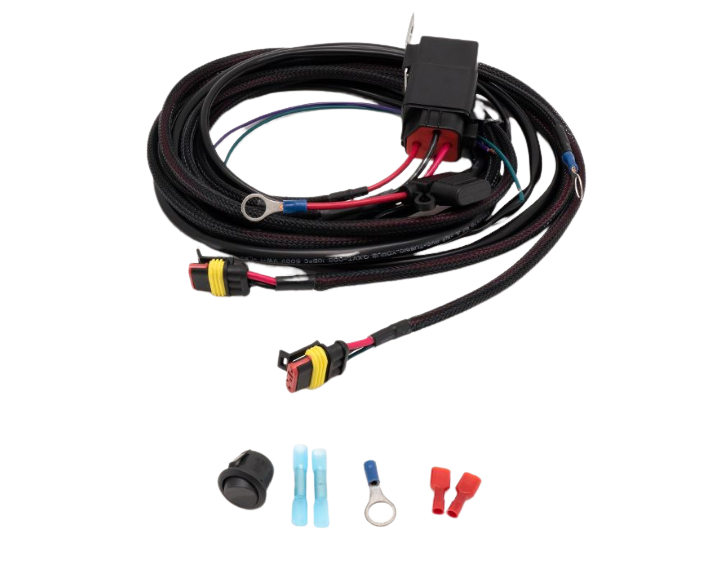

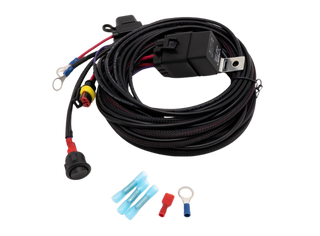

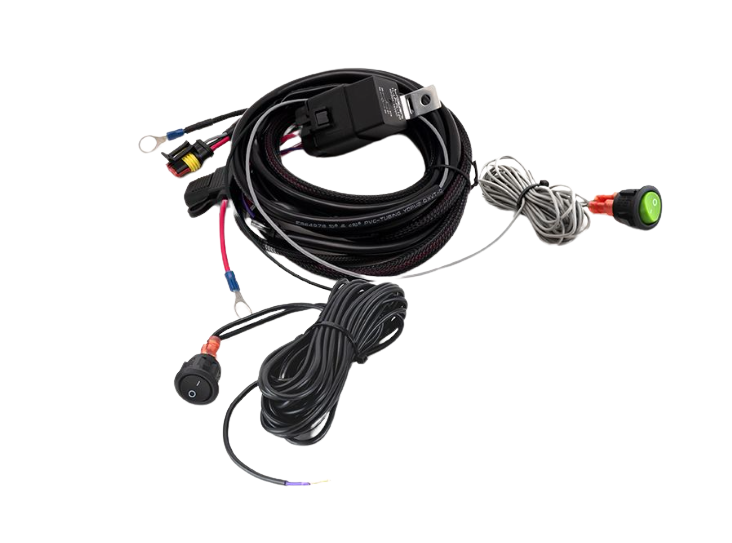

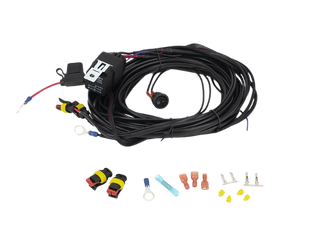

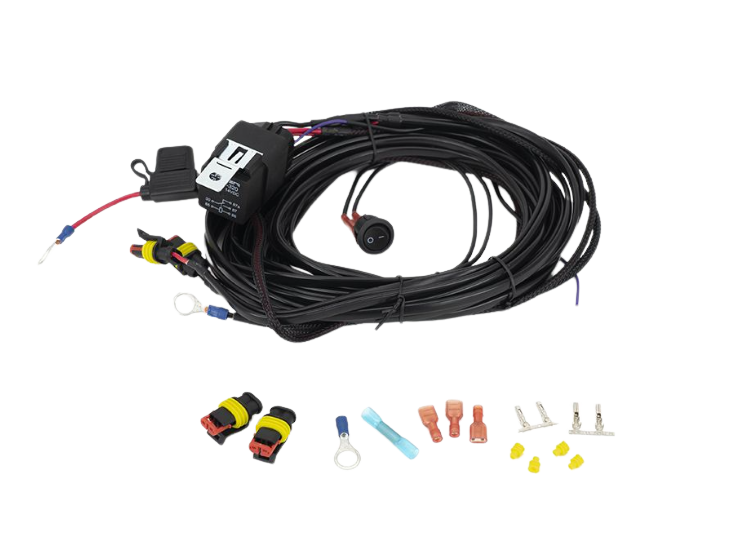

Available with Superseal or Deutsch DT connectors, and options for integrated position lights or beacon functionality. Each kit includes a waterproof relay, inline fuse, and pre-terminated connectors, with varying cable lengths to suit different vehicle installations.

Perfect for 12V applications across 4x4s, utility vehicles, and commercial fleets.

Wiring Kit

Compatible with

1L-LP-120

(Single Light)

Glide
Glide Elite
ST Evolution (All Products)
Triple-R 750 Elite (Gen2)
Triple-R 850 Elite (Gen2)
Triple-R 1000 Elite (Gen2)
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std / Elite)
Linear-24 Elite
Linear-36
Linear-42
Linear-48
Sentinel 7''
Sentinel 9'' Elite

1L-LP-300

(Single Light)

ST Evolution (All Products)
Triple-R 750 Elite (Gen2)
Triple-R 850 Elite (Gen2)
Triple-R 1000 Elite (Gen2)
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std / Elite)
Linear-24 Elite
Linear-36
Linear-42
Linear-48
Sentinel 7''
Sentinel 9'' Elite

1L-LP-PL-120

(Single)

Air-90
Glide (with Position Light)
Glide Elite (with Position Light)
Triple-R 750 (Gen2)
Triple-R 850 (Gen2)
Triple-R 1000 (Gen2)
Triple-R 1250 (Gen2)
Linear-12 Elite (with Position Light)
Linear-18 Elite (with Position Light)
Sentinel 7'' Elite
Sentinel 9''
Sentinel 9'' Chrome
Sentinel 9'' Elite (with Position Light)

1L-LP-EP-120

(Single Light)

· Linear-6 Elite+

1L-28A-200

(Single Light)

· Linear-18 Elite+

1L-40A-320

(Single Light)

· Linear-36 Elite

· Linear-42 Elite

· Linear-48 Elite

· Triple-R 24 Elite+

1L-HP-300

(Single Light)

· T-16 Evolution

· T-24 Evolution

· T-28 Evolution

· Triple-R 16 Elite

· Triple-R 24 Elite

· Triple-R 28 Elite

· Triple-R 1250 Elite+

1L-UT-500

(Single Light)

Linear-24 Flood
Utility-25
Utility-25 MAXX
Utility-45
Utility-50
Utility-80 HD (Heavy Duty)
RP Spot

1L-DT4-200

(Single Light)

Carbon-2 (Spot / Drive)
Carbon-4 (Spot / Drive)
Carbon-6 (Spot / Drive)
RP Hyperspot
Utility-50 with Beacon
Utility-50 with Red Tail Light
Utility-80 HD with Variable Brightness

2L-LP-120

(Two Lights)

ST Evolution (All Products)
Triple-R 750 Elite (Gen2)
Triple-R 850 Elite (Gen2)
Triple-R 1000 Elite (Gen2)
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std only)
Sentinel 7''

2L-LP-320

(Two Lights)

ST Evolution (All Products)
Triple-R 750 Elite
Triple-R 850 Elite
Triple-R 1000 Elite
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std)
Sentinel 7''

2L-MP-120

(Two Lights)

Sentinel 9'' Elite
Linear-18 Elite

2L-LP-PL-120

(Two Lights)

Air-90
Triple-R 750
Triple-R 850
Triple-R 1000
Linear-12 Elite (with Position Light)
Sentinel 7'' Elite
Sentinel 9''
Sentinel 9'' Chrome

2L-LP-EP-120

(Two Lights)

· Linear-6 Elite+

2L-MP-PL-120

(Two Lights)

Air-130 Elite
Sentinel 9'' Elite (with position light)
Linear-18 Elite (with position light)
Triple-R 1250

2L-LP-6C-350

(Two Lights)

Triple-R 1000 with Beacon

2L-UT-200

(Two Lights)

Linear-24 Flood
Utility-25
Utility-25 MAXX
Utility-45
Utility-50
Utility-80 HD (Heavy Duty)
RP Spot

2L-UT-500

(Two Lights)

Linear-24 Flood
Utility-25
Utility-25 MAXX
Utility-45
Utility-50
Utility-80 HD (Heavy Duty)
RP Spot

2L-DT4-235

(Two Lights)

Carbon-2 (Spot / Drive)
Carbon-4 (Spot / Drive)
Carbon-6 (Spot / Drive)
RP Hyperspot
Utility-50 with Beacon
Utility-50 with Red Tail Light
Utility-80 HD with Variable Brightness

8230-12V-SP

(Four Lights)

ST Evolution (All Products)
Triple-R 750 Elite
Triple-R 850 Elite
Triple-R 1000 Elite
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std)

4L-CS-185

(Four Lights)

· Carbon-6 DRIVE (Gen3)

· Carbon-6 SPOT (Gen3)

4L-CS-320

(Four Lights)

· Carbon-6 DRIVE (Gen3)

· Carbon-6 SPOT (Gen3)

Plug-and-play design
Weatherproof construction
Inline fuse protection
Relay included
Multiple connector and cable length options

ConnectorsSuperseal (2/3/6-pin) or Deutsch DT (2/4-pin)

RelayWaterproof, 12V

Cable Lengths1.2m to 5m depending on kit

Lamp SupportSingle or Dual

Cable length: 1.2m, 2m, 3m, 3.5m, or 5m depending on the kit

Connector size: Standard automotive size (varies by pin count)

Everything this install needs

0 of 0 in the box

Kits include waterproof relay, inline fuse, and Superseal or Deutsch connectors.

Pre-terminated for fast, secure installation. No cutting or soldering required

Suitable for 12V vehicles including 4x4s, utility vehicles, commercial vans, and off-road applications.

Q: Do I need a special kit for position or beacon lights?
A: Yes, select 3-pin or 6-pin kits for position or beacon-equipped lamps.

Q: Can I use these kits for non-Lazer lights?
A: Compatibility is optimized for Lazer products. Check connector type before use.

Q: Are relays and fuses included?
A: Yes, all necessary relays, fuses, and connectors are included.
