Home / Lighting / Driving & light bars

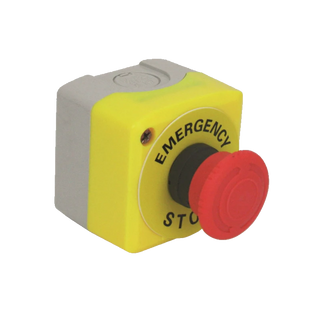

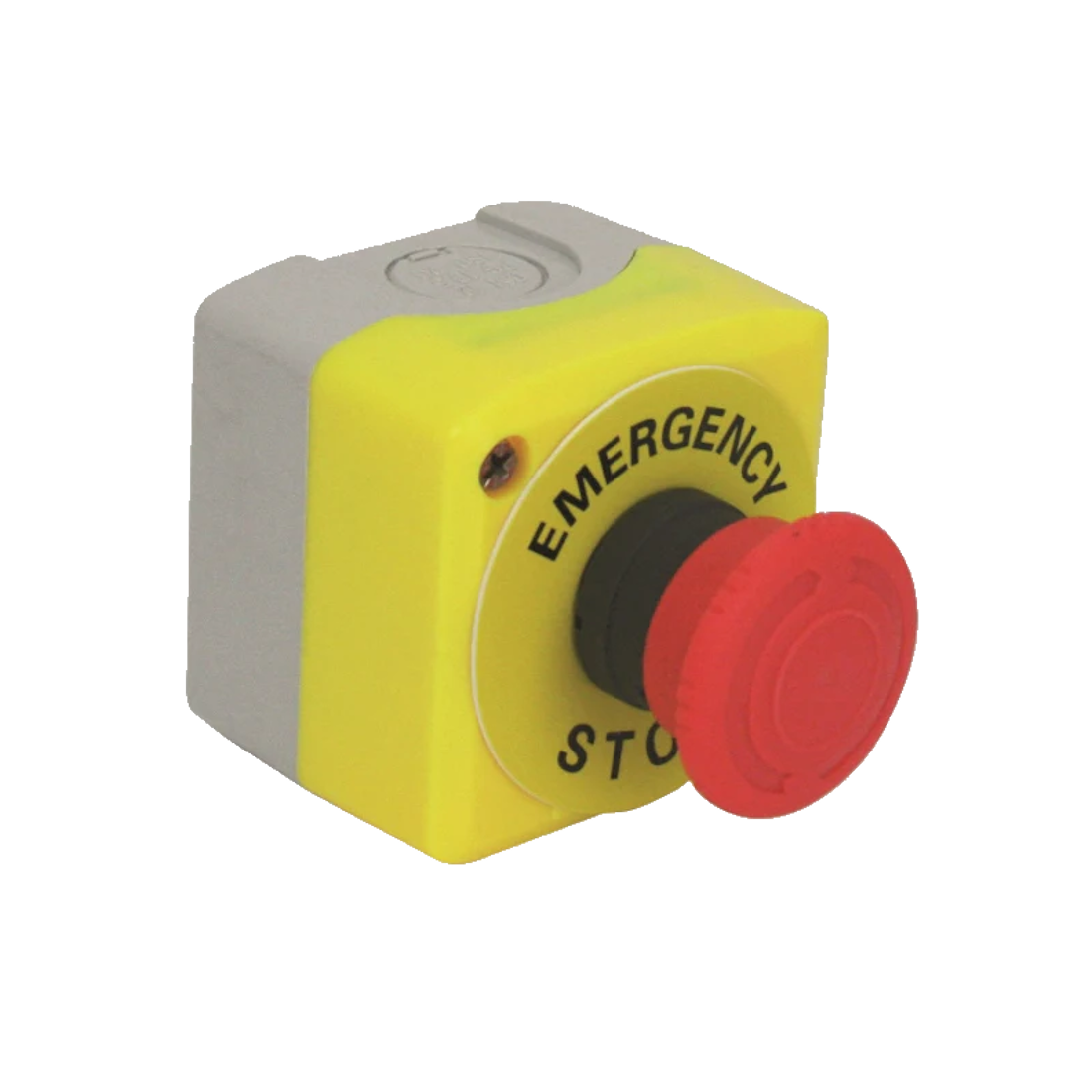

Emergency Stop Switch Push Button - Latching Twist Release

Schneider Electric

Emergency Stop Switch Push Button - Latching Twist Release

SW-K174

The SW-K174 Emergency Stop Switch is a rugged, industrial-grade push-button designed for reliable emergency shutoff in machinery and control systems. Featuring a twist-release latching mechanism, this safety switch ensures equipment cannot be accidentally restarted without a deliberate manual reset. With…

$76.50$85.00 Save $8.50

4 interest-free payments of $19.13 with
or pay over time with
Important note

The SW-K174 is a high-quality emergency stop switch designed for reliable performance in industrial and automotive applications. Its latching twist-release mechanism ensures safety by preventing accidental resets. The switch features both Normally Open (NO) and Normally Closed (NC) contacts and is housed in a durable polycarbonate enclosure.

We accept
The SW-K174 is suitable for a wide range of vehicles, including trucks, buses, and industrial machinery, where emergency stop functionality is required.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The SW-K174 Emergency Stop Switch is a rugged, industrial-grade push-button designed for reliable emergency shutoff in machinery and control systems. Featuring a twist-release latching mechanism, this safety switch ensures equipment cannot be accidentally restarted without a deliberate manual reset. With one Normally Open (NO) and one Normally Closed (NC) contact, and a durable IP65-rated polycarbonate housing, it's ideal for automotive, manufacturing, and industrial applications requiring dependable emergency control.

  • Latching push-button with twist-to-release mechanism
  • Dual contact configuration (NO + NC)
  • Durable polycarbonate housing
  • IP65 rated for dust and water resistance
  • Suitable for panel mounting with 22mm cutout
  • Complies with international safety standards

ModelSW-K174

Contact Configuration1 x Normally Open (NO), 1 x Normally Closed (NC)

Housing MaterialPolycarbonate

Ingress ProtectionIP65

Mushroom Head Diameter40mm

Electrical Rating10A

Mounting Cutout22mm

Dimensions68mm x 68mm x 89mm

Everything this install needs

0 of 0 in the box

The switch is designed for panel mounting with a standard 22mm cutout. It features screw terminals for secure wiring connections.

The SW-K174 is suitable for a wide range of vehicles, including trucks, buses, and industrial machinery, where emergency stop functionality is required.

Q: What is the function of the latching twist-release mechanism?
A: When the button is pressed, it latches into place to indicate an emergency stop. To reset, the button must be twisted, preventing accidental resets.

Q: Are replacement contacts available?
A: Yes, replacement contacts such as the Switch Contact Green N/O are available for the SW-K174.
