Canopy Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
Canopy Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System
The Scout Power System

The Scout Power System

SKU: FAB-ASM-SCOUT-100-P
$5,830.00
Add Lithium Battery & Trayw/ 100Ah Slimline Lithium + Mounting Tray
Control Panel OrientationPassenger Side
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Universal Fit
Designed to suit almost any canopy or toolbox setup with passenger or driver-side configurations.

50A Victron Orion DC-DC Charger

Victron 100/30A MPPT Solar Regulator

Victron MultiPlus 1200W Inverter with shore power prioritisation

Victron BMV-712 Bluetooth Battery Monitor

240V dual 10A outlets

Solar & Anderson plug inputs

USB & 12V outlets for devices

Height: 535mm

Width: 525mm

Depth: 168mm (may vary slightly depending on selected components)

Weight: 21.7kg

This product is designed and assembled by Elevate Automotive using Australian-standard parts and wiring methods. Our in-house team has developed this system based on years of experience with dual battery installs and lithium integration in modern 4WDs.

 [{"variant_id":"50895081865489" , "metafield_value":""},{"variant_id":"50895082160401" , "metafield_value":""},{"variant_id":"50895082193169" , "metafield_value":""},{"variant_id":"50895082225937" , "metafield_value":""}]

The Scout Power System

$5,830.00
Description

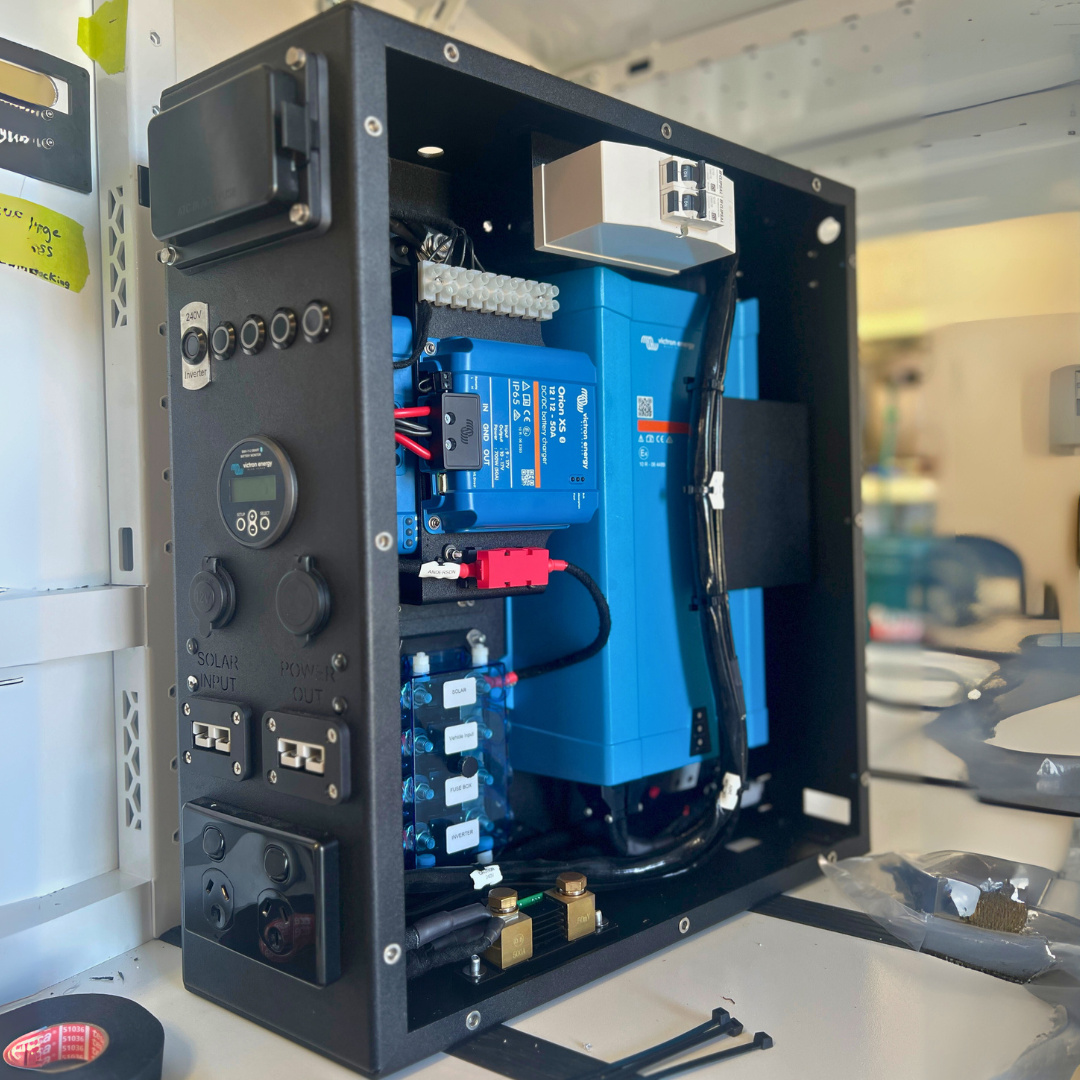

Meet The Scout — a compact, all-in-one power system built for canopies and toolboxes. Designed for 4WD users and tradies alike, it delivers reliable off-grid power in a clean, integrated setup.

Powered by Victron components, it includes a 50A Orion DC-DC charger, 100/30A MPPT solar regulator, and a 1200W MultiPlus inverter with shore power prioritisation for seamless charging and use on the go.

Stay in control with the Victron BMV-712 Smart Bluetooth monitor, giving you real-time battery data straight to your phone or display.

Connectivity is fully covered with 240V dual outlets, solar and Anderson inputs, plus USB and 12V ports for all your gear.

Designed to fit a wide range of canopy and toolbox setups in either passenger or driver-side configurations, with optional upgrades including a plug-and-play charging harness or 100Ah lithium battery kit for extended capacity.

FEATURES

Mounts behind rear seat using factory bolt holes

No drilling, cutting, or permanent mods required

Fully pre-wired system with labelled connections

Compatible with Redarc or Victron chargers and monitors

Connects to solar and alternator inputs

Bluetooth battery monitoring with Redarc or Victron app

Clean, stealth installation keeps tub and canopy space free

Egon DC Hub provides easy 12V access for fridges and gear

Professionally built and tested by Elevate Automotive

Ideal for remote travel, trades, and daily dual cab use

Specifications

Battery options:Amptron 12V 100Ah or 200Ah LiFePO₄

Charger options: Redarc Alpha 40A, BCDC Core 25A or 40A, or Victron Orion XS 50A

Battery monitor options: Redarc Smart Shunt or Victron Smart Shunt (Bluetooth)

Solar regulator (Victron only): Victron SmartSolar MPPT 100/30

Egon DC Hub for 12V output

Fully pre-wired system on custom mount panel

Wiring diagram included

Installation Information

Designed as a DIY-friendly, plug-and-play system. The kit is fully pre-wired with labelled connections and comes assembled on a custom mount panel. You can install it using factory bolt holes behind the rear seat.

Optional heavy-duty vehicle-specific harness available for alternator connection.

Professional installation is recommended for users unfamiliar with auto-electrical systems.

Warranty Information

Amptron Lithium Batteries include a 5-year warranty.

Redarc and Victron chargers and shunts include 2–5 year manufacturer warranties depending on the product.

All Elevate Automotive-built systems are covered by a 12-month installation and workmanship warranty.

PICKUP OR SHIPPING

Pickup: Available from Elevate Automotive (WA)

Shipping: Australia-wide shipping

FAQ's

Q: Can I install this myself?
A: Yes, it's designed to be DIY-friendly. All connections are pre-wired and clearly marked. If you're comfortable with vehicle electrics, you can install it using basic tools.

Q: Will it fit behind the seat with my child seat setup?
A: Yes — the system fits behind the rear seat without interfering with child seat anchor points.

Q: Is the system expandable in the future?
A: Yes. The Redarc and Victron units support solar and additional accessories. You can also upgrade your lithium battery later.

Guides & Tutorials

Meet The Scout — a compact, all-in-one power system built for canopies and toolboxes. Designed for 4WD users and tradies alike, it delivers reliable off-grid power in a clean, integrated setup.

Powered by Victron components, it includes a 50A Orion DC-DC charger, 100/30A MPPT solar regulator, and a 1200W MultiPlus inverter with shore power prioritisation for seamless charging and use on the go.

Stay in control with the Victron BMV-712 Smart Bluetooth monitor, giving you real-time battery data straight to your phone or display.

Connectivity is fully covered with 240V dual outlets, solar and Anderson inputs, plus USB and 12V ports for all your gear.

Designed to fit a wide range of canopy and toolbox setups in either passenger or driver-side configurations, with optional upgrades including a plug-and-play charging harness or 100Ah lithium battery kit for extended capacity.
