Home / Lighting / Driving & light bars

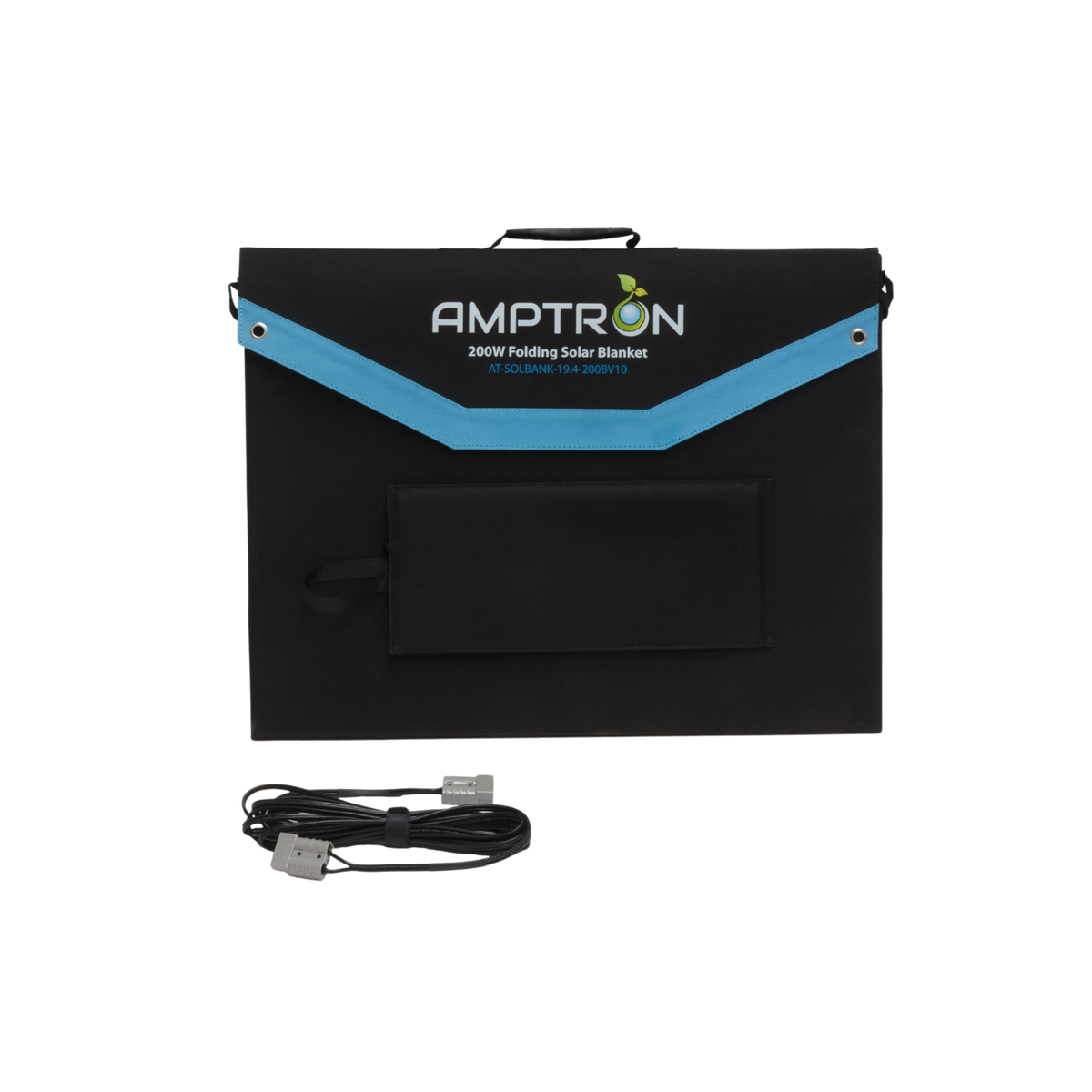

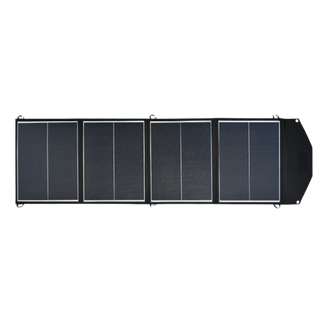

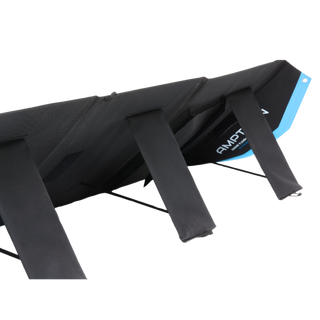

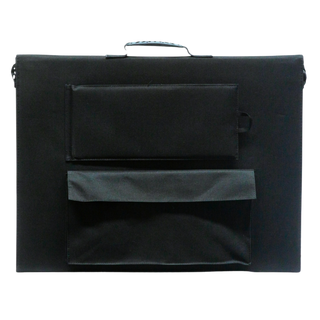

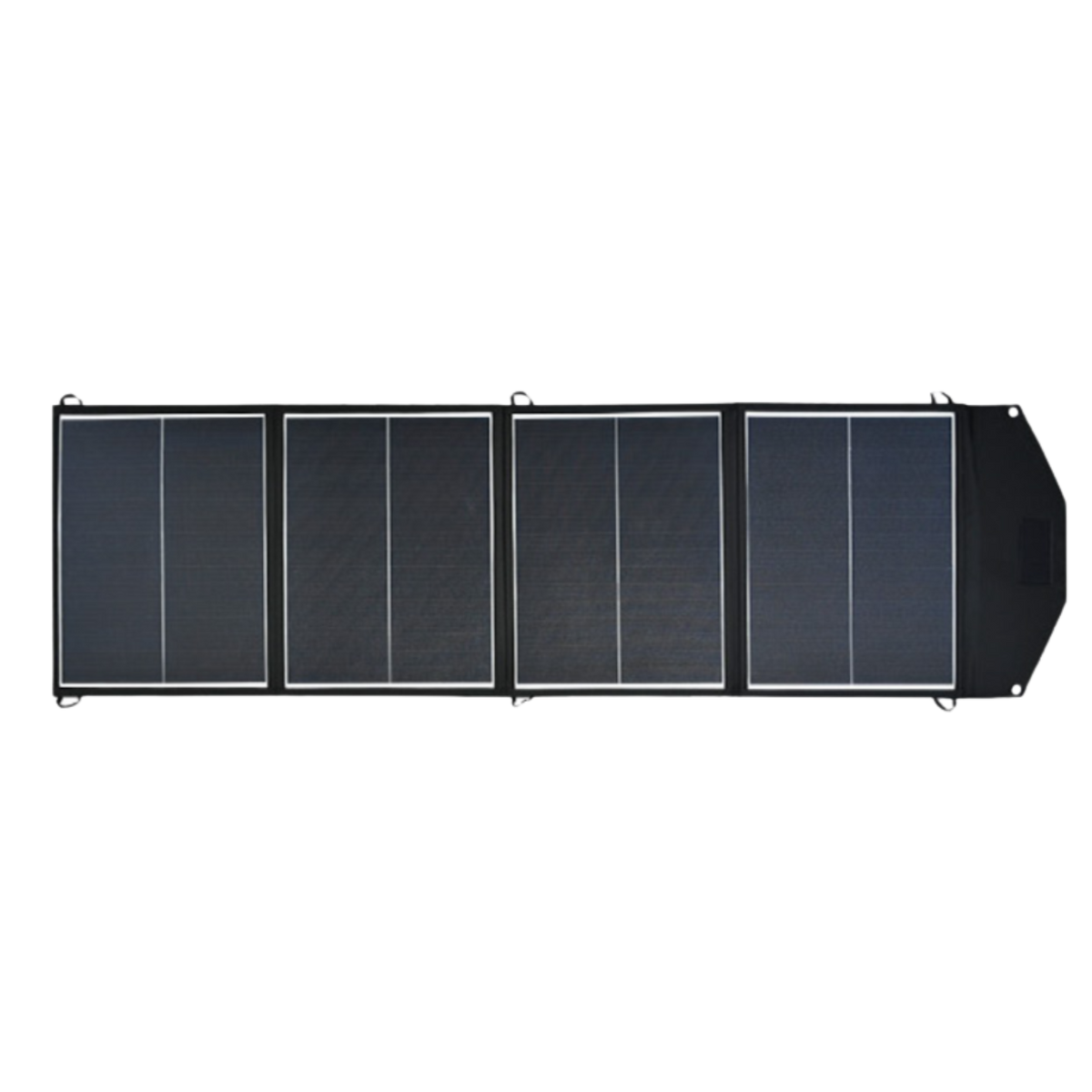

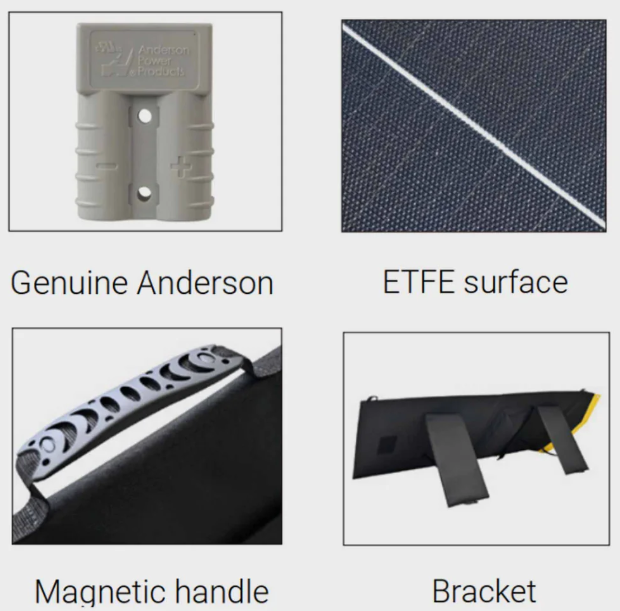

The 200W folding solar blanket opened out flat, four hinged panels of shingled cells in fabric-bound frames with corner tie loops, and the cable pocket at the far endThe folded solar blanket propped on its rear support legs, showing the padded backing panels and the strap that holds the legs at their working angleThe solar blanket folded closed into its case, the Amptron name and 200W Folding Solar Blanket printed on the flap with part number AT-SOLBANK-19.4-200BV10, with the Anderson-to-Anderson lead coiled below itBack of the folded solar blanket, showing the carry handle, the shoulder strap anchors, the zipped cable pocket and the flap that covers itFour detail panels for the folding solar blanket: a genuine Anderson Power Products connector, the ETFE cell surface, the magnetic carry handle, and the folded blanket showing the support bracket legs

Amptron

200W 12V Folding Perc-Shingled Solar Blanket

AT-SOLBLANK-19.4-200-BV10

The Amptron 200W 12V Folding Perc-Shingled Solar Blanket (AT-SOLBLANK-19.4-200-BV10) is a high-efficiency, portable solar solution designed for outdoor enthusiasts and professionals alike. Utilizing advanced PERC Shingled Mono solar cell technology, this blanket achieves zero cell spacing, effectively increasing the light-receiving…

$449.10$499.00 Save $49.90

4 interest-free payments of $112.28 with
or pay over time with
We accept
Suitable for a wide range of 12V systems, including RVs, caravans, marine vessels, off-grid solar setups, and portable power stations.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Amptron 200W 12V Folding Perc-Shingled Solar Blanket (AT-SOLBLANK-19.4-200-BV10) is a high-efficiency, portable solar solution designed for outdoor enthusiasts and professionals alike. Utilizing advanced PERC Shingled Mono solar cell technology, this blanket achieves zero cell spacing, effectively increasing the light-receiving area for improved power conversion efficiency. Its compact, lightweight design, combined with the durable TOUGHSHIELD ETFE coating, ensures resilience in harsh environments, making it ideal for camping, RVs, marine applications, and off-grid setups.

Released in 2024, this redesigned solar blanket features PERC Shingled Mono solar cell technology with zero cell spacing, enhancing the light-receiving area for improved power conversion efficiency. The TOUGHSHIELD ETFE coating provides durability against environmental factors, ensuring long-term performance in various outdoor conditions.

  • High-efficiency PERC Shingled Mono solar cells with zero cell spacing for improved power conversion. Durable TOUGHSHIELD ETFE coating for enhanced resistance to environmental factors. Compact and lightweight design for easy portability and storage. Splashproof polyester fabric with reinforced stitching for longevity. Multiple mounting options with reinforced eyelets for secure attachment. Includes a 5-meter Anderson to Anderson extension cable for flexible connectivity.

Product Code – AT-SOLBLANK-19.4-200-BV10

Maximum Power Rating (Pmax) – 200 Watts (4 x 50W panels)

Voltage at Max Power (Vmp) – 19.4 Volts

Current at Max Power (Imp) – 10.31 Amps

Open Circuit Voltage (Voc) – 21.9 Volts

Short Circuit Current (Isc) – 10.93 Amps

Cell Efficiency – 22%

Number of Cells – 136 (2 x 17 x 4)

Power Temperature Coefficient – -0.38%/°C

Output Power Tolerance – ±5%

Weight – 5.7 kg

Downloadable

Length: 615mm

Width: 470mm

Height: 25mm

Weight: 5.7kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Designed for easy setup with multiple mounting options, including reinforced eyelets for secure attachment. The blanket comes with a 5-meter Anderson to Anderson extension cable, facilitating flexible placement and connection to various battery systems.

User Manual

Suitable for a wide range of 12V systems, including RVs, caravans, marine vessels, off-grid solar setups, and portable power stations.

Q: Can this solar blanket charge a 12V battery directly?

A: Yes, it can charge a 12V battery directly. For optimal charging, it's recommended to use an MPPT solar charge controller.

Q: Is the solar blanket waterproof?

A: The blanket is splashproof, featuring a durable polyester fabric with no exposed sections. However, it should not be submerged in water.

Q: What type of connectors does the blanket use?

A: It utilizes genuine Anderson connectors, ensuring secure and reliable connections to various battery systems.
