Victron Inverter Add on Kit for NLRBB

SKU: ASM-NLRBB-ADD ON-Victron500W

Made to Order - Please allow 5 to 7 business days for dispatch & collection

$404.00
Inverter Size500W
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for use with the National Luna Redarc Battery Box (NLRBB), ideal for a variety of 4WD and camping setups requiring portable power.


Victron Phoenix Inverter (500W or 1200W)

Appropriate Anderson plug (SB50 for 500W, SB175 for 1200W)

All required cables and connectors

Mounting hardware and instructions

500W Model: Approx. 255mm (L) x 125mm (W) x 115mm (H)

1200W Model: Approx. 295mm (L) x 165mm (W) x 130mm (H)

This Victron Inverter Add-On Kit is designed specifically for the NLRBB Customised National Luna Redarc Battery Box. It provides a compact and efficient power conversion solution, integrating seamlessly with the battery box for a streamlined portable power setup.

 [{"variant_id":"39881324036205" , "metafield_value":""},{"variant_id":"39881323872365" , "metafield_value":""}]

Victron Inverter Add on Kit for NLRBB

$404.00
Description

The Victron Inverter Add-On Kit is a versatile upgrade for the NLRBB Customised National Luna Redarc Battery Box (battery box sold separately).

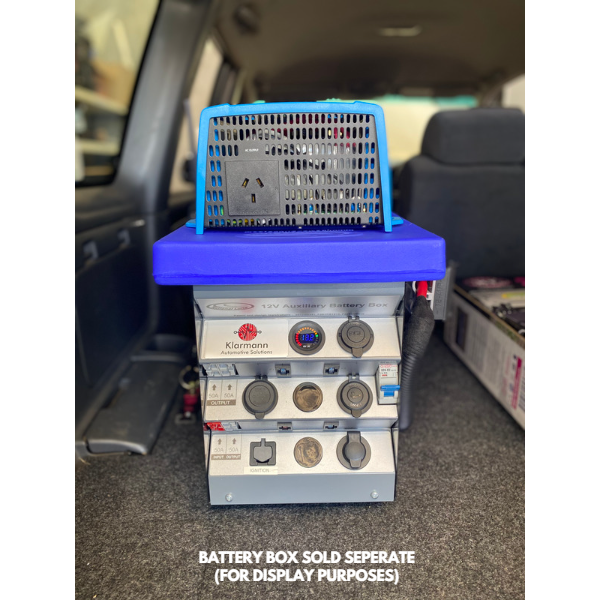

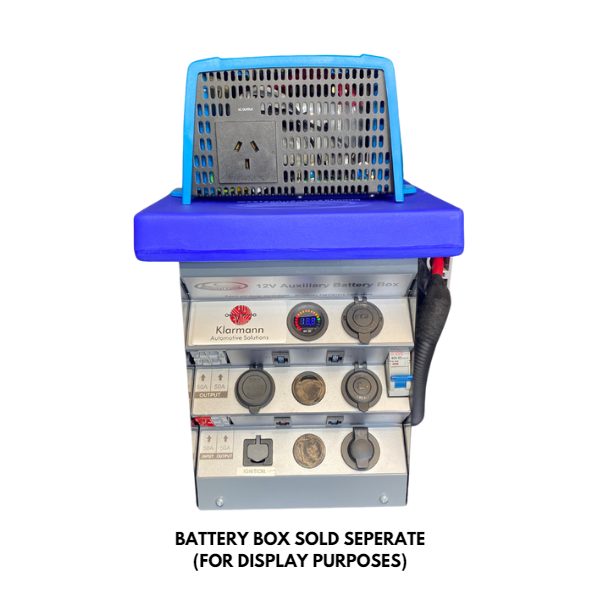

This kit includes all necessary components and is expertly mounted to the lid of the box for a compact, all-in-one power solution.

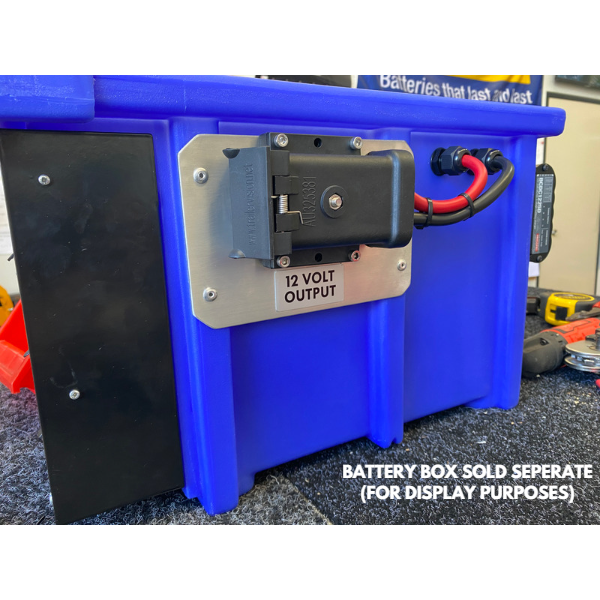

Choose between the 500W or 1200W Victron Phoenix inverter options to suit your power needs. The 500W model connects directly to the existing Anderson plug on the box front, while the 1200W model features a higher-rated Anderson plug installed on the side for safe, reliable use.

FEATURES

Efficient pure sine wave power output

Seamless integration with NLRBB battery box

Compact mounting on battery box lid

Includes all necessary cabling, plugs, and mounting hardware

Available in two power ratings to suit your needs

FAQ's

Q: Can this kit be added to existing NLRBB battery boxes?
A: Yes, it can be retrofitted to compatible NLRBB battery boxes.

Q: Does it include all cables and connectors needed?
A: Yes, all necessary cables, plugs, and mounting hardware are included.

Specifications

Victron Phoenix Inverter 500W (Model PIN121501300)

Input Voltage: 12 V DC
Output Power: 500 VA continuous
Surge Power: 1000 VA (5 seconds)
Output Voltage: 230 V AC ± 2%
Output Waveform: Pure sine wave
Efficiency: Up to 90%
No Load Current: 0.3 A
Operating Temperature: -40°C to +50°C
Protection: Overload, short circuit, over-temperature
Connection: SB50 Anderson plug

Victron Phoenix Inverter 1200W (Model PIN122121300)

Input Voltage: 12 V DC
Output Power: 1200 VA continuous
Surge Power: 2400 VA (5 seconds)
Output Voltage: 230 V AC ± 2%
Output Waveform: Pure sine wave
Efficiency: Up to 92%
No Load Current: 0.5 A
Operating Temperature: -40°C to +50°C
Protection: Overload, short circuit, over-temperature
Connection: SB175 Anderson plug with cover

Installation Information

Professional installation is recommended to ensure correct wiring and safe operation.

The kit mounts to the lid of the battery box and connects directly to pre-installed Anderson plugs for quick and neat setup.

Warranty Information


Comes with a 2-year manufacturer’s warranty covering defects in materials and workmanship under normal use.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
