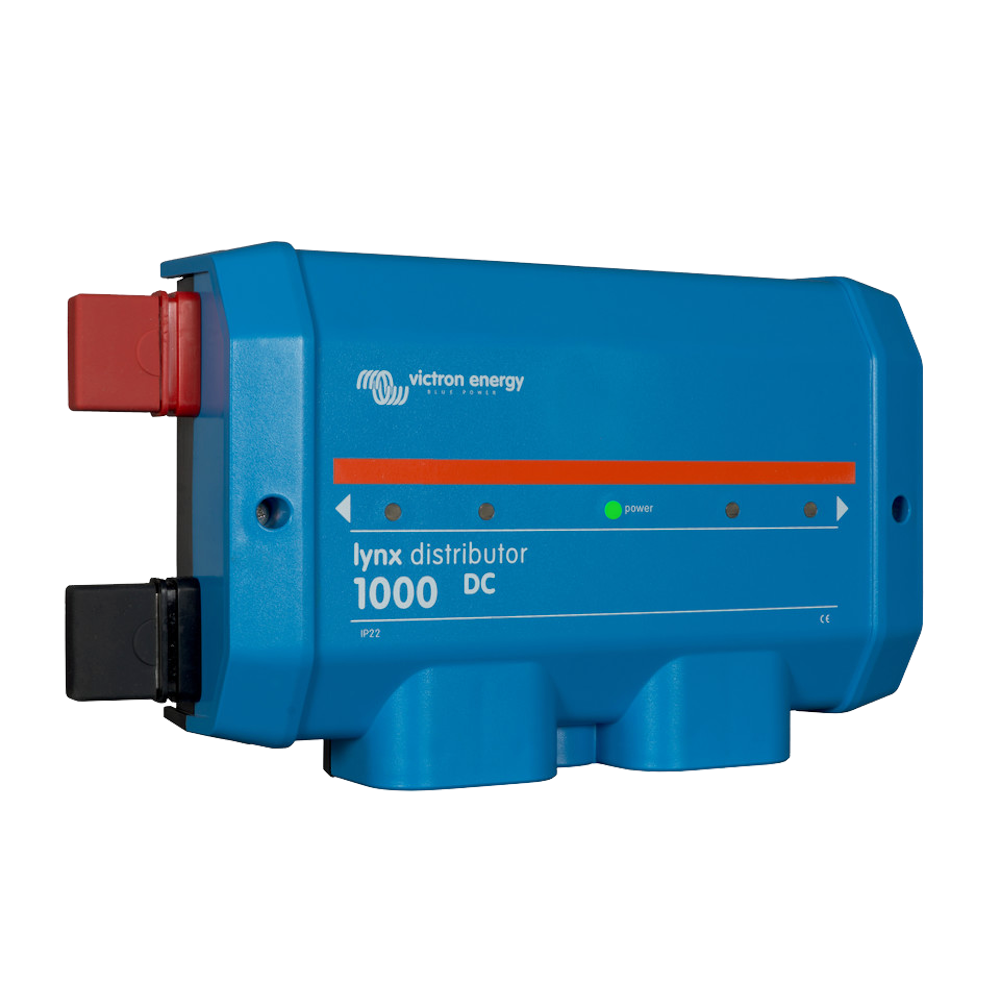

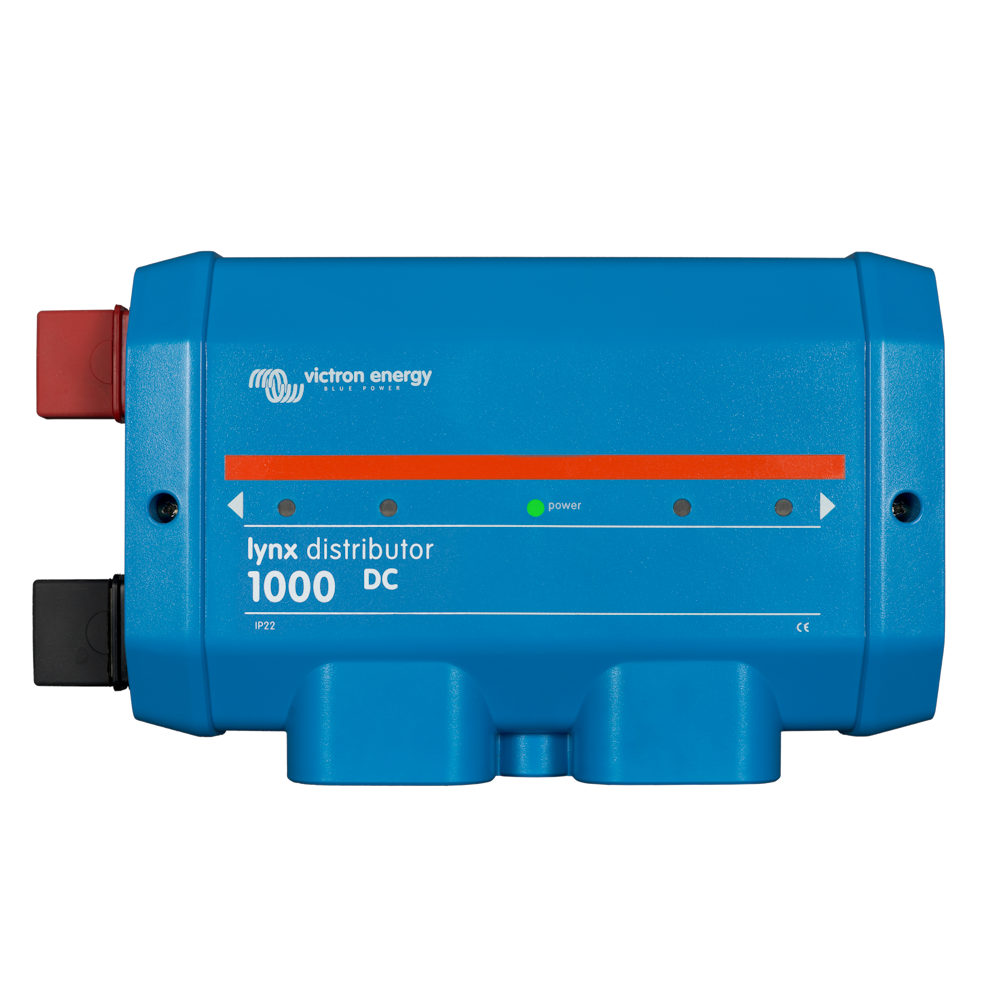

Victron Lynx Distributor (M10)

Modular DC busbar with four fused connections

Real-time fuse monitoring with LED indicators

Compatible with VictronConnect App and GX devices via Lynx Smart BMS

Supports MEGA fuses (sold separately)

Robust 1000A continuous current rating

Seamless integration with other Lynx modules

Compact and durable ABS enclosure

IP22 protection rating

Model: LYN060102010

Busbar Connections: M10

Fuse Connections: M8 (for MEGA fuses)

Continuous Current Rating: 1000A DC

Voltage Range: 9–60V DC

Supported System Voltages: 12V, 24V, 48V

Power Consumption: Max 100mA (with all LEDs illuminated)

Reverse Polarity Protection: Yes

Enclosure Material: ABS

Dimensions (HxLxW): 290 x 170 x 80 mm

Weight: 2.2 kg

Operating Temperature Range: -40°C to +60°C

Storage Temperature Range: -40°C to +60°C

Humidity: Max. 95% (non-condensing)

Protection Class: IP22

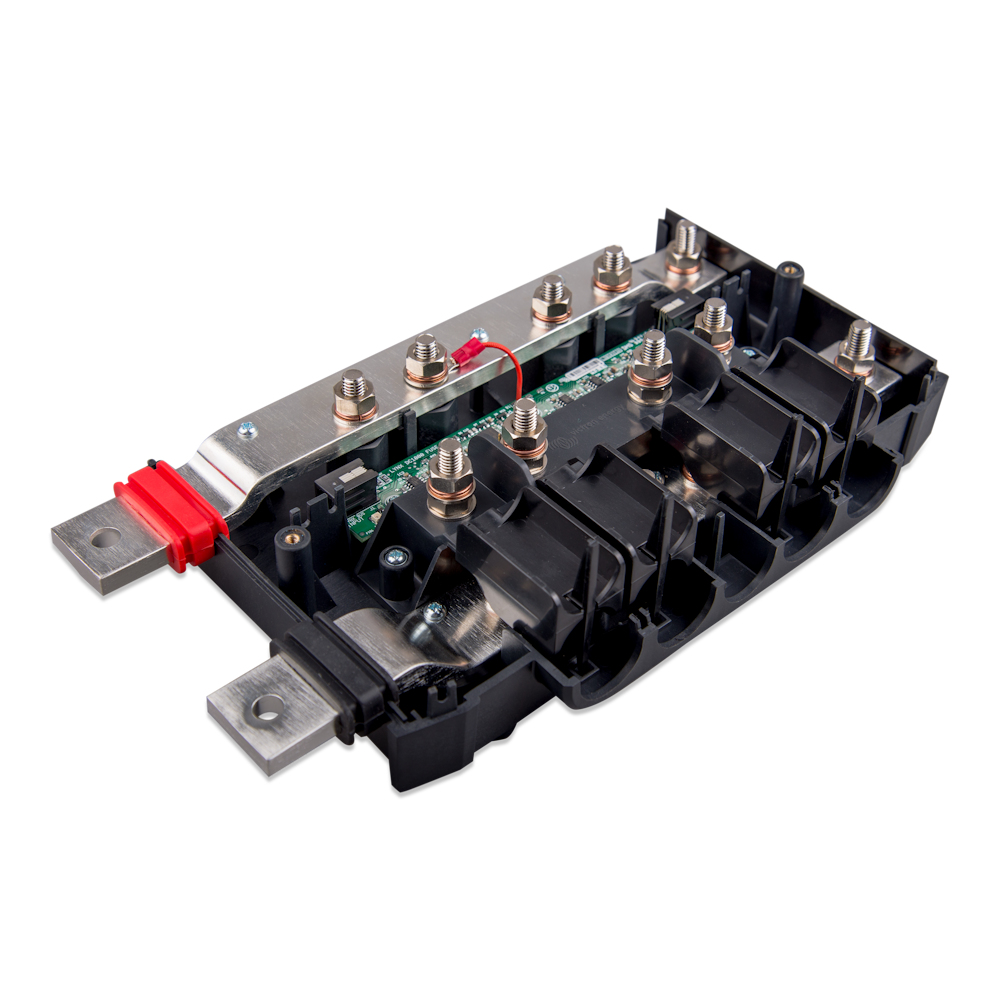

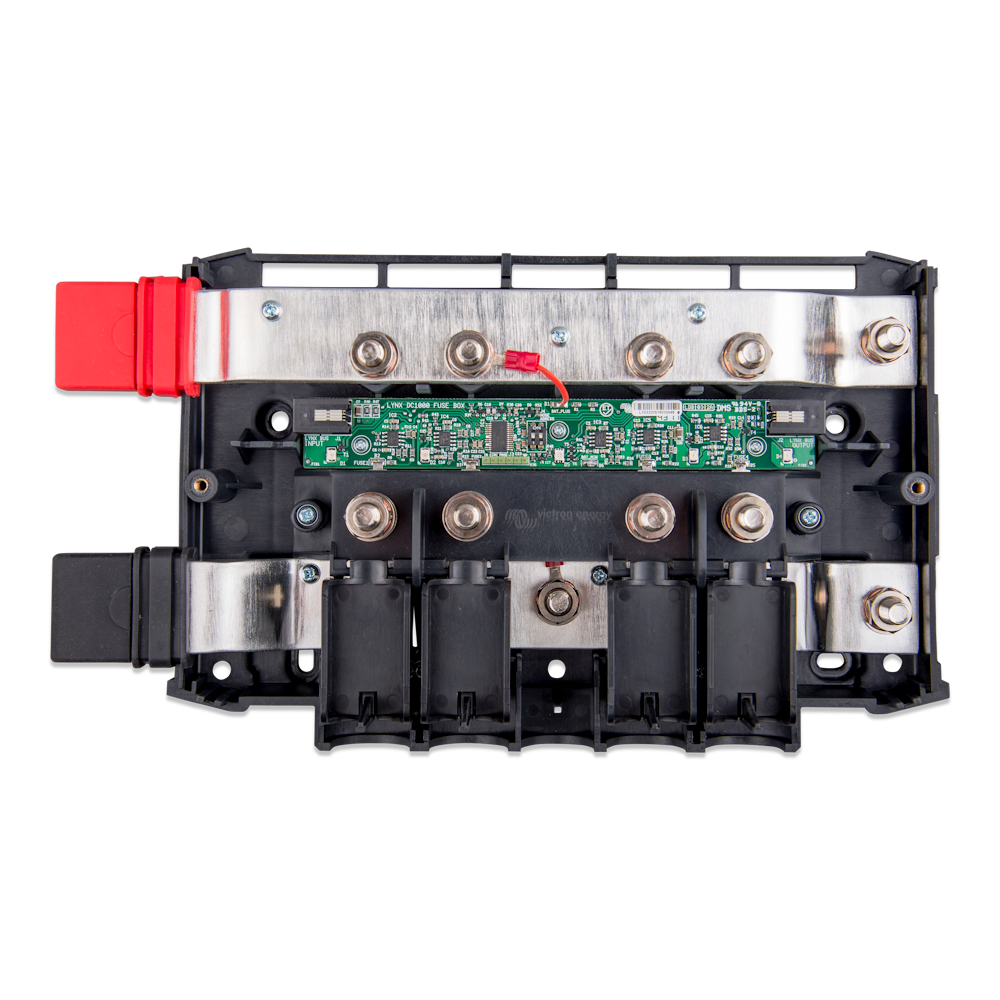

Busbar Material: Tinned copper (8 x 30 mm)

Included Accessories: 40 cm RJ10 cable for power and data communication

Data Sheet: Lynx Distributor

Victron Lynx Distributor (M10)

Victron Energy offers a 5-year limited warranty on the Lynx Distributor (M10).

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

Q: What type of fuses does the Lynx Distributor (M10) use?

A: It is designed to hold MEGA fuses (sold separately).

Q: Can I monitor the fuse status remotely?

A: Yes, when connected to a Lynx Smart BMS, fuse status can be monitored via the VictronConnect App and GX devices.

Q: Is the Lynx Distributor (M10) compatible with other Lynx modules?

A: Yes, it integrates seamlessly with Lynx Power In, Lynx Shunt VE.Can, and Lynx Smart BMS modules.
