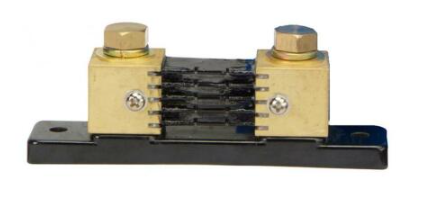

VictronShunt 500A/50mV

Compact all-in-one battery shunt monitor without a display — Bluetooth and VE.Direct enabled.

Enables monitoring of state of charge, voltage, current load, time-to-go, amp-hours, and provides historical data.

Supports additional battery or midpoint monitoring or optional temperature sensor.

Provides accurate measurement down to ±0.1 A / ±0.01 V and integrates with GX devices or VictronConnect app for easy monitoring.

Requires minimal wiring and ideal for clean, hidden installations.

Supply Voltage Range: 6.5 – 70 V DC

Battery Capacity Supported: 1 – 9,999 Ah

Maximum Current: 500 A (shunt rating) with 50 mV drop

Current Draw: < 1 mA

Operating Temperature Range: –40 °C to +50 °C

VE.Direct Port: Yes

Bluetooth Connectivity: Yes

Supports: second battery voltage monitoring, midpoint monitoring, optional temperature sensor

Accuracy (Current): ± 0.1 A

Accuracy (Voltage): ± 0.01 V

Accuracy (Amp hours): ± 0.1 Ah

Accuracy (State of Charge): ± 0.1%

The SmartShunt mounts in-line with your battery negative connection.

It supports connection via Bluetooth to the VictronConnect App or via VE.Direct to a GX device.

Requires very minimal wiring.

Optional temperature sensor or second-battery monitoring can be added.

Covered by a 5-year manufacturer warranty from Victron Energy against defects in materials or workmanship.

Pickup available from Elevate Automotive (WA). Shipping available Australia-wide

Q: How do I view battery data?
A: Use the VictronConnect app on your phone or tablet via Bluetooth, or connect the SmartShunt by VE.Direct cable to a compatible GX device.

Q: Can it monitor more than one battery?
A: Yes — it can monitor a second battery, midpoint voltage, or connect a temperature sensor for temperature-compensated charging.

Q: What battery types are supported?
A: It supports typical 12 V / 24 V battery systems including lead-acid, AGM, lithium and most deep-cycle batteries (per Victron guidelines).
