Home / Lighting / Driving & light bars

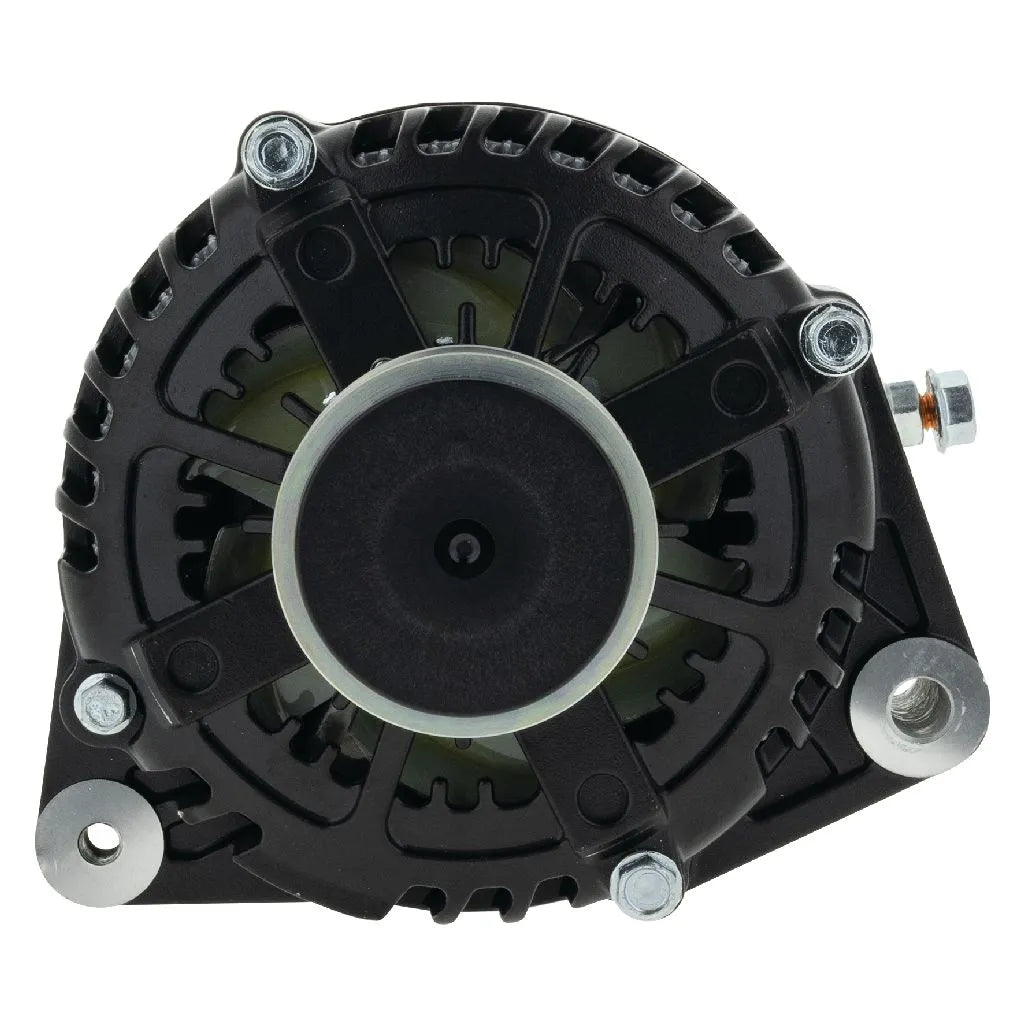

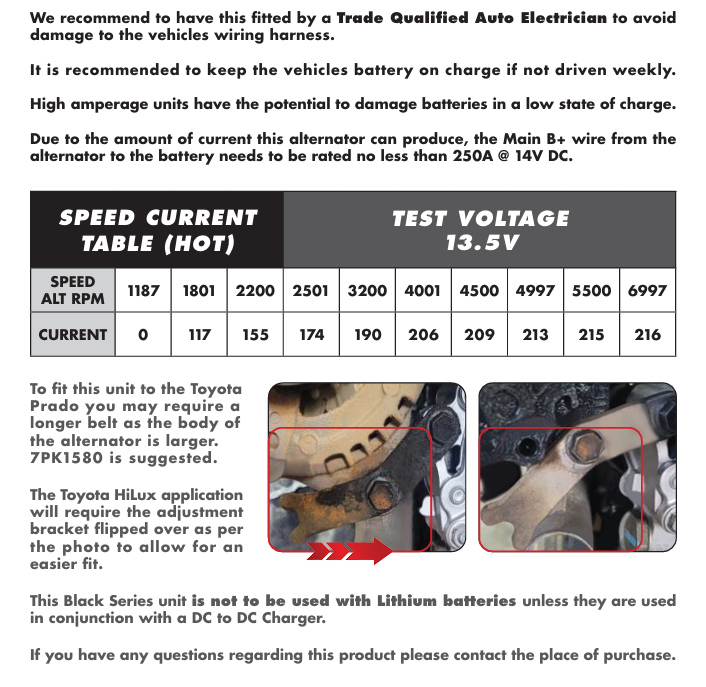

BKS-240KUN Black Series 240A AlternatorBlack Series ALT 12V 240A, Hilux KUN26 / 1KD-FTVBlack Series ALT 12V 240A, Hilux KUN26 / 1KD-FTVBlack Series alternator seen square on to the pulley, the wide grooved pulley centred in the vented black housing with the mounting lugs at the cornersFitting notes with a hot speed current table at 13.5V: 1187 RPM 0A, 1801 RPM 117A, 2200 RPM 155A, 2501 RPM 174A, 3200 RPM 190A, 4001 RPM 206A, 4500 RPM 209A, 4997 RPM 213A, 5500 RPM 215A, 6997 RPM 216A. Notes advise a trade qualified auto electrician, a main B plus wire rated no less than 250A at 14V DC, a longer 7PK1580 belt for the Prado, flipping the HiLux adjustment bracket, and no lithium batteries unless paired with a DC to DC charger

Jaylec

Black Series ALT 12V 240A, Hilux KUN26 / 1KD-FTV

BKS-240KUN

MOUNT: Direct FitVEHICLE: Toyota Hilux KUN26 1KD-FTV 3.0L TD Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higheroutputs than the standard 100A Alternator. Allows the battery packs to be maintained in a full state of charge. Higher…

$899.00

4 interest-free payments of $224.75 with
or finance your build with
We accept
Toyota Hilux KUN26 with the 1KD-FTV 3.0L diesel engine

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

MOUNT: Direct Fit
VEHICLE: Toyota Hilux KUN26 1KD-FTV 3.0L TD

  • Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higher
    outputs than the standard 100A Alternator.
  • Allows the battery packs to be maintained in a full state of charge.
  • Higher charge @ lower RPM.
  • Professional look.
  • 13.5V @ 240A Cold
  • 13.5V @ 217A Hot
  • Upgraded technology
  • The BKS-240KUN alternator boasts a high-output 240A capacity, making it ideal for vehicles with substantial electrical demands. Its 4-phase alternator and stator design, along with NSK bearings and anti-vibration protection, ensure durability and consistent performance under various driving conditions.

Voltage: 12V
Amperage: 240A

Mount Leg ID: 58mm
Centre to Centre Mounts: 165mm
Top Hole ID: M8
Bottom Hole ID: 10mm

Shaft Size: 17mm

Pulley Type: 7PV Clutch
Pulley Grooves: 7
Pulley Diameter: 62mm

Regulator Type: Internal

Connections Plug #: EP35
Terminals: B+, S, IG, M (FR), L

Excitation: External
Ground: Negative

Manufacturer Type: Toyota Hilux KUN26 (1KD-FTV 3.0L Diesel)


Center-to-Center Mounts: 170mm

Top Hole ID: 10mm

Bottom Hole ID: 56mm

Shaft Size: 17mm

Pulley Diameter: 64mm

Weight:6.5kg



Everything this install needs

0 of 0 in the box

The BKS-240KUN alternator features a mount leg ID of M8 with center-to-center mounts at 170mm. The top hole ID is 10mm, and the bottom hole ID is 56mm. It utilizes a single "A" type pulley with a diameter of 64mm. The regulator is internal, and the excitation is external. Installation should be performed by a qualified technician to ensure proper fit and function

Instructions

Toyota Hilux KUN26 with the 1KD-FTV 3.0L diesel engine

Q: Is this alternator compatible with other Toyota models?
A: The BKS-240KUN is specifically designed for the Toyota Hilux KUN26 with the 1KD-FTV 3.0L diesel engine. Compatibility with other models is not specified.

Q: Does this alternator require any modifications for installation?
A: The alternator is designed for direct fitment on the specified vehicle model. However, installation should be carried out by a professional to ensure proper setup.
