Home / Lighting / Driving & light bars

Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]

Jaylec

Black Series ALT 12V 240A, ISUZU MU-X - 4JJ1 4JJ3-TCX DSL [CLUTCH PULLEY]

BKS-240MUX

MOUNT: Direct FitVEHICLE: Isuzu MU-X 4JJ1 4JJ3-TCX DSL FEATURE:• 13.5V @ 240A Cold13.5V @ 217A Hot• Upgraded technology BENEFITS:• Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higheroutputs than the standard 130A Alternator.• Allows the battery packs…

$890.10$989.00 Save $98.90

4 interest-free payments of $222.53 with
or pay over time with
Important note

Jaylec alternators are designed and tested for use with standard lead-acid battery systems. These units are not suitable for direct use with lithium (LiFePO4) battery setups

We accept
Compatible with Isuzu MU-X models equipped with 4JJ1 and 4JJ3-TCX Diesel engines.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

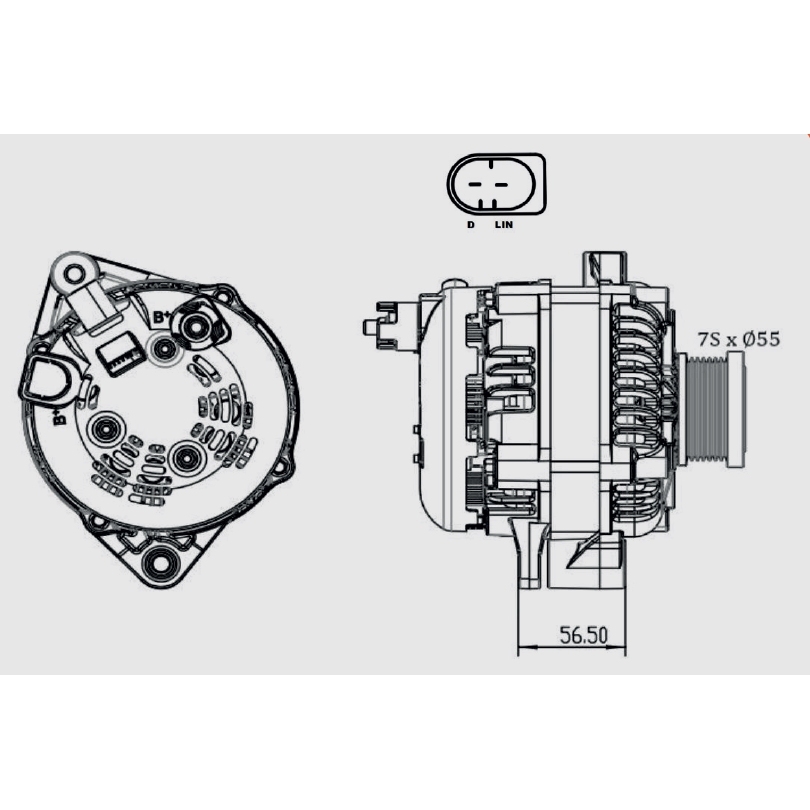

BOLTS INTO THE FACTORY LOCATION

161mm mount spacing, 55mm leg ID and a 17mm shaft, all matching the original, so no brackets or spacers

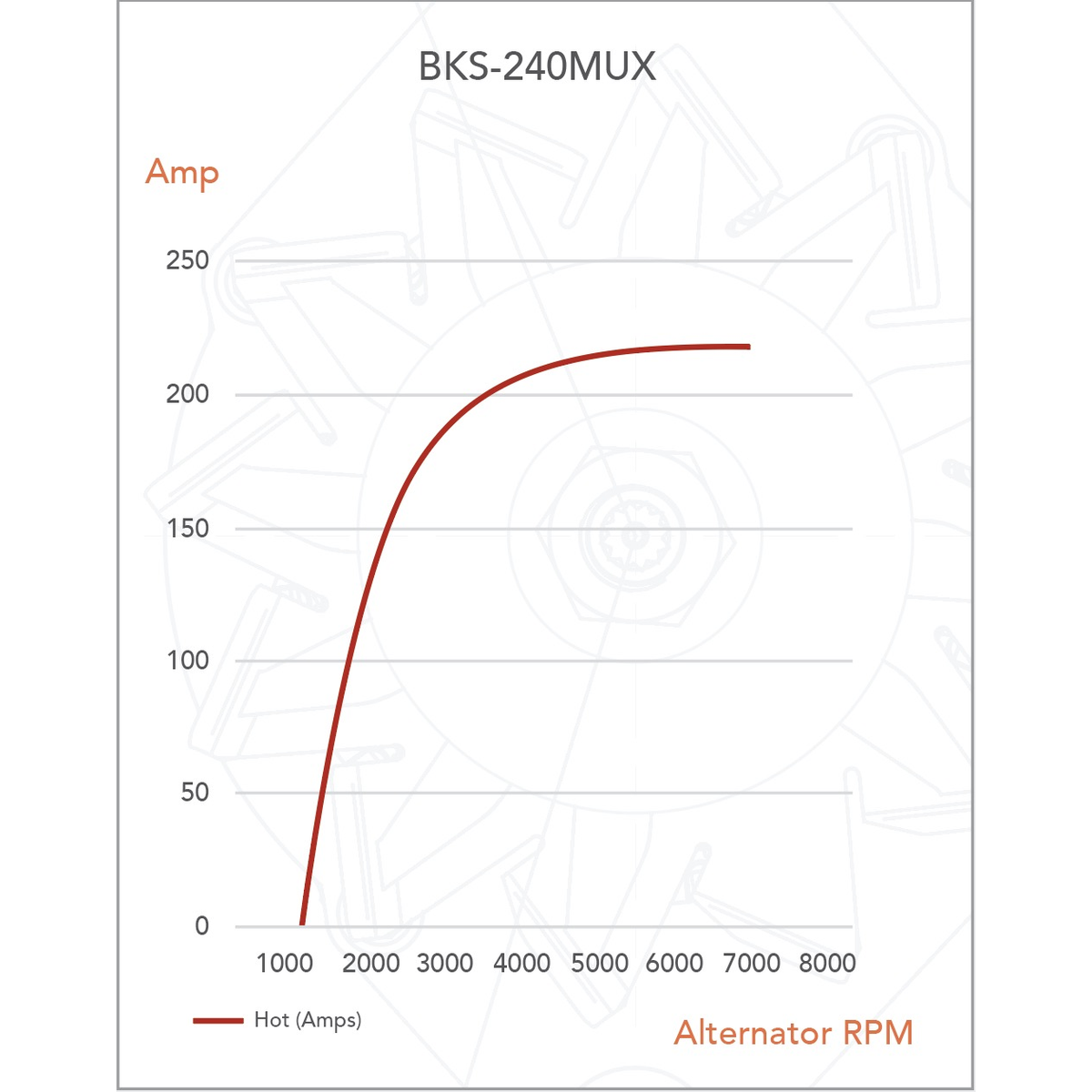

217A HOT, NOT JUST COLD

The honest working figure at 13.5V once up to temperature, rather than the cold bench rating alone

240A REPLACES 130A

Close to double the factory output, so a loaded touring system is no longer sitting at capacity.

WIRING UPGRADE REQUIRED

Supplied as the alternator only. The factory positive cable is not rated for this output and must be upgraded, along with fusing, before the unit is run.

TALKS TO THE ECU

Internal LIN regulator communicates exactly as the factory alternator does, with no ECU changes or resistor tricks

MOUNT: Direct Fit
VEHICLE: Isuzu MU-X 4JJ1 4JJ3-TCX DSL

FEATURE:
• 13.5V @ 240A Cold
13.5V @ 217A Hot
• Upgraded technology


BENEFITS:
• Suitable for vehicles with high electrical loads and 4x4 vehicles requiring higher
outputs than the standard 130A Alternator.
• Allows the battery packs to be maintained in a full state of charge.
• Higher charge @ lower RPM.
• Professional look

THIS UNIT IS LIN REG FUNCTION. AND WILL NOT INTERCHANGE WITH ALTERNATORS THAT ARE L,M REGULATOR FUNCTION. THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR, RECTIFIER AND CLUTCH PULLEY. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

Voltage 12V
Amperage 140A
Mount Leg ID 55mm
C-C Mounts 161mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size 17mm
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 62mm
Regulator Type INTERNAL
Series
Connections Plug #
Terminals B+, LIN
Excitation EXTERNAL
Ground NEGATIVE
  • High output: 13.5V at 240A cold, 217A hot
  • Designed for vehicles with high electrical loads
  • Maintains battery charge at idle and low RPM
  • Black powder-coated for durability and professional appearance
  • OE matched fitment for easy installation
  • LIN regulator function for advanced charging management

Voltage12V

Amperage240A

Mount Leg ID55mm

Center-to-Center Mounts161mm

Hole ID TopM8

Hole ID Bottom10mm

Shaft Size17mm

Pulley Type7PV, Clutch

Pulley Grooves7

Pulley Diameter62mm

Regulator TypeInternal (LIN)

TerminalsB+, LIN

ExcitationExternal

GroundNegative

Mount Leg ID: 55mm

Center-to-Center Mounts: 161mm

Hole ID Top: M8

Hole ID Bottom: 10mm

Shaft Size: 17mm

Pulley Diameter: 62mm

Everything this install needs

0 of 0 in the box

Direct fit replacement alternator designed to match OE mounting points. Requires battery positive wiring upgrade due to LIN regulator function. Not compatible with alternators using L or M regulator types.

Compatible with Isuzu MU-X models equipped with 4JJ1 and 4JJ3-TCX Diesel engines.

Q: Will this alternator fit my Isuzu MU-X?
A: Compatible with Isuzu MU-X 4JJ1 and 4JJ3-TCX Diesel engines only.

Q: Does it require wiring changes?
A: Yes, a battery positive wiring upgrade is necessary.

Q: Is this a direct replacement?
A: Yes, designed for direct OE fitment.
