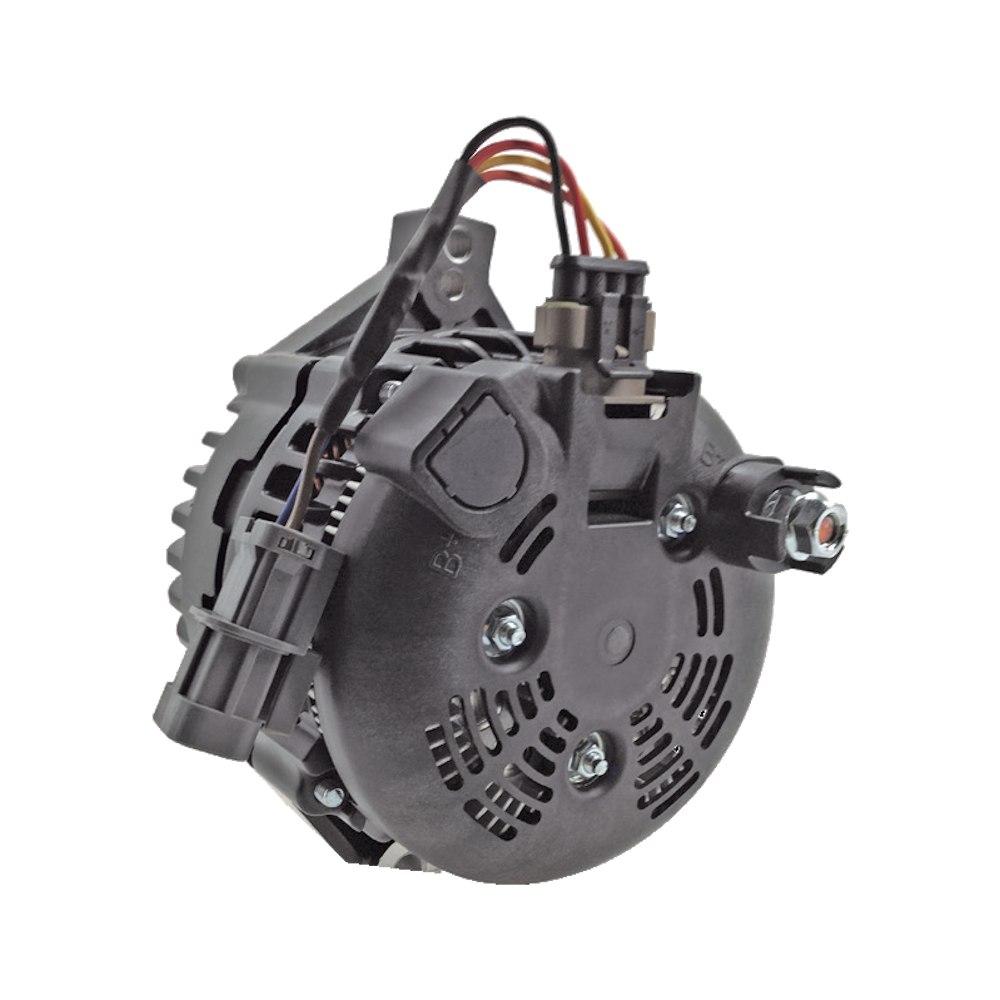

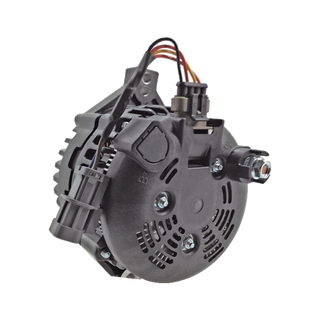

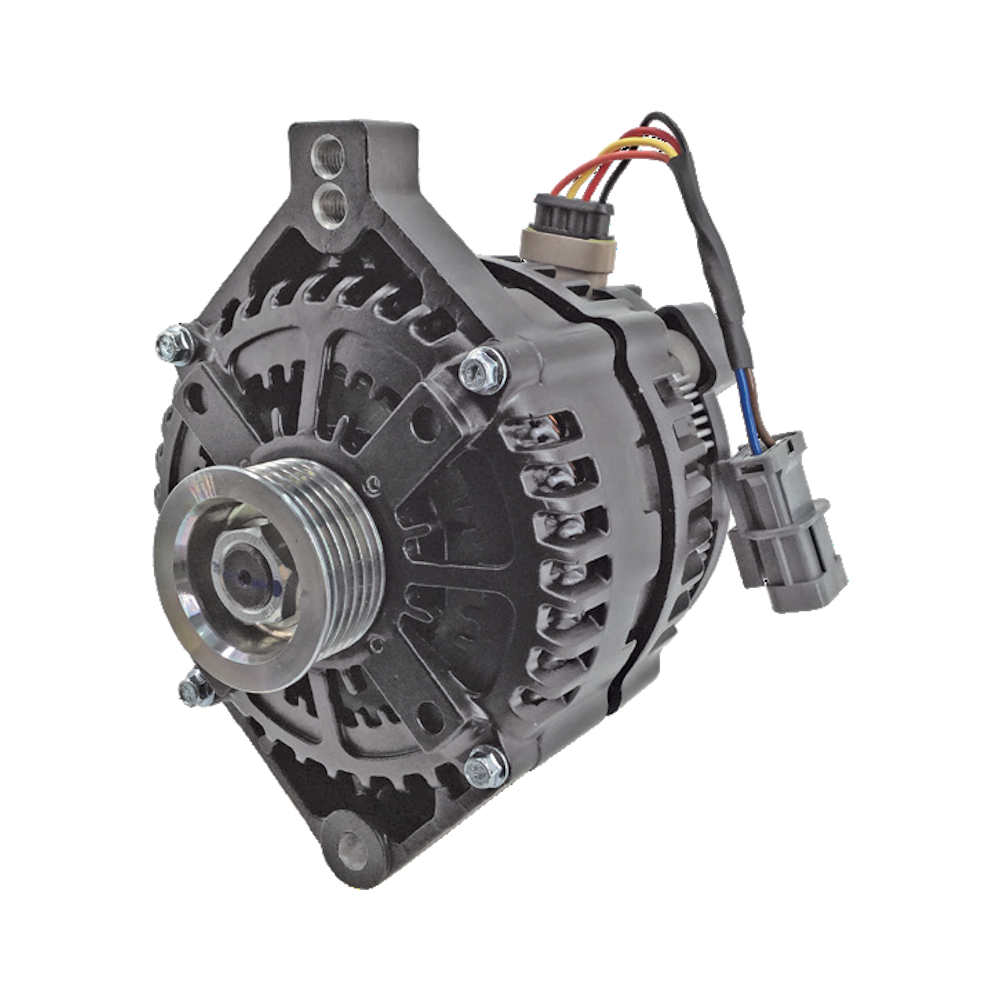

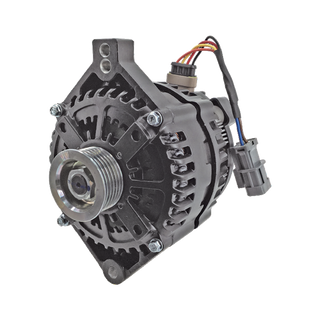

Black Series Upgraded Alternator 12V 240A, CHEV, GM APPS, 2 INCH STD MOUNT
SKU: BKS-240GM
$899.00
- VEHICLE
- INCLUDED
- DIMENSIONS
- Note from Manufacturer
Jaylec alternators are designed and tested for use with standard lead-acid battery systems. These units are not suitable for direct use with lithium (LiFePO4) battery setups
Description
MOUNT: Universal GM & Holden Applications
VEHICLE: GM, US & Australian Applications*
FEATURE:
• 13.5V @ 240A Cold / 13.5V @ 202A Hot
• Upgraded technology
• Black powder coated
BENEFITS:
• Suitable for vehicles with high electrical loads - performance and 4X4 vehicles,
dual thermo-fans, injection systems, air conditioning, electric steering,
monitoring systems, upgraded lighting systems, winches and maintaining
the battery at the desired levels.
• Higher charge @ lower RPM.
• Professional look.
*(Aust application needs some modifications)
WIRING MUST BE UPGRADED BEFORE FITTMENT
THIS ALTERNATOR IS FITTED WITH OE STATOR, ROTOR, REGULATOR AND RECTIFIER. PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.

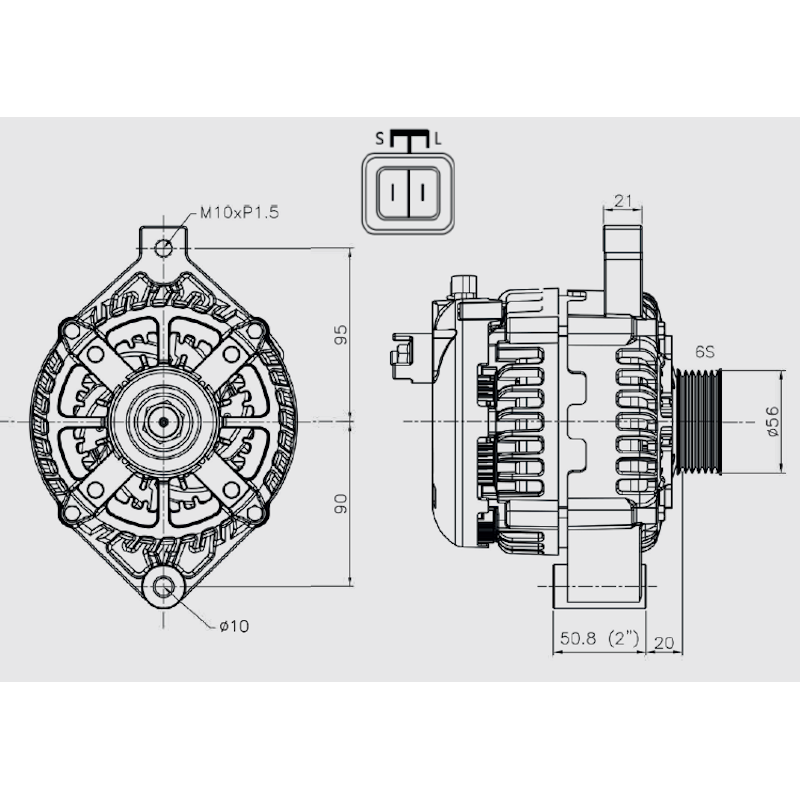

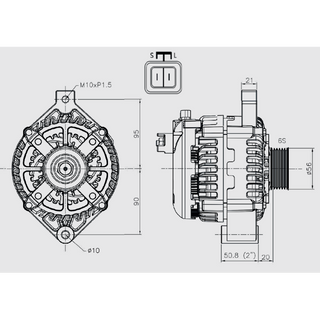

Specifications:
| Voltage | 12V |
| Amperage | 240A |
| Mount Leg ID | 50mm |
| C-C Mounts | 185mm |
| Hole ID Top | M10 |
| Hole ID Bottom | 10mm |
| Shaft Size | |
| Pulley Type | 6PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 6 |
| Pulley Diameter | 56mm |
| Regulator Type | INTERNAL |
| Series | HAIR PIN |
| Connections Plug # | EP39 |
| Terminals | B+, |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
