Egon RELAY-Hub Kit with Cover

SKU: RELAYHUB80-KIT
$490.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Ideal for use in 4WDs, caravans, campervans, marine vessels, off-grid tiny homes, and any application using 12V or 24V DC power systems.


EGON Relay Hub only (fuse kit sold separately)

Compact mounting footprint.

See product diagram or contact us for detailed sizing info.

The EGON Relay Hub is purpose-built to streamline DC electrical installations, offering a user-friendly and reliable way to manage switching and constant power loads in demanding environments.

 [{"variant_id":"40052617183341" , "metafield_value":""}]

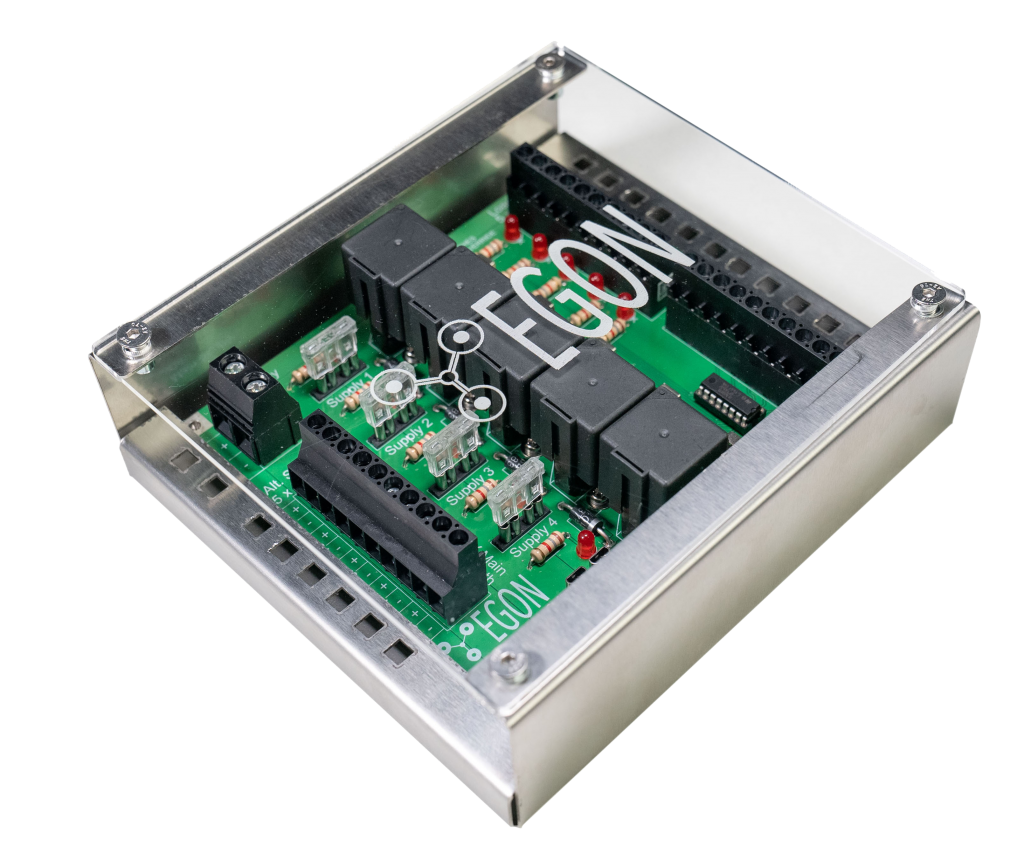

Egon RELAY-Hub Kit with Cover

$490.00
Description

The EGON Relay Hub is a robust 12/24V DC switching and fusing hub designed to simplify electrical installations in 4WDs, RVs, boats, off-grid homes, and more.

It functions either as a standalone solution or in combination with the EGON DC Hub to enable efficient relay switching of high-current circuits up to 25A each.

Engineered for plug-and-play performance, the Relay Hub helps reduce workshop time and eliminates the need for specialist wiring expertise by integrating switching, fusing, and power distribution into a single board. Whether you’re adding remote switches, powering accessories like fridges or comms, or building a custom system, this device makes installation fast, safe, and modular.

FEATURES

Integrates switching and fusing in one unit

Simplifies installation with screw terminals

Compatible with remote or onboard switch activation

Supports high-current accessories

Expandable with EGON Relay Hub Fuse Kit

Designed and assembled in Australia

FAQ's

Q: Can I use this hub without an EGON DC Hub?
A: Yes, the Relay Hub is fully functional as a standalone switching and fusing unit.

Q: Are fuses included?
A: No, fuses are not included. The recommended Relay Hub Fuse Kit is available separately.

Q: How many circuits can I switch?
A: You can switch up to 5 individual circuits with external switches.

Specifications

System Voltage: 12V or 24V DC

Relay Capacity: 5 individual circuits

Max Current per Relay: 25A

Main Supply Input: 80A max (fused externally)

LED Indicators: Yes, for relay output status

Compatible with external switches

Screw terminals for easy connection

Can support both switched and constant outputs on the same circuit

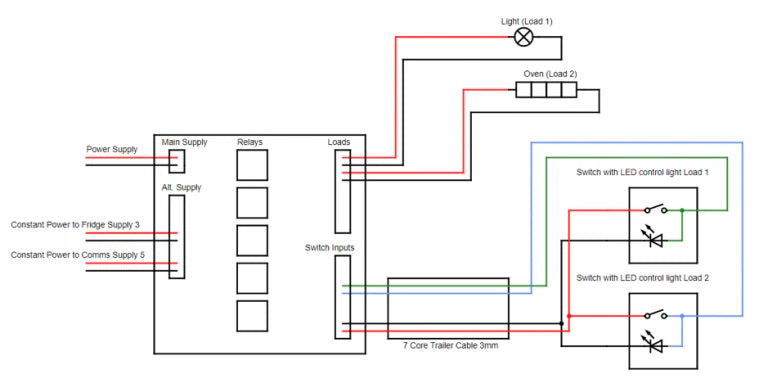

Installation Information

Connect main supply with an external 80A max fuse to your power source (e.g., DC Hub, battery box, house or auxiliary battery).

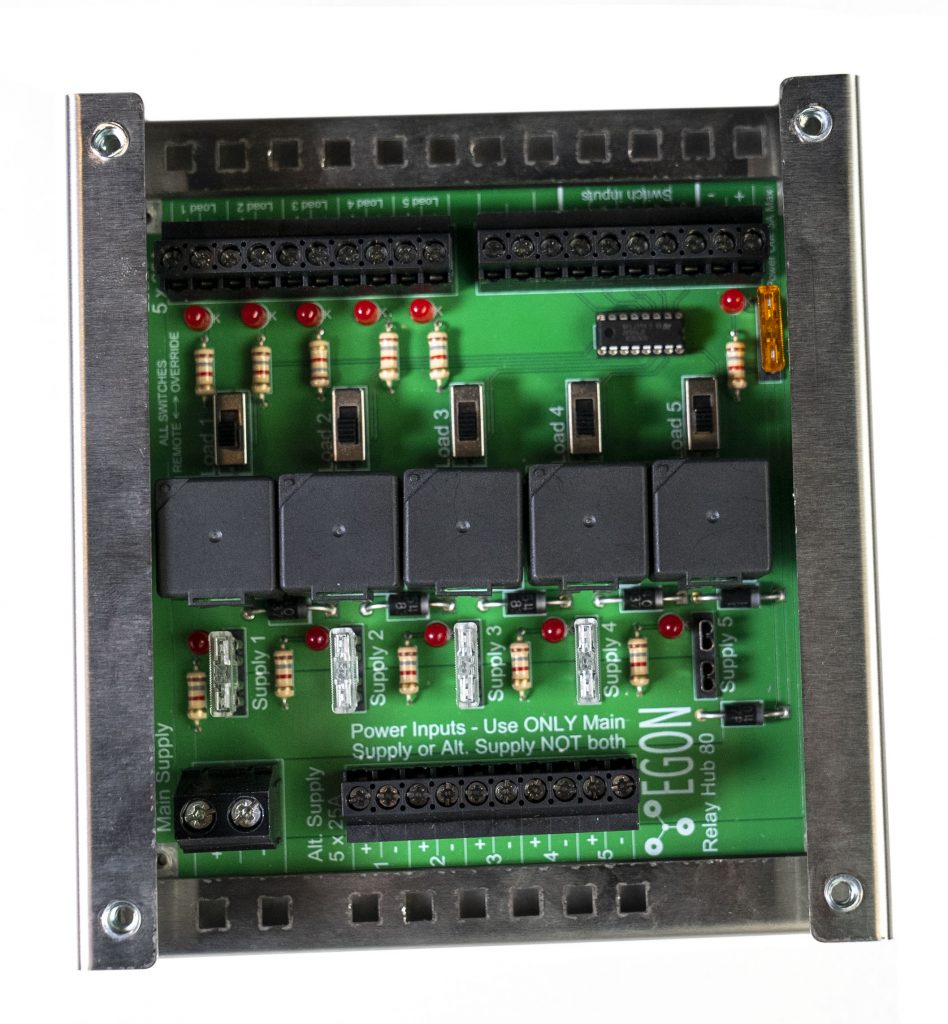

Each circuit is clearly labelled with Supply, Load, Alt. Supply, and Switch Input points.

Use external switches via a 3-core or multi-core cable for remote relay control. Switched and constant power can be used simultaneously on a single circuit, but ensure proper fuse ratings are applied.

All components are connected via screw terminals—no crimping or specialist tools required.

LEDs indicate active relay outputs.

Warranty Information


12-month warranty included from date of purchase

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
