Home / Lighting / Driving & light bars

Fuse Block 12 Way Fuse Negative Bus Bar & Red LED & FusesFuse Block 12 Way Fuse Negative Bus Bar & Red LED & FusesFuse Block 12 Way Fuse Negative Bus Bar & Red LED & FusesFuse Block 12 Way Fuse Negative Bus Bar & Red LED & Fuses

Elevate Automotive

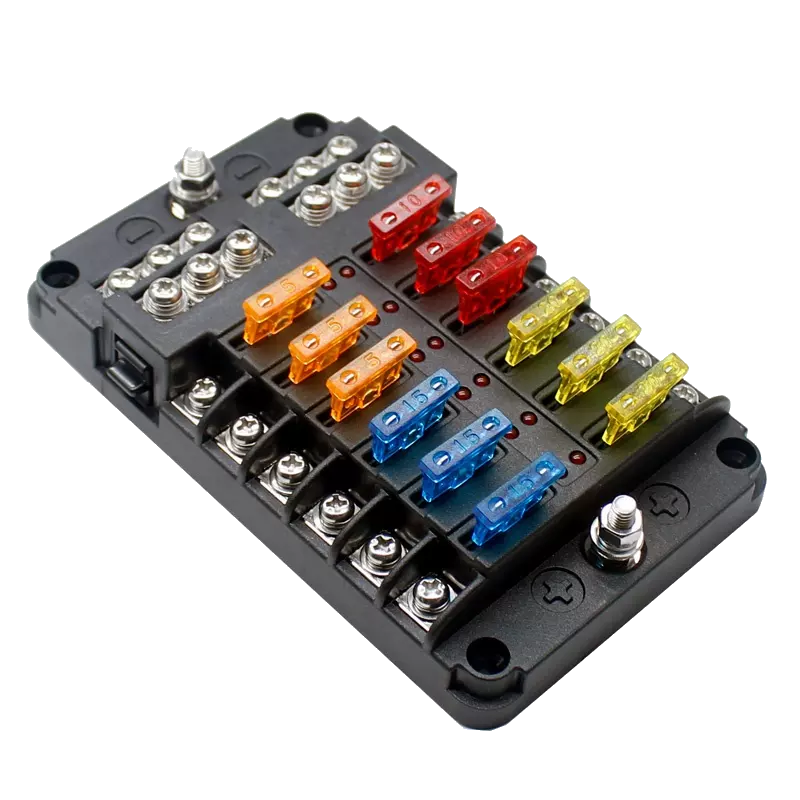

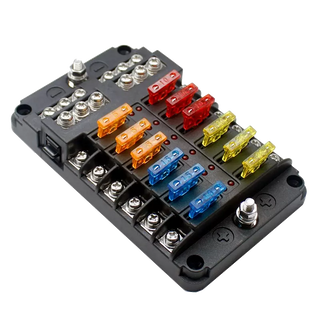

Fuse Block 12 Way Fuse Negative Bus Bar & Red LED & Fuses

AL-12WAYFUSES

A reliable, professional-grade solution for neat, centralised circuit protection. Ideal for caravans, camper trailers, 4WDs, motorhomes, and marine setups. The Thunder 12 Way Fuse Box offers both power input and grounding terminals, reducing messy wiring while providing secure connections for…

$79.00

4 interest-free payments of $19.75 with
or finance your build with
Important note

Designed to simplify 12V wiring setups by combining fused circuits with a grounding terminal in one compact, easy-to-mount unit.

We accept
Ideal for use in caravans, camper trailers, 4WDs, RVs, motorhomes, boats, and other 12V electrical systems.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A reliable, professional-grade solution for neat, centralised circuit protection. Ideal for caravans, camper trailers, 4WDs, motorhomes, and marine setups. The Thunder 12 Way Fuse Box offers both power input and grounding terminals, reducing messy wiring while providing secure connections for up to 12 circuits.

  • 12x fused outputs with earth returns
  • Red LED lights up when fuse blows
  • Tidy central wiring for multi-accessory setups
  • Transparent cover for safety and visibility
  • Ideal for dual battery and camper installs

Max Input Voltage32V

Max Input Current100A

Max Output Per Circuit30A

Main Terminal StudM5

Output Terminal StudsM4

LED Fault IndicatorYesSticker Labels: 70 included

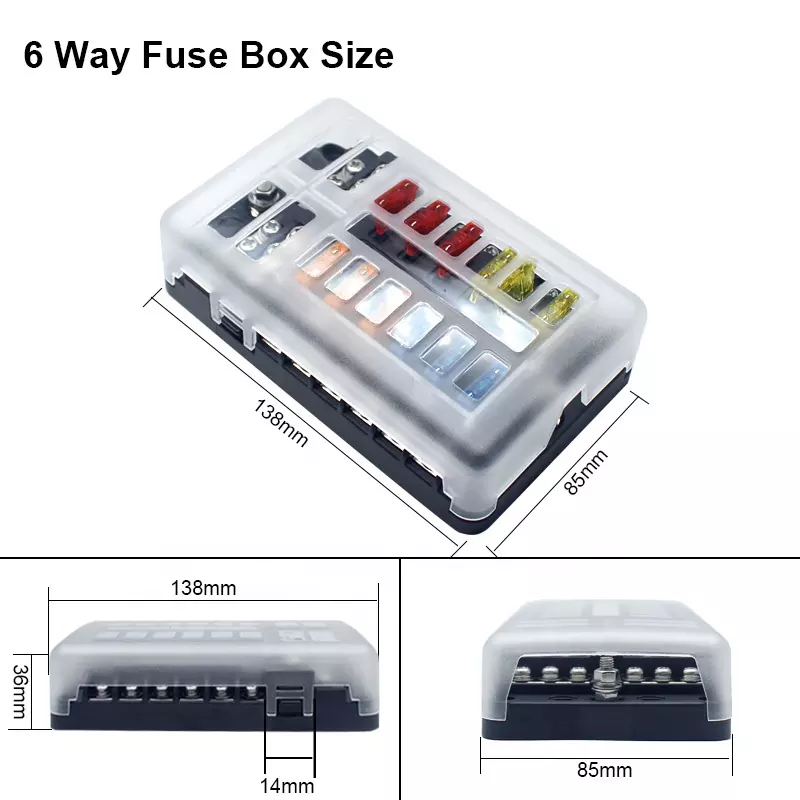

Size138.25 × 85 × 36.5mm

Everything this install needs

0 of 0 in the box

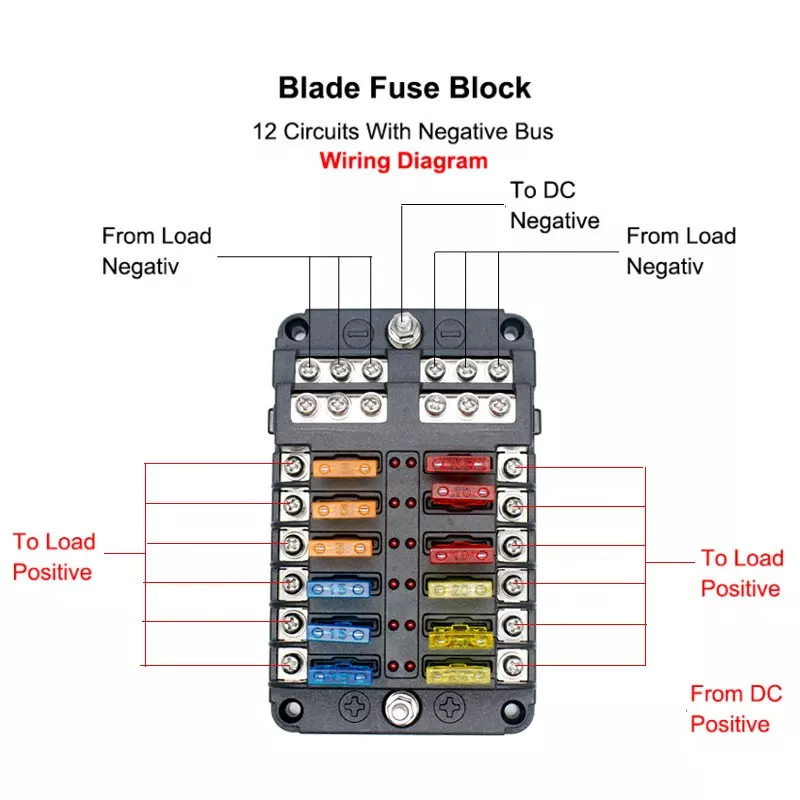

Mount using standard hardware. Connect power input, grounding, and accessories using M4/M5 threaded studs. Includes sticker labels for custom circuit identification.

Ideal for use in caravans, camper trailers, 4WDs, RVs, motorhomes, boats, and other 12V electrical systems.

Q: Can I run 12 different devices from this box?
A: Yes, each of the 12 circuits can run a 12V accessory up to 30A.

Q: Does this fuse box come with fuses?
A: No, standard blade fuses are sold separately.

Q: Will it work with both positive and negative ground setups?
A: It includes both power and earth terminals to suit common 12V configurations.
