Redarc

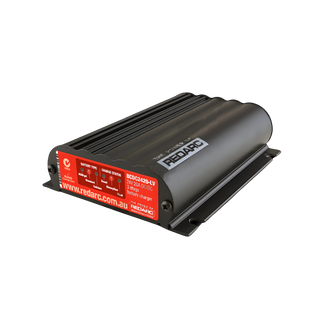

24V 20A Under Bonnet DC Battery Charger
BCDC2420
The REDARC BCDC2420 is a 24V 20A DC-DC battery charger for a 24V auxiliary battery bank — the direct 24V equivalent of the BCDC1220 in Redarc's 12V line. Charges from your 24V vehicle's alternator using a multi-stage charge profile.Sized to…
$799.00
The LFP2420 is specifically designed for LiFePO₄ batteries. For other battery chemistries, please consult REDARC's range of compatible chargers.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
24V INPUT, 24V AT 20A
Purpose-built 24V DC-DC charger for 24V vehicles charging a 24V auxiliary bank.
3-STAGE CHARGING, ANY CHEMISTRY
Selectable charge profiles for AGM, gel, calcium, standard lead-acid and lithium banks.
SEALED FOR ENGINE-BAY HEAT
Rated to run in the engine bay of an Australian 4WD or truck — dust, water and vibration tolerant.
LITHIUM AND AGM READY
Selectable profiles for AGM, gel, calcium, standard lead-acid and LiFePO4 lithium banks.
2 YEAR REDARC WARRANTY
Backed by 2 years direct from Redarc. Repair or replacement in accordance with Redarc's warranty policy.
The REDARC BCDC2420 is a 24V 20A DC-DC battery charger for a 24V auxiliary battery bank — the direct 24V equivalent of the BCDC1220 in Redarc's 12V line. Charges from your 24V vehicle's alternator using a multi-stage charge profile.
Sized to fit under the bonnet of trucks, buses, service utes and larger 4WDs running a 24V starter system. Fully sealed against water, dust and vibration. Fanless for silent operation.
Supports AGM, gel, calcium, standard lead-acid and LiFePO4 lithium chemistries — select the profile that matches your bank.
Output is 24V. If you have a 24V vehicle but want a 12V auxiliary bank, this is not the right charger. Ask us and we'll spec the right Redarc for that job.
Smart alternator vehicles and multi-charger setups. Our workshop always hardwires an ignition trigger to the charger on late-model vehicles with stop-start or variable-voltage smart alternators, and on any build with more than one BCDC so all chargers only run when the vehicle is running.
Designed, built and tested in Australia. Backed by a 2 year Redarc warranty.
- 24V input, 24V output at 20A — the Redarc DC-DC for a 24V auxiliary bank
- Multi-stage charging with profiles for AGM, gel, calcium, standard lead-acid and LiFePO4 lithium
- Start battery isolation to protect the main battery
- Fully sealed, fanless, under-bonnet rated
- 600W output power, 30.6V max charging voltage
Input Voltage9–32V DC
Output Voltage24V DC
Continuous Output Current20A
Maximum Charging Voltage30.6V
Input Fuse Rating50A
Output Fuse Rating30A
Standby Current Draw<50mA
Output Power600W
Type ApprovalsE and CE
Warranty2 Years
