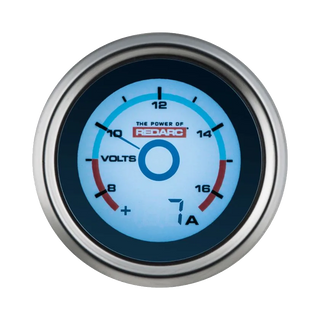

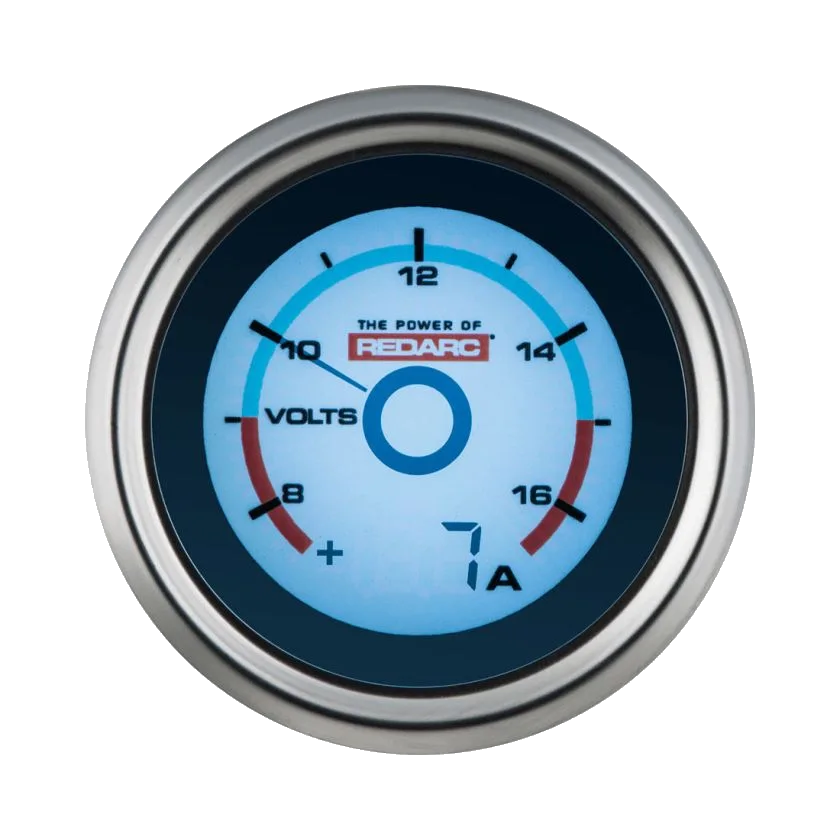

Redarc Single Voltage 52mm Gauge

Redarc

Single Voltage 52mm Gauge

G52-VA

The REDARC Single Voltage 52mm Gauge (G52-VA) is a compact and durable monitoring solution designed to provide real-time insights into your vehicle's battery performance. Ideal for 4WDs, campers, caravans, and motorhomes, this gauge enables you to monitor the charge performance…

$209.00$220.00 Save $11

4 interest-free payments of $52.25 with
or pay over time with
Important note

The G52-VA is designed for monitoring the voltage of your main or auxiliary battery. It provides real-time data to ensure optimal battery performance.

We accept
Compatible with 4WDs, campers, caravans, and motorhomes.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The REDARC Single Voltage 52mm Gauge (G52-VA) is a compact and durable monitoring solution designed to provide real-time insights into your vehicle's battery performance. Ideal for 4WDs, campers, caravans, and motorhomes, this gauge enables you to monitor the charge performance of either your main or auxiliary battery.
  • Voltage Monitoring: Real-time battery voltage display. Current Monitoring
  • Alert System: Visual and audible alerts for voltage issues.
  • Backlight Colors: 13 selectable options.
  • Enhanced Lighting Controller: Optional for vehicles without a suitable dimming circuit.
  • Satin Chrome Bezel: Sleek and modern appearance.

Diameter: 52mm

Standby Current: 30mA

Weight: 50g

Warranty: 2 Years

Viewing Angle±45° horizontal - ±60&deg / -15&deg vertical

Alert Levels<9V / >16V

Input Voltage6 - 16VG52-VA Gauge Manual English

Length: 62mm

Width: 52mm

Height: 52mm

Weight: 0.05kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Requires a 52mm hole for mounting. Optional accessories include the GH-CUP mounting cup and the GS-AMPS current sensor.

Compatible with 4WDs, campers, caravans, and motorhomes.

Q: What is the voltage range of the G52-VA?
A: The gauge operates within a voltage range of 6V to 16V.

Q: Can I monitor current with this gauge?
A: Yes, with the optional GS-AMPS current sensor, you can monitor the amount of current to or from your battery.

Q: What alert levels are preset?
A: The gauge alerts you when voltage drops below 9V or exceeds 16V.
