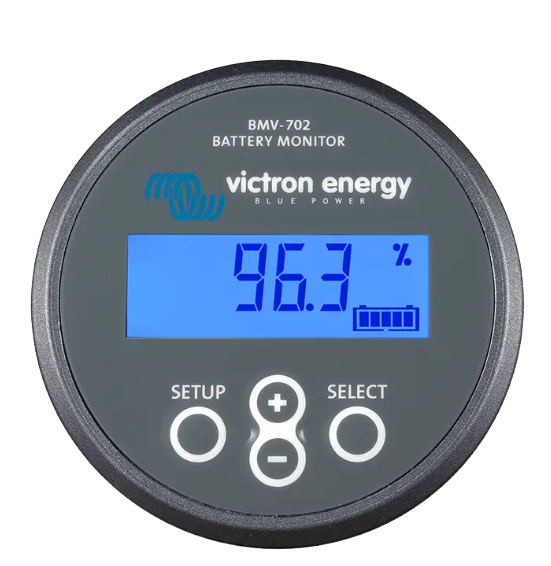

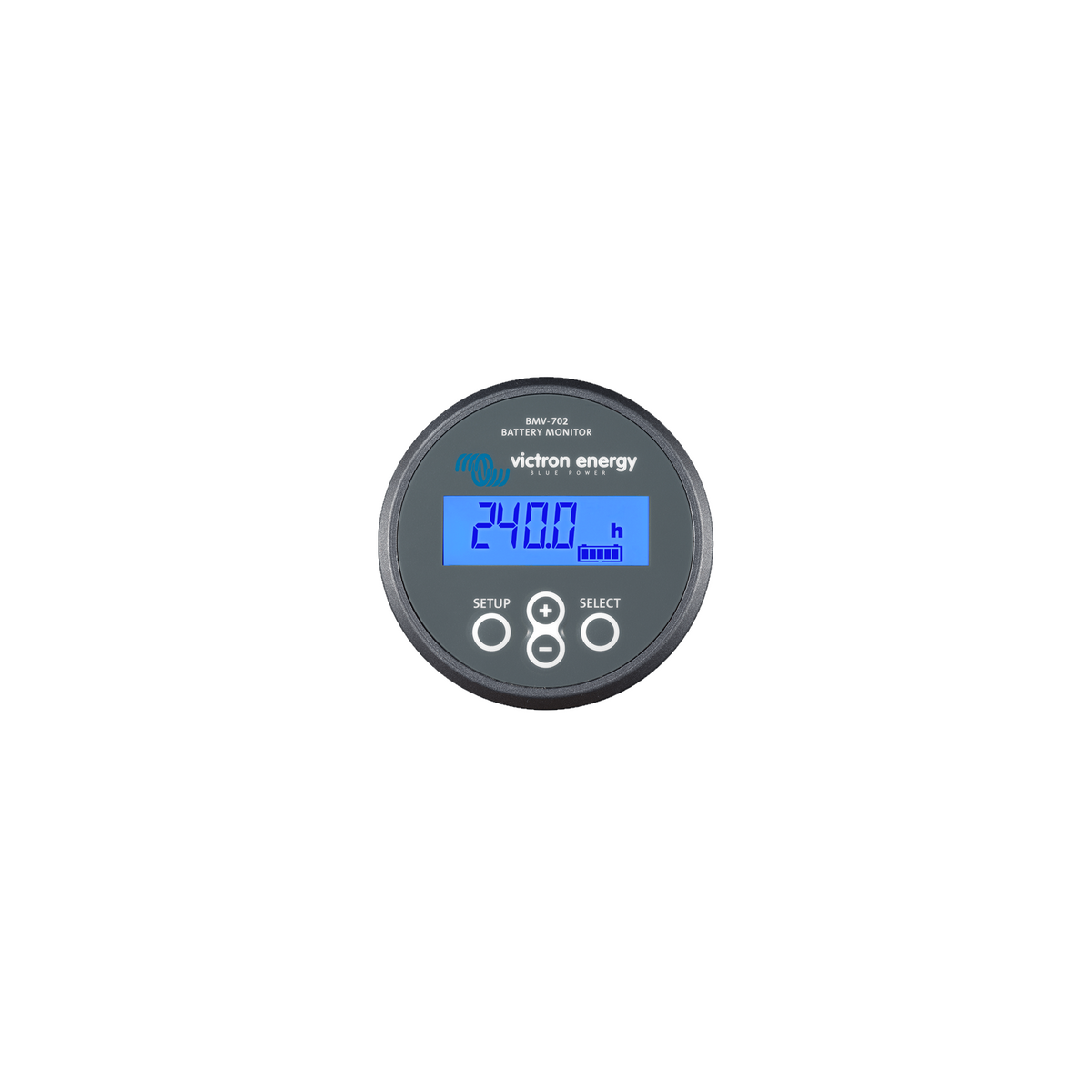

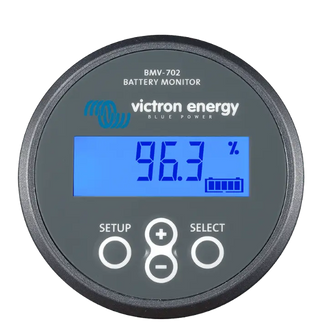

Victron Battery Monitor BMV-702 for dual battery monitoring

• High-precision battery monitoring
• Additional input for second battery, temperature, or midpoint voltage monitoring
• Programmable relay for alarms or generator start
• Data communication via VE.Direct port

  Compatible with VictronConnect app (via interface)

  Stores historical data for analysis



• Supply Voltage Range: 6.5 – 95 VDC
• Current Draw (Backlight Off): < 4 mA
• Battery Capacity Range: 1 – 9999 Ah
• Operating Temperature Range: -40°C to +50°C
• Temperature Measurement Range: -20°C to +50°C (with optional sensor)
• VE.Direct Communication Port: Yes
• Relay: 60V / 1A normally open (function can be inverted)
• Head Unit Dimensions: 63 mm diameter, 31 mm depth
• Shunt Dimensions: 46 x 120 x 54 mm
  Protection Category: IP55 (head unit)

For detailed installation instructions, refer to the BMV-702 Manual (PDF)

Victron Energy products come with a 5-year limited warranty covering manufacturing defects under normal use.

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

Q: Can the BMV-702 monitor a second battery?

A: Yes, it has an additional input for monitoring the voltage of a second battery, battery temperature, or midpoint voltage.

Q: Is the BMV-702 compatible with the VictronConnect app?

A: Yes, when used with a VE.Direct to USB interface or a GX device, it can be monitored and configured via the VictronConnect app.

Q: What is the maximum current the BMV-702 can handle?

A: It comes with a 500A shunt but can be used with larger shunts up to 10,000A (not included).
