Victron Energy

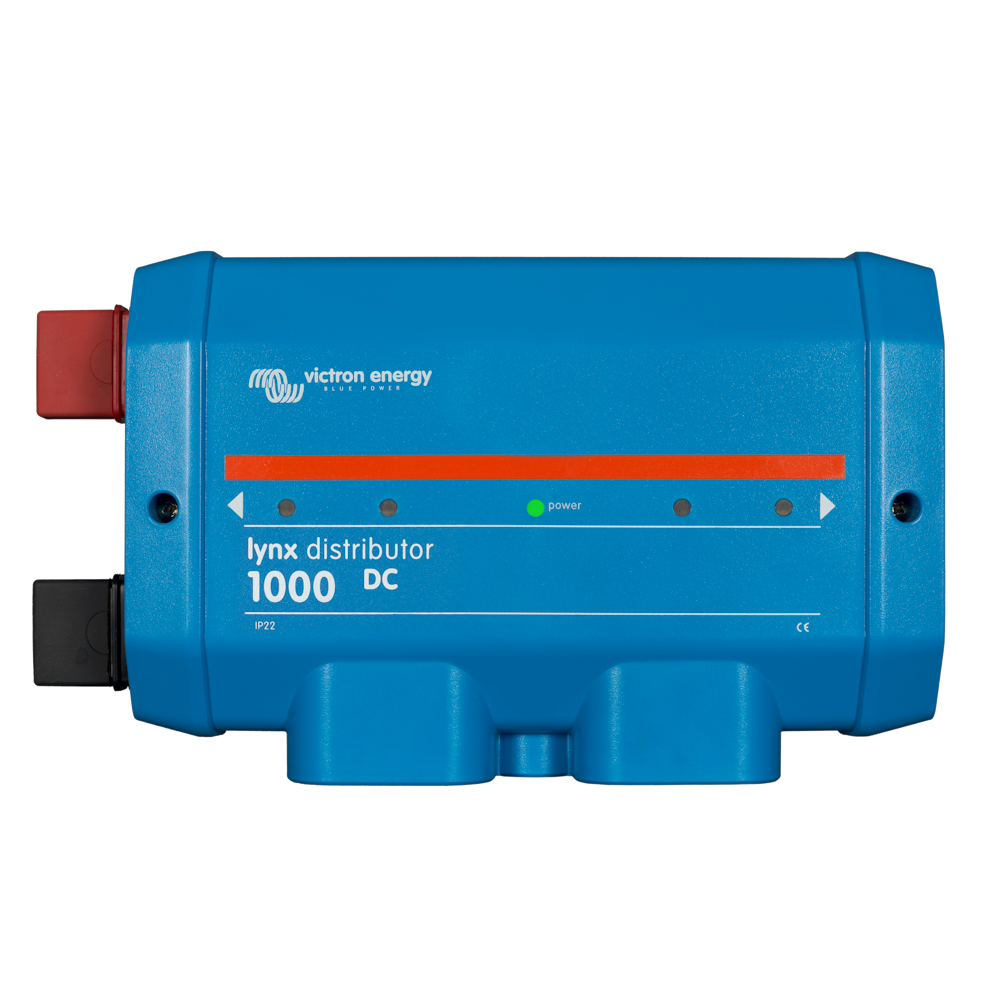

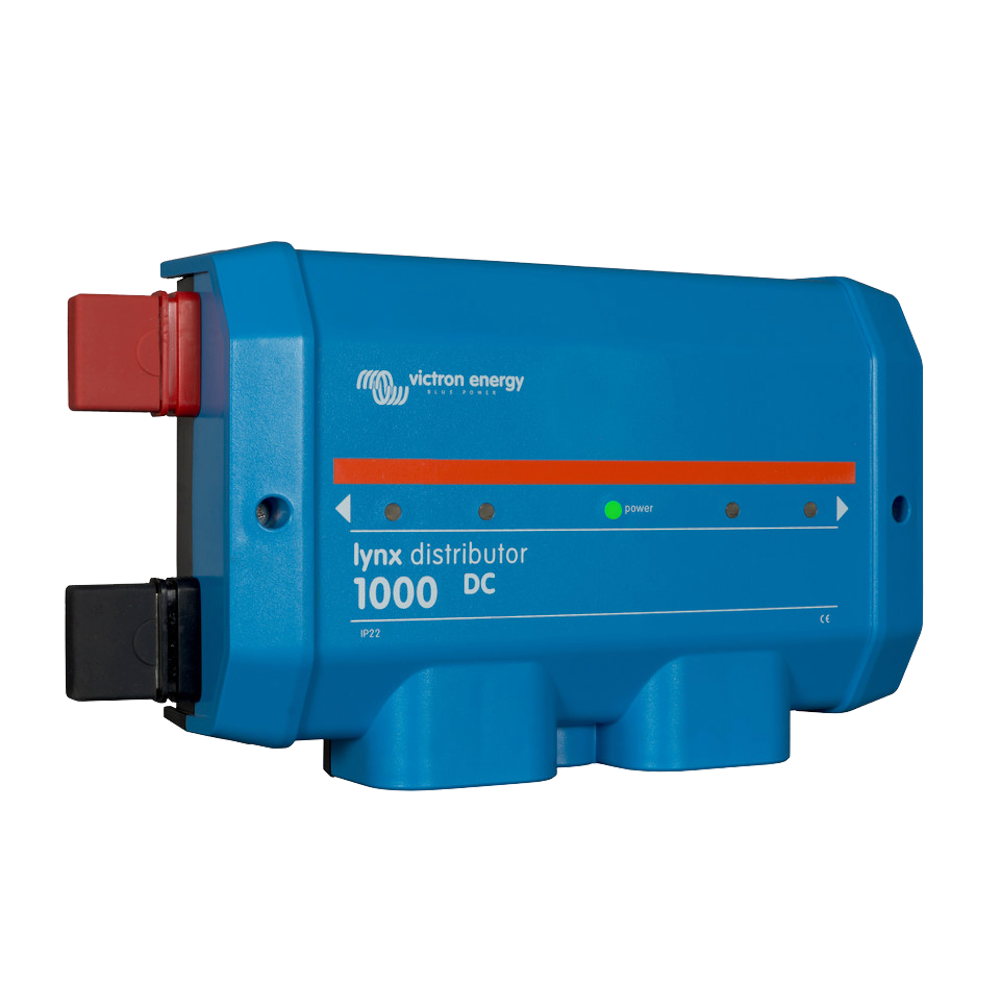

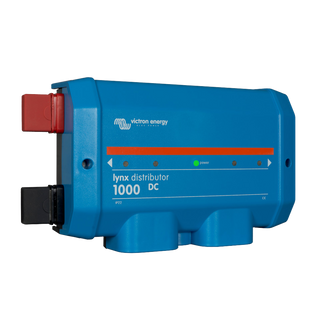

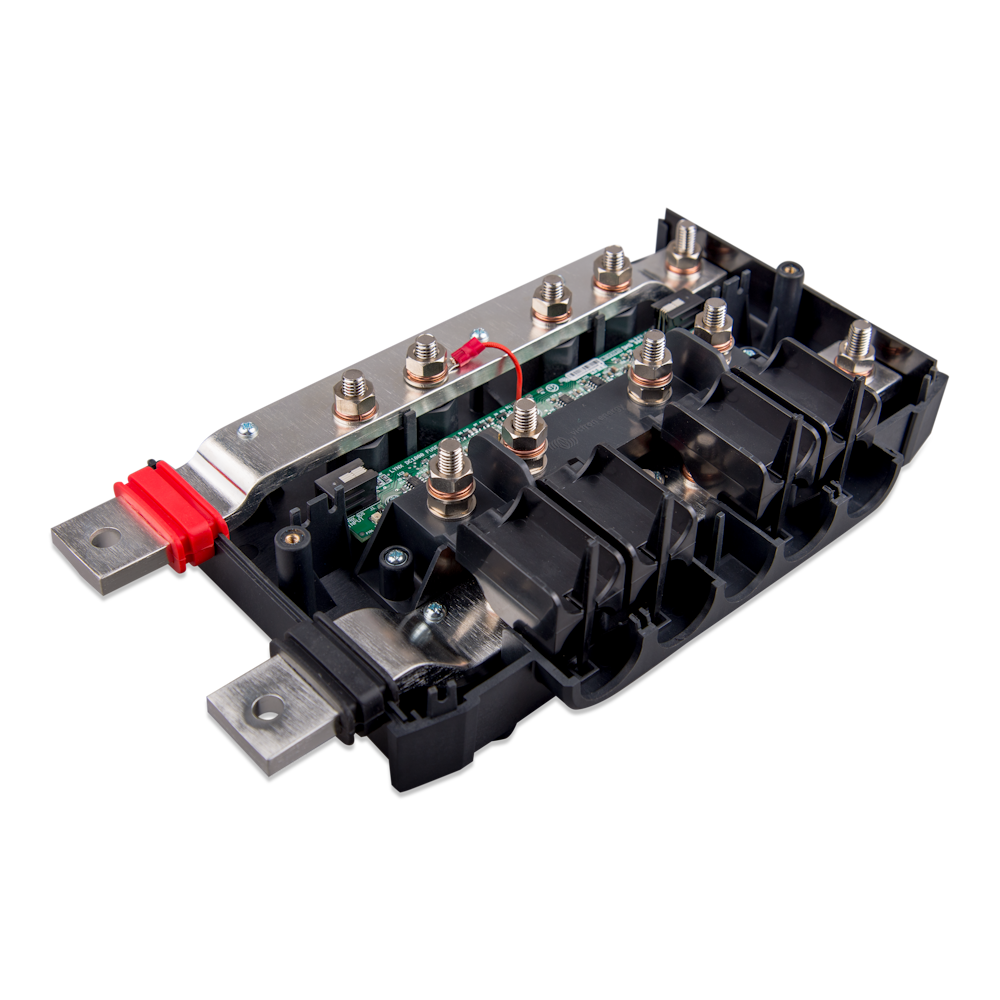

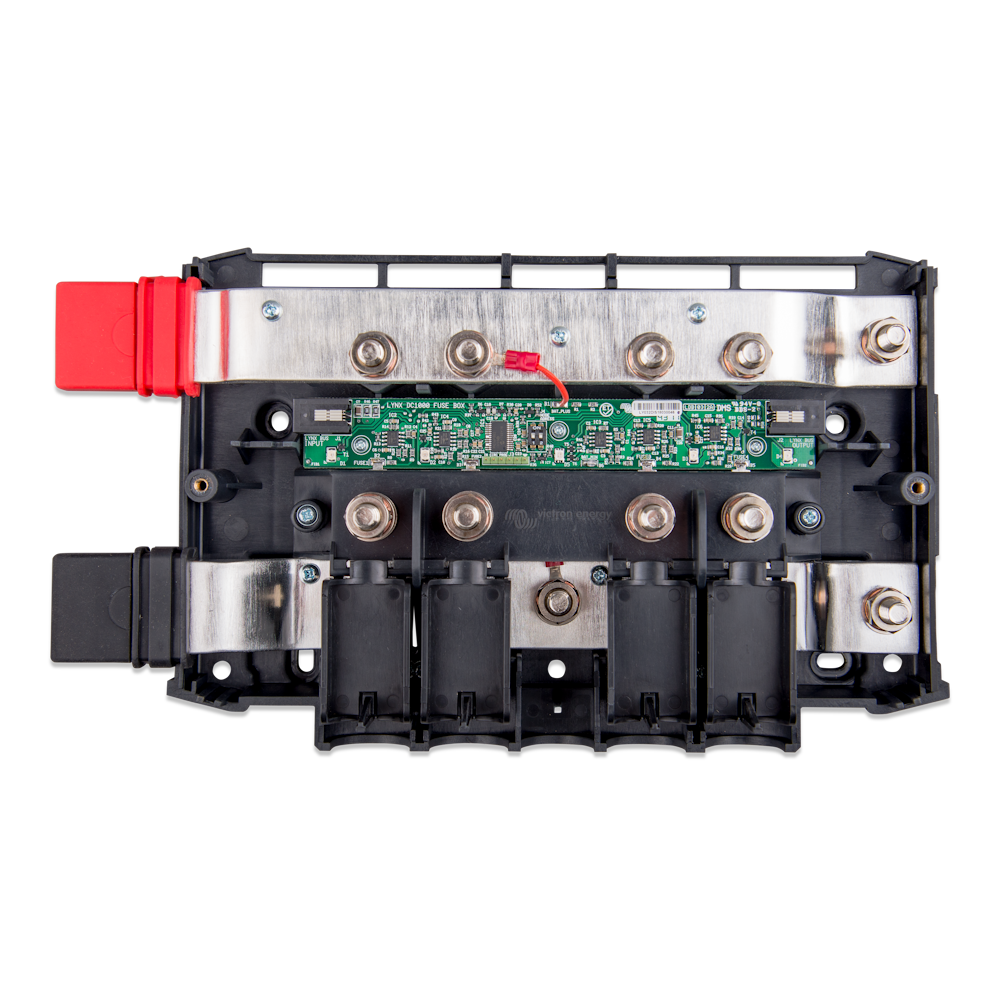

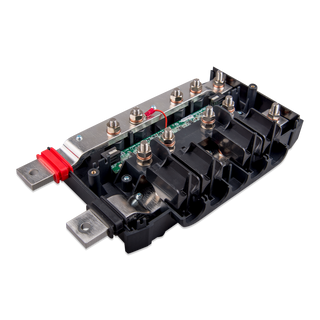

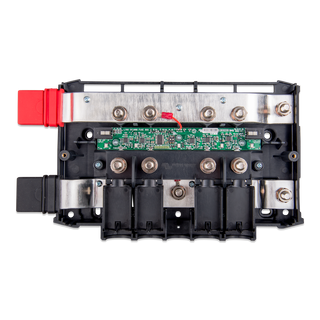

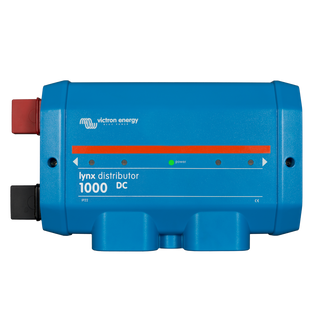

Victron Lynx Distributor (M10)
LYN060102010
The Victron Lynx Distributor (M10), model LYN060102010, is a high-capacity DC busbar designed for advanced power distribution in off-grid, marine, RV, and industrial energy systems. It is part of Victron Energy’s modular Lynx system, offering a scalable and organized solution…
$265.50$295.00 Save $29.50
The Victron Lynx Distributor (M10) is a modular DC busbar designed for advanced energy systems. It features four fused connections with real-time fuse monitoring via LED indicators. When connected to a Lynx Smart BMS, it allows for remote monitoring through the VictronConnect App and GX devices.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
The Victron Lynx Distributor (M10), model LYN060102010, is a high-capacity DC busbar designed for advanced power distribution in off-grid, marine, RV, and industrial energy systems. It is part of Victron Energy’s modular Lynx system, offering a scalable and organized solution for managing multiple battery and DC equipment connections.
- Modular DC busbar with four fused connections
- Real-time fuse monitoring with LED indicators
- Compatible with VictronConnect App and GX devices via Lynx Smart BMS
- Supports MEGA fuses (sold separately)
- Robust 1000A continuous current rating
- Seamless integration with other Lynx modules
- Compact and durable ABS enclosure
- IP22 protection rating
ModelLYN060102010
Busbar ConnectionsM10
Fuse ConnectionsM8 (for MEGA fuses)
Continuous Current Rating1000A DC
Voltage Range9–60V DC
Supported System Voltages12V, 24V, 48V
Power ConsumptionMax 100mA (with all LEDs illuminated)
Reverse Polarity ProtectionYes
Enclosure MaterialABS
Dimensions (HxLxW)290 x 170 x 80 mm
Weight2.2 kg
Operating Temperature Range-40°C to +60°C
Storage Temperature Range-40°C to +60°C
HumidityMax. 95% (non-condensing)
Protection ClassIP22
Busbar MaterialTinned copper (8 x 30 mm)
Included Accessories40 cm RJ10 cable for power and data communication
Data SheetLynx Distributor
