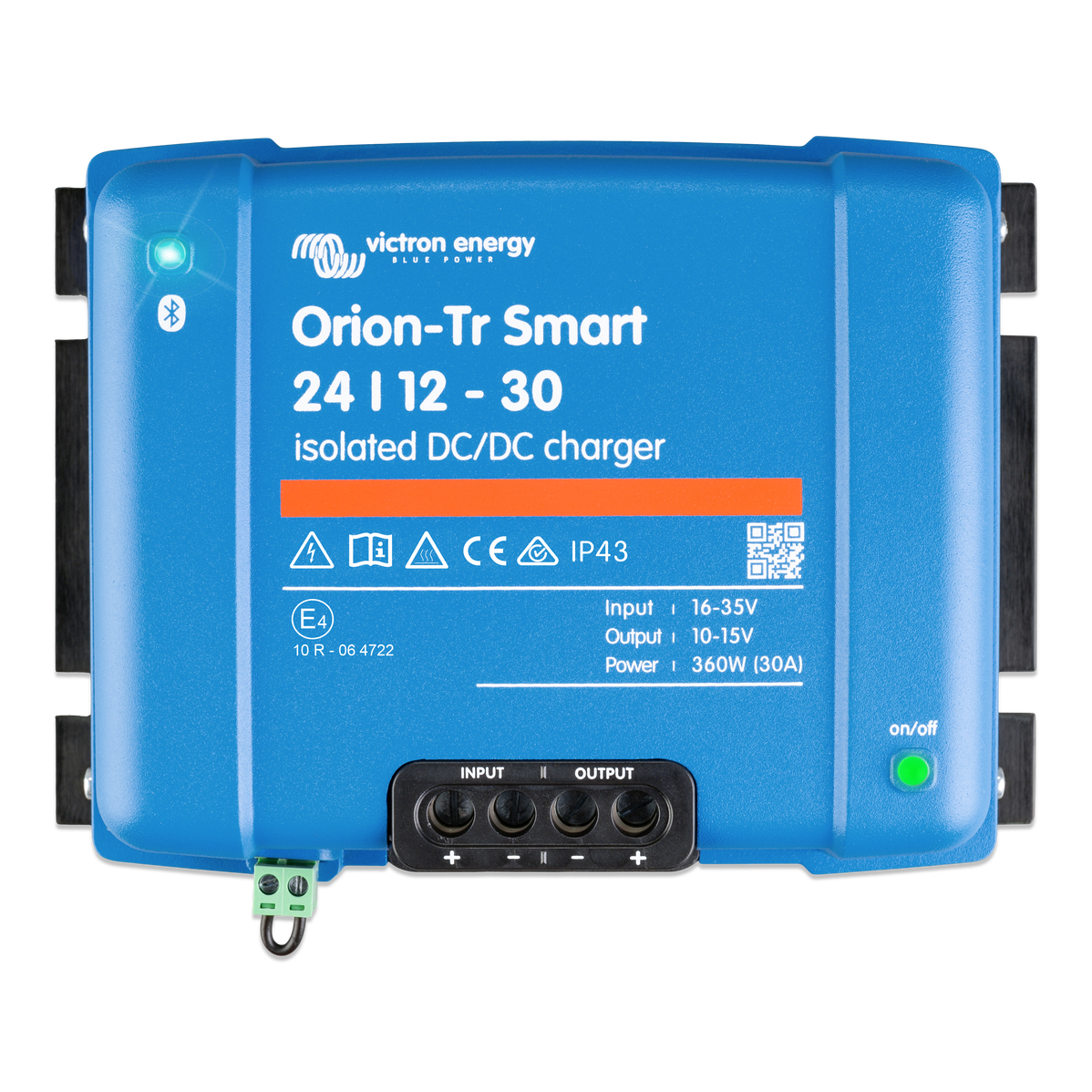

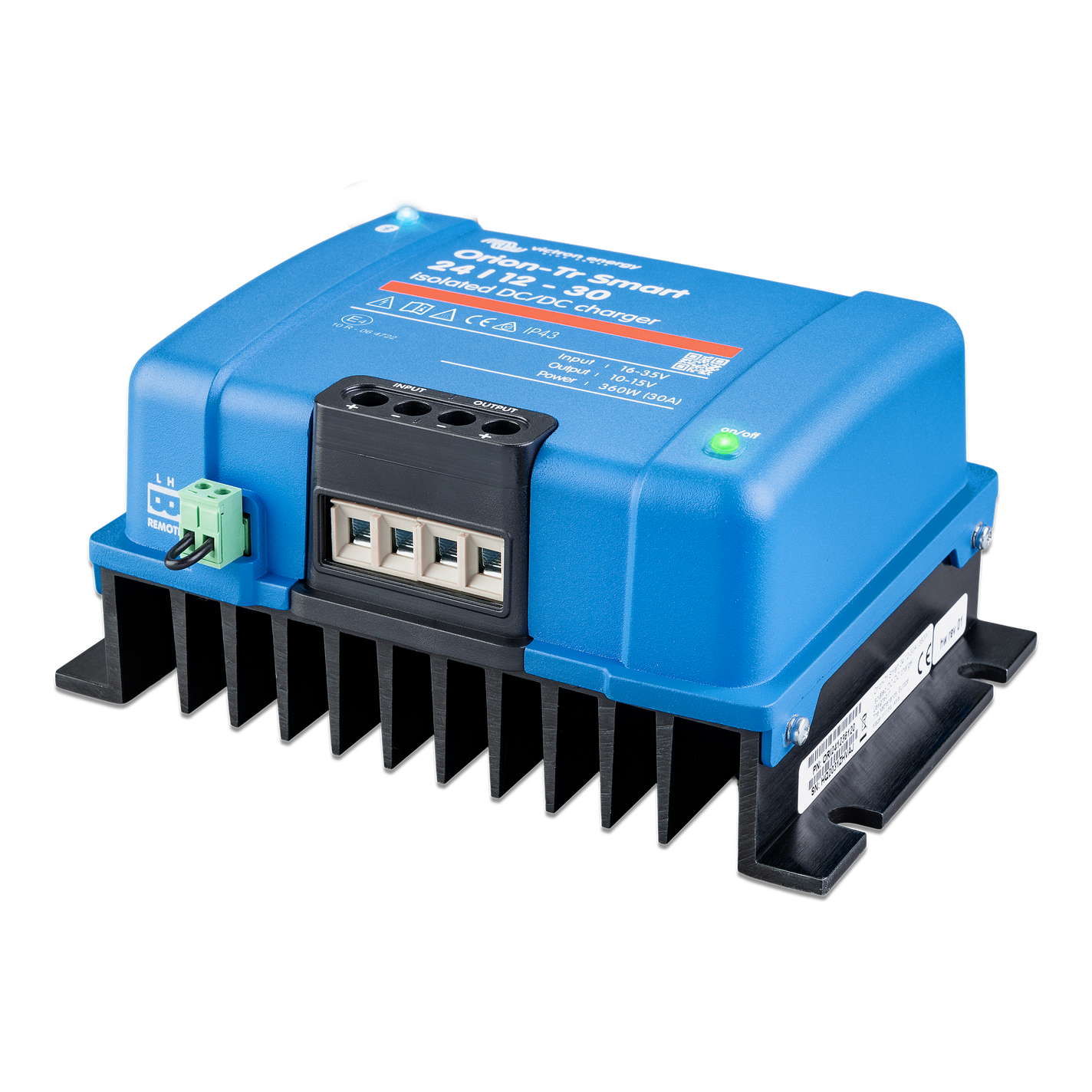

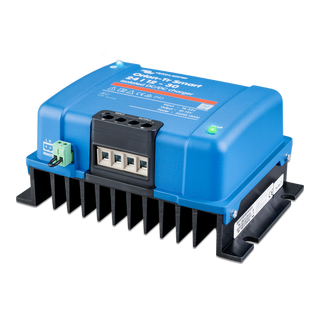

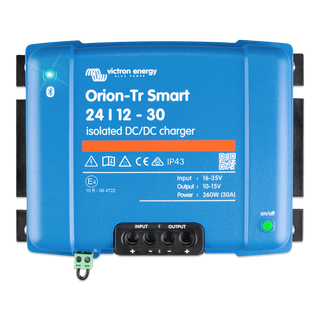

Victron Orion-Tr Smart 24/12-30A (360W) Isolated DC-DC charger 24V ONLY

SKU: ORI241236120
$370.00

Ideal for dual battery systems in:
invertersrus.com
+4
victronenergy.co.nz
+4
professional.victronenergy.com
+4

4WDs

Caravans

Campervans

Marine vessels

Off-grid installations


Orion-Tr Smart 12/24-15A (360W) Isolated DC-DC Charger

User manual

Mounting hardware

The Victron Orion-Tr Smart DC-DC Charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual battery systems, such as in vehicles or on boats where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" comes from its built-in Bluetooth connection, where the charger can be monitored and configured via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism

[{"variant_id":"45851021410577" , "metafield_value":""}]

Victron Orion-Tr Smart 24/12-30A (360W) Isolated DC-DC charger 24V ONLY

$370.00
Description

The Victron Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk, absorption, float) designed for dual battery systems in vehicles and boats. It charges your service battery from the starter battery and alternator efficiently and safely. The “Smart” name reflects its built-in Bluetooth, allowing easy monitoring, configuration, and remote control via a remote on/off switch. It also features engine running detection for automatic operation.

This isolated model provides separate chassis grounds for input and output, ensuring safe installation. Compatible with 12V, 24V, or 48V systems, it supports both lead acid and lithium batteries. Available in power ratings up to 400W, multiple units can be connected in parallel for higher output.

Built for durability, it operates reliably in temperatures up to 55°C, with full rated output maintained up to 40°C.

FEATURES

Bluetooth Smart enabled

Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.



Fully programmable

Battery charge algorithm (configurable) or fixed output.

Smart alternator compatibility: engine running detection mechanism.



Adaptive 3-stage charge algorithm: bulk – absorption – float

For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

For lithium batteries absorption time is fixed, default 2 hours.

Alternatively, a fixed output voltage can be chosen.



Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).



Remote on/off

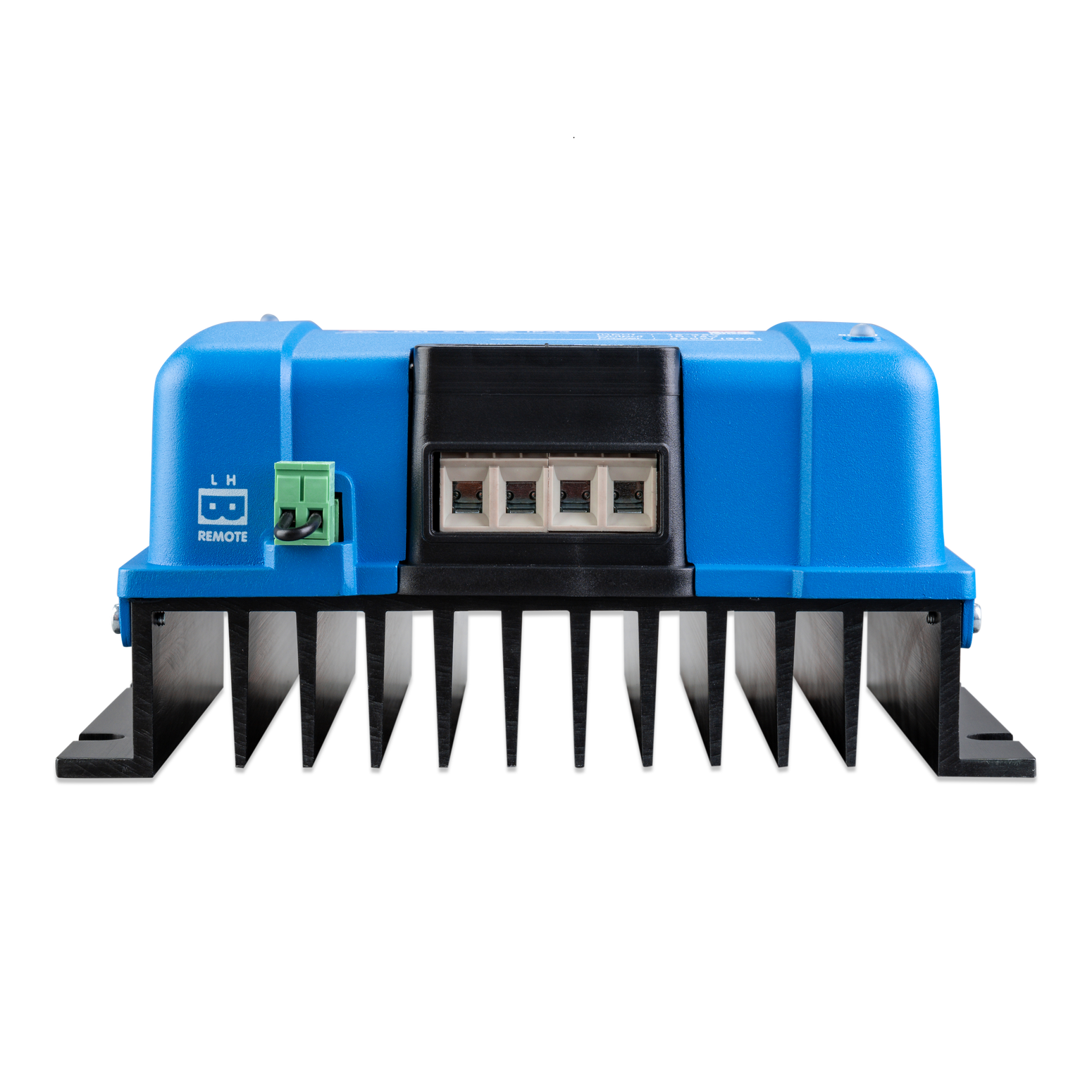

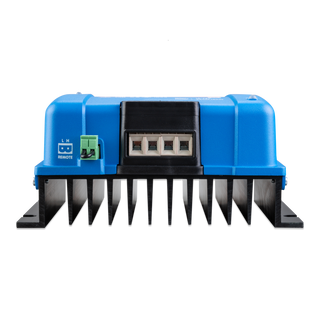

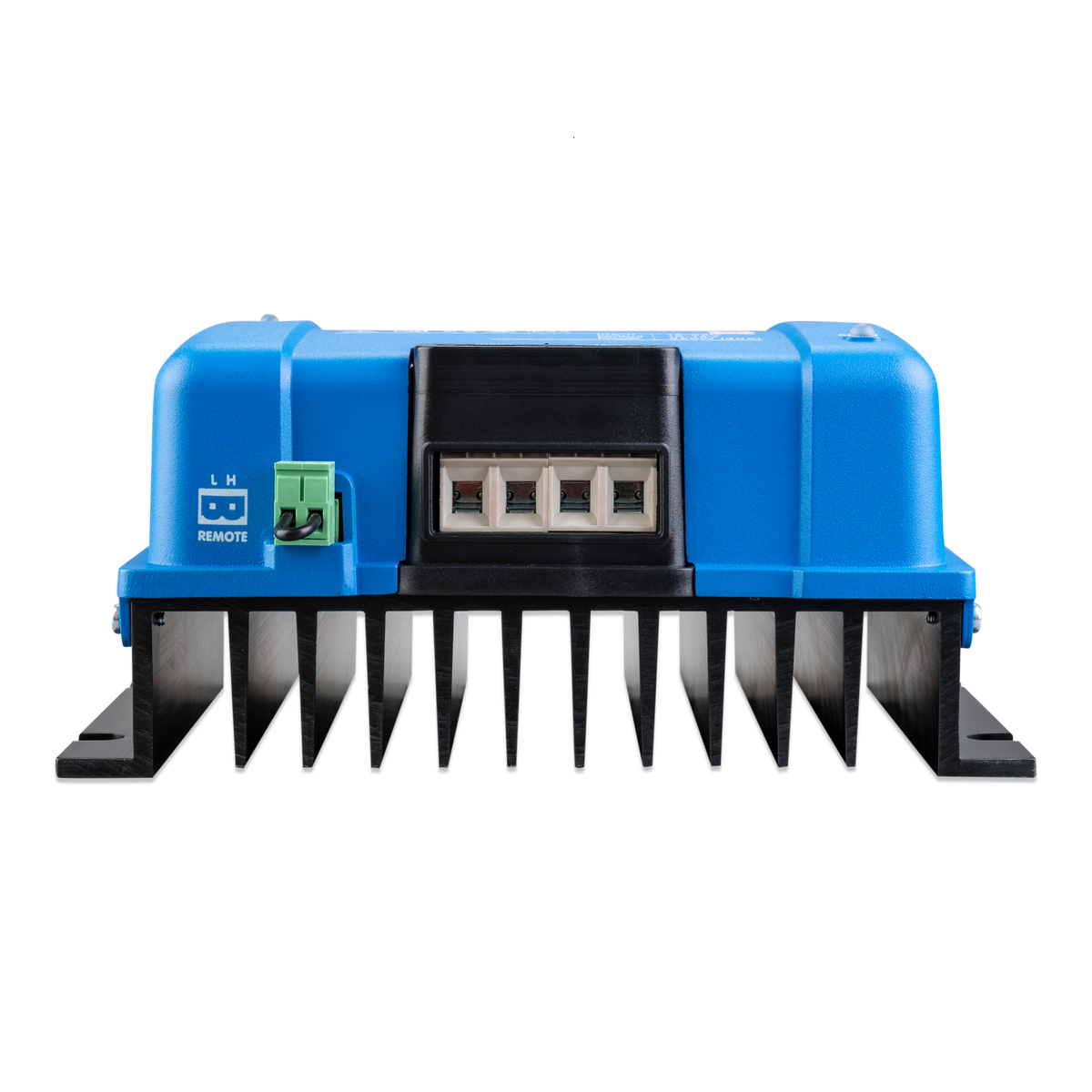

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).



All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.



High temperature protected

The output current will reduce at high ambient temperature.



IP43 protection

When installed with the screw terminals oriented downwards.



Screw terminals

No special tools needed for installation.












FAQ's

Q: Can I use this charger with lithium batteries?

A: Yes, the Orion-Tr Smart DC-DC Charger is suitable for both lead-acid and lithium batteries.

Q: Is the charger compatible with smart alternators?

A: Yes, it is designed to work with smart alternators and includes an engine running detection mechanism.

Q: Can I monitor and configure the charger remotely?

A: Yes, the built-in Bluetooth allows for monitoring and configuration via the VictronConnect app.

Specifications

Orion-Tr Smart DC-DC Charger Isolated Please make sure you look at the 24-12-30 360 W Column on the final page

Warranty Information


Victron Energy provides a 5-year limited warranty covering manufacturing defects.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
