Home / Lighting / Driving & light bars

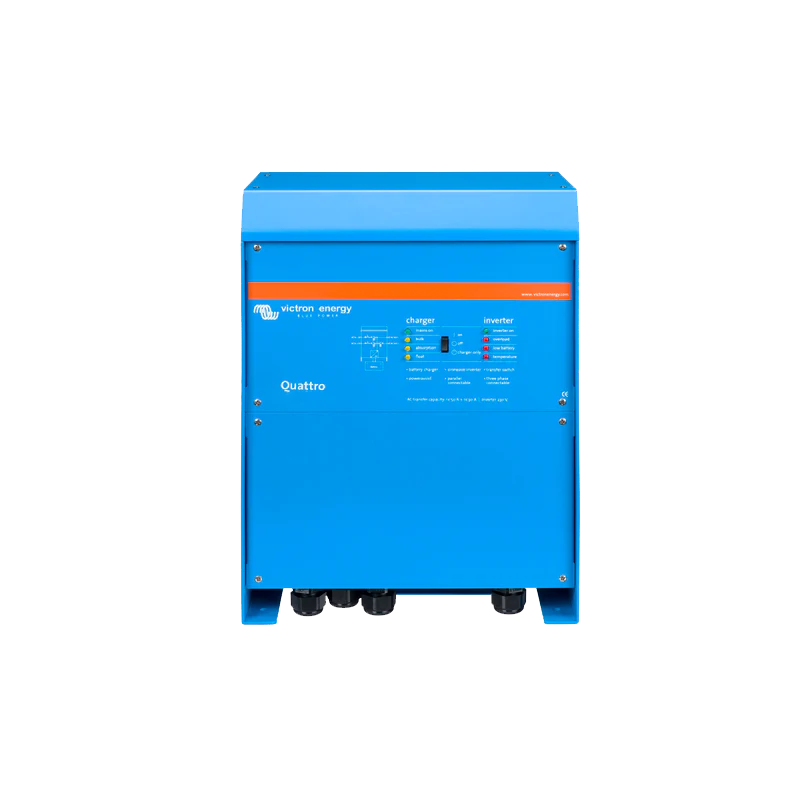

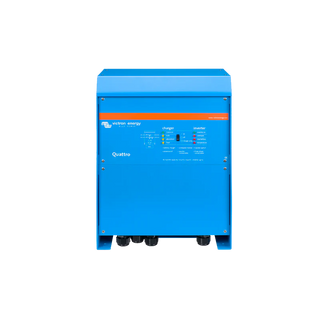

Victron Quattro 24/5000/120-100/100 230V VE.BusVictron Quattro 24/5000/120-100/100 230V VE.Bus

Victron Energy

Victron Quattro 24/5000/120-100/100 230V VE.Bus

QUA245021010

The Victron Quattro 24/5000/120-100/100 is a premium 24V inverter charger combining a 5000VA pure sine wave inverter, 120A adaptive battery charger and dual AC inputs with automatic transfer switching. Designed for RV, marine, backup power and off-grid applications, the Quattro…

$3,239.10$3,599.00 Save $359.90

4 interest-free payments of $809.78 with
or pay over time with
Important note

The Quattro combines a pure sine wave inverter, high-capacity battery charger, and dual AC-input transfer switch in one unit. It automatically selects between two AC sources and provides uninterrupted power transfer in less than 20ms.

We accept

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

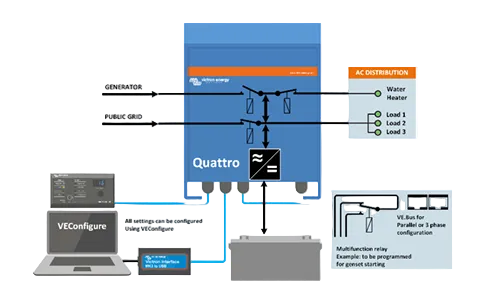

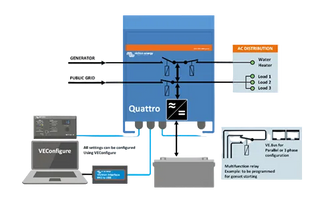

Dual AC Inputs

Automatically switches between shore power, generator, or alternative AC sources

Automatic Transfer Switching

Seamlessly transfers between power sources with no interruption

Remote Monitoring

Monitor and control your system through Victron VRM and GX devices

Pure Sine Wave Power

Clean, stable power for sensitive electronics and appliances

VICTRON QUATTRO

The Victron Quattro 24/5000/120-100/100 is a premium 24V inverter charger combining a 5000VA pure sine wave inverter, 120A adaptive battery charger and dual AC inputs with automatic transfer switching. Designed for RV, marine, backup power and off-grid applications, the Quattro delivers seamless power continuity,
PowerAssist technology and advanced monitoring capabilities through the Victron ecosystem. Compatible with parallel, split-phase and three-phase installations for scalable energy systems.
  • 5000VA pure sine wave inverter with a 120A battery charger in one unit
  • Two AC inputs, so shore power and a generator can both be connected and selected automatically
  • Two 100A transfer switches, changing over in under 20 milliseconds so nothing drops out
  • PowerAssist adds battery power to a limited shore supply, letting you run more than the connection alone allows
  • PowerControl caps the charger draw so the incoming supply is never overloaded
  • Up to six units in parallel, with split-phase and three-phase capability
  • Remote monitoring through the Victron VRM portal when paired with a GX device
  • Suits both off-grid and grid-connected installations

DC System Voltage: 24V

Inverter Rating: 5000VA

Battery Charger Output: 120A

AC Inputs: 2

Transfer Switches: 2 × 100A

Output Waveform: Pure Sine Wave

Parallel Operation: Up to 6 units

Split Phase: Supported

Three Phase: Supported

Remote Monitoring: VRM compatible with GX devices

Dimensions (H × W × D): 444 × 328 × 240 mm

Weight: Approximately 30 kg

Everything this install needs

0 of 0 in the box

Wall-mount installation.

Requires appropriate DC cabling, battery protection, and AC circuit protection.

Can be configured through VE.Bus software.

Compatible with GX monitoring devices for advanced system management.

Professional installation recommended.

Q: What does the second AC input actually give me?
A: You can connect shore power to one input and a generator to the other, permanently. The Quattro selects whichever is available without you swapping leads, and gives priority to the source you configure.

Q: Does it provide uninterrupted power during an outage?
A: Yes. Transfer happens in under 20 milliseconds, which is fast enough that computers and other sensitive equipment keep running.

Q: What is PowerAssist and when does it matter?
A: It tops up a limited shore supply with battery power. On a 10A caravan park connection you can still run appliances that would otherwise trip the supply, because the Quattro makes up the difference from the battery.

Q: Can multiple units be connected together?
A: Yes, up to six units in parallel for more capacity, and they can be configured for split-phase or three-phase output.

Q: Is it suitable for solar systems?
A: Yes, in both off-grid and grid-connected installations. Pair it with a GX device for monitoring through the Victron VRM portal.

Q: What battery bank does a 5000VA unit need?
A: This is the 24V model, so at full output it draws roughly 210A from a 24V bank before conversion losses. Size the bank and its cabling for that sustained current, not just the capacity in amp hours.
