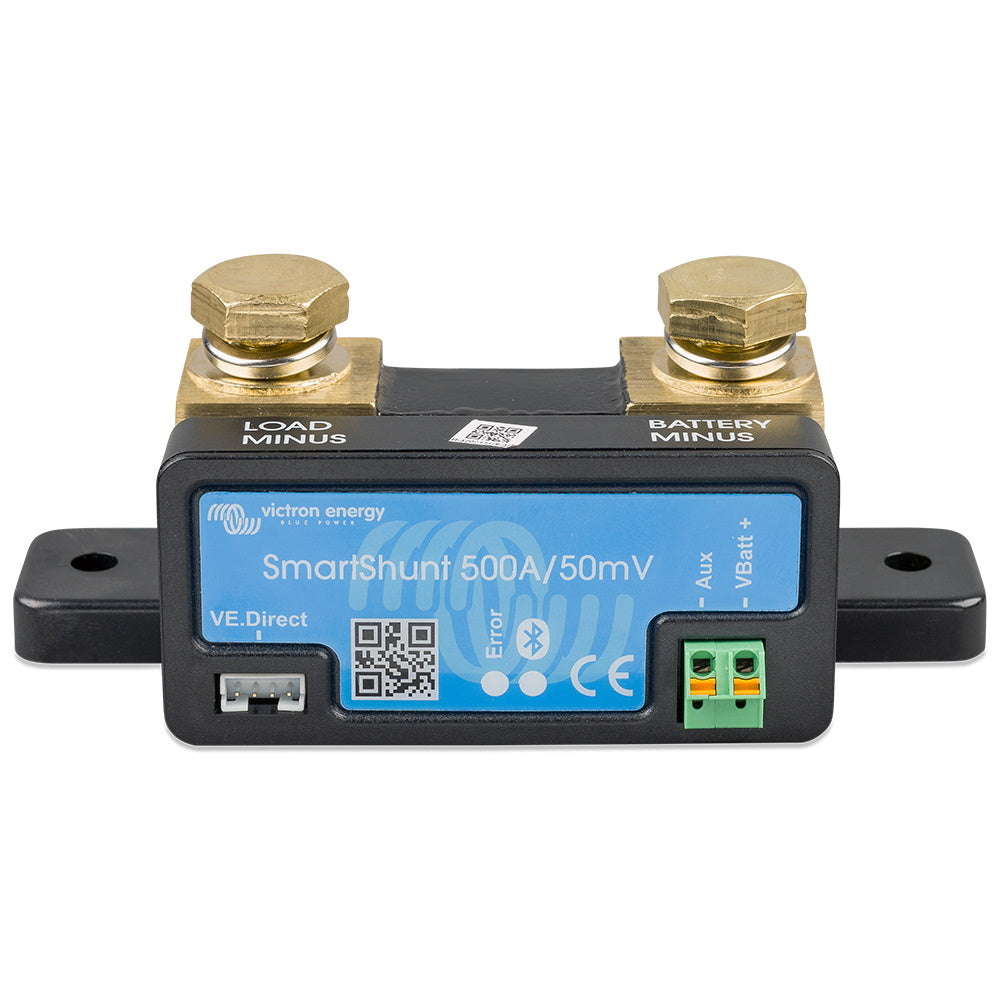

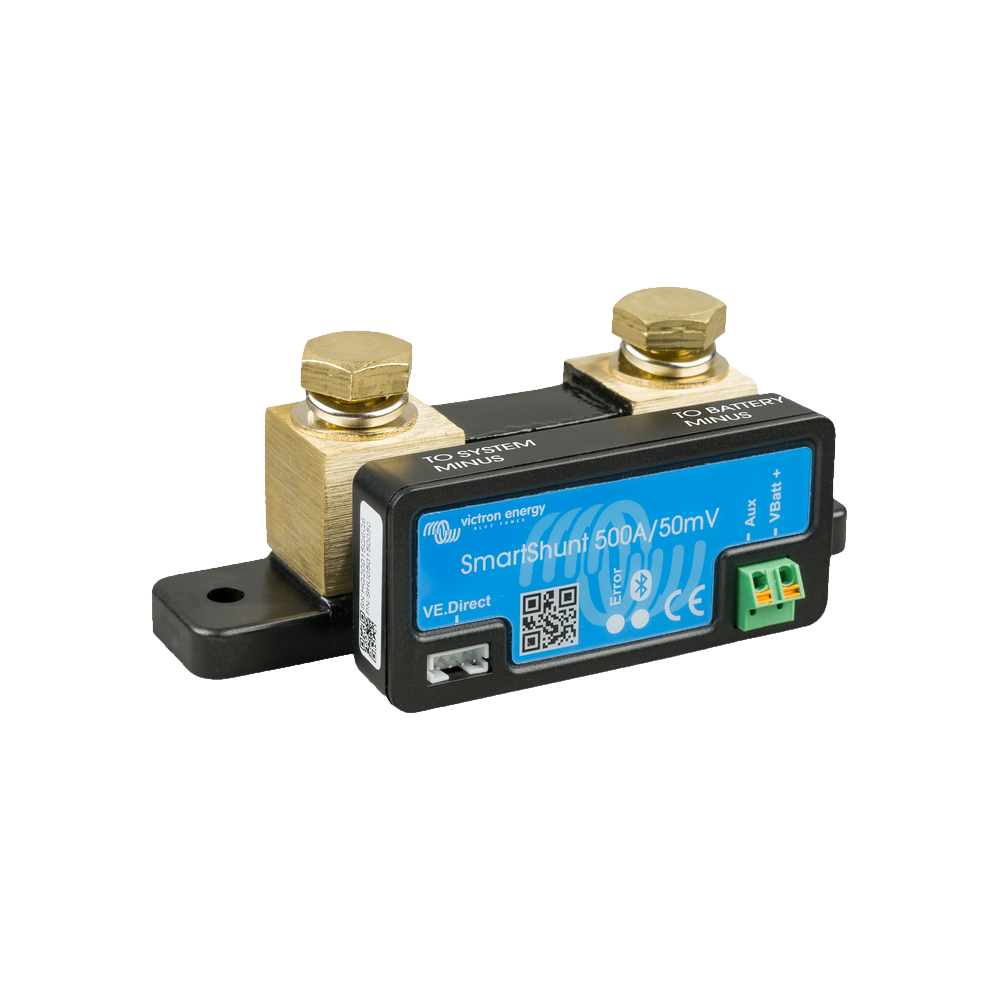

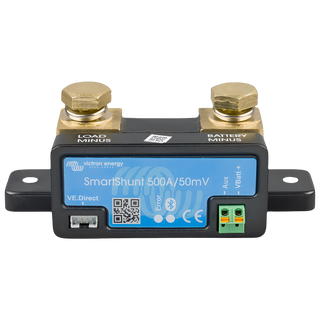

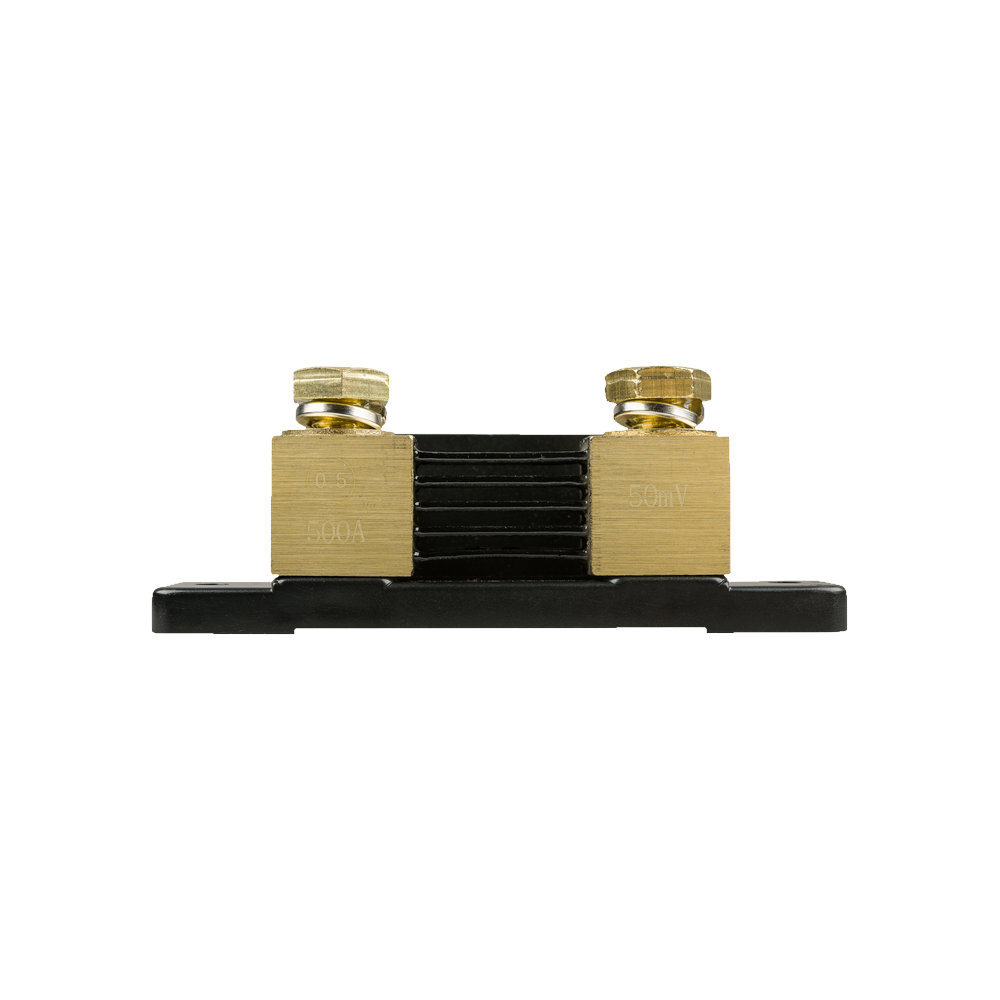

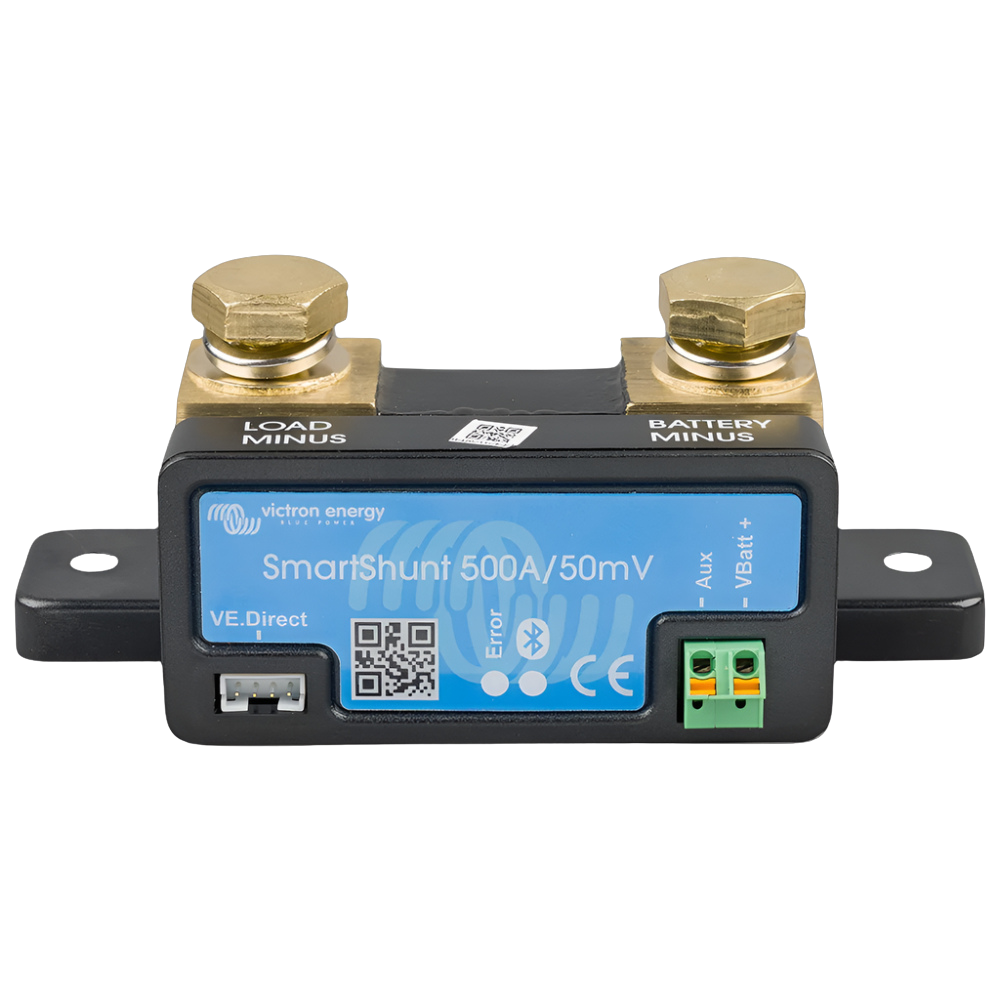

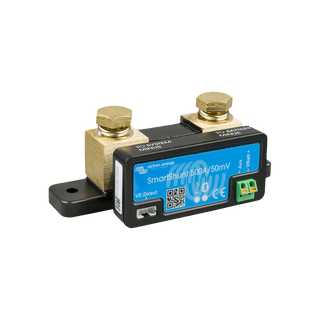

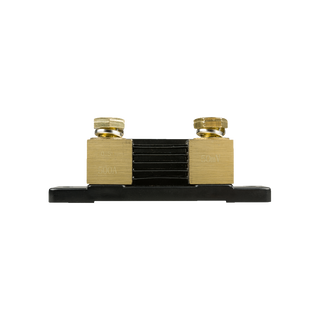

Victron SmartShunt 500A/50mV
Victron SmartShunt 500A/50mV
Victron SmartShunt 500A/50mV
Victron SmartShunt 500A/50mV
Victron SmartShunt 500A/50mV
Victron SmartShunt 500A/50mV
Victron SmartShunt 500A/50mV
Victron SmartShunt 500A/50mV Product Video
Victron SmartShunt 500A/50mV Product Video
Victron SmartShunt 500A/50mV

Victron SmartShunt 500A/50mV

SKU: SHU050150050
$154.95
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for 12V vehicle systems (e.g. 4WDs, caravans, boats) requiring 24V accessories or devices.


The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection


46mm (H) x 120mm (W) x 54mm (D)





The Smart Battery Shunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

 [{"variant_id":"32991175213165" , "metafield_value":""}]

Victron SmartShunt 500A/50mV

$154.95
Description

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

The SmartShunt is available in 500A. The 1000A and 2000A will follow later this year.

Please find product manual here.

FEATURES

All-in-one battery monitor
– View battery data on the VictronConnect app (iOS & Android)

– 500A max current, 50mV shunt

– Monitors voltage, current, state of charge (SOC), and more

– Includes VE.Direct port for connection to other Victron devices

– Ideal for tight installs in 4WD, caravan, marine or off-grid setups

– Set alerts or trigger systems based on battery conditions

Lithium, AGM, Gel, and other battery types

Specifications

Max Current: 500A
Shunt Voltage: 50mV
Supply Voltage Range: 6.5–70V DC
Power Consumption: <1mA
Battery Capacity Range: 1–9999Ah
Operating Temp: -40°C to +50°C
Accuracy: ±0.4% (Current), ±0.3% (Voltage), ±0.1% (SOC & Ah), ±1 min (Time to Go)
Connectivity: Bluetooth, VE.Direct port
Aux Input: 2nd battery voltage, midpoint, or temp sensor
Protection Rating: IP21
Dimensions: 46 x 120 x 54mm
Mounting: M10 bolts
Standards: EN 60335-1, EN/IEC 61000 series












































Installation Information

Download Victron SmartShunt 500A/50mV Datasheet

Warranty Information


Victron Energy products are backed by a 5-year limited warranty, covering manufacturing defects and faults under normal use.

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

FAQ's

Q: Does the SmartShunt work without a display?
A: Yes. It sends data via Bluetooth to your phone or tablet using the VictronConnect app.

Q: Can I use it with lithium batteries?
A: Yes, it's compatible with lead-acid, AGM, GEL, and lithium batteries.

Q: Is it expandable or linkable to other Victron devices?
A: Yes, via VE.Direct it can be connected to Victron GX devices or used in a VE.Smart network.
