Victron Energy

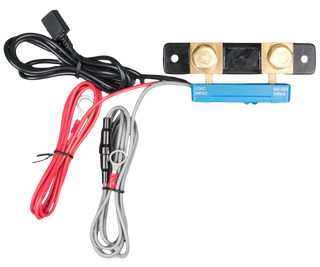

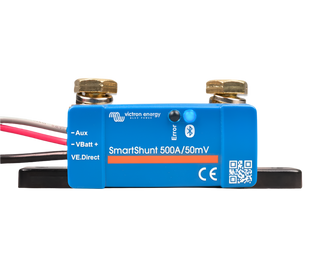

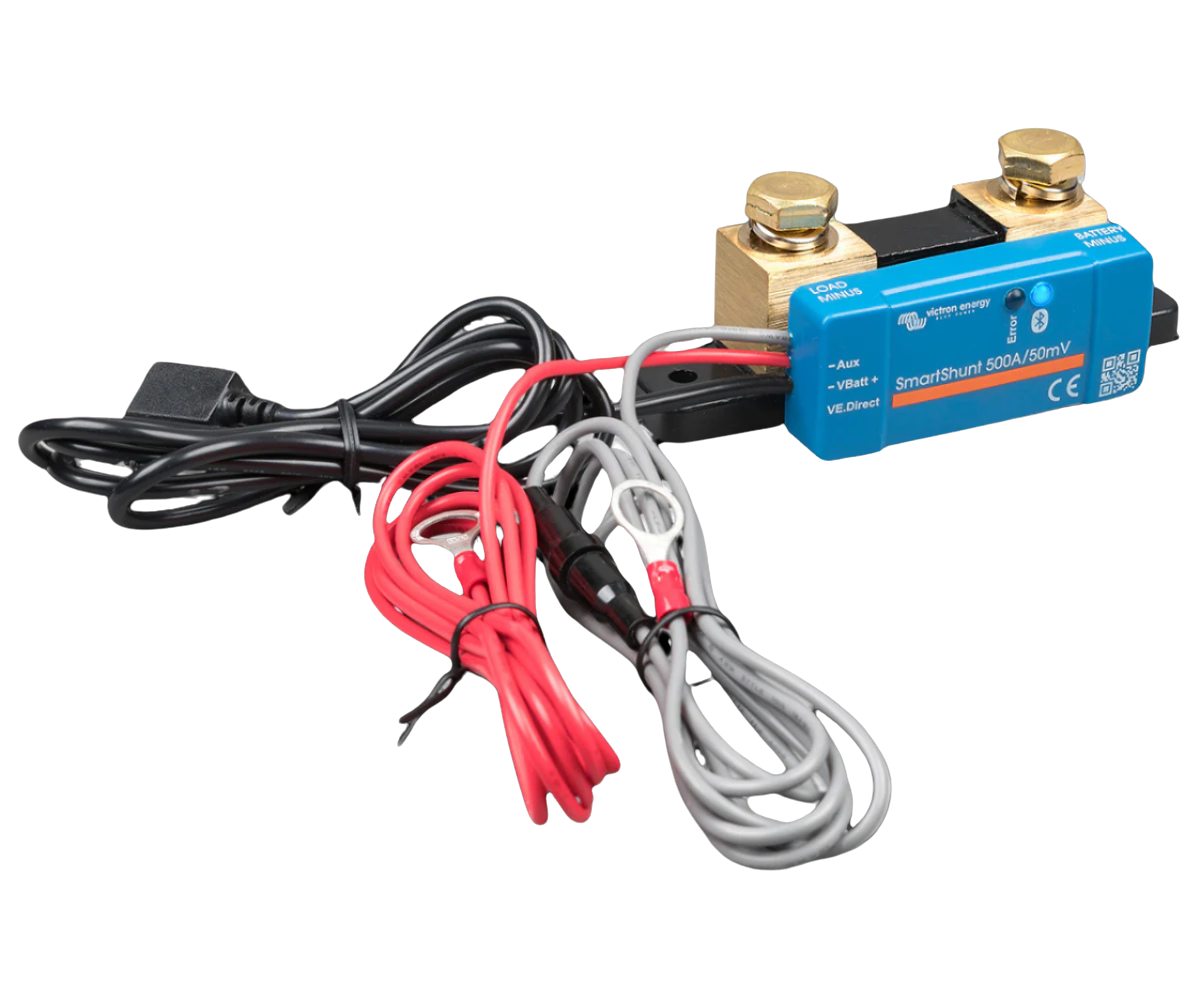

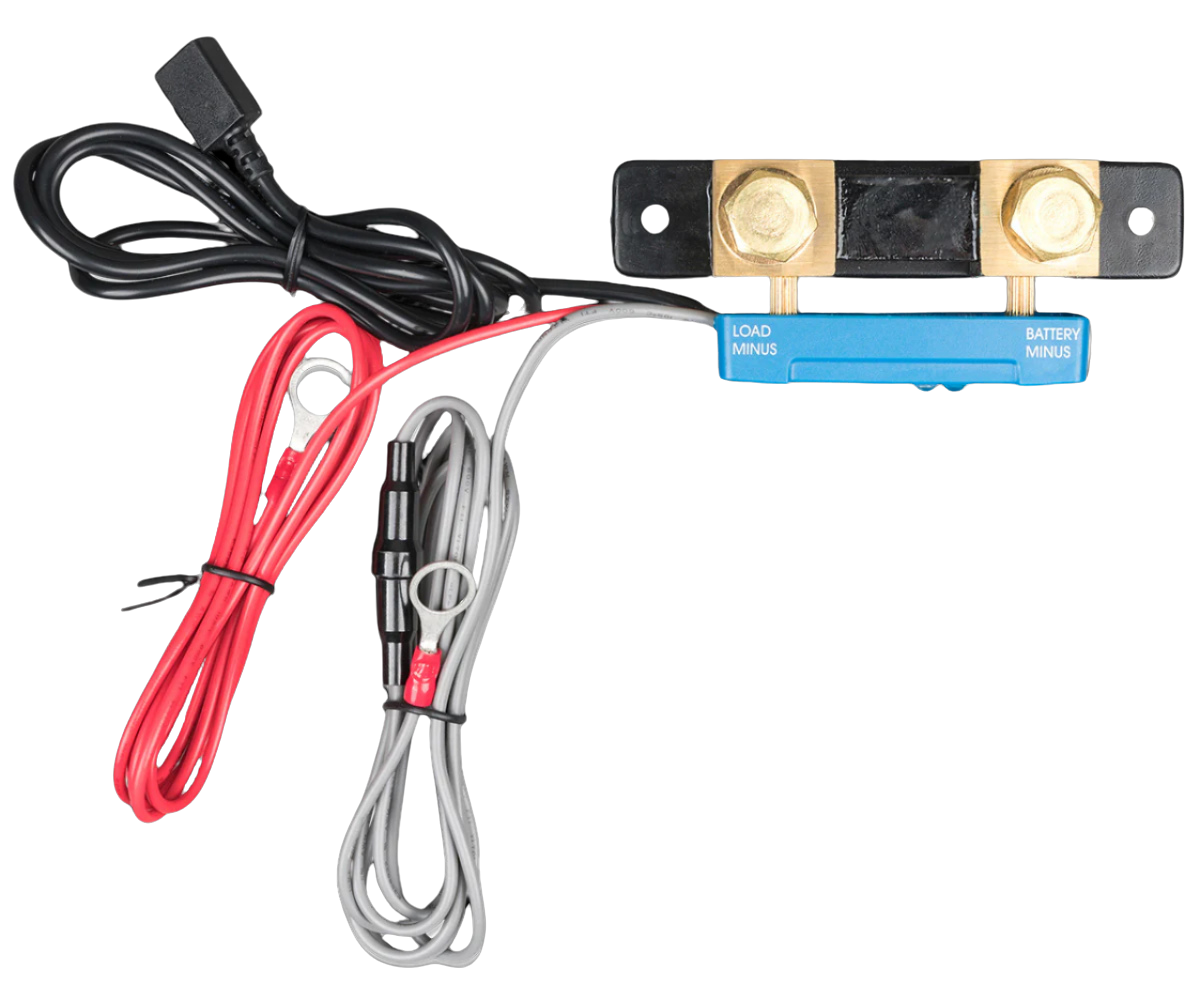

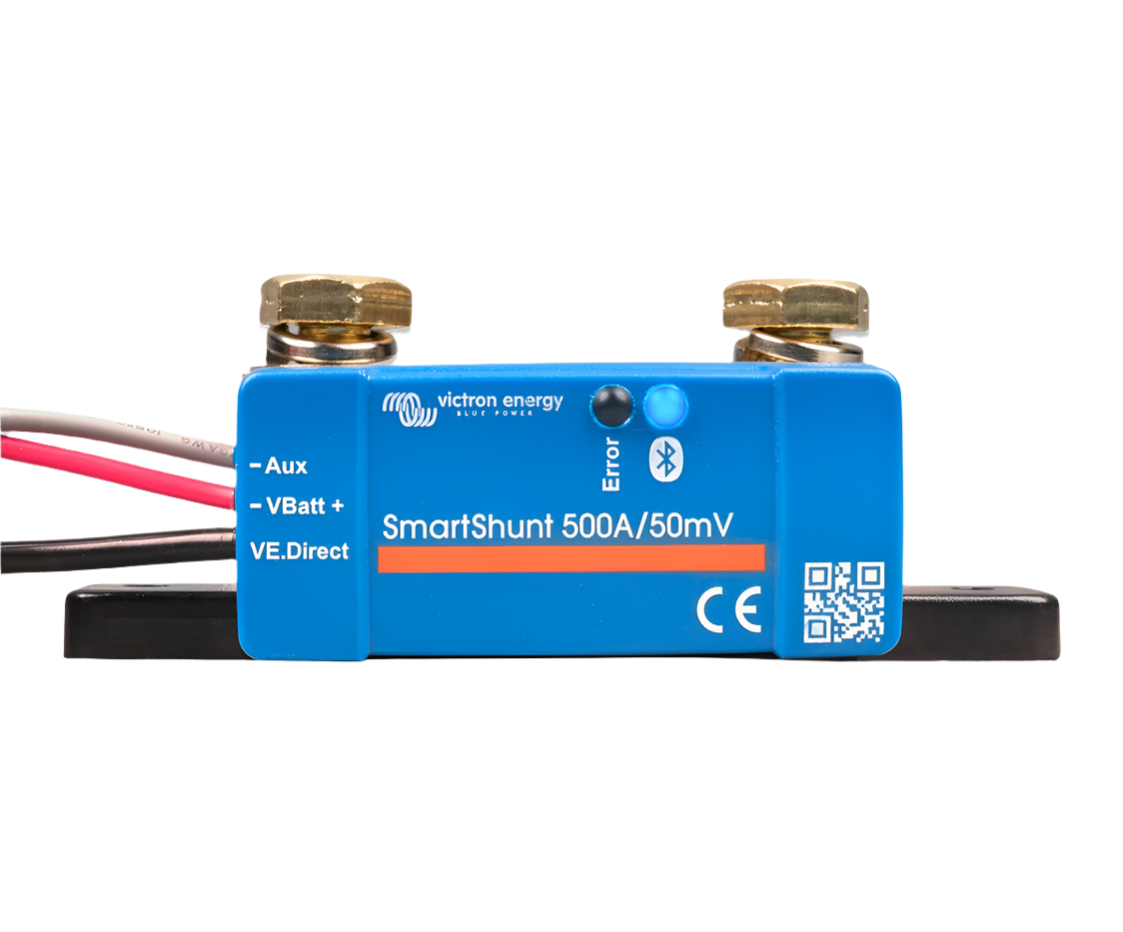

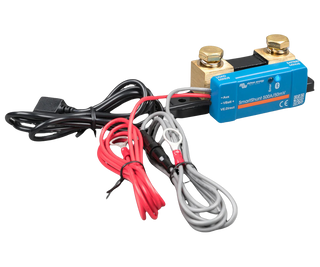

Victron SmartShunt 500A/50mV IP65 Water Resistant Bluetooth Battery Shunt
SHU065150050
The Victron SmartShunt is a powerful 500A/50mV battery monitor with built-in Bluetooth, allowing easy monitoring via the VictronConnect app on your phone, tablet, or computer. It can also connect to a Victron GX device for comprehensive system management. Its IP65…
$148.50$165.00 Save $16.50
Victrons IP65 Rated 500A/50mV SmartShunt is a powerful battery monitor with Bluetooth on board for monitoring on your mobile phone, tablet or computer via the VictronConnect App or connected to a Victron GX Device.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
The Victron SmartShunt is a powerful 500A/50mV battery monitor with built-in Bluetooth, allowing easy monitoring via the VictronConnect app on your phone, tablet, or computer. It can also connect to a Victron GX device for comprehensive system management. Its IP65 rating ensures reliable operation in harsh environments.
- The 500A SmartShunt IP65 is an all-in-one battery monitor, only without a display. Your phone acts as a display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the SmartShunt can be connected and read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
- The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but where less wiring and clutter is wanted.
- The SmartShunt is equipped with Bluetooth, a VE.Direct port and a secondary connection that can be used for monitoring a second battery, midpoint monitoring or a temperature sensor.
- With its IP65 Water Resistant rating, the SmartShunt is more ideal for areas prone to receiving an ingress of water such as an engine bay in a 4WD that does creek crossings, or in a marine environment where the battery area is relatively exposed to the elements.
- Battery State-of-Charge (SoC)
- Voltage of up to 2 batteries
- Current Load
- Time to go
- Extensive historical information
- ... and much more
- The SmartShunt can do more than comprehensively monitor your main battery bank - additionally, you can choose to either:
- Monitor the voltage of a second battery, for exmaple the starter battery or;
- Connect a temperature sensor (optional accessory) for temperature compensated charging or;
- Monitor the midpoint voltage of your battery bank (cable included) to keep an eye on battery health.
Victron SmartShunt IP65 500A/50mVSupply voltage range: 6.5 - 70 VDC Current draw: < 1 mA Input voltage range (auxiliary battery): 6.5 - 70 VDC Battery capacity: 1 - 9999 Ah Operating temperature range: -40 to +50 °C (-40 to 120 °F) Measures voltage of second battery, temperature, or midpoint: Yes Temperature measurement range: -20 to +50 °C VE.Direct communication port: Yes
