Victron Energy

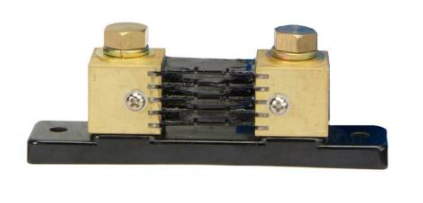

VictronShunt 500A/50mV
SHU500050100
The Victron Smart Battery Shunt is a compact, all-in-one battery monitoring device that gives you full visibility of your battery bank without needing a separate display. Your phone or tablet becomes the display through the VictronConnect app, allowing you to…
$54.00
The SmartShunt is a compact battery monitor with no display — your phone or tablet becomes the display via the VictronConnect app. It connects via Bluetooth or VE.Direct and provides full battery monitoring without extra clutter.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
The Victron Smart Battery Shunt is a compact, all-in-one battery monitoring device that gives you full visibility of your battery bank without needing a separate display. Your phone or tablet becomes the display through the VictronConnect app, allowing you to view state of charge, voltage, current, time to go, historical data and more in real time.
It can also be connected to a Victron GX device for seamless integration into a larger power management system using the VE.Direct port. With Bluetooth connectivity and minimal wiring, the SmartShunt provides a neat and simple alternative to traditional battery monitors while still delivering accurate and detailed data.
- Compact all-in-one battery shunt monitor without a display — Bluetooth and VE.Direct enabled.
- Enables monitoring of state of charge, voltage, current load, time-to-go, amp-hours, and provides historical data.
- Supports additional battery or midpoint monitoring or optional temperature sensor.
- Provides accurate measurement down to ±0.1 A / ±0.01 V and integrates with GX devices or VictronConnect app for easy monitoring.
- Requires minimal wiring and ideal for clean, hidden installations.
Supply Voltage Range6.5 – 70 V DC
Battery Capacity Supported1 – 9,999 Ah
Maximum Current500 A (shunt rating) with 50 mV drop
Current Draw< 1 mA
Operating Temperature Range–40 °C to +50 °C
VE.Direct PortYes
Bluetooth ConnectivityYes
Supportssecond battery voltage monitoring, midpoint monitoring, optional temperature sensor
Accuracy (Current)± 0.1 A
Accuracy (Voltage)± 0.01 V
Accuracy (Amp hours)± 0.1 Ah
Accuracy (State of Charge): ± 0.1%
