Home / Lighting / Driving & light bars

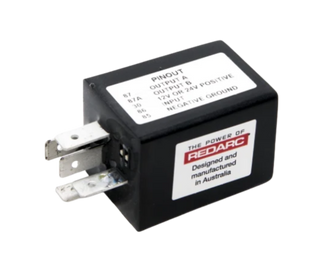

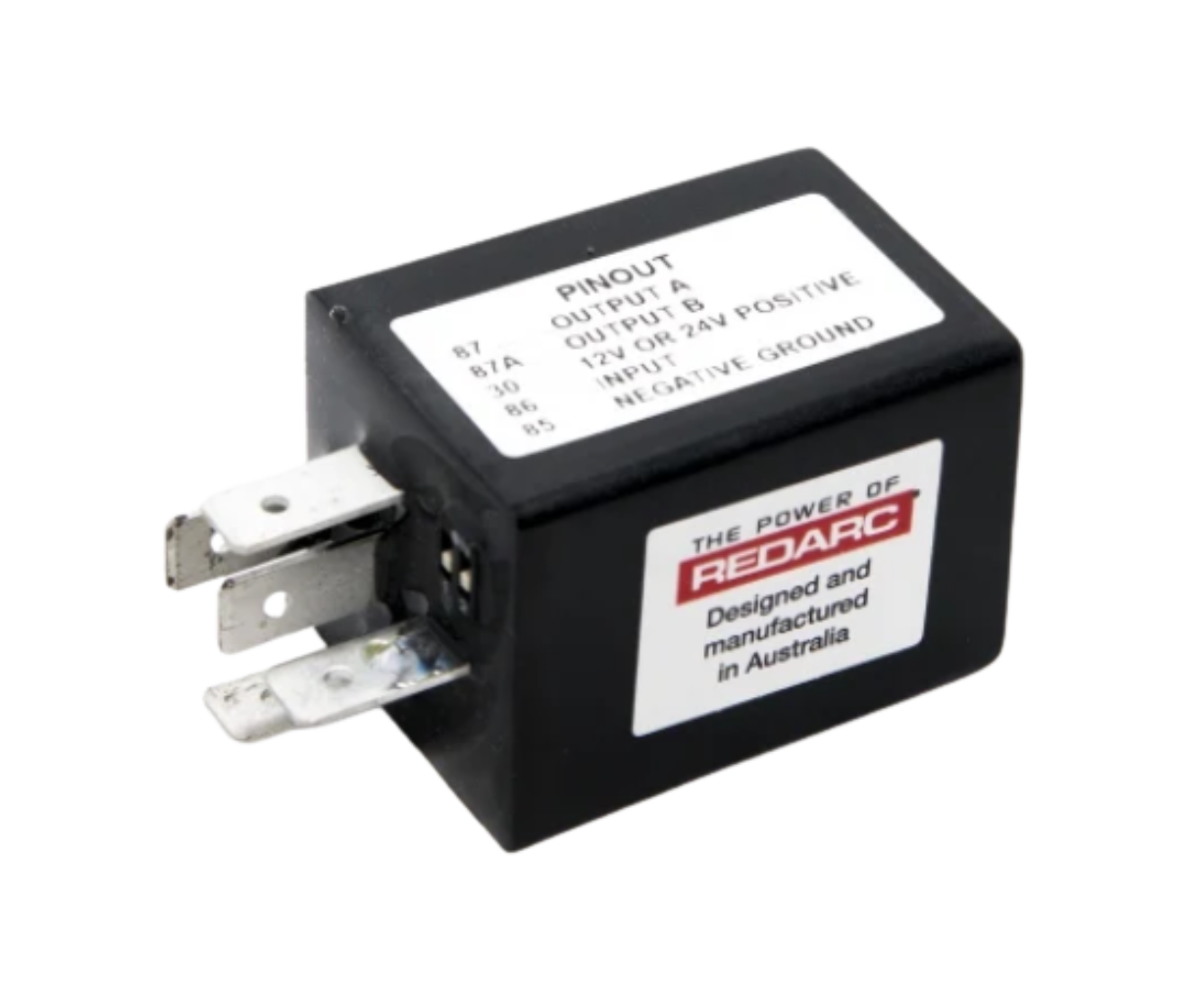

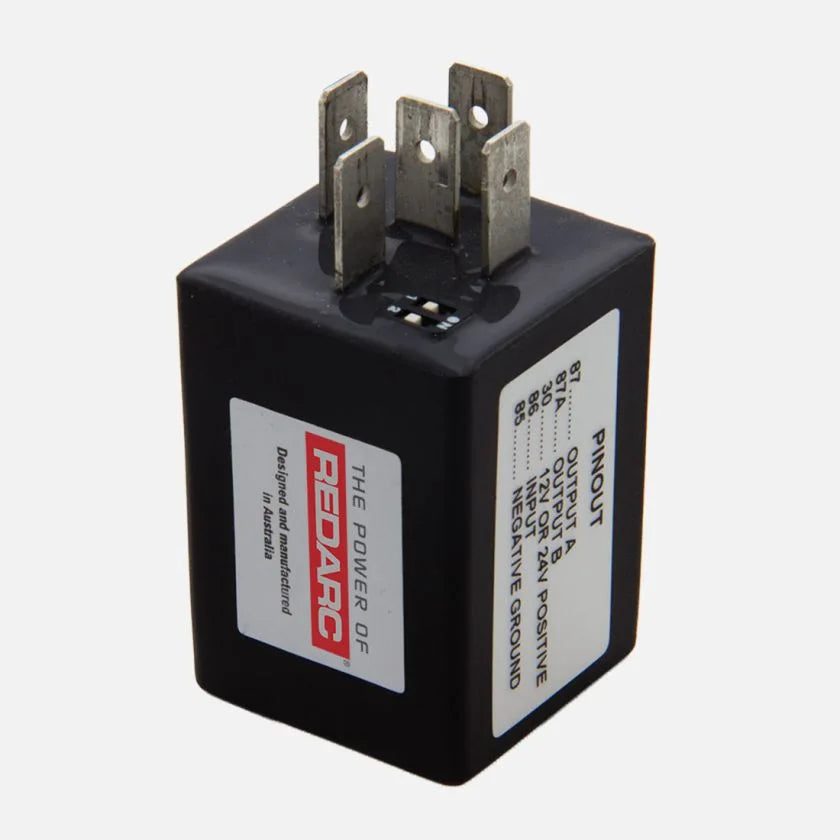

Redarc 12V or 24V 10A Chopper Relay - LatchingRedarc 12V or 24V 10A Chopper Relay - Latching

Redarc

12V or 24V 10A Chopper Relay - Latching

CR1224L

The REDARC Latching Chopper Relay (CR1224L) is a versatile flip-flop relay designed for automotive applications requiring momentary switch control. It features two outputs that alternately latch ON or OFF with each activation of a single, momentary-action push-button switch. This functionality…

$219.00

4 interest-free payments of $54.75 with
or pay over time with
Important note

Designed for both 12V and 24V systems, the CR1224L ensures compatibility across a wide range of vehicles. Its compact design allows for easy integration into existing setups.

We accept
Suitable for vehicles with either 12V or 24V negative ground electrical systems, making it adaptable for various automotive applications.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The REDARC Latching Chopper Relay (CR1224L) is a versatile flip-flop relay designed for automotive applications requiring momentary switch control. It features two outputs that alternately latch ON or OFF with each activation of a single, momentary-action push-button switch. This functionality is ideal for controlling devices like fog lights, rear demisters, or any dash-mounted accessories that need to toggle states without maintaining constant switch pressure.

  • Alternating latch mechanism for two outputs
  • Compatible with both 12V and 24V systems
  • Compact and lightweight design
  • Standard 5-pin terminal configuration
  • Retains state after power loss
  • Ideal for momentary switch applications

Operating Voltage: 12V or 24V DC

Maximum Output Current: 10A per output

Terminals: 5-pin configuration

Mounting Orientation: Any angle

Weight: Approximately 90 grams

Everything this install needs

0 of 0 in the box

The relay features standard 5-pin terminals, allowing for straightforward installation. It can be mounted at any angle without affecting performance. Ensure the supply is protected by an appropriately rated fuse.

CR1224L Manual

Suitable for vehicles with either 12V or 24V negative ground electrical systems, making it adaptable for various automotive applications.

Q: Can the CR1224L be used with LED lights?

A: Yes, the relay can control LED lights, provided the current draw does not exceed the 10A maximum rating.


Q: Does the relay return to a default state when power is disconnected?

A: No, the latching mechanism retains its last state even when power is removed, ensuring consistent operation upon power restoration.
