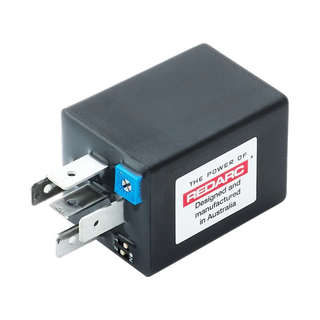

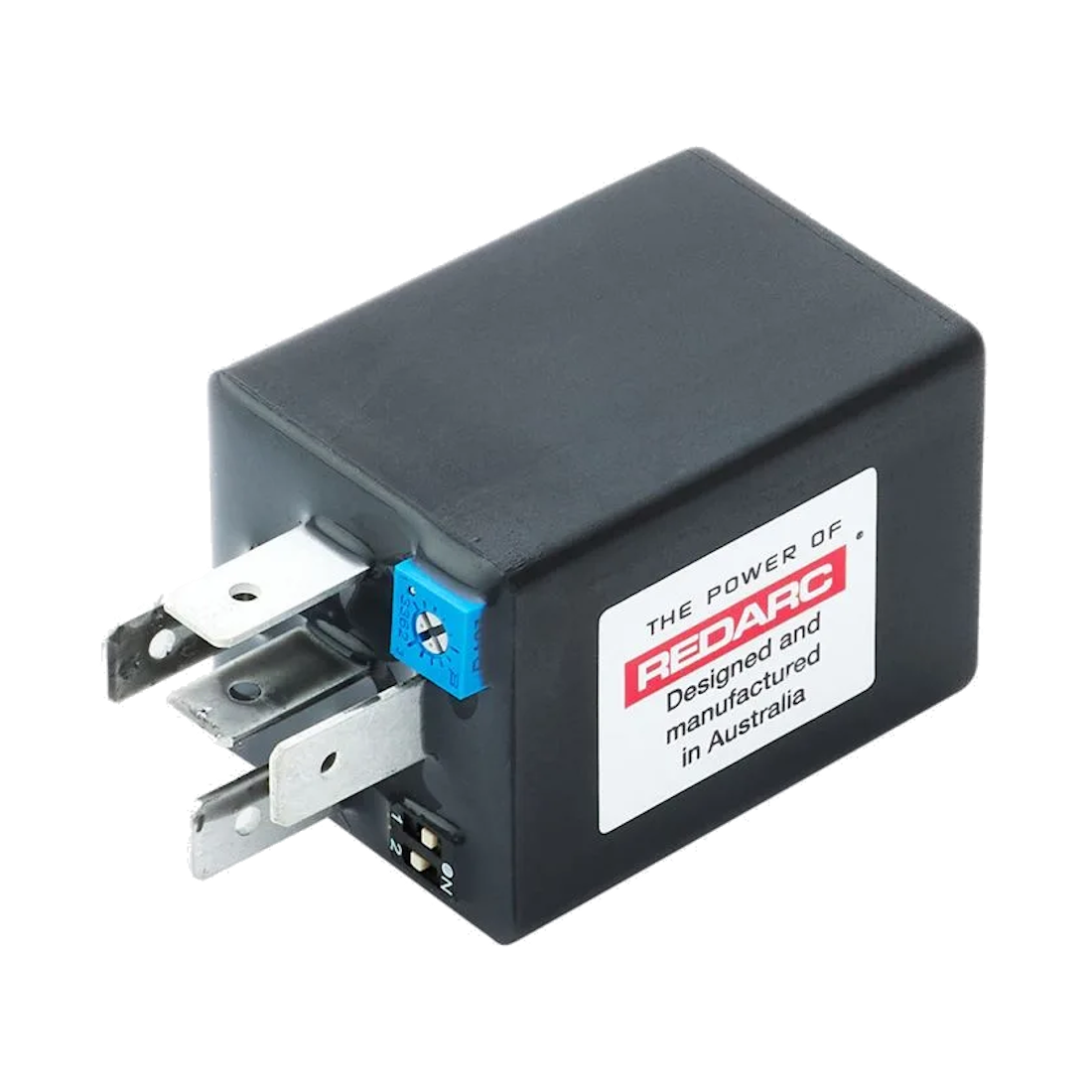

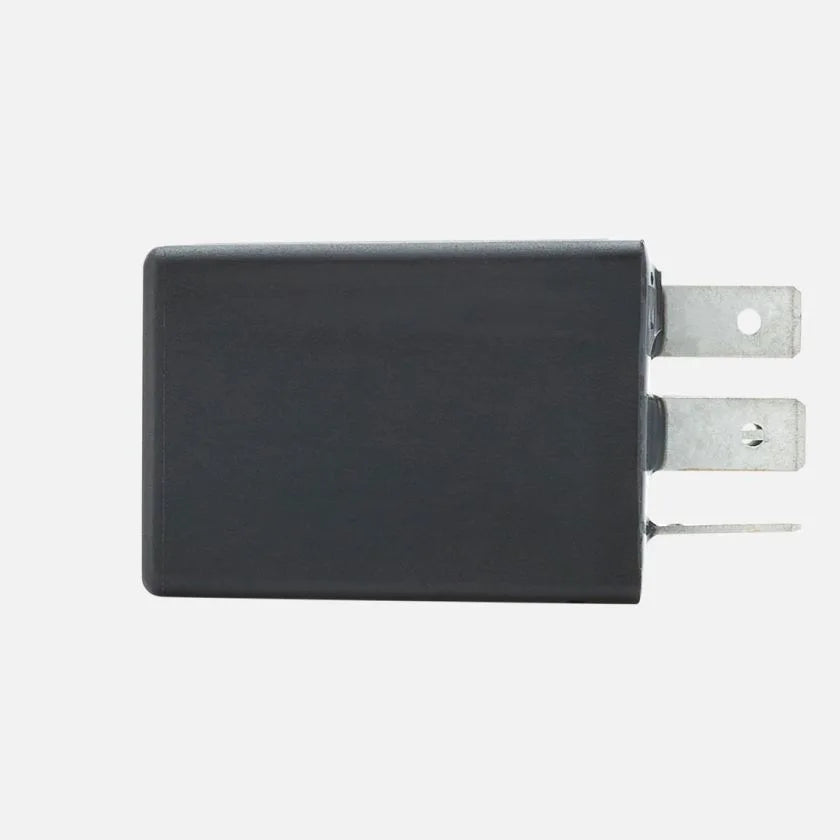

REDARC Multi Function Timer shown at an angle, with its spade terminals, blue adjustment potentiometer and two-position DIP switch visible

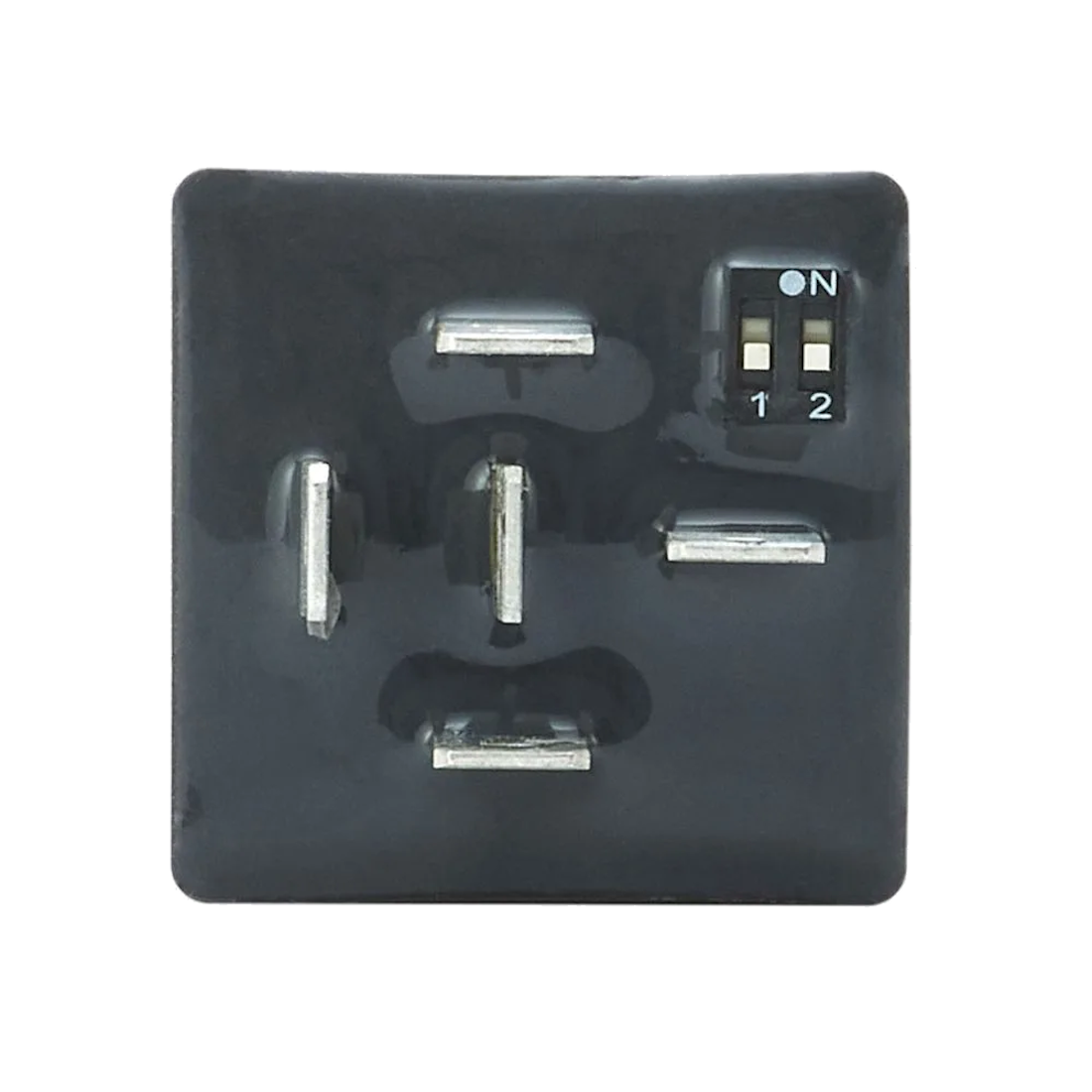

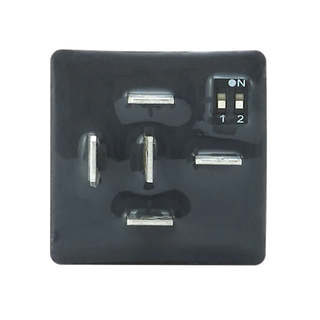

Base of the REDARC Multi Function Timer showing the five spade terminals and the two-position DIP switch

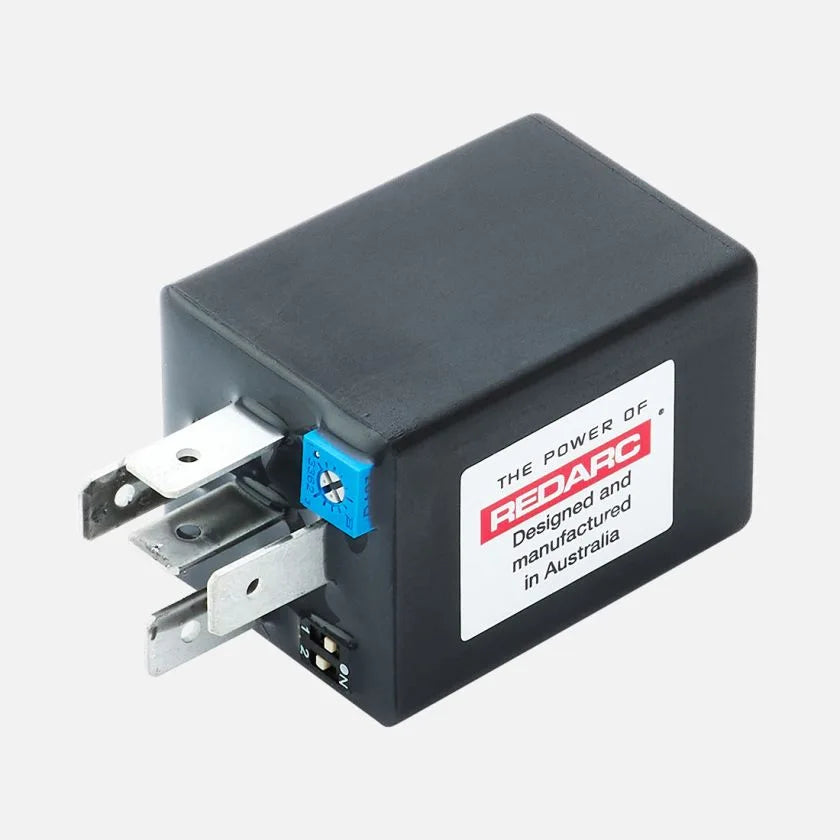

REDARC Multi Function Timer at an angle, showing the potentiometer, DIP switch and the Designed and manufactured in Australia label

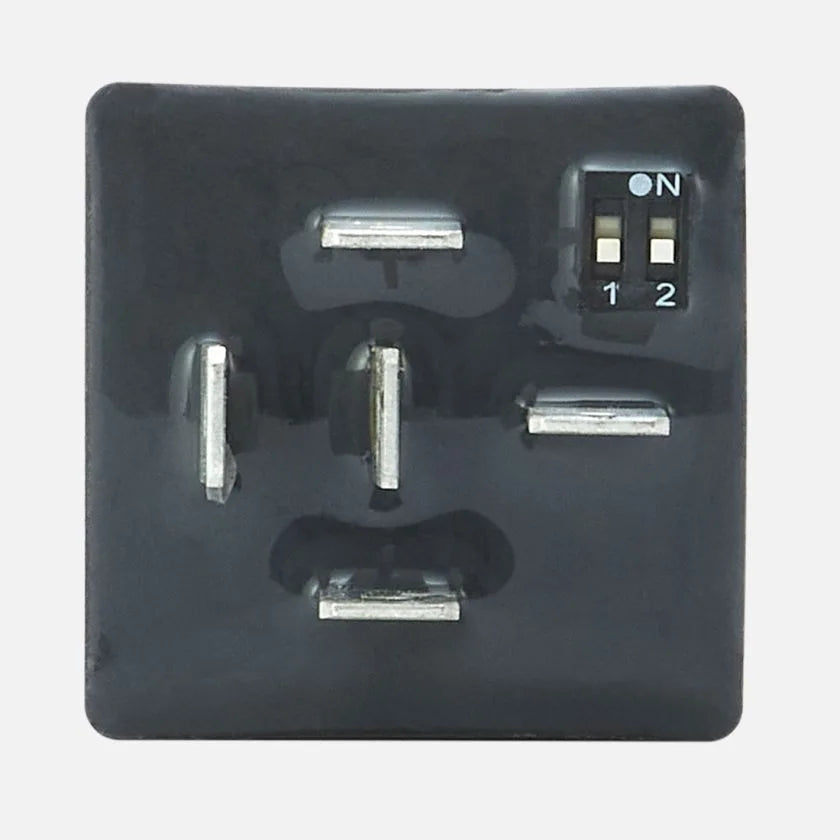

Pin side of the REDARC Multi Function Timer showing the five spade terminals and the DIP switch marked 1 and 2

Redarc

Multi Function Timer TIM05 / TIM06

TIM05

The REDARC Multi-Function Timer gives you precise, adjustable control over auxiliary circuits in 12V and 24V systems. Use it to run lights, pumps, fans and other accessories on a set delay — in 4WDs, caravans, campers, trucks, marine setups and…

$171.00$180.00 Save $9

4 interest-free payments of $42.75 with Afterpay

or pay over time with Zip

Important note

Designed and manufactured by REDARC in Australia, built for durability and reliability in tough conditions.

Variant

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Suits 12V and 24V negative earth systems in 4WDs, caravans, campers, trucks, marine setups and stationary installations.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

12V or 24V Systems

One part suits both 12V and 24V negative earth systems

10A Switched Output

Switches up to 10A through the internal relay on pin 87

1 to 60 Seconds or Minutes

Set the delay you need, from a one second pulse to a full hour

Standard Relay Base Fitment

Same pin numbering as a standard automotive relay, so it drops straight in

Controls Lights, Pumps and Fans

Automates any auxiliary circuit within the 10A rating

Both the TIM05 and TIM06 plug into a standard automotive relay base and use the same pin numbering as a standard relay, with the switched output on pin 87. Set the switching mode and choose a seconds or minutes range using the switches, then dial the delay anywhere from 1 to 60 with the potentiometer.

Both models are rated to a 10A maximum output current and share the same compact 75mm x 24mm x 30mm body at just 70g. They are supplied as separate part numbers for different switching configurations — if you are not sure which one suits your circuit, get in touch and we will confirm it before you order.

Suits 12V or 24V negative earth systems
10A maximum switched output
User adjustable delay from 1 to 60 seconds or minutes
Potentiometer sets the delay, switches select the mode and the seconds or minutes range
Plugs into a standard automotive relay base with standard relay pin numbering
Switched output on pin 87
Compact at 75mm x 24mm x 30mm and only 70g
Suits lights, pumps, fans and other auxiliary circuits
Works in mobile and stationary installations

Part NumbersTIM05 and TIM06

Input Voltage12V / 24V

Max Rated Output Current10A

Timer RangeUser adjustable 1-60 seconds/minutes

AdjustmentPotentiometer sets the delay, clockwise increases time. Switches select the switching mode and the seconds or minutes range.

OutputSwitched by the internal relay on pin 87

MountingStandard automotive relay base

Dimensions75mm (L) x 24mm (W) x 30mm (H)

Weight70 g

Length: 75mm

Width: 24mm

Height: 30mm

Weight: 0.07kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box

Plugs into a standard automotive relay base, using the same pin numbering as a standard automotive relay
The switched output is on pin 87
Use the switches to select the switching mode and the seconds or minutes range
Turn the potentiometer clockwise to increase the delay
Keep the switched load within the 10A rating
Suitable for both mobile and stationary installations
The full instruction manual is in the Users Manual panel on this page
Our Perth workshop can wire it in if you would rather not do it yourself

Suits 12V and 24V negative earth systems in 4WDs, caravans, campers, trucks, marine setups and stationary installations.

Q: Do these work with both 12V and 24V systems?
A: Yes. Both models are rated for 12V or 24V negative earth systems, so the same part suits a 4WD or a truck.

Q: How do I set the delay?
A: Use the switches to pick the switching mode and whether the range is in seconds or minutes, then turn the potentiometer clockwise to increase the delay. Anywhere from 1 to 60 is available.

Q: What is the difference between the TIM05 and the TIM06?
A: REDARC publishes the same electrical specification for both - 12V/24V, 10A, 1 to 60 seconds or minutes, and the same size and weight. They are supplied as separate part numbers for different switching configurations. If you are not certain which one your circuit needs, get in touch before ordering and we will confirm it for you.

Q: How much can it switch?
A: Up to 10A through the internal relay, with the switched output on pin 87. Anything heavier needs a separate relay driven by the timer.

Q: Can I use it on LED lighting circuits?
A: Yes. LED lights, water pumps, fans and other auxiliary devices are all fine as long as the load stays within the 10A rating.

Q: Does it need a special base?
A: No. It uses the same pin numbering as a standard automotive relay, so it plugs into a standard relay base.
