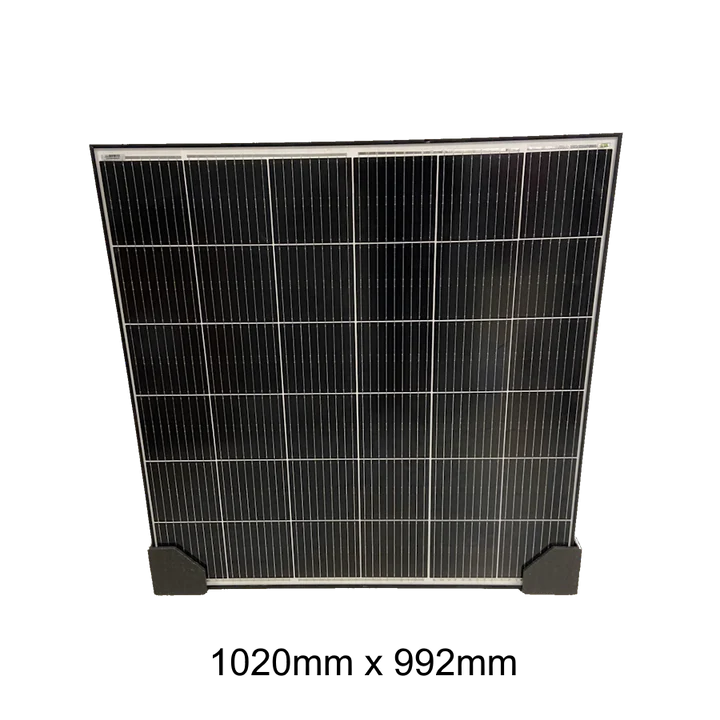

KT Solar 200 Watt 12v Single Cell Mono-Crystalline Solar Panel (1020x992x35mm)

High-efficiency mono-crystalline solar cells

Premium black frame

MC4 connectors with 900mm cables

Fully sealed junction box

Class A rated

Q: Can I use this panel for camping and caravans?
A: Yes, it’s designed specifically for outdoor use including camping, caravanning, and off-grid solar setups.

Q: What type of charge controller do I need?
A: A 20A PWM or MPPT solar charge controller is recommended for optimal performance.

Q: Are the cables included?
A: Yes, the panel comes with 900mm positive and negative cables terminated with MC4 connectors.

Q: Is the panel weather resistant?
A: Yes, it features a fully sealed junction box and a premium black frame to withstand outdoor conditions.

Q: What warranty does this panel have?
A: It comes with a 12-month manufacturer warranty, a 10-year product warranty, and a 25-year efficiency guarantee.

Q: What are the dimensions and weight?
A: The panel measures 1020mm (L) x 992mm (W) x 35mm (D) and weighs 10.12 kg.

Q: Can this panel be used in cold or hot climates?
A: Yes, it operates reliably between -40°C and +85°C.

Model: KT70730

Power: 200 Wp

Voltage (Vmp): 19.7 V

Current (Imp): 10.15 A

Open Circuit Voltage (Voc): 23.4 V

Short Circuit Current (Isc): 11.17 A

Operating Temp: -40°C to +85°C

Weight: 10.12 kg

Dimensions: 1020 x 992 x 35 mm

Mount on a flat, sun-exposed surface using appropriate brackets or mounts

Connect to a compatible solar charge controller

Use MC4 connectors for secure and weatherproof wiring

Avoid shading and ensure panel angle optimises sun exposure

12 months warranty on manufacture and build

10 years warranty on product quality

25 years efficiency guarantee under the National Warranty Program

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.
