Home / Lighting / Driving & light bars

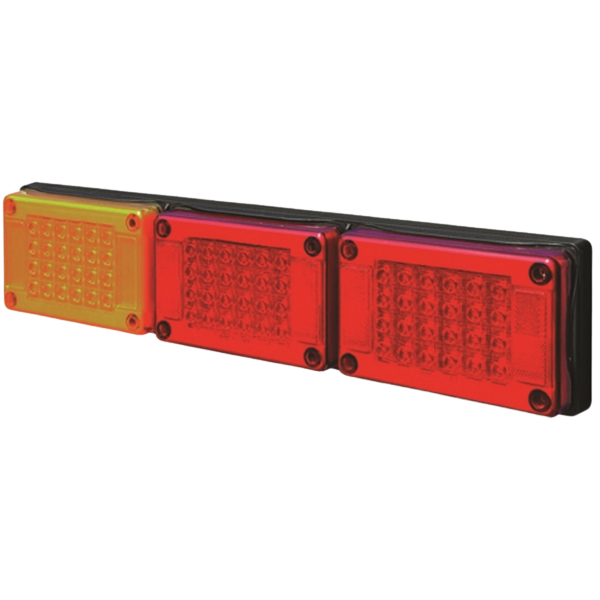

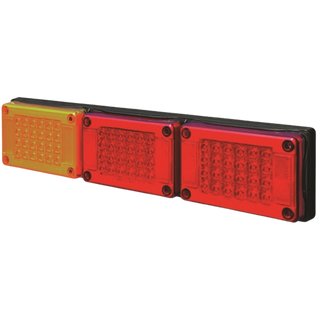

Roadvision 10-30V Stop/Tail x 2/Ind Jumbo Triple Surface Mount 604x132mmRoadvision 10-30V Stop/Tail x 2/Ind Jumbo Triple Surface Mount 604x132mm

Roadvision

10-30V Stop/Tail x 2/Ind Jumbo Triple Surface Mount 604x132mm

BR601ARR

ROADVISION BR601 Series LED Jumbo Combination Lamps offer a durable, all-in-one lighting solution for heavy-duty trucks and trailers. Featuring stop, tail, indicator, reflector, and optional reverse functions in one lamp, they deliver brighter light with lower power consumption compared to…

$152.10$169.00 Save $16.90

4 interest-free payments of $38.03 with
or pay over time with
Important note

ROADVISION BR601 Series offers a durable, maintenance-free LED lighting solution designed specifically for heavy-duty trucks and trailers.

We accept
Heavy-duty trucks, trailers, and commercial vehicles requiring jumbo combination lamps with multiple lighting functions.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

ROADVISION BR601 Series LED Jumbo Combination Lamps offer a durable, all-in-one lighting solution for heavy-duty trucks and trailers. Featuring stop, tail, indicator, reflector, and optional reverse functions in one lamp, they deliver brighter light with lower power consumption compared to incandescent bulbs. Built with tough high-impact ABS housing and unbreakable polycarbonate lenses, these lamps are dust and waterproof, maintenance-free, and rated for 100,000 hours of use. With ROADVISION, it’s a reliable fit-and-forget solution for enhanced safety and performance.

  • Jumbo LED combination lamp range
  • Multi-volt 10-30V DC input & low current draw
  • Brighter than conventional incandescent lamps
  • 100,000-hour LED lifespan, maintenance-free
  • High impact ABS housing & sealed polycarbonate lens
  • Water and dust proof
  • Pre-wired with LEDLink Connector
  • Surface mount, easy retrofit
  • ADR/ECE approved

Part NumberBR601ARR

FunctionsStop, Tail, Indicator, Reflector

Voltage Input10-30V DC

Indicator LEDs24

Stop/Tail LEDs48

Current DrawIndicator 0.1A; Stop/Tail 0.1/0.05A at 13.8V

Dimensions (LxWxH)604 x 132 x 41 mm

Lens MaterialPolycarbonate

Housing MaterialHigh Impact ABS

Mounting TypeSurface Mount

Mounting Hole/Cut Out501 mm & 325 mm

Cable Length300 mm LEDLink Connector

ADR ApprovalIndicator CRN 46082, Stop CRN 46121, Tail CRN 46120Specifications

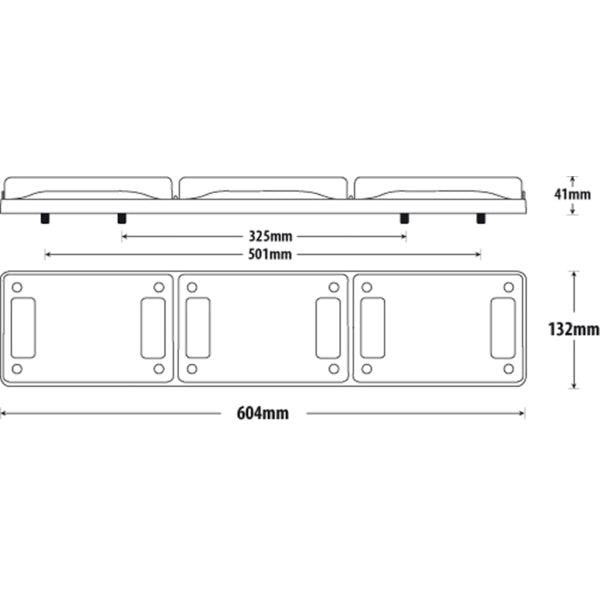

Dimensions (LxWxH): 604 x 132 x 41 mm


Everything this install needs

0 of 0 in the box


Simple surface mount design for easy retrofit installation. Pre-wired with 300mm LEDLink Connector for quick connection. Mounting holes at 501mm & 325mm.

Heavy-duty trucks, trailers, and commercial vehicles requiring jumbo combination lamps with multiple lighting functions.

Q: Are these lamps compatible with 12V and 24V systems?
A: Yes, the lamps support multi-volt 10-30V DC input.

Q: Are they water and dust proof?
A: Yes, sealed polycarbonate lens and high impact ABS housing provide water and dust proof protection.
