230 Series LED Combination Lamp Stop/Tail/Ind/Rev/Ref (Single)
BR230ARW
The Roadvision BR230ARW 230 Series LED Combination Lamp is the all-in-one solution for your rear lighting needs. This compact and ultra-bright lamp covers stop, tail, indicator, reverse, and reflector functions in one rugged unit. Built from impact-resistant polycarbonate and powered…
$80.10$89.00 Save $8.90
Roadvision’s BR230 Series is engineered for extreme environments and long-lasting performance. It meets all major ADR requirements and is built tough to handle vibration, dust, and water—just fit and forget.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

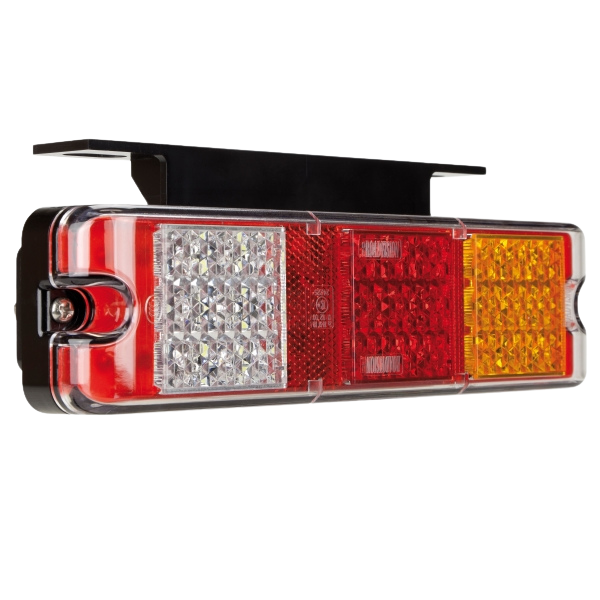

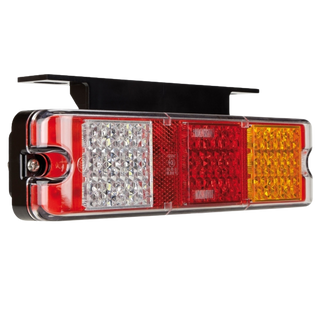

The Roadvision BR230ARW 230 Series LED Combination Lamp is the all-in-one solution for your rear lighting needs. This compact and ultra-bright lamp covers stop, tail, indicator, reverse, and reflector functions in one rugged unit. Built from impact-resistant polycarbonate and powered by solid-state LED technology, it’s made for harsh Australian conditions.
Perfect for utes, trailers, caravans, and work vehicles, the BR230 Series offers a reliable, energy-efficient upgrade to outdated incandescent systems. Mount it vertically or horizontally using the removable bracket for maximum flexibility.
- All-in-one stop, tail, indicator, reverse, and reflector
- Multi-volt 10–30V input
- Ultra-low current draw
- Pre-wired with LEDLink connector
- Maintenance-free solid state LEDs
- Long 100,000-hour lifespan
- Sealed for dust, water, and vibration resistance
- Brighter than incandescent alternatives
- Compact design suits tight spaces
Part Number: BR230ARW
Functions: Stop / Tail / Indicator / Reverse / Reflector
Voltage: 10–30V DC
Current Draw: Indicator: 0.05A, Stop/Tail: 0.05A each
LEDs per Function: 9 (each)

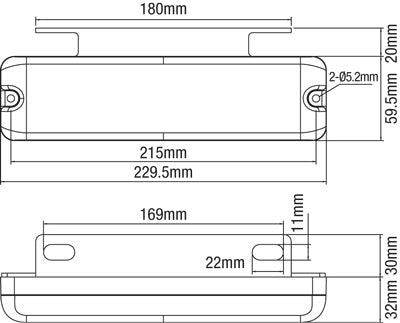

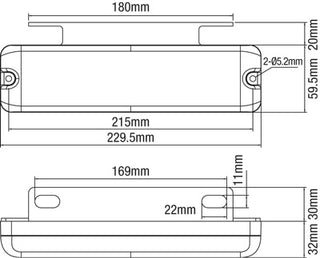

Dimensions: 229mm (L) x 59.5mm (H) x 32mm (D)
Cable: 300mm tinned copper with LEDLink connector
Housing/Lens: Polycarbonate
Mounting: 215mm stud centres or 125–169mm bracket centres
ADR Approvals:Indicator: E4-6R-0124225 Stop/Tail: E4-7R-0124225 Reverse: E4-23R-0124225 Reflector: E4-3R-023771
