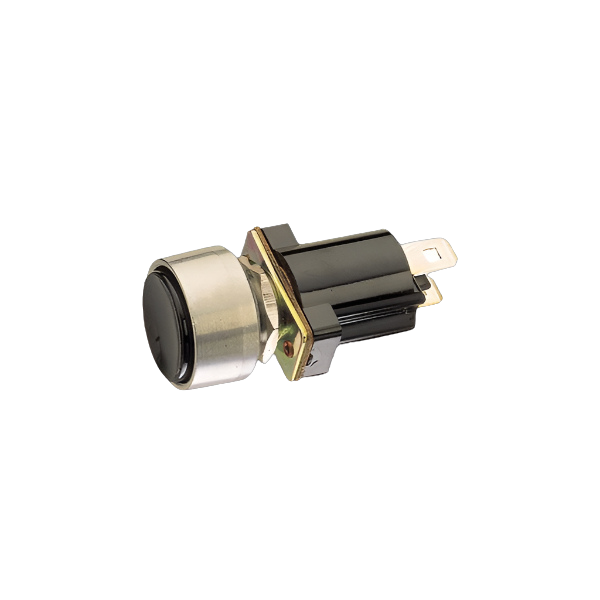

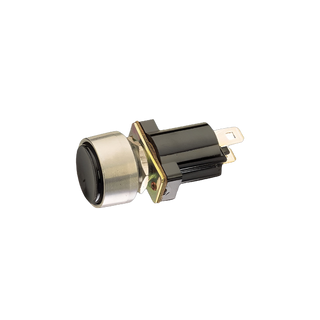

Push Button Switch Recessed Off/Mom On

SKU: PBS938
$30.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

Suitable for automotive, marine, 4WDs, trailers, and off-road builds.

1 x Push Button Switch Recessed Off/Mom On

50.89mm (H) x 24.05mm (W) x 17.51mm (D)

Designed for rugged use with a protective rim and recessed actuator to prevent accidental engagement.

 [{"variant_id":"33108121518189" , "metafield_value":""}]

Push Button Switch Recessed Off/Mom On

$30.00
Description

This recessed push button switch operates as Off/Momentary On—normally off, activating only when pressed. Designed for 12V and 24V systems, it handles up to 10A and features a spring return function.

The protective rim makes it ideal for vehicle, marine, or industrial applications where accidental activation needs to be minimized. It suits panel thicknesses from 1.52mm to 6.65mm and comes with durable blade terminals.

FEATURES

Recessed push button with protective rim

Off/Momentary On function with spring return

Durable black plastic actuator

Compatible with 12V and 24V systems

Simple 2-terminal wiring

FAQ's

Q: Is this a momentary switch?
A: Yes, it is Off by default and On only while the button is pressed.

Q: Can it be used with 24V systems?
A: Yes, it supports 12V up to 10A and 24V up to 5A.

Q: Is it waterproof?
A: This switch is not waterproof; it is intended for interior or protected use.

Specifications

Voltage: 12–24 Volt

Amps: 10A @ 12V, 5A @ 24V

Function: Off / Momentary On

Number of Terminals: 2

Number of Positions: 2

Contact Configuration: SPST

Actuator: Recessed Black Plastic

Terminals: Blade type

Contact Material: Silver

Mounting: 13/16", 20 thread, 12mm stem diameter

Panel Thickness Range: 1.52mm to 6.65mm

Installation Information

Mounts to panels 1.52mm to 6.65mm thick.

Thread: 13/16", 20 thread, 12mm diameter.

Connect using 2 blade terminals.

Warranty Information

1 year warranty against manufacturing defects.
