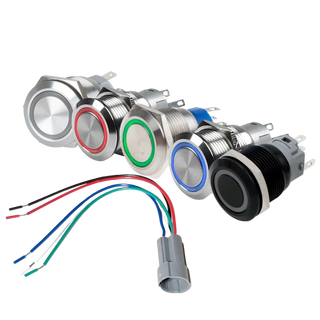

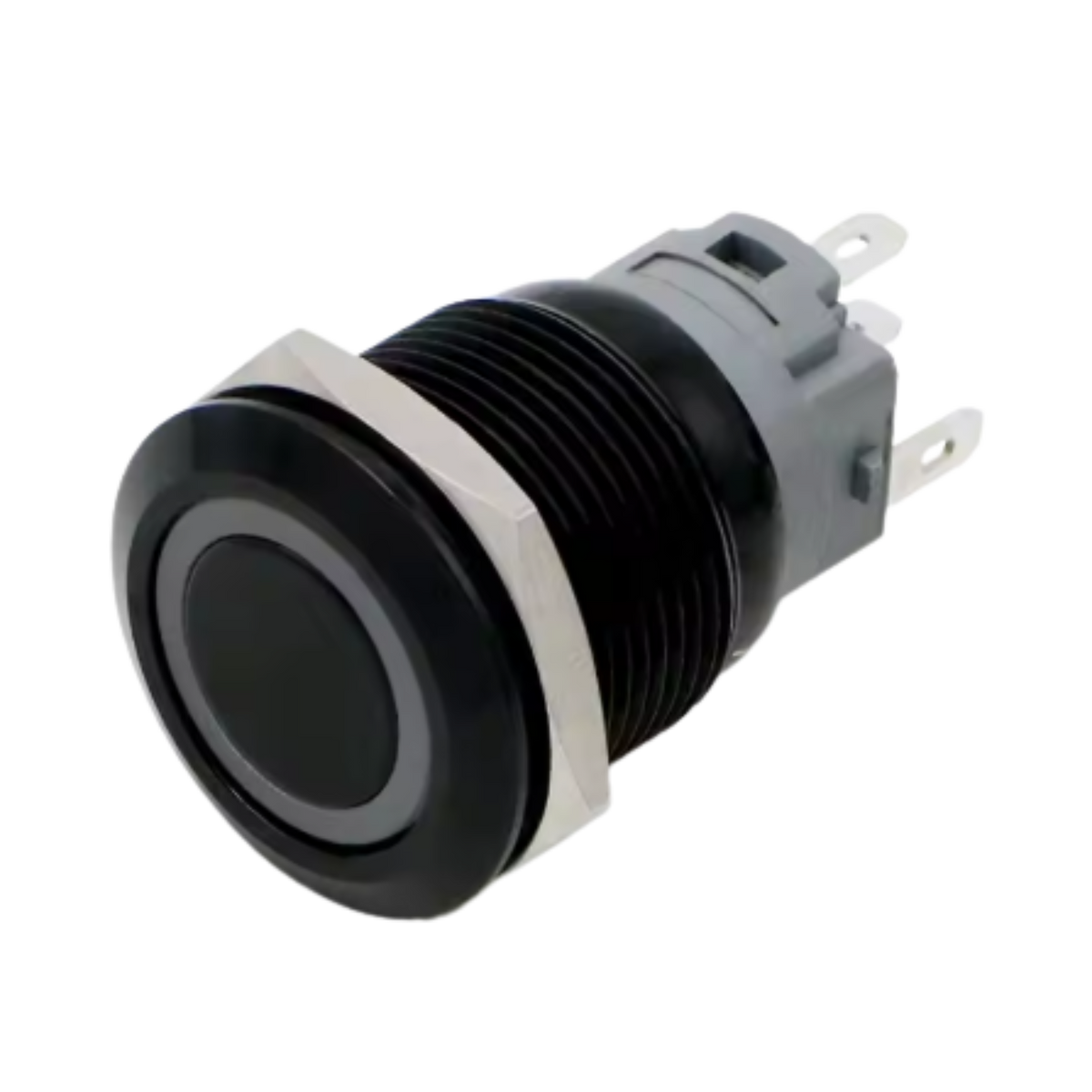

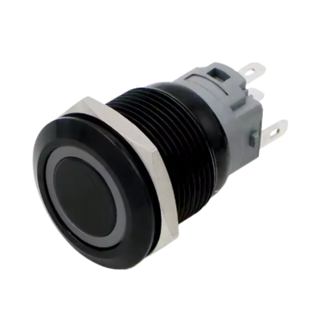

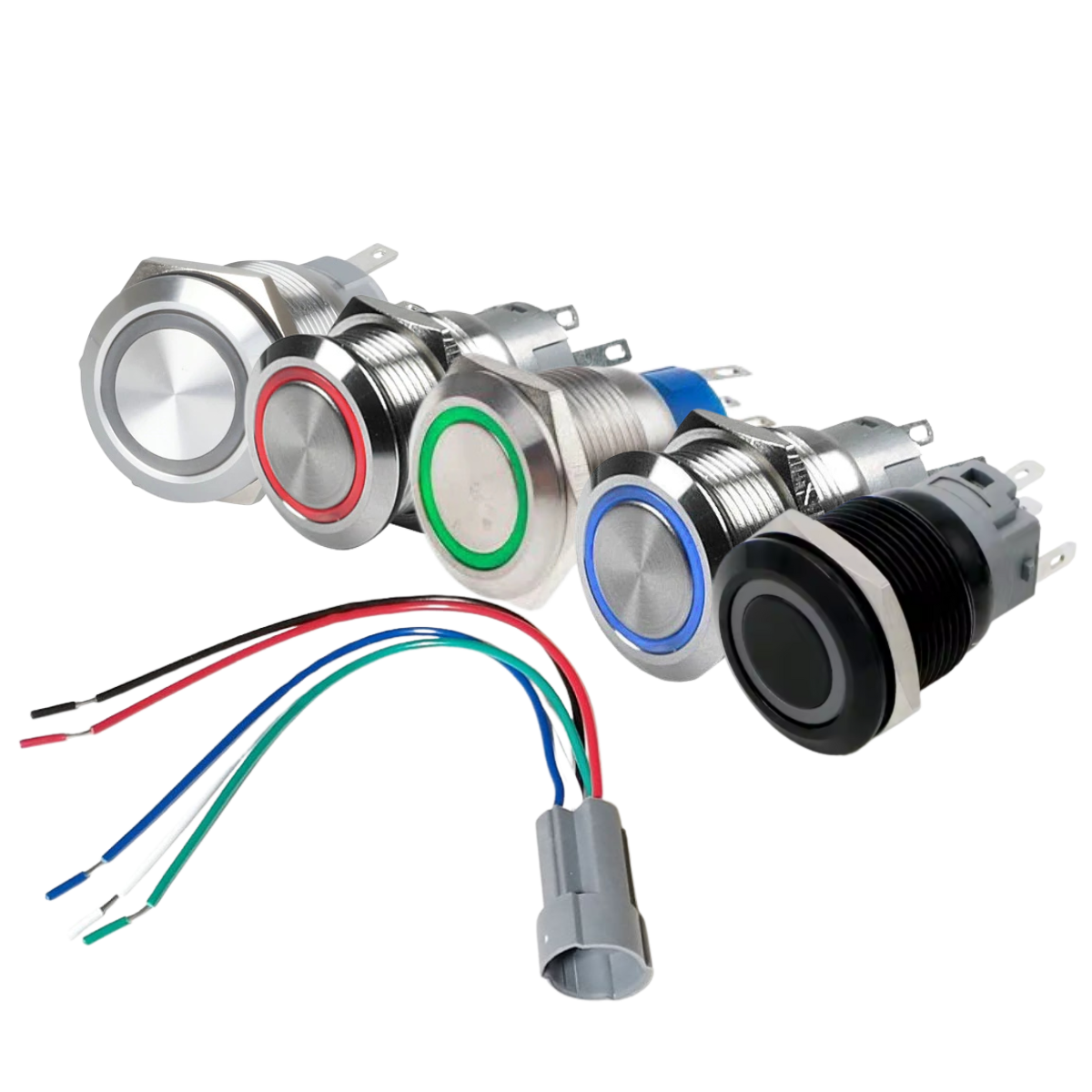

Series of Metal Push Button Switches w/LED On/Off, 19mm 5V (Harness sold separately)
MPBS-5-BLACK-BL
Enhance your vehicle or equipment control panel with our Latching (On/Off) Push Button Switches, available in a variety of vibrant LED-illuminated colors. Built to perform in harsh environments, these switches are dust and waterproof to IP67 standards, making them ideal…
$8.10$9.00 Save $0.90
All components are manufactured to meet strict durability and performance standards. Ensure correct installation to maintain product integrity.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
Enhance your vehicle or equipment control panel with our Latching (On/Off) Push Button Switches, available in a variety of vibrant LED-illuminated colors. Built to perform in harsh environments, these switches are dust and waterproof to IP67 standards, making them ideal for off-road, marine, or industrial applications. With a 12V LED illumination and a 7A current rating, these switches deliver both durability and performance in one compact design.
Note: Pre-wired cable harness must be ordered separately. Please select this option from the drop-down menu at the top of the page.
Wiring Guide:
-
White cable: Connects to the power supply
-
Red cable: Connects to the LED positive
-
Black cable: Connects to LED negative (earth)
-
Blue cable: Normally closed – always connected until the switch is pressed
-
Green cable: Normally open – closes when the switch is pressed to activate the circuit
- LED illumination in multiple colors, rugged IP67 waterproof housing, 7A current capacity, latching on/off functionality.
