SWITCH CARLING ILLUM. 12V RED ON/OFF D/POLE R404-12R For InverterSWITCH CARLING ILLUM. 12V RED ON/OFF D/POLE R404-12R For Inverter

Napa

SWITCH CARLING ILLUM. 12V RED ON/OFF D/POLE R404-12R For Inverter

SW1517

The Carling Illuminated Rocker Switch R404-12R is a rugged and reliable 12V On/Off double pole switch designed for heavy-duty applications. Featuring a red illuminated actuator that glows independently of switch position, this switch offers enhanced visibility and ease of use.…

$50.00

4 interest-free payments of $12.50 with
or finance your build with
Important note

Carling Technologies provides high-quality, customizable switches suitable for demanding industrial and automotive environments.

We accept
Suitable for automotive, marine, armored vehicles, mining machinery, and other applications requiring sealed protection.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

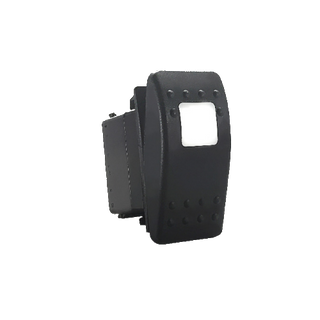

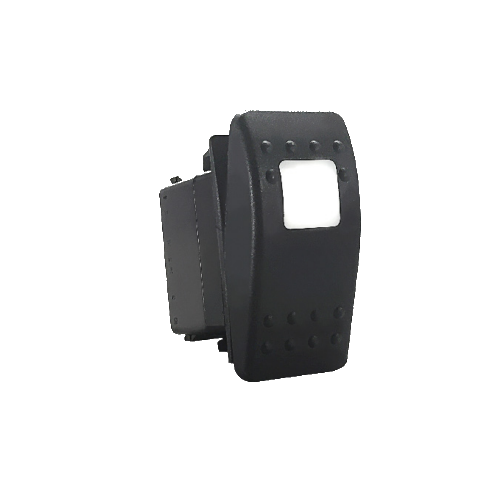

The Carling Illuminated Rocker Switch R404-12R is a rugged and reliable 12V On/Off double pole switch designed for heavy-duty applications. Featuring a red illuminated actuator that glows independently of switch position, this switch offers enhanced visibility and ease of use.
Constructed with durable black nylon and silver contacts, it is rated for up to 20 amps at 12 volts and includes a wide bezel snap-in mounting design for quick installation.
With an IP67 water resistance rating, it is ideal for harsh environments, including marine, mining, armored vehicles, and off-highway use.
  • Red illuminated actuator for enhanced visibility
  • Water-resistant IP67 rating for harsh environments
  • Snap-in wide bezel design for easy installation
  • Suitable for industrial, automotive, marine, and military use
  • Silver contacts for reliable conductivity

Voltage12V DC

Current Rating20A max

Pole ConfigurationDouble Pole, Single Throw (DPST)

IlluminationRed actuator illumination independent of switch activation

Terminals6 blade terminals with silver contacts

Mounting Hole Size21.08mm width x 36.83mm height

Panel Thickness2.35mm to 4.73mm

MaterialBlack nylon actuator with wide bezel snap-in mount

Dimensions38.80mm x 49.50mm x 24.30mm

Everything this install needs

0 of 0 in the box


Snap-in mounting with panel hole dimensions of 21.08mm (width) x 36.83mm (height). Suitable for panel thickness between 2.35mm and 4.73mm.

Suitable for automotive, marine, armored vehicles, mining machinery, and other applications requiring sealed protection.

Q: What is the maximum current rating?
A: 20 amps at 12 volts.

Q: Is the switch waterproof?
A: Yes, it has an IP67 water-resistant rating.
