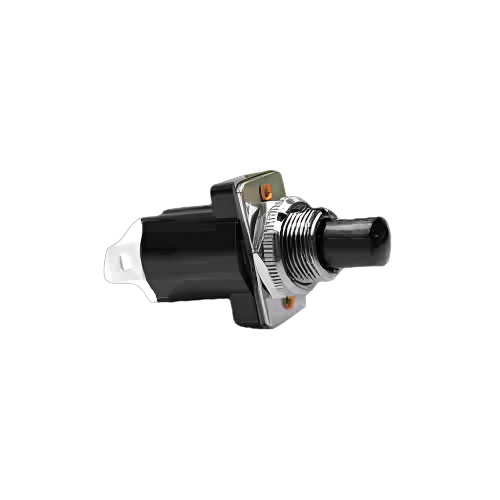

Switch Push Button Momentary

Baxters

Switch Push Button Momentary

PBS936

This Push Button Momentary Switch operates as an Off/Momentary On switch — staying on only while the button is depressed, with a spring return function. Designed for 12V and 24V systems, it handles a maximum load of 10 amps at…

$7.74$9.00 Save $1.26

4 interest-free payments of $1.94 with
or pay over time with
Important note

Ensure the switch is installed in a dry, protected location. Not designed for direct exposure to moisture or outdoor elements.

We accept
Suitable for use in 12V or 24V systems in vehicles such as 4WDs, trucks, boats, caravans, and machinery requiring a momentary switch function.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

This Push Button Momentary Switch operates as an Off/Momentary On switch — staying on only while the button is depressed, with a spring return function.
Designed for 12V and 24V systems, it handles a maximum load of 10 amps at 12 volts.
  • Momentary action – returns to off when released
  • Compact and easy to mount
  • Durable silver contact points
  • Universal for automotive and marine applications

Voltage: 12–24V

Amperage: 10A @ 12V

Function: Off / Momentary On

Contact: SPST (Single Pole Single Throw)

Terminals: 2 blade-type

Contact Material: Silver alloy

Mounting Stem Diameter: 12mm

Standard size for panel mounting

Everything this install needs

0 of 0 in the box

Drill a 12mm hole in a suitable panel for mounting.

Insert the switch and secure it in place.

Connect wires to the two blade terminals using insulated female spade connectors.

Ensure power is disconnected before installation.

Suitable for use in 12V or 24V systems in vehicles such as 4WDs, trucks, boats, caravans, and machinery requiring a momentary switch function.

Q: Is this a latching switch?
A: No, it is a momentary switch — it only stays on while being pressed.

Q: Can I use it in a marine environment?
A: It can be used in marine vehicles, but must be installed in a dry area or protected with a waterproof housing.
