Home / Lighting / Driving & light bars

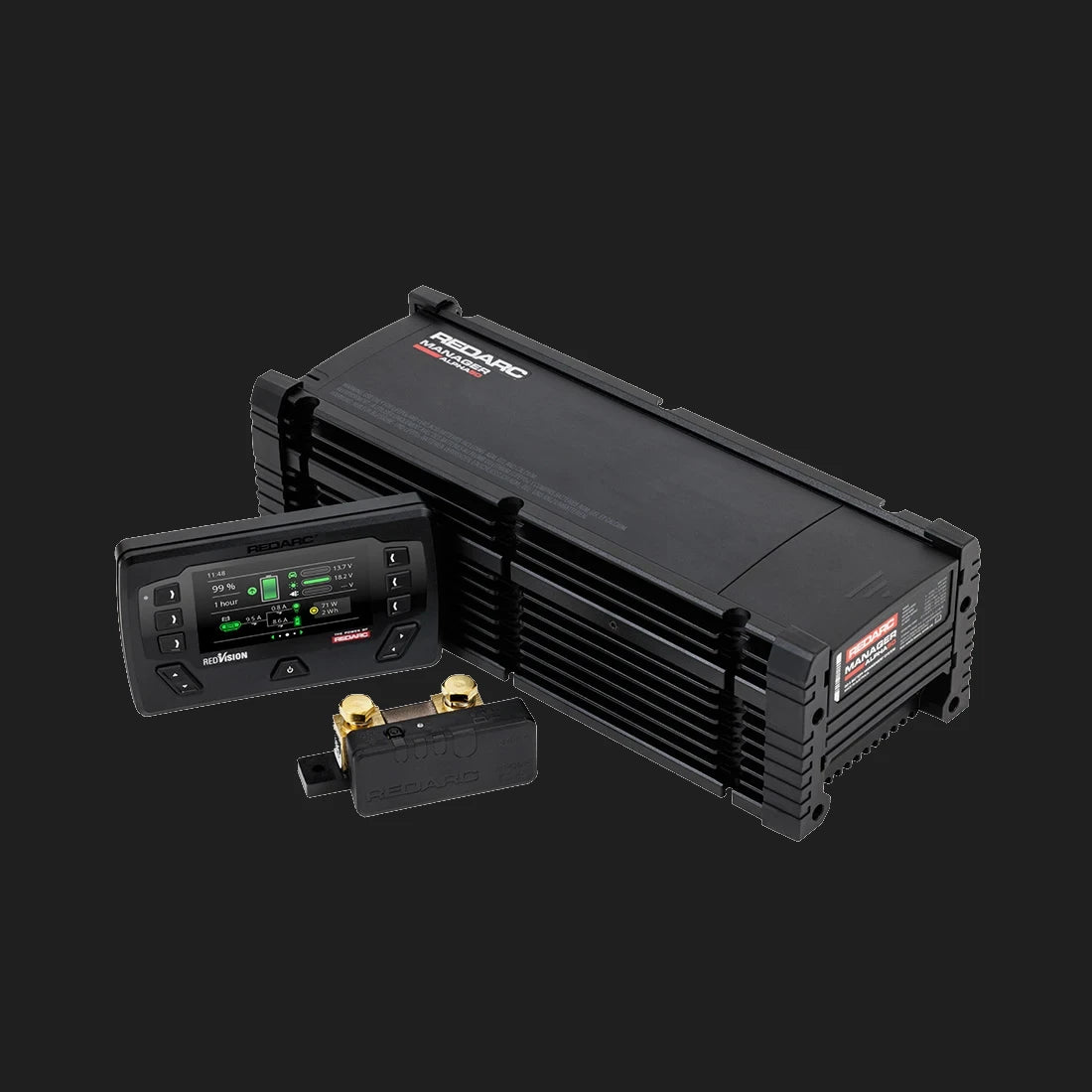

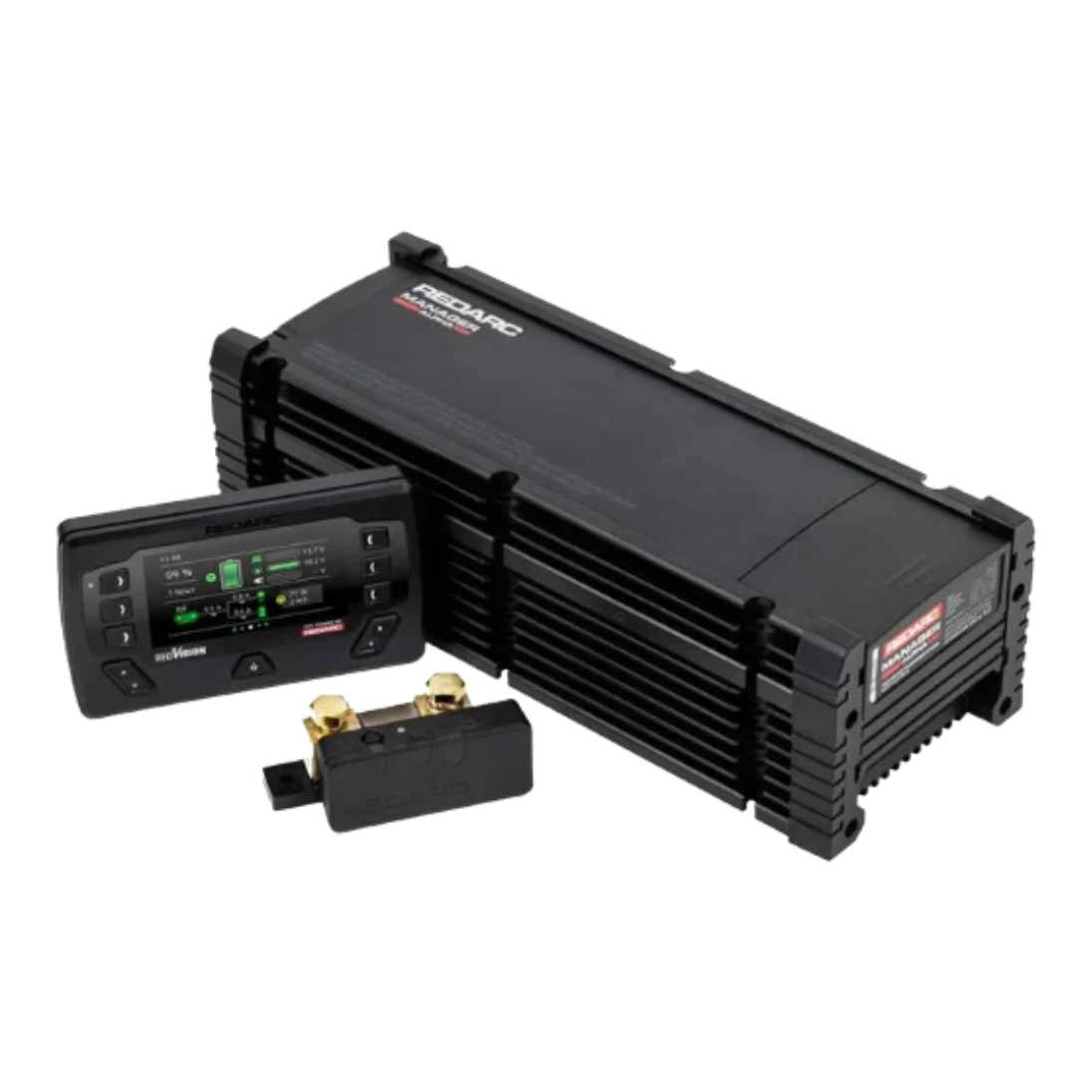

Redarc Manager Alpha100 shown with its RedVision display panel and the fused battery sense module, the finned black charger case behind them with the Redarc name on the lidRedarc Manager Alpha50 with RedVisionRedarc Manager Alpha50 with RedVision

Redarc

Manager Alpha50 with RedVision

BMS12050-AU

The Redarc Manager Alpha50 with RedVision is a versatile and powerful battery management system designed to keep your auxiliary batteries charged and ready during all your adventures. Perfect for recreational vehicles, caravans, and camper trailers, it combines DC (vehicle), AC…

$3,799.05$3,999.00 Save $199.95

4 interest-free payments of $949.76 with
or pay over time with
Important note

Designed and manufactured in Australia, the Manager Alpha50 is built to withstand extreme vibration and harsh environments, ensuring reliable battery management for your recreational vehicle, caravan, or camper trailer.

We accept
Perfectly suited for use in recreational vehicles, caravans, camper trailers, and other 12V battery systems requiring advanced multi-source charging.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Redarc Manager Alpha50 with RedVision is a versatile and powerful battery management system designed to keep your auxiliary batteries charged and ready during all your adventures. Perfect for recreational vehicles, caravans, and camper trailers, it combines DC (vehicle), AC (mains), and solar power inputs to deliver up to 50A of simultaneous charging.

Built tough to withstand harsh Australian conditions, the Manager Alpha50 is compact, lightweight, and packed with advanced features. Its smart charging technology ensures your batteries charge faster than ever, while the integrated RedVision display and Bluetooth connectivity give you real-time monitoring and full control from your smartphone.

With support for a wide range of battery types including Gel, AGM, Calcium, and Lithium, plus start battery recovery and back charge functions, this system keeps your entire battery setup healthy and reliable. Whether driving, plugged into mains power, or soaking up solar energy, the Manager Alpha50 ensures you have power when you need it most.

  • Simultaneous 50A charging from DC, AC, and solar power
  • Up to 55% smaller and 28% lighter than comparable systems
  • Start battery back charge capability and recovery mode
  • Real-time monitoring with RedVision display and Bluetooth 5.1
  • Accurate state of charge and current flow monitoring
  • Built tough for vibration and temperature extremes
  • Future-proof charging with over-the-air updates

Nominal Voltage: 12V

Current Measurement Range: ±500A

Start Battery Input Voltage Range: 9-32VDC

Solar Input Voltage Range: 9-32VDC

Nominal Output Voltage: 12V

Compatible Battery Types: Gel, AGM, Calcium, Standard Lead Acid, Lithium

Nominal Current Rating: 50A

AC Input Voltage Range: 95 – 264 VAC rms / 45–65 Hz

Operating Temperature: –20°C to 60°C

Weight: 3.7kg

Dimensions (HxWxD): 120mm x 154mm x 230mm

Warranty: 2 Years









Length: 400mm

Width: 154mm

Height: 120mm

Weight: 5.8kg

Source: manufacturer-verified

Everything this install needs

0 of 0 in the box


Simple installation with clear instructions included. Compatible with DC, AC, and solar power sources.

Installation by a qualified auto electrician is recommended for optimal performance and safety.

Manager Alpha50 Manual

Manager Range Brochure

Perfectly suited for use in recreational vehicles, caravans, camper trailers, and other 12V battery systems requiring advanced multi-source charging.

Q: What battery types are compatible?
A: Compatible with Gel, AGM, Calcium, Standard Lead Acid, and Lithium batteries.

Q: Can it charge from solar panels?
A: Yes, it simultaneously charges from DC (vehicle), AC (mains), and solar inputs.

Q: Does it have Bluetooth monitoring?
A: Yes, includes RedVision display and Bluetooth 5.1 technology for real-time monitoring and control.

Q: What is the operating temperature range?
A: -20°C to 60°C.
