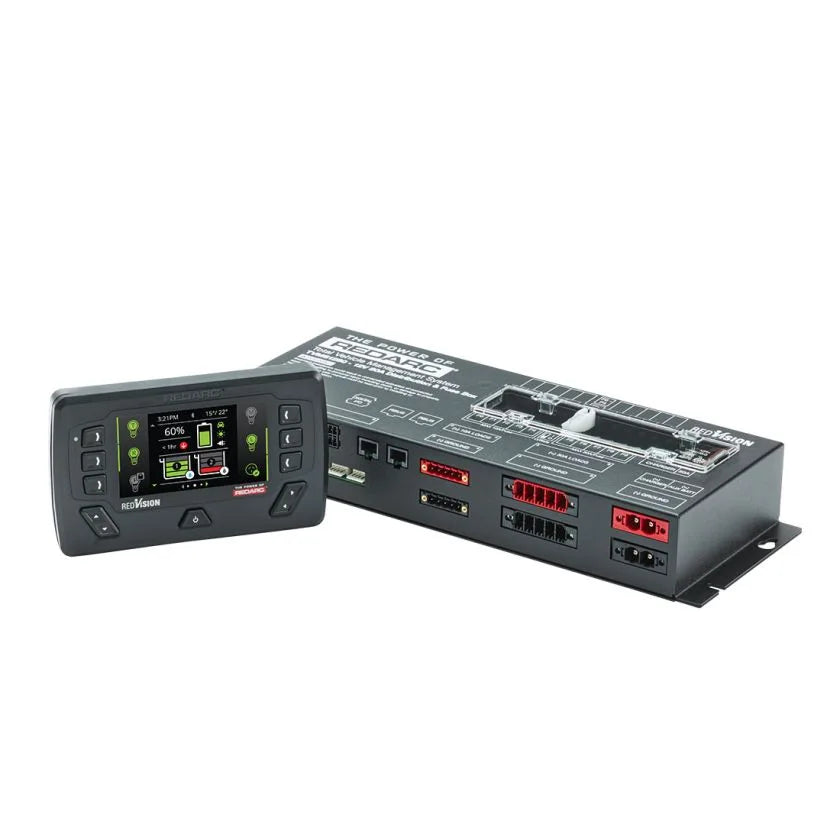

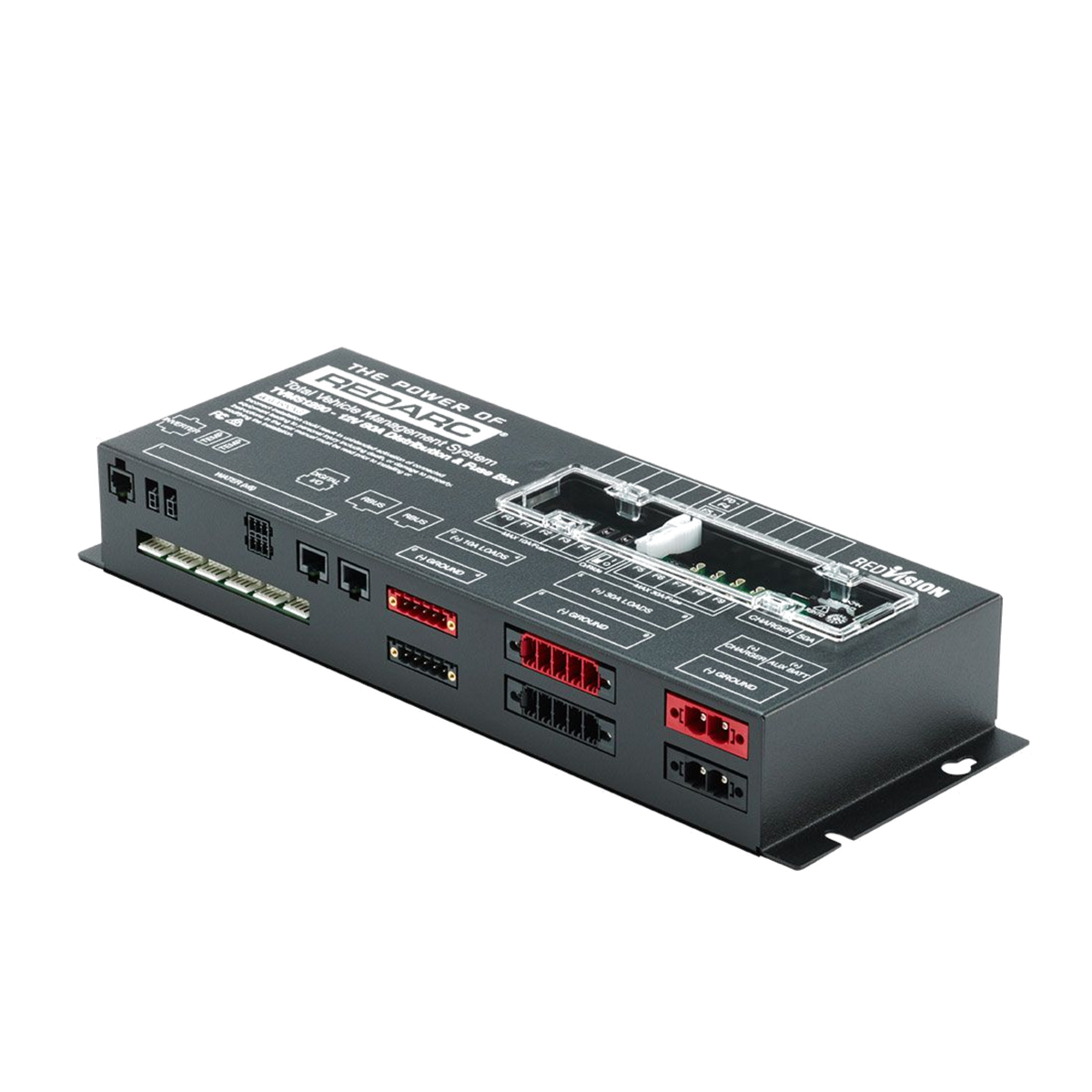

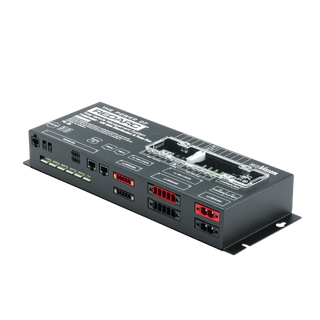

REDARC RedVision display and TVMS1280 distribution box shown together at an angle

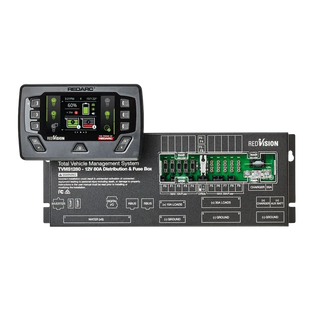

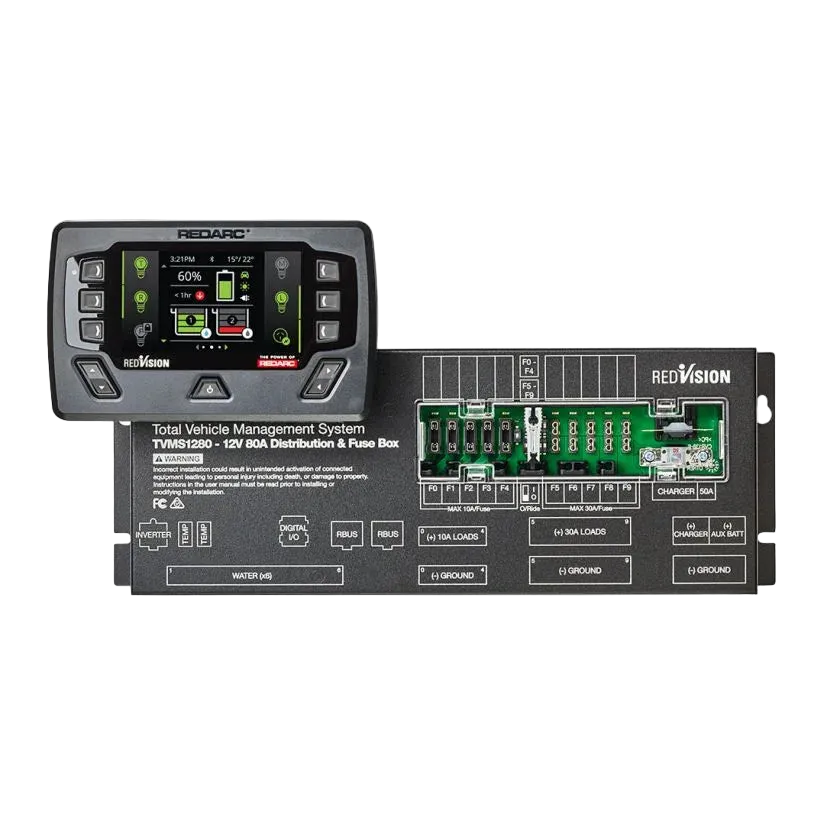

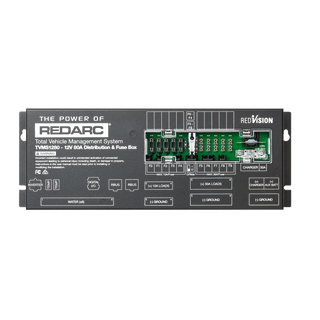

REDARC RedVision display alongside the TVMS1280 distribution and fuse box, with the fuse board and labelled circuit terminals visible

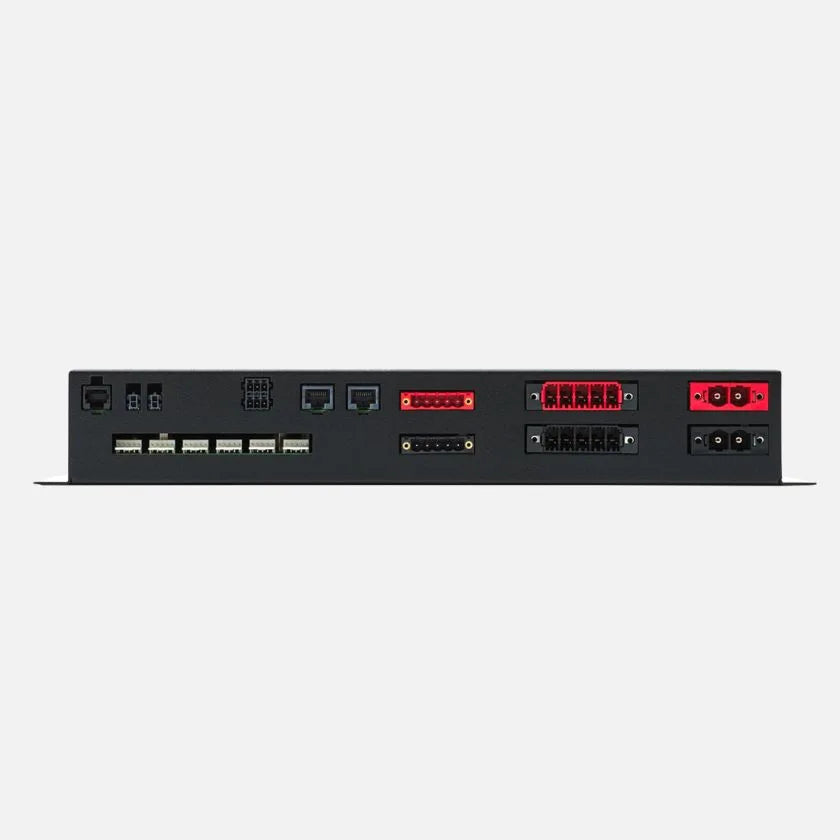

End-on view of the TVMS1280 distribution box showing the bank of input and output connectors

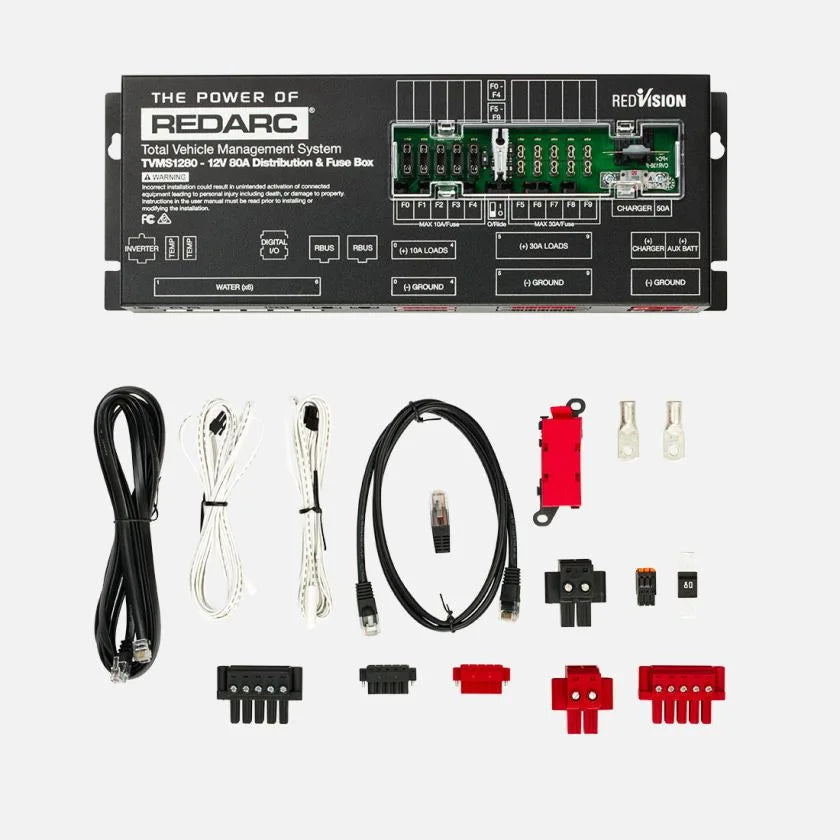

TVMS1280 distribution box shown with its cables, temperature sensors, fuse holder, terminals and connectors laid out

Redarc

TVMS Prime with RedVision Display

Name: Redarc TVMS Prime with RedVision Display
Brand: Redarc
Price: 2149.0 AUD
Availability: InStock

TVMS1280

Take full control of your off-grid setup.The REDARC RedVision TVMS1280 is an all-in-one Total Vehicle Management System that gives you complete control and monitoring of the electrical setup in your 4WD, caravan, camper or motorhome, from your smartphone or the…

$2,149.00

4 interest-free payments of $537.25 with Afterpay

or pay over time with Zip

Important note

RedVision is REDARC’s innovative solution for complete control and monitoring of on-board devices and power systems, designed and tested for Australian conditions.

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Suits 12V systems in caravans, camper trailers, motorhomes, canopies and 4WD touring builds. Mounts in a cabin, canopy or trailer, not in the engine bay.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

Ten Switched Circuits

Run five 10A and five 30A circuits from one central module

Dedicated Inverter Channel

A separate channel for your inverter on top of the ten main circuits

80A Max Battery Current

Handles the draw of a fully loaded touring or caravan build

Bluetooth App Control

Switch and monitor from the RedVision app on iOS or Android

Live Monitoring at a Glance

Track tank levels, temperatures, battery state and power use in one place

Take full control of your off-grid setup.
The REDARC RedVision TVMS1280 is an all-in-one Total Vehicle Management System that gives you complete control and monitoring of the electrical setup in your 4WD, caravan, camper or motorhome, from your smartphone or the in-vehicle display.

Switch lights, fridges, pumps and inverters on and off with the touch of a button, and keep an eye on water levels, battery status, power consumption and temperatures. Paired with the REDARC Manager30 battery management system, it becomes the central hub for managing and monitoring your entire setup.

With Bluetooth connectivity, a touchscreen display and full app control on iOS and Android, RedVision is built for Australian conditions and flexible enough to customise to your exact needs.

Control up to ten onboard circuits from one central module
Five 10A and five 30A switched circuits, plus a dedicated inverter channel
80A maximum battery current and 40A maximum charger current
Six tank level inputs, two temperature inputs and one voltage input
Bluetooth connectivity with the RedVision app for iOS and Android

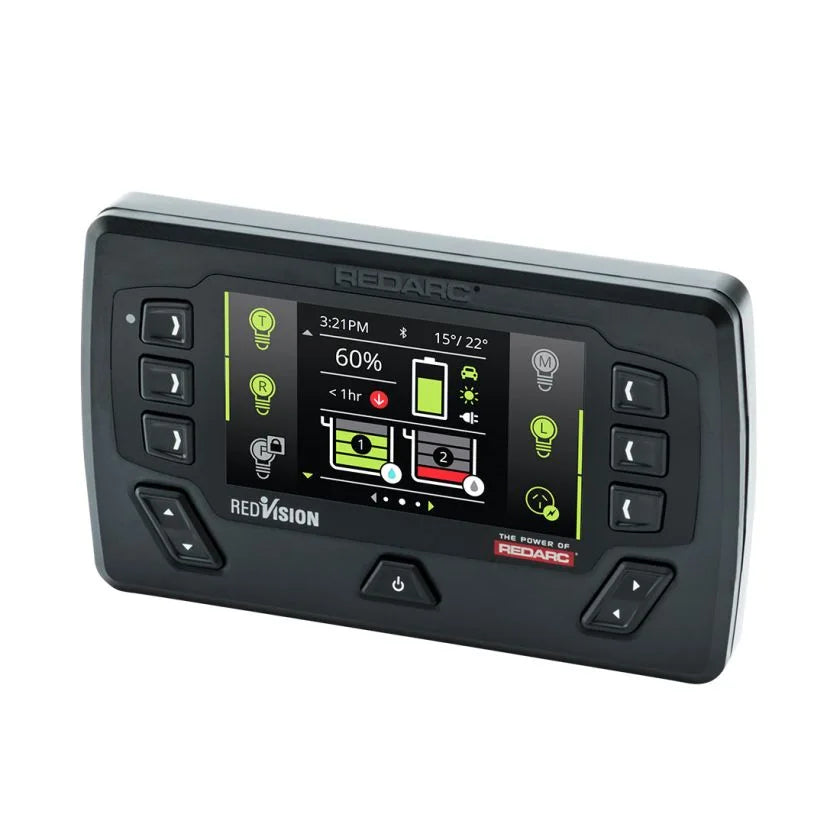

Controlled from the 4.3 inch RedVision touchscreen or from your phone
Works alongside the REDARC Manager30 for full battery monitoring
Channels renamed and reconfigured with the RedVision Configurator
Rated from -20°C to 60°C for Australian conditions

Part NumberTVMS1280

System Voltage12V

Max Battery Current80A

Max Charger Current40A

Switched Circuits5 x 10A Max, 5 x 30A Max

Dedicated Inverter Output1, in addition to the ten main channels

Tank Sensor Inputs6

Temperature Sensor Inputs2

Voltage Sensor Input1

ConnectivityBluetooth and CAN

Operating Temperature-20°C to 60°C

InstallationCabin, canopy or trailer. Not rated for engine bay installation.

Distribution Box: 243mm x 185mm x 46mm

Display Screen: 176mm x 76mm x 20mm

Everything this install needs

0 of 0 in the box

Mount the distribution box in a cabin, canopy or trailer. It is not rated for engine bay installation.
Mount the RedVision display where it is easy to reach in the living space
Set up and rename channels using the RedVision Configurator
Pair with the REDARC Manager30 to unlock full battery monitoring
The full instruction manual and quickstart guide are in the panels on this page
This is a high-current 12V distribution system. We recommend professional installation, and our Perth workshop can supply, fit and configure the whole setup.

Suits 12V systems in caravans, camper trailers, motorhomes, canopies and 4WD touring builds. Mounts in a cabin, canopy or trailer, not in the engine bay.

Q: Do I need the Manager30 for this system to work?
A: No, RedVision switches and controls your circuits on its own. Pairing it with a REDARC Manager30 is what unlocks the full battery monitoring side, so most complete builds run the two together.

Q: How many devices can it actually run?
A: Ten switched circuits - five rated to 10A and five rated to 30A - plus a separate dedicated channel for an inverter on top of those ten.

Q: What can it monitor?
A: Six tank levels, two temperatures and one voltage input, alongside battery state and power consumption when paired with a Manager30.

Q: Can I control it from my phone?
A: Yes. It connects over Bluetooth to the RedVision app on iOS and Android, or you can use the 4.3 inch touchscreen display.

Q: Is it suited to a caravan with three or more water tanks?
A: Yes, and that is exactly what the Prime is built for. Six tank sensor inputs and the dedicated inverter channel suit camper trailers and mid-sized caravans with a mix of low and high draw devices.

Q: Where can it be installed?
A: In a cabin, canopy or trailer. It is not rated for engine bay installation. The unit is rated from -20°C to 60°C.
