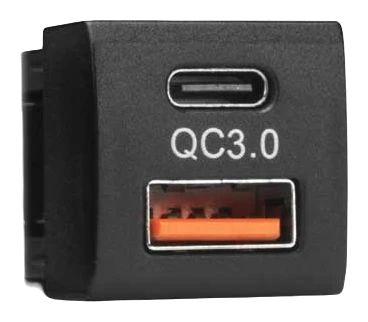

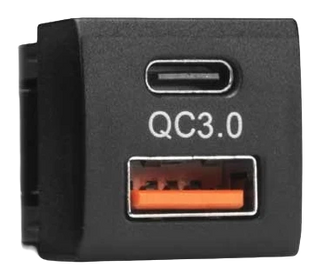

ALTIQ Toyota Small Square USB Charger — USB-C PD + USB-A QC3.0

Altiq

ALTIQ Toyota Small Square USB Charger — USB-C PD + USB-A QC3.0

ASSA-USBC

Flush Toyota-fit dash USB charger with USB-C PD + USB-A QC3.0, for the small-square factory blank.

$29.00

4 interest-free payments of $7.25 with
or finance your build with
We accept
Toyota small-square blank fitmentfits the 20mm square dash blank position

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

A flush Toyota-fit USB charger that puts a USB-C Power Delivery port and a USB-A Quick Charge 3.0 port into a factory small-square blank position. Runs phone and tablet charging off the USB-C side with PD fast-charge; runs GPS units, dash cams and older devices off the USB-A side with QC3.0. Fits Toyota Camry, Corolla, RAV4 and other Toyota models that use the 20mm small-square dash blank.

The face measures 20mm by 20mm and clips into the panel from the front so the finish sits flush without a bezel. Depth behind the panel is 35mm; wiring is a pigtail socket for straight-in connection. Both ports carry dash illumination that wakes when the vehicle's dash lights come on.

Wire the charger on a switched accessory feed with an inline blade fuse at the source, not at the outlet. Both ports run at their full rating at once; keep fridges, inverters and other high-draw gear on a dedicated 12V socket.

  • Dual ports — USB-C PD and USB-A QC3.0 on one face
  • Fast charge — 3A per port, both live at once
  • OEM fit — flush 20mm square Toyota blank
  • Clip-in mount — toolless install, no bezel
  • Dash-synced LED — wakes with vehicle dash lights
  • Pigtail wiring — straight-in connection, no soldering

Electrical

Input | 12V DC

USB-C | PD, up to 3A

USB-A | QC3.0, up to 3A

Illumination | Dash-synced LED

Physical

Face | 20 × 20 mm

Depth | 35 mm

Fit | Toyota small square blank

Terminals | Pigtail socket

Length: 470mm

Width: 190mm

Height: 125mm

fits the 20mm square dash blank position
Camry (2011-2014)
Corolla (2006-2013)
RAV4 (2006-2012) and other Toyota models with the small square blank
12V DC vehicle systems
Toyota tall/large blank positions — use the ALTIQ Toyota Large USB Charger instead

Q: What does QC3.0 actually mean?
Quick Charge 3.0 is a Qualcomm fast-charging protocol used by most Android phones and many GPS units. On a compatible device it delivers up to about 18W, which is roughly 3× a normal USB-A port.

Q: What does USB-C PD mean?
USB Power Delivery is the fast-charge protocol used by iPhones, iPads, most modern Android phones, and many laptops and tablets. On this charger it delivers up to about 18W to a compatible USB-C device.

Q: Will it fit my Toyota?
If your Toyota has a 20mm square blank switch position in the dash it will clip in. This includes Camry (2011-2014), Corolla (2006-2013), RAV4 (2006-2012) and other small-square Toyota models. Landcruiser 200, Prado 150, Hilux and 70-series use the tall blank; get the ALTIQ Large USB Charger instead.

Q: Can both ports charge at once?
Yes. Both ports run at their full 3A rating simultaneously. Charging a phone on USB-C and a GPS unit on USB-A at the same time is fine.

Q: Does it stay on when the ignition is off?
Only if you wire it to a permanent 12V feed. Most installs wire it to a switched accessory feed so it drops off with the ignition, which stops a phone left plugged in from flattening the battery overnight.

Q: What fuse should I run?
A 10A blade fuse at the source covers both ports running at full 3A output plus a small margin. Fuse at the source, not at the outlet.

Q: Do I need to remove the dash?
Only the switch panel needs to come off, not the full dash. Pop the blank out, run three wires (12V+, ground, dash light+), clip the charger in. Most installs take 15 to 30 minutes on a Camry or Corolla.

Q: Will it charge my laptop?
Only a low-power laptop that accepts USB-C PD at 18W or under (some ultrabooks, MacBook Air on trickle). Most laptops need a 45W or 65W PD source and will either not charge or charge very slowly. For laptops, use a proper 12V-to-mains inverter.
