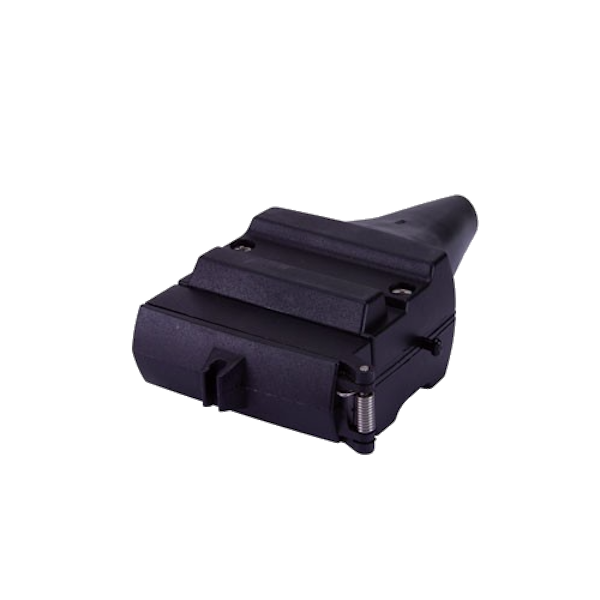

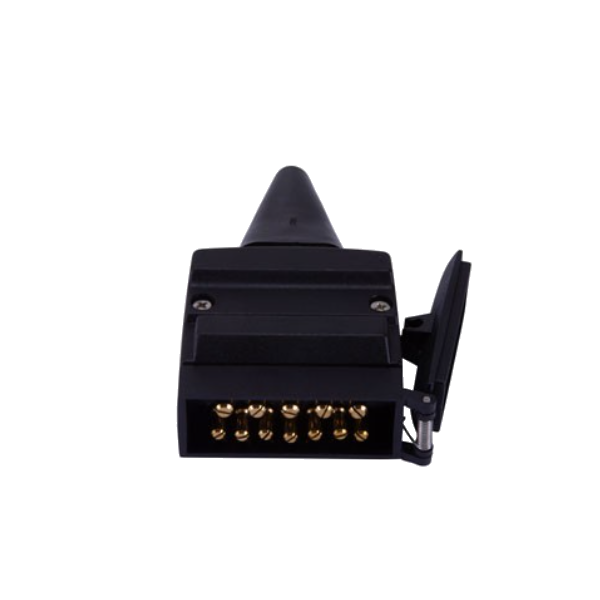

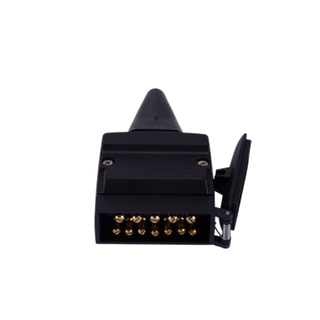

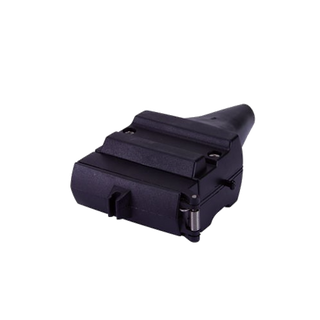

12 Pin Flat Plastic Trailer Plug

12-pin connectors are typically required when towing caravans, which may require refrigerators and other accessories to be run whilst on the go. Additionally, heavier applications such as large fishing boats may also require an electronic braking system or stability control system to ensure safety when on the road.

Socket to Suit: 12 Pin Flat Plastic Trailer Socket

12-Pin trailer connectors allow users to run accessories via 5 extra pins. The plug will include:

1. Left hand turn (Yellow cable)
2. Reversing Signal (Black)
3. Earth Return (White)
4. Right Hand Turn (Green)
5. Service Brakes (Blue)
6. Stop Lights (Red)
7. Rear Lights, Clearance, and side marker lights (Brown)
8. Battery Charger/Winch (Orange)
9. Auxiliary/Battery Lead (Pink)
10. Earth Return (White)
11. Rear Fog Lamp (Grey)
12. Auxiliaries (Purple)

7 pin with 20A rating

5 pin with 35A rating

Nickel plated brass pins with Philips head screws, includes plastic wire cap
