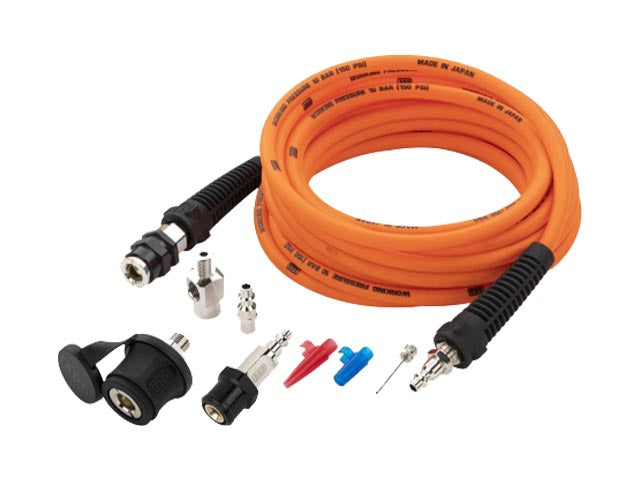

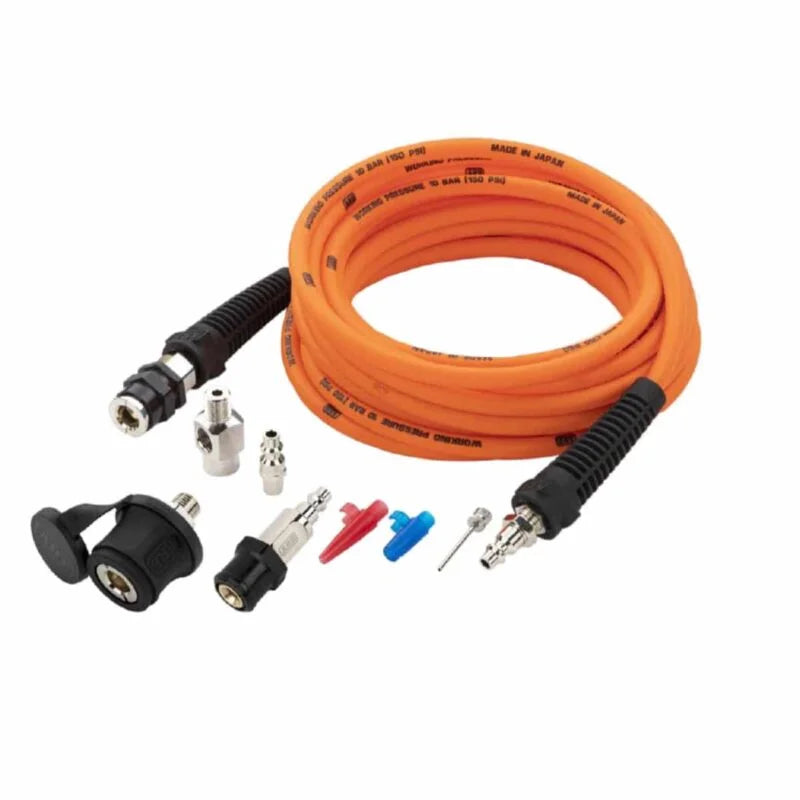

ARB pump up kit laid out: an orange air hose rated 10 bar 150 psi made in Japan with moulded strain reliefs at both ends, a quick release coupling with dust cap, a straight adaptor, two quick connect nipples, red and blue tyre deflator tools and a chuckARB quick release coupling with a black moulded socket at one end and a chromed quick-connect plug at the other, the ARB name etched on the bodyNickel-plated hose coupling with a female thread at one end and a stepped male quick-connect nipple at the otherThe same ARB pump up kit shown from a lower angle, the coiled orange hose behind the couplings, adaptors, deflators and chuck

ARB

Pump Up Kit Us Std High Temp V2 Orange 7 for Brushless Twin Air Compressor On-Board Max Performance 12V

171302V2

The ARB 171302V2 Pump-Up Kit is a rugged, high-performance inflation solution designed for use with ARB air compressors. This updated V2 version features a 7-meter high-temp, abrasion-resistant hose and essential inflation accessories—built to handle demanding 4x4, off-road, and workshop environments.…

$170.00

4 interest-free payments of $42.50 with
or finance your build with
Important note

Fully redesigned V2 kit: every component was overhauled with new fittings and a more flexible, durable hose crafted from high-grade materials sourced from Japan

We accept
Universal compatibility: Works with all ARB compressor models—single or twin, 12 V or 24 V.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The ARB 171302V2 Pump-Up Kit is a rugged, high-performance inflation solution designed for use with ARB air compressors. This updated V2 version features a 7-meter high-temp, abrasion-resistant hose and essential inflation accessories—built to handle demanding 4x4, off-road, and workshop environments.

Whether you’re inflating tires after a trail run, airing up camping gear, or powering air tools, this kit gives you the reliability and flexibility ARB is known for.

  • Long 7 m hose for wide reach around larger vehicles.
  • Rated for 150 psi, built to withstand high temperatures and abrasion
  • Leak-free quick-connect coupling with dust cap keeps contaminants out
  • Secure inflator chuck grips valve automatically, freeing your hands
  • Includes a T-piece adapter and various fittings for broad inflating capabilities

Model: 171302V2

Hose Length: 7 m (23 ft)

Maximum Pressure: 150 psi

Hose Material: High-temp, abrasion resistant

Fittings: US standard quick-connect

Leak Prevention: Dust-cap coupling; sealed chuck

T-Piece Adapter: Included (CKMA/CKMTA compatible)

Additional Fittings: Tyre bead seating; air mattress/toy adapters

Hose Length: 7 m (23 ft)

Package Size: Approx. 13.7″ × 9.2″ × 3.5″ (350 × 235 × 90 mm)

Weight: ~1 kg (2.2 lbs)

Everything this install needs

0 of 0 in the box

Plug-and-play ready: simply attach to onboard air compressor via quick-connect fittings.

No special tools required; hose and chuck snap together easily, minimizing setup time

Universal compatibility: Works with all ARB compressor models—single or twin, 12 V or 24 V.
Ideal for 4x4s, trucks, RVs, campers, trailer setups—especially those requiring inflation from a distance.

Q: What’s new in V2 vs original?
A: Hose extended to 7 m (from 6 m) and now made from high‑temp Japanese-grade material; upgraded fittings prevent leaks and improve flexibility.

Q: Max pressure rating?
A: 150 psi—suitable for most tire inflation needs.

Q: Includes adapter for ARB twin compressors?
A: Yes—a T-piece adapter is included for easy hookup to twin/combo compressors.

Q: Can it be used for inflating toys/air mattresses?
A: Yes—extra fittings are included for inflating gear, balls, mattresses, and more
