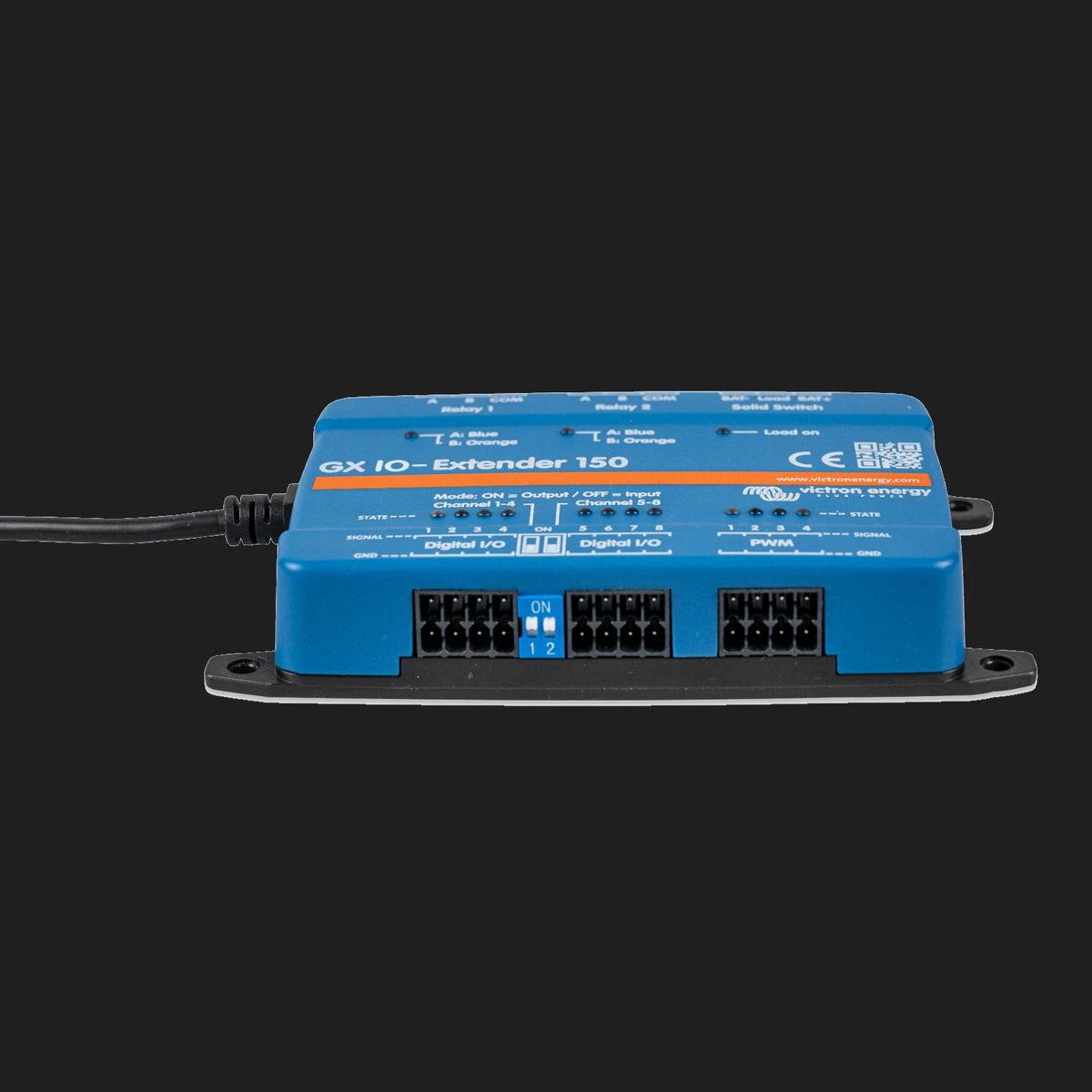

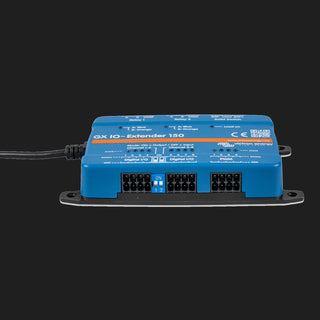

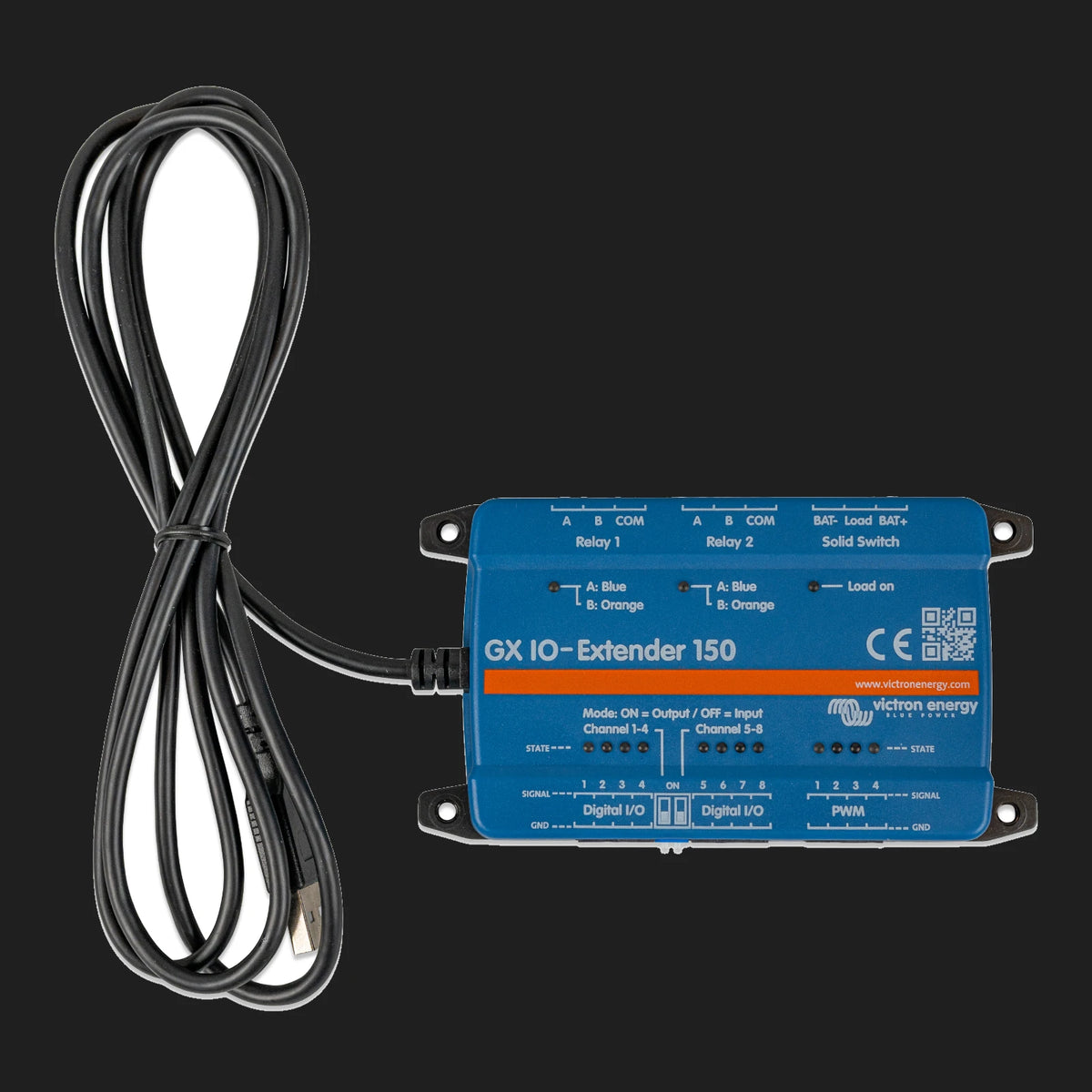

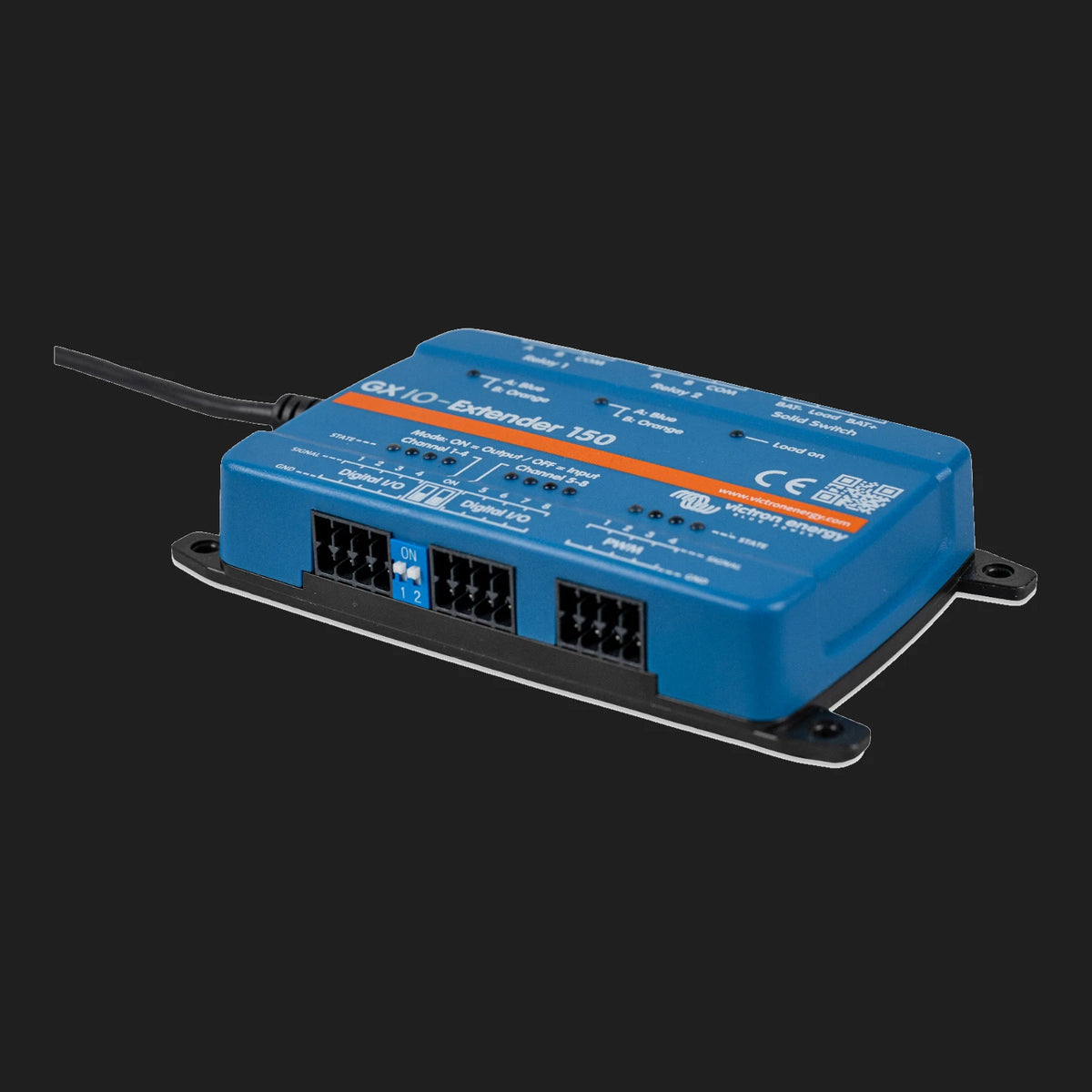

Victron GX IO-Extender 150

8 configurable digital inputs or outputs with LED indicators

4 PWM outputs with 8-bit resolution at ~1.56 kHz

2 latching relays that retain state during power loss

1 solid-state relay for fast DC switching up to 70V / 4A

Plug-and-play USB connection with Victron GX devices

Full integration with Venus OS, Switch Pane and Node-RED

Wall-mount and DIN-rail mount compatible (bracket optional)

Built-in LEDs for I/O and relay status monitoring

Reliable signal control for automation, alarms and remote switching

Q: Can the GX IO-Extender 150 switch heavy loads directly?
A: No – all relays are signal level only. Use external relays for high-current switching applications.

Q: Do I need to install drivers?
A: No – the device is plug-and-play on any Victron GX system running Venus OS v3.60 or newer.

Q: What is the PWM signal used for?
A: PWM outputs are commonly used to control DC fan speeds or lighting dimming via compatible controllers.

Q: Can I use this with Node-RED?
A: Yes – the module is fully integrated with Node-RED and accessible via the GX device's web interface.

Power supply: USB 5V (powered via USB cable)

Digital I/O: 8 channels, user-configurable as input or output

PWM Outputs: 4 channels, 8-bit resolution, ~1.56 kHz

Latching Relays: 2 channels, 3A @ 30V DC / 2A @ 60V AC

Solid State Relay: 1 channel, high-side switch, up to 70V DC / 4A

Connection: USB type B

Interface: DIP switches for I/O mode selection

Indicators: Activity LEDs for I/Os and relays

Compatible GX Devices: Cerbo GX, Ekrano GX, Venus GX, CANvu GX

OS Support: Venus OS v3.60 or later

Software Support: Node-RED, GX Switch Pane, VRM Portal

Ingress Protection: Not IP-rated (enclosure required for harsh environments)

Compliance: CE, RoHS

The GX IO-Extender 150 is a plug-and-play unit that connects to your GX device via USB.

All power is supplied over USB. The 8 digital I/Os can be configured using DIP switches on the board. Each I/O has an indicator LED to show activity.

The 4 PWM outputs are factory-set to a 1.56 kHz signal with 8-bit resolution and can be used for fan speed or dimming controls.

The 2 latching relays are ideal for on/off switching and remain in their last state if power is lost.

The solid-state relay is designed for low-current DC control applications.

Mounting options include wall or DIN-rail mounting (DIN bracket sold separately).

Configuration is performed within the Venus OS interface.

User Manual

Covered by Victron’s 5-year limited warranty. Warranty applies to original purchaser only and excludes damage caused by misuse or incorrect installation.
