Victron Lynx Power In (M10)Victron Lynx Power In (M10)Victron Lynx Power In (M10)

Victron Energy

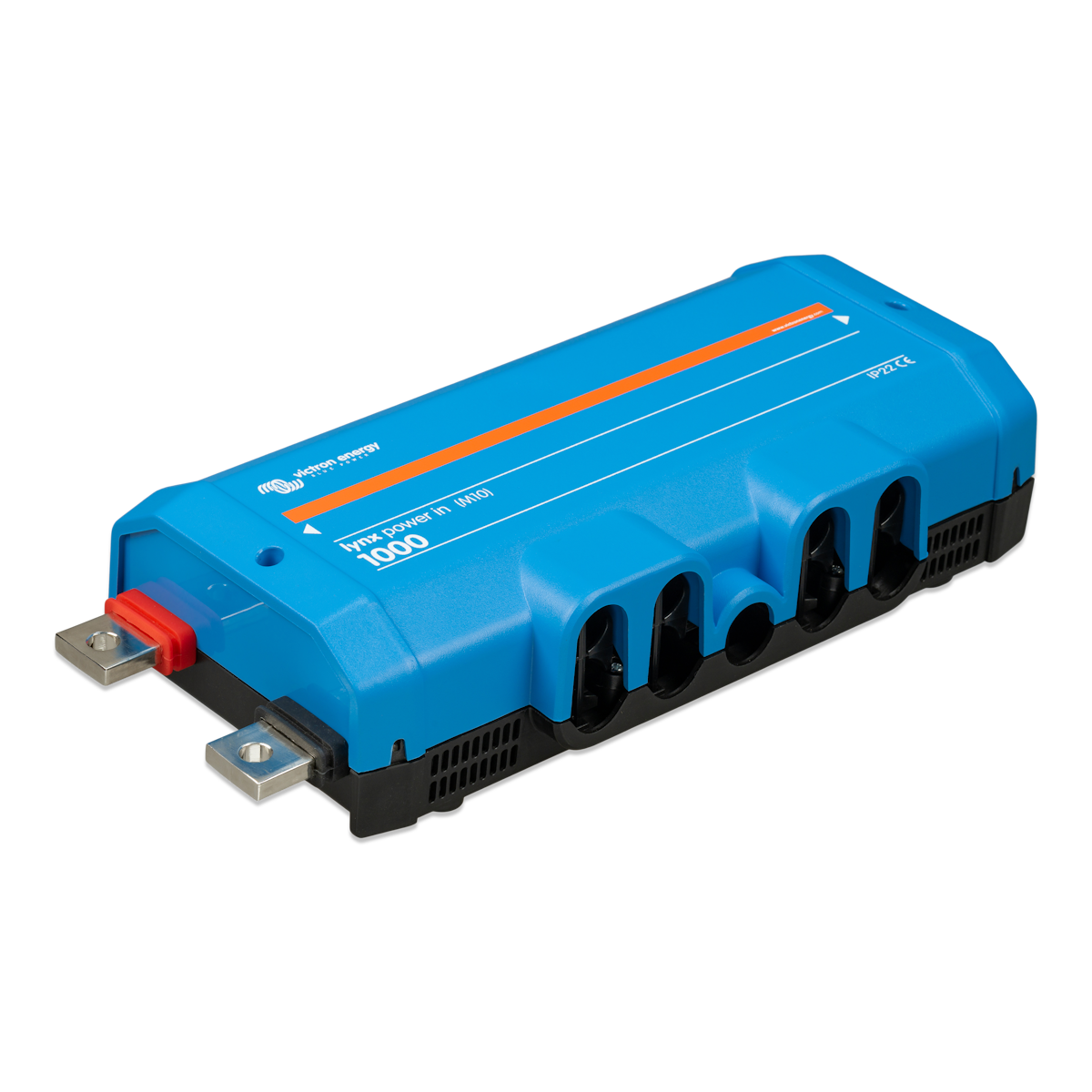

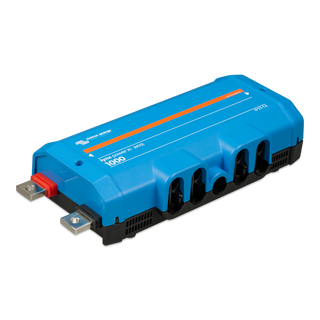

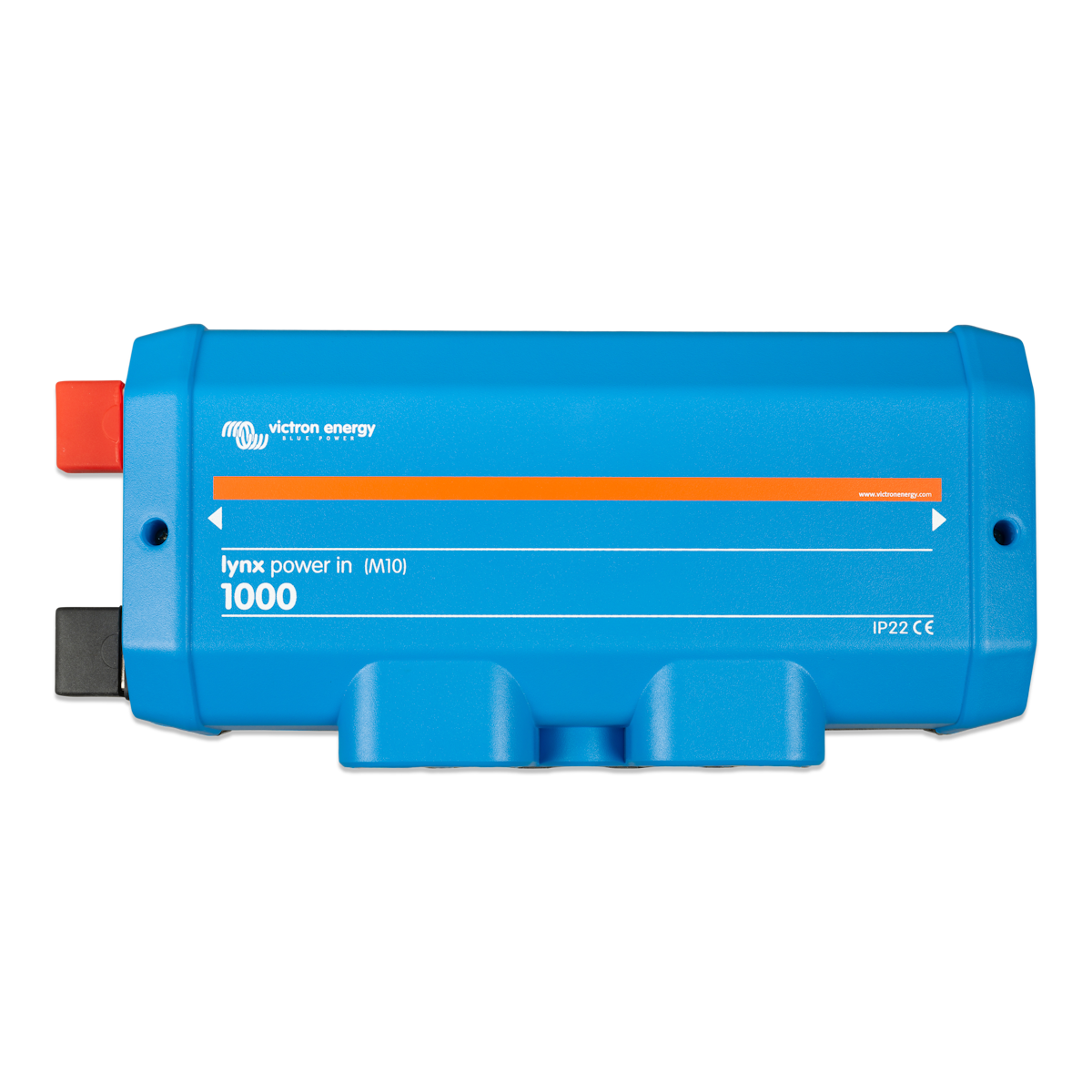

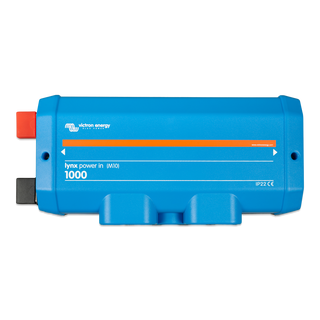

Victron Lynx Power In (M10)

LYN020102010

The Victron Lynx Power In (M10) is a modular DC busbar designed to facilitate the connection of batteries to the Lynx DC distribution system. It features both positive and negative busbars, each with four connections for batteries, loads, or chargers,…

$243.00

4 interest-free payments of $60.75 with
or finance your build with
Important note

The Victron Lynx Power In (M10) is a modular DC busbar designed to connect batteries, loads, or chargers to the Lynx DC distribution system. It features a positive and negative busbar with four connections and a ground connection. The M10 version refers to the size of the busbar connection joints between modules, while the fuse and cable connections remain M8.

We accept
Suitable for marine vessels, RVs, caravans, off-grid systems, and industrial energy setups.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

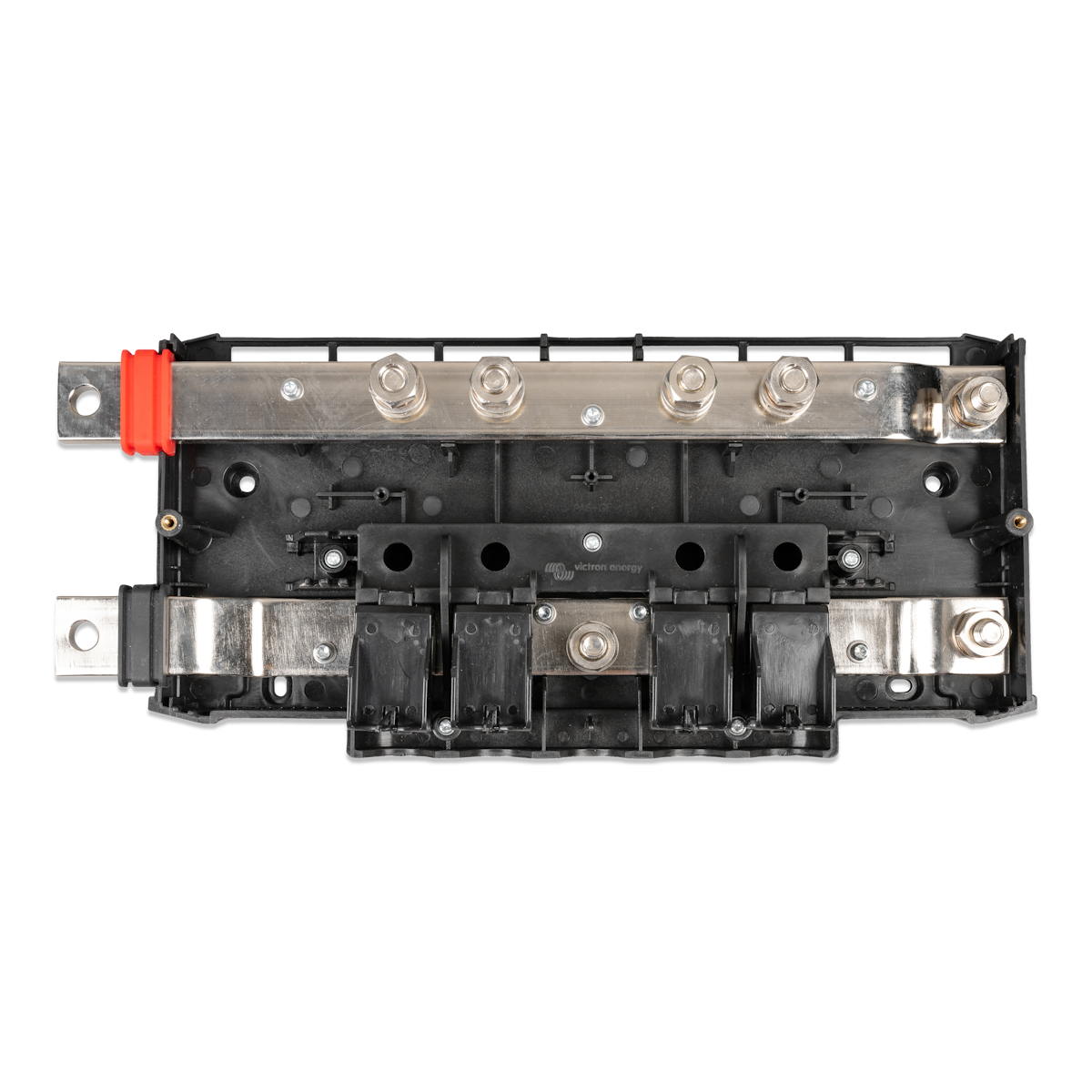

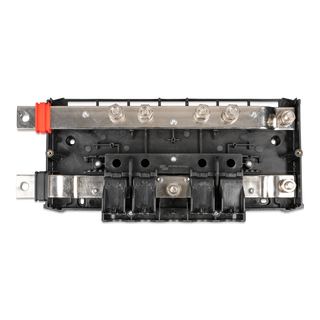

The Victron Lynx Power In (M10) is a modular DC busbar designed to facilitate the connection of batteries to the Lynx DC distribution system. It features both positive and negative busbars, each with four connections for batteries, loads, or chargers, along with a ground connection. This component is integral to the Lynx Distribution System, which offers a flexible and scalable solution for DC power distribution in various applications.

  • - Modular DC busbar with four connections
  • - Designed for high-current DC systems
  • - Seamless integration with other Lynx modules
  • - Compact and durable ABS enclosure
  • - IP22 protection rating

Busbar Connections: M10
Fuse Connections: M8 (for MEGA fuses)
Continuous Current Rating: 1000A DC
Voltage Range: 9–60V DC
Supported System Voltages: 12V, 24V, 48V
Power Consumption: N/A
Reverse Polarity Protection: Yes
Enclosure Material: ABS
Dimensions (HxLxW): 290 x 170 x 80 mm
Weight: 2.1 kg
Operating Temperature Range: -40°C to +60°C
Storage Temperature Range: -40°C to +60°C
Humidity: Max. 95% non-condensing
Protection Class: IP22
Busbar Material: Tinned copper (8 x 30 mm)
Included Accessories: None
Data Sheet: [Download PDF]


(HxWxD): 290 x 170 x 80 mm

Everything this install needs

0 of 0 in the box

Victron Lynx Power In (M10)

Suitable for marine vessels, RVs, caravans, off-grid systems, and industrial energy setups.

Q: What is the difference between M8 and M10 versions?

A: The M10 version features larger busbar connection joints (M10) for connecting modules, while the fuse and cable connections remain M8.

Q: Does the Lynx Power In (M10) include fuses?

A: No, it does not contain fuses. All connected loads, chargers, or batteries need to be fused externally.

Q: Can I monitor the system remotely?

A: While the Lynx Power In itself does not have monitoring capabilities, it can be integrated with other Lynx modules like the Lynx Smart BMS for remote monitoring.
