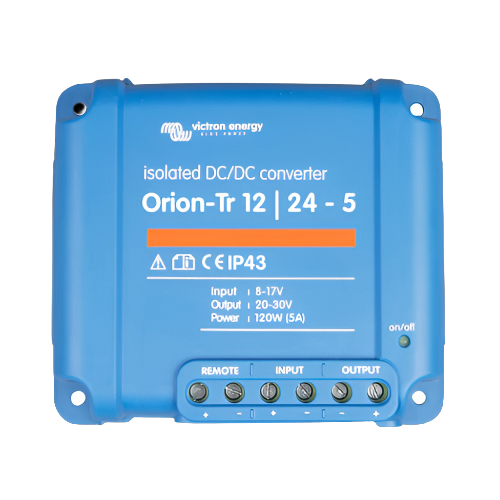

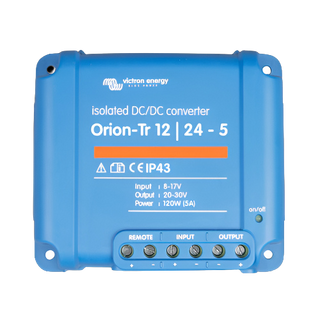

Victron Orion-Tr 12/24-5A (120W) Isolated DC-DC converter
ORI122410110
Victron Orion-Tr 12/24-5A Isolated DC-DC Converter – Power 24V Devices from a 12V SystemThe Victron Orion-Tr 12/24-5A Isolated Converter delivers a stable 24.2V output from a 12V DC input—perfect for safely running 24V accessories in 4WDs, boats, caravans, and off-grid…
$85.46$94.95 Save $9.49
The Victron Orion-Tr 12/24-5A Isolated DC-DC Converter is a high-quality voltage converter designed to step up a 12V DC input to a stable 24V output at 5 amps (120 watts). With full galvanic isolation and industrial-grade reliability, it’s ideal for powering 24V equipment from a 12V battery bank—commonly used in vehicles, boats, and off-grid applications.
Shipping & collection
*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.
Victron Orion-Tr 12/24-5A Isolated DC-DC Converter – Power 24V Devices from a 12V System
The Victron Orion-Tr 12/24-5A Isolated Converter delivers a stable 24.2V output from a 12V DC input—perfect for safely running 24V accessories in 4WDs, boats, caravans, and off-grid setups. With full galvanic isolation and built-in protections, it ensures safe, reliable operation even in tough conditions.
Compact and efficient (up to 88%), this converter is ideal for space-limited installs and supports DIN rail or flat surface mounting. Trusted by professionals, it's backed by Victron’s 5-year warranty.
- – Electrical isolation between input and output improves safety and protects sensitive systems.
- – Operates at up to 88% efficiency, minimizing heat and energy loss.
- – Includes over-temperature, short-circuit, and reverse polarity protection.
- – Trim potentiometer allows fine-tuning of the 24V output.
- – Accepts 8V to 17V input, suitable for fluctuating battery voltages.
- – DIN rail mountable for easy integration into mobile or fixed installations.
The Victron Orion-Tr 12/24-5AIsolated DC-DC Converter operates with an input voltage range of 8 to 17 volts and delivers a stable 24.2V output, adjustable via a trim potentiometer. It supplies up to 5 amps of current and runs at an impressive efficiency of up to 88%. Featuring full galvanic isolation between input and output, the unit enhances safety and protects connected equipment. It’s designed to perform reliably in temperatures from -20°C to +55°C, with performance derating above 40°C. Weighing just 0.41 kg, it can be mounted on a DIN rail or directly onto a flat surface for flexible installation.
