Home / Lighting / Driving & light bars

Victron Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC chargerVictron Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC charger

Victron Energy

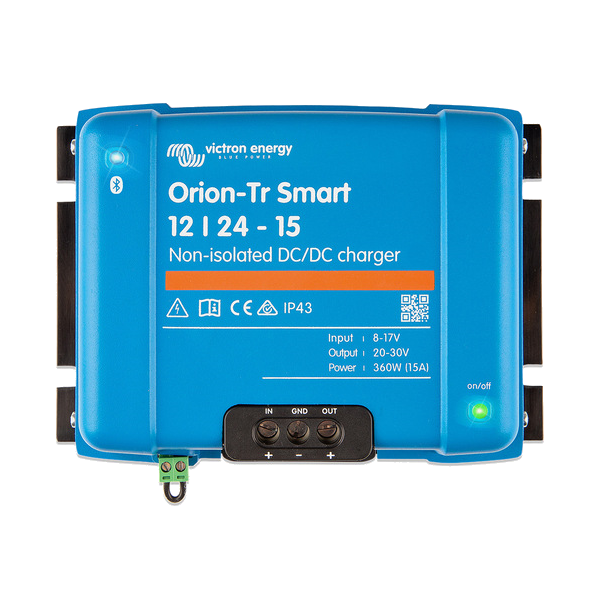

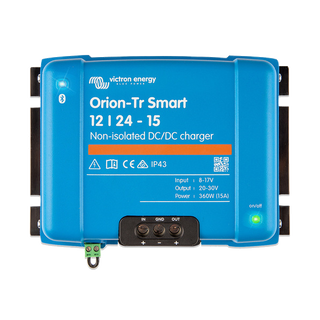

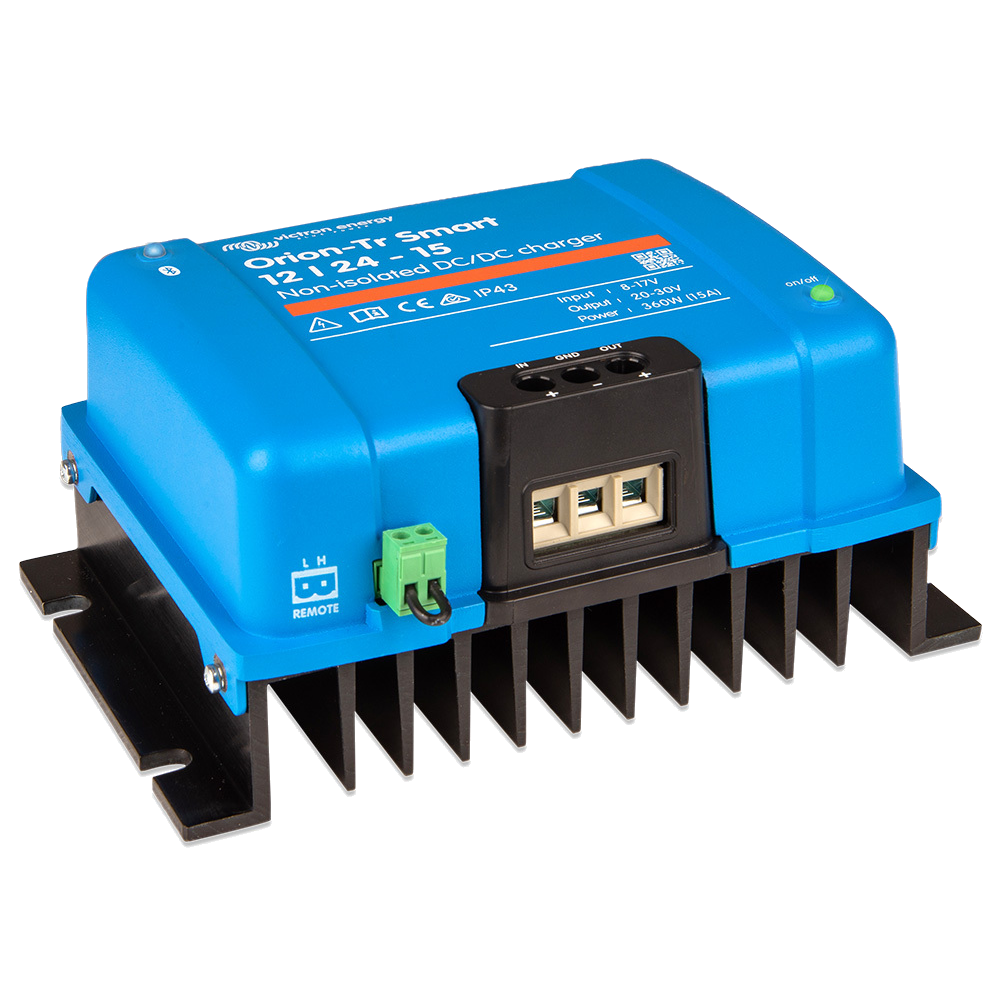

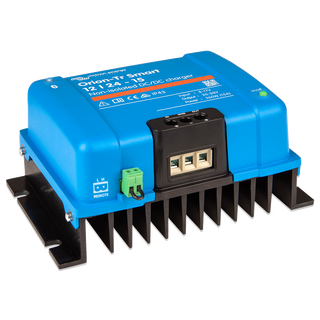

Victron Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC charger

ORI122436140

The Victron Orion-Tr Smart 12/24-15A is a compact, non-isolated DC-DC charger delivering up to 360W power with 15A output. Designed for 12V to 24V battery systems, it efficiently charges your auxiliary battery from the starter battery while protecting both. With…

$344.95

4 interest-free payments of $86.24 with
or finance your build with
Important note

The Victron Orion-Tr Smart 12/24-15A (360W) Non-Isolated DC-DC Charger is a professional-grade, adaptive 3-stage charger with built-in Bluetooth. It's designed for dual battery systems in vehicles and boats, where the alternator and start battery are used to charge the service battery. This charger is suitable for both 12V and 24V systems and supports lead-acid and lithium batteries.

We accept
Ideal for use in vehicles and boats with dual battery systems, including those equipped with smart alternators.

Shipping & collection

Worldwide shipping available*
In-store pickup
Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

The Victron Orion-Tr Smart 12/24-15A is a compact, non-isolated DC-DC charger delivering up to 360W power with 15A output. Designed for 12V to 24V battery systems, it efficiently charges your auxiliary battery from the starter battery while protecting both. With Bluetooth connectivity, it offers easy monitoring and configuration via the VictronConnect app, making it ideal for vehicles, boats, and off-grid systems.

  • Adaptive 3-stage charging
  • Built-in Bluetooth for remote monitoring and configuration
  • Compatible with smart alternators
  • Supports lead-acid and lithium batteries
  • Parallel operation for increased power output
  • Remote on/off capability
  • High-temperature operation


Input Voltage Range: 8–17V (12V systems)

Output Voltage: 24V

Continuous Output Current: 15A

Output Power: 360W

Efficiency: 88%

Operating Temperature: -20°C to +55°C (derate 3% per °C above 40°C)

Bluetooth: Built-in for monitoring and configuration

Remote On/Off: Yes

Dimensions: Refer to datasheet

Weight: Refer to datasheet



















100 x 113 x 47 mm (H x W x D)

Weight: 0.65 kg

Mounting: Surface mount with pre-drilled holes

Everything this install needs

0 of 0 in the box


Refer to the Orion-Tr Smart DC-DC Charger Non-Isolated Manual for detailed installation and wiring instructions.

Ideal for use in vehicles and boats with dual battery systems, including those equipped with smart alternators.

Q: What battery types are compatible with this charger?

A: It supports both lead-acid and lithium batteries.

Q: Can I monitor and configure the charger remotely?

A: Yes, it features built-in Bluetooth for monitoring and configuration via the VictronConnect app.

Q: Is it suitable for vehicles with smart alternators?

A: Yes, it's designed to work with smart alternators commonly found in modern vehicles.

Q: Can multiple chargers be used together?

A: Yes, multiple units can be connected in parallel to increase output power.

Q: What is the operating temperature range?

A: It operates in temperatures up to 55°C, delivering full rated output up to 40°C.
